2022 Honda CBR1000RR-R Fireblade SP: BORN TO RACE.

Introducing the 2022 Honda CBR1000RR-R Fireblade SP…

TROPHY HUNTER

The Honda Fireblade rocked the Superbike world when we introduced it 30 years ago. And now it’s time to crack open some champagne. For 2022, we’re producing a special anniversary version of the CBR1000RR-R Fireblade SP, with special graphics. But there’s way, way more than that. We’ve reshaped the engine’s intake ports for higher mixture velocity and to boost midrange performance. A new throttle-return spring increases throttle linearity. Fine tuning our HSTC calibration with data from our World Superbike racers makes it even more seamless, and we’ve also made the quick-shift mechanism even quicker, for fewer engine-speed fluctuations. Finally, the front brakes feature new piston materials and surface treatment for better braking under load. All in all, the most awe-inspiring sportbike in our lineup is even better this year. That’s something to celebrate too!

To celebrate the original, groundbreaking CBR900RR and a record of continuous challenges since the introduction of that game-changer, Honda offers a stunning 30th Anniversary version of the CBR1000RR-R Fireblade SP. For 2022, development of this model’s inline four-cylinder engine centers on mid-corner acceleration: the intake ports, airbox, airbox funnels and exhaust mid-section are all revised to deliver extra midrange power. The final-drive sprocket has gone up three teeth for stronger acceleration through each ratio, and quick-shifter performance has been upgraded. Honda Selectable Torque Control (HSTC) has also been optimized, with feedback from HRC’s riders, for refined rear-tire traction management, and throttle feel has improved even further.

Be in no doubt. The CBR1000RR-R Fireblade SP is built for the track. This is where it belongs. It starts in the same pit lane as the standard Fireblade, but full Öhlins Smart Electronic Control (S-EC) suspension, Brembo master cylinder, brake lever, front and rear calipers and standard-fit quick shifter set it apart. Armed with class-leading 160kW peak power, the semi-cam gear engine has been upgraded with low- to mid-range acceleration boost and refined HSTC traction management. And while it is fully road legal, with lights, indicators and Smart Key, the Fireblade SP defines the ultimate racing motorcycle. One ready to overload adrenaline through every turn.

The CBR1000RR-R Fireblade SP was a brand-new motorcycle in 2020, and built with an unwavering focus on circuit riding. For 2022 development of its inline four-cylinder engine, while retaining peak output of 160kW @ 14,500rpm, has centred on mid-corner acceleration and drive: intake ports, airbox, airbox funnels and exhaust mid-section have all been revised to deliver extra mid-range. The final drive sprocket goes up 3 teeth, to 43, for stronger acceleration through each ratio and quick shifter performance has been upgraded. Honda Selectable Torque Control (HSTC) has also been optimised – with feedback from HRC’s riders – for refined rear tyre traction management, and throttle feel improved even further. The rest of the chassis – comprising aluminium diamond-style frame, RC213V-S-style swingarm, six-axis Inertial Measurement Unit (IMU) and 3-level Honda Electronic Steering Damper (HESD) – is unchanged. Full, race-quality suspension is provided by Öhlins Smart Electronic Control (S-EC) and OBTi user interface, with braking front and rear by Brembo. The bodywork and riding position maintain an uncompromising focus on aerodynamic performance, and the fairing features MotoGP-derived winglets to generate downforce. A full-colour TFT screen offers intuitive control of riding modes and adjustment of Power, Engine Brake, HSTC, Wheelie Control, Start Mode and ABS modes. A Smart Key is the finishing touch.

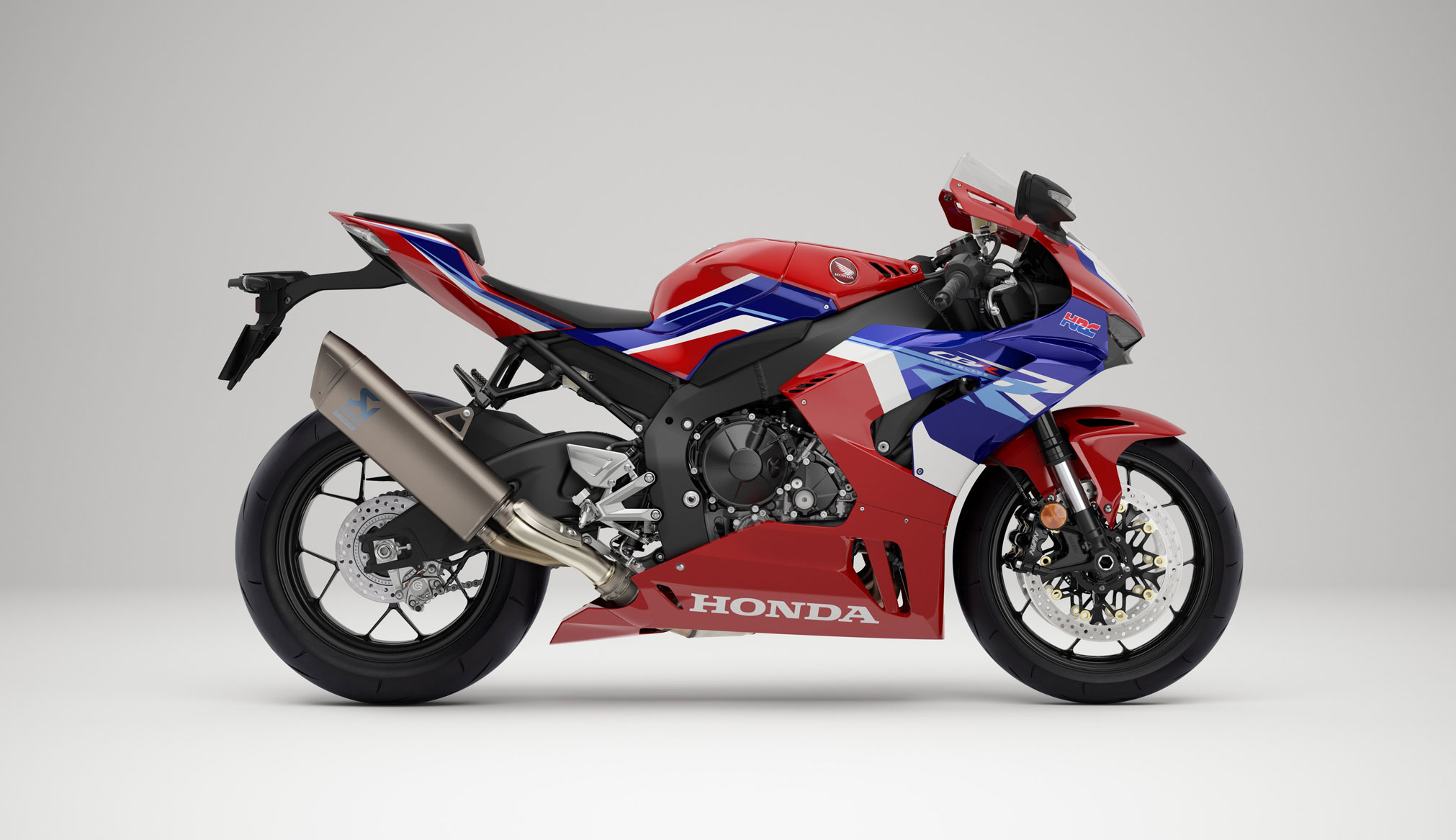

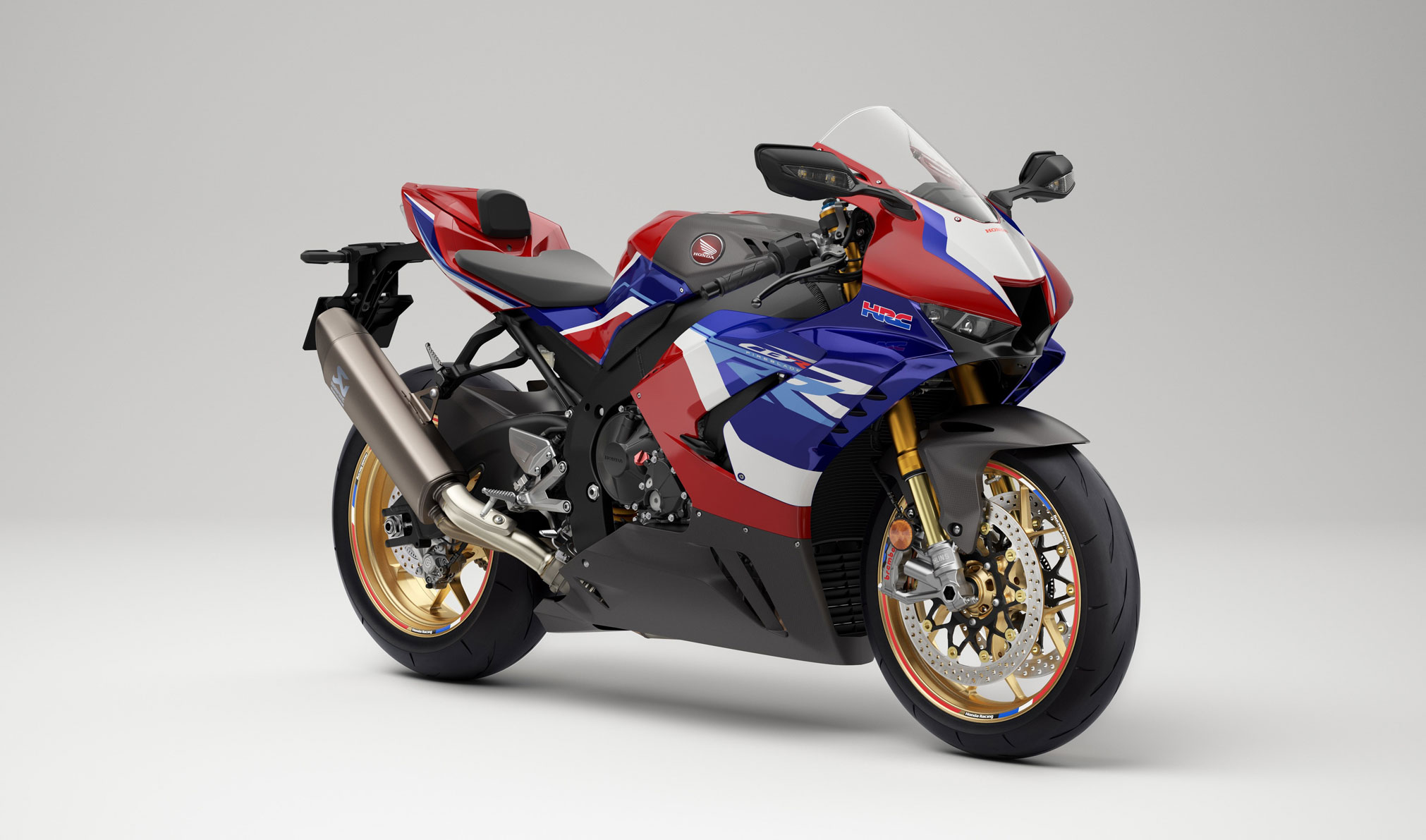

For 2022 both the existing paint options now feature gold wheels, and they are joined by one very special new choice. That is, the limited edition Fireblade SP 30Th Anniversary, which pays diligent homage to the original ’92 Fireblade, the bike that started it all 30 years ago.

Since its original 1992 introduction Honda’s iconic Fireblade has evolved into an incredible 1000cc sports motorcycle. And it’s also been the base of a competitive race machine, on short circuits around the world and the roads of the Isle of Man TT.

But time – and competition – always races on and in 2020 Honda drew the line under where the CBR1000RR Fireblade had been, and looked forward to where it was going. And, as a result, two brand-new motorcycles – the CBR1000RR-R Fireblade* and CBR1000RR-R Fireblade SP – were created with heavy involvement from Honda Racing Corporation to carry the legend forward.

Leaning heavily on the engine and chassis technology of the RC213V-S ‘street-legal MotoGP machine’, with aerodynamics drawn from the RC213V MotoGP bike, the new Fireblade was designed from the ground up – in terms of engine, handling and aerodynamics – for pure, outright track performance.

2022 is an important anniversary for Honda, and its Fireblade, as it marks 30 years of what has proved, over time, a truly seminal sports machine. A variety of detail updates improve both corner-exit acceleration, HSTC management and throttle feel and, to mark three decades of sheer, undiluted performance, the CBR1000RR-R Fireblade SP 30th Anniversary will be available for Europe in a limited edition, instantly-recognisable and evocative paint option.

The Fireblade SP’s inline four-cylinder engine delivers 112Nm @ 12,500rpm and makes peak power of 160Kw @ 14,500rpm.

Updates for 22YM centre around upping mid-corner drive and acceleration. Firstly, the rear sprocket goes from 40 to 43 teeth, improving acceleration through the gears in the mid-range while maintaining high-rpm output.

Both airbox and intake funnels have been re-shaped to smooth flow. The intake ports have been adjusted to increase airflow velocity while exhaust flow into the catalyser (and the catalyser itself) has been optimised.

Throttle By Wire (TBW) spring load has been reduced, for improved linearity and response on opening. Using extensive feedback from racers around the world – including Honda’s HRC World SBK team – Honda Selectable Torque Control (HSTC) has been refined to offer the rider the power, grip level and feel they want, and to match the increased drive.

As before, three default riding modes cover most conditions with options to fully adjust Power, Engine Brake, Wheelie Control and HSTC. The electronics package also includes adjustable Start Mode and standard-fit, newly revised, quick shifter.

The engine uses a compact, short-stroke layout – sharing the bore and stroke of the RC213V – and features a semi-cam gear train, finger-follower rocker arms, titanium con-rods, RC213V-S internal friction reduction technologies, piston jets with check ball system and a built-in bottom bypass passage for the cylinder water jacket. A ram-air duct in the front fairing feeds directly through the headstock. The 4-2-1 exhaust downpipes are ovalized and feed a titanium Akrapovič end-can.

An aluminium diamond frame uses the rear of the engine as upper shock mount while the swingarm is based on the RC213V-S design. The rigidity balance, weight distribution and steering geometry are carefully adjusted to exploit the engine’s output, in terms of front and rear grip levels, and feel for both. A six-axis Inertial Measurement Unit (IMU) provides accurate 3D estimation of riding dynamics and provides input to manage all of the electronic systems. It also controls the rod-type 3-level Honda Electronic Steering Damper (HESD).

Öhlins Smart Electronic Control (SE-C) 43mm NPX forks and TTX36 rear shock offer race-quality suspension, with settings managed by second-generation Öhlins Object Based Tuning interface (OBTi). The front discs are worked by Brembo Stylema four-piston calipers and Brembo brake lever/master cylinder, while the ABS is adjustable for track riding.

Honda’s RC213V MotoGP machine leant some of its slippery aerodynamics to the Fireblade, including winglets to increase downforce and improve braking stability. The riding position is also very compact. A fully customisable 5-inch TFT display offers intuitive control via a four-way switch on the left handlebar. Honda’s Smart Key system adds convenience.





2022 Honda CBR1000RR-R Fireblade SP Totalmotorcycle.com Key Features



• Short-stroke, inline four-cylinder engine produces high output at high rpm; 160Kw @ 14,500rpm with peak torque of 112Nm @ 12,500rpm
• New 43 tooth rear sprocket shortens overall gearing for improved drive and acceleration, opening up gear selection choice
• Intake ports re-shaped to increase flow; air intake funnels and airbox revised to match
• 4-2-1 exhaust ‘2’ mid-section and catalyser optimised for gas flow
• Honda Selectable Torque Control (HSTC) software upgraded for smoother traction management, with feedback from HRC’s riders
• Throttle By Wire return spring load lightened for more linear throttle delivery
• Quick Shifter updated for faster, smoother gear changes
• Three default riding modes plus options to customise Power, Engine Brake, HSTC and Wheelie control
• Start Mode standard fitment
• Aluminium frame and swingarm feature tuned rigidity balance for precise handling and feel for grip
• Bosch six-axis Inertial Measurement Unit (IMU) gives accurate calculation of dynamic behaviour and precise control
• Second-generation Öhlins Smart Electronic Control (S-EC) offers refined choice of settings. The Öhlins NPX fork features pressurised damping for outstanding bump absorption and feel
• Brembo Stylema radial-mount four-piston calipers managed by ABS with switchable SPORT/TRACK modes
• Showa’s 3-level Honda Electronic Steering Damper (HESD) controlled by IMU for stability management
• Fairing, screen and mudguard minimise frontal area and reduce drag; low fuel tank cover provides compact riding position
• Inner fairing winglets drawn from the RC213V MotoGP machine reduce wheelies under acceleration and improve braking stability
• 5-inch colour TFT screen and four-way left-hand switch offer intuitive control of riding systems
• Smart Key operation adds convenience

HISTORY
The CBR1000RR-R SP descends from the magnificent racing pedigree that has played a key role in the advancement of the sport bike genre. The bloodline starts with the 1959 Honda CB92 Benly Super Sport, a race-worthy performance model that competed at the highest levels on the track while being equally at home when ridden on the road, establishing a protocol that Honda sport bikes have championed ever since. The steadfast pursuit of technological improvement while competing on the World Championship stage cultivated a number of seminal models in the successive decades, including the groundbreaking 1969 CB750, which introduced the world’s first modern inline four-cylinder sport bike engine—an architecture quickly imitated by the competition.

The pace-setting development continued as the CBR family continued to shift the paradigm. In the 1990s, the CBR400RR and CBR900RR ushered in the concept of “Total Control,” an ideal blend of harmonious engine performance, light weight and nimble handling that dramatically enhances the connection between rider and machine. Introduced in 2004, the CBR1000RR has continued to refine this well-proven theory by incorporating lessons learned from Honda’s MotoGP championship-winning RC models on racing circuits around the globe. The Fireblade has continuously raised the bar in the 1000cc sport bike category.

Drawing heavily from Honda’s dominant RCV MotoGP platform, the 2021 CBR1000RR-R Fireblade SP – a brand-new motorcycle, built with an unwavering focus on circuit riding – reset it again, focusing on outright track performance. Engineers developed an engine that was more compact and benefited from the use of high-end technologies like titanium connecting rods, forged-aluminum pistons and finger-follower rocker arms.

For 2022, the CBR1000RR-R Fireblade SP celebrates 30 years since the original CBR1000RR was offered in Europe in 1992 (to be followed a year later in the U.S.). A variety of detail updates improve corner-exit acceleration, HSTC management and throttle feel.

Honda CBR1000RR-R Fireblade SP with Brembo Brakes
Brembo Front and Rear Calipers for Race Specification Braking Performance
Biting on 330mm discs the four-piston, radial-mount Stylema calipers deliver massive stopping power. They’re operated by a Brembo brake lever/master cylinder and matched with a Brembo rear caliper.

Honda CBR1000RR-R Fireblade SP with High-Efficiency Akrapovic Titanium Muffler and New Exhaust Design
Lightweight High-Efficiency Akrapovic Titanium Muffler and New Exhaust Design
Redesigned in the mid-section, the 4-2-1 exhaust system employs oval-section downpipes for maximum gas flow and power. It feeds a compact titanium Akrapovic muffler which equally offers free-flowing output efficiency.

Honda CBR1000RR-R Fireblade SP with Faster Quick Shifter
Faster Quick Shifter Ensures Smooth, Instant Gear Changes
The standard-fit quick shifter is now quicker. It’s been through development for a shorter fuel cut time while shifting, and smoother torque pickup after shifting. All of which means more speed gained with every gear change.

Honda CBR1000RR-R Fireblade SP with high RPM
High-RPM DOHC Inline Four-Cylinder Engine with Low- to Mid-Range Performance Boost
Updates to the 1000cc engine’s inlet ports, airbox, 4-2-1 exhaust and gearing improve low- to mid-range acceleration. There’s still huge peak power on tap for your throttle hand to exploit – 160kW @ 14,500rpm. New HSTC software offers refined reaction and finer feel for traction.

Honda CBR1000RR-R Fireblade SP with HRC Ram-Air Duct
HRC Ram-Air Duct Generates Power, Winglet Structures High-Speed Stability
Aerodynamics from the RC213V MotoGP race bike include vertical winglet structures that maximise acceleration and high-speed braking stability. An HRC-designed ram-air duct feeds high-pressure air directly through the headstock for ultimate peak power.

Honda CBR1000RR-R Fireblade SP with Öhlins Smart Electronic Control
Öhlins Smart Electronic Control (S-EC) Delivers Ultimate Suspension Reaction
Semi-active Öhlins S-EC offers incredible suspension reaction. The 43mm NPX USD fork uses pressurised damping to minimise cavitation for more stable control, improved high-speed bump absorption, and feedback.

Honda CBR1000RR-R Fireblade SP with Brembo Brakes
Brembo Front and Rear Calipers for Race Specification Braking Performance
Biting on 330mm discs the four-piston, radial-mount Stylema calipers deliver massive stopping power. They’re operated by a Brembo brake lever/master cylinder and matched with a Brembo rear caliper.

Honda CBR1000RR-R Fireblade SP with High-Efficiency Akrapovic Titanium Muffler and New Exhaust Design
Lightweight High-Efficiency Akrapovic Titanium Muffler and New Exhaust Design
Redesigned in the mid-section, the 4-2-1 exhaust system employs oval-section downpipes for maximum gas flow and power. It feeds a compact titanium Akrapovic muffler which equally offers free-flowing output efficiency.

Honda CBR1000RR-R Fireblade SP with Faster Quick Shifter
Faster Quick Shifter Ensures Smooth, Instant Gear Changes
The standard-fit quick shifter is now quicker. It’s been through development for a shorter fuel cut time while shifting, and smoother torque pickup after shifting. All of which means more speed gained with every gear change.

Honda CBR1000RR-R Fireblade SP with high RPM
High-RPM DOHC Inline Four-Cylinder Engine with Low- to Mid-Range Performance Boost
Updates to the 1000cc engine’s inlet ports, airbox, 4-2-1 exhaust and gearing improve low- to mid-range acceleration. There’s still huge peak power on tap for your throttle hand to exploit – 160kW @ 14,500rpm. New HSTC software offers refined reaction and finer feel for traction.

Honda CBR1000RR-R Fireblade SP with HRC Ram-Air Duct
HRC Ram-Air Duct Generates Power, Winglet Structures High-Speed Stability
Aerodynamics from the RC213V MotoGP race bike include vertical winglet structures that maximise acceleration and high-speed braking stability. An HRC-designed ram-air duct feeds high-pressure air directly through the headstock for ultimate peak power.

Honda CBR1000RR-R Fireblade SP with Öhlins Smart Electronic Control
Öhlins Smart Electronic Control (S-EC) Delivers Ultimate Suspension Reaction
Semi-active Öhlins S-EC offers incredible suspension reaction. The 43mm NPX USD fork uses pressurised damping to minimise cavitation for more stable control, improved high-speed bump absorption, and feedback.

CHASING PERFECTION
The perfect lap. That’s the impossible goal. And there are two involved in this pursuit; you and your bike. You’ve done the practice, clipped every apex and linked up corners. You’re at home on this track. So is your Fireblade SP. The engine’s delivering the performance you need, where you need it, while the chassis and electronics are generating huge grip. The speed and the handling confidence the aerodynamics deliver is incredible. You and your bike, as one. It’s where you both belong.

More low- and Mid-Range For Harder Corner Exit Acceleration
Producing 160kW at a stunning 14,500rpm the inline four-cylinder, semi-cam gear train engine shares the same bore and stroke, and friction-reducing technology as the RC213V race bike – with titanium con-rods, as well as forged aluminium pistons. New updates include a 43-tooth rear sprocket and optimisation of airbox funnels, inlet ports and 4-2-1 exhaust. So alongside the huge, high-rpm peak power, you now have a whole lot more low- and mid-range acceleration to drive even harder out of corners. An updated quick shifter delivers smoother, faster gear changes for even quicker lap times.

Helping You Go Faster Is What the Fireblade SP Does
You can manage every detail of your Fireblade SP’s engine performance. Three default riding modes offer base settings to work from, and via the 5-inch TFT screen, you can customise engine power, engine braking and wheelie control. To help you punch out of turns harder, we’ve used feedback from our HRC racers to update the 9-level Honda Selectable Torque Control. It’s smoother, more responsive to throttle input and makes good use of the engine’s extra low- and mid-range acceleration. To match, we’ve reduced the Throttle By Wire (TBW) return spring load to give even more linearity as you wind on the gas.

OBTi Management For the Perfect Setup
Using separated compression, rebound circuits and stepper motors to adjust damping, the Semi-active Öhlins S-EC 43mm NPX USD forks have been developed for racing use to offer precise front tyre feedback and grip. The result? Huge confidence to go for a faster lap time. The race-quality front end is matched by an Öhlins TT36 S-EC rear shock. To provide maximum control – and because conditions change very quickly on track – you can work from default Öhlins Objective Tuning Base interface (OBTi) setting with 3, instantly selectable pre-set modes to completely change your set-up allowing for reduced fuel load, tyre wear, or track conditions.

With Two-Mode ABS Control
Rigid, Brembo Stylema monobloc four-piston radial-mount brake calipers use less internal fluid volume for more immediate reaction. Operated by Brembo brake lever and master cylinder, they ensure massive, braking power. The rear Brembo brake caliper is the same design used by the RC213V. Two ABS modes give you choice of performance: SPORTS is biased toward road riding, while TRACK ups braking force for much higher track speeds. Brake force is also managed relative to lean angle while Rear Lift Control maintains forward-pitch stability – so you can concentrate on getting in, and out, of a corner faster.







2022 Honda CBR1000RR-R Fireblade SP Totalmotorcycle.com Features and Benefits

ENGINE / DRIVETRAIN
The Fireblade SP’s 1000cc, inline four-cylinder semi-cam gear engine was designed with heavy input from the HRC MotoGP development program, to generate class-leading performance. To achieve the required valve size, combustion efficiency and friction reduction to generate these numbers, the engine shares the same “over square” 81 mm bore and 48.5 mm stroke as the RC213V. The compression ratio has increased from 13.2:1 to 13.4:1.

Friction is reduced by the use of Diamond Like Carbon (DLC) on the cam lobes. The 2020 model year marked the first time this process was used on a mass-produced motorcycle, and it delivers a 35% reduction in valvetrain frictional loss compared to non DLC-coated lobes.

To minimize width, the engine is started by rotation of the clutch main shaft rather than the crankshaft, allowing for a more-compact crankshaft. In order to save space, the primary driven gear (which has fewer teeth) is also used to transmit rotation from the starter motor. The engine is short in length, with a shorter distance between the crankshaft, countershaft and main shafts. The rear of the engine block also serves as the upper shock mount.

Air Management
Air is fed into the engine via a ram-air duct located at the high-surface-pressure tip of the front fairing; the size of its aperture is equivalent to that of the RC213V MotoGP machine. A ribbed “turbulator” to the right, left and above the duct entrance ensures maximum induction of moving air, with minimal impact on handling. The draft angle of the aperture’s interior wall maintains flow under high speed and acceleration.

To maintain stable performance across a wide speed range, pressurized air takes a straight shot through the head pipe, around the steering stem and into the airbox. This smooth path is made possible by Honda’s Smart Key system and a steering angle of 25°. To draw the volume of air needed, the throttle bodies have 52 mm diameters.

New for 2022, for smoother airflow on an opening throttle, the “dirty” side of the air filter has been adjusted to control the direction of intake-air separation and vortex generation. On the “clean” side, filtered air now feeds slash-cut intake funnels, with number 2 and number 3 shortened by 15 mm. To match, the inner diameter of the intake ports has been partially narrowed, increasing airflow velocity and improving filling efficiency – resulting in better midrange performance. With the same aim of improved acceleration through the midrange, while maintaining high-rpm output, the rear sprocket size has been increased from 40 to 43 teeth.

The diameters of the inlet and exhaust valves are 32.5 mm and 28.5 mm, respectively, and they’re operated by finger-follower rocker arms. The valve angle on the intake side is 9°, reducing the surface area of the combustion chamber and improving combustion efficiency.

Exhaust
Mirroring the intake side, the four exhaust downpipes have oval cross sections. For 2022, the 4-2-1 exhaust now features a redesigned “2” section, feeding the catalyzer for optimized gas flow.

Constructed from titanium, the Akrapovic muffler has a small physical size and low weight, contributing to mass centralization and right-side lean angle. The exhaust valve was also designed with Akrapovic to deliver both low-rpm torque and high-rpm power; a valve stopper (patent-pending) stops exhaust-gas leak when closed, while also reducing noise.

Valvetrain
The valvetrain is driven by a semi-cam gear train system. To drive such high-rpm/high-cam-lift performance, the chain is driven from the timing gear located on the crankshaft via the cam idle gear, allowing for a shorter length.

Forged, lightweight TI-64A titanium (a material developed by Honda) connecting rods and connecting-rod caps save 50% in weight compared to Chromium Molybdenum steel versions; they also employ HB 149 Chromium Molybdenum Vanadium (Cr-Mo-V, again a Honda development) steel bolts and do without fastening nuts.

To maximize durability, the same configuration as the RC213V-S is applied to the sliding surfaces; the small-end bushings are made of shaved C1720-HT Beryllium copper (because of its high-rpm reliability), while the surfaces of the big-ends are treated with DLC.

The pistons are forged from A2618 aluminum for lightweight strength and durability. To guarantee high-rpm wear resistance, the piston skirts feature an Ober coating (Teflon and Molybdenum base) and nickel-phosphorous plating for the piston-pin clip-groove.

To manage temperature, the pistons use a multi-point piston jet that sprays cooling oil in multiple directions through each cycle. At low rpm (i.e., when they’re not needed), check balls within the jets shut off the flow of oil in order to limit oil-pressure loss and reduce friction.

To reduce bore distortion (and thus friction), the cylinder features a built-in bottom bypass. This system circulates cool water from the radiator into the main water jacket, while the area below uses non-cooled water. The net effect is a lower, more-even temperature at all points across the bores.

ELECTRONIC TECHNOLOGY
The 2017 CBR1000RR was the first inline four-cylinder engine from Honda to use Throttle by Wire (TBW), controlling the throttle butterfly valve angle (relative to input from the throttle) to provide a linear delivery and to put precise throttle control – and a natural feel – in the rider’s right hand. For 2022, the TBW return spring load has been reduced to match the increased drive, further enhancing the response and linearity of throttle input.

The 9-level (plus off) Honda Selectable Torque Control (HSTC) has also been upgraded. In 2020, the CBR1000RR’s HSTC gained slip-rate control (which monitors the rate at which slip is changing based on the ratio of front/rear wheel speeds) to smoothly moderate rapid wheel spin. For 2022, the gap between the intervention timing and slip rate has been changed for much smoother, intuitive grip management, with software developed with wide-ranging, top-level feedback from around the world, including HRC’s riders.

There are three default riding modes, with options to change engine output and character. Power (P) operates through levels 1-5, with 1 giving ultimate outright power. Engine Brake (EB) manages performance on a closed throttle through levels 1-3, with 1 being the strongest engine braking; Wheelie (W) manages through levels 1-3 (plus off), with 1 giving the weakest intervention.

Wheelie Control uses information gathered by the IMU on the bike’s pitch angle, along with front and rear wheel-speed sensors to maintain torque and deal with the wheelie without sacrificing forward drive.

The Fireblade SP is also equipped with Start Mode for race starts. It limits engine rpm at 6,000, 7,000, 8,000 and 9,000 rpm set points (even with a wide-open throttle), letting the rider focus on clutch release. The standard-fit quick shifter operates on upshifts and downshifts and is also now quicker, developed for a shorter fuel-cut time during shifting, and for smoother torque pickup after shifting.

CHASSIS
A Bosch six-axis Inertial Measurement Unit (IMU) delivers accurate calculation of pitch and roll for precise control of the bike’s behavior. The Fireblade SP is also equipped with Showa’s Honda Electronic Steering Damper (HESD), which has a lightweight, through-rod design and mounts on the bottom of the steering stem, attaching to the bottom triple clamp. HESD is controlled by input from the wheel-speed sensors and IMU; three levels of control are available.

Frame
The diamond-style main frame is constructed from 2 mm aluminum, with an extremely accurate tuning of the rigidity balance; after the four main frame components are welded, the engine mounts in six locations, improving machine handling. Vertical and torsional rigidity are carefully balanced against each other, with the aim of producing maximum levels of feel.

Round, thin-wall aluminum tubing forms the minimal subframe, which mounts to the frame from the top to narrow the area around the seat and rear of the fuel tank, making for a compact, aerodynamically efficient riding position. The seat height is 32.7 inches, with forward-set handlebars for leverage, and raised, rear-set foot pegs.

Wheelbase is 57.4 inches, with rake and trail of 24°/102 mm (4.0 inches). Curb weight is 445 pounds with all required fluids and a full tank of fuel. Weight distribution is 53%/47%, and a high center of gravity improves side-to-side agility.

Swingarm
The swingarm is constructed from 18 individual thicknesses of aluminum and is 24.5 inches long. Like the main frame, its horizontal and vertical rigidity are tuned together to generate grip and feel.

Suspension
For optimum frame rigidity (and to save weight), the top mount of the Pro-Link shock absorber attaches to the rear of the engine block via a bracket. This also isolates the rear wheel from the head pipe, improving high-speed stability and feel for rear-wheel traction.

The Fireblade SP has semi-active Öhlins Electronic Control (S-EC) suspension. The 43 mm NPX fork uses a pressurized damping system to minimize cavitation, resulting in more-stable damping control and improved bump absorption at racetrack speeds, as well as enhanced front-tire grip. The fork’s length also offers greater freedom for geometry changes. The shock is a TTX36 unit.

In conjunction with the hardware, Öhlins Objective Based Tuning interface (OBTi)
offers much finer suspension adjustment front and rear; both ends can be set independently from the default settings, and three individual modes can be selected from and stored, allowing the rider to configure multiple settings for conditions (i.e., weather, tire wear or fuel load). These settings can be switched instantly while riding.

Brakes / Wheels
Brembo Stylema four-piston, radial-mount brake calipers are operated by a Brembo master cylinder and brake lever. They grip 330 mm diameter/5 mm thick discs that dissipate heat efficiently.

Boosting rider confidence on turn-in, rear lift control and ABS manage brake force relative to lean angle. The system features two switchable setups; Sport mode focuses on road-riding performance, with high brake force and less pitching, while Track mode offers performance when braking at much higher circuit speeds.

A 200/55-ZR17 rear tire is mounted to the 17-inch rim, minimizing the change in chassis geometry when switching from street to track rubber. The front tire is a 120/70-ZR17, and both wheels now feature a striking gold finish.

DESIGN / STYLING
To celebrate the original, groundbreaking Fireblade, the 2022 CBR1000RR-R Fireblade SP features a paint scheme designed by Mr. Hiroaki Tsukui, who was also responsible for the original 1992 color design. It’s instantly recognizable, and all the details are present and correct, with an ultra-modern stripe layout merged with “brushstroke” style elements that pay clear homage to the seminal original. The blue rear seat continues the theme.

On start-up, a “Ring of Fire” screen animation shows as the display loads. The unique serial number for each bike is laser-engraved on the top triple clamp, and 30th Anniversary logos – on the fuel-tank cover, the Smart Key fob, and laser-engraved on the Akrapovic muffler – place a subtle extra-special stamp, marking the CBR1000RR-R Fireblade SP’s own place in Honda history.

Fairings
The aggressive fairing design is no mere styling exercise: it’s designed to create a class-leading drag coefficient (with a tucked-in rider under track conditions), and to restrict lift under acceleration while improving braking stability.

The fuel-tank cover is low, decreasing the frontal area with the rider prone. With a 35° angle, the screen smoothly channels airflow from the upper fairing over the rider and seat cowl, which itself presents the minimum possible drag resistance. The left and right upper fairing slits reduce yaw and roll resistance while turning.

To make steering easier, a convex surface on each side of the front fender moves airflow away from the front wheel, smoothly directing it to the fairing sides. Cooling air for radiator and oil cooler is optimized by aerodynamic management of both velocity and pressure of air flowing from the tire.

The lower fairing extends close to the rear tire and is shaped to channel air downward. This has two effects: in dry conditions, less air hits the tire, lowering drag; in the wet, less water hits the tire, improving grip. To let air flow around the rider’s feet with minimum resistance, the sides of the rear hugger are carefully shaped, while its upper side is cut out to vent air that channels up from underneath either side of the swingarm, decreasing rear lift.

The net result, with the Fireblade SP in stock race trim, is a best-in-class drag coefficient value of 0.270.

Winglets
To generate downforce at track speeds – and maintain the smallest possible frontal area – the fairing also employs winglet structures that effectively generate the same downforce as the 2018 RC213V MotoGP machine, resulting in reduced wheelies under acceleration, and in increased stability on braking and corner entry.

Three wings are arranged in a vertical line inside both left and right fairing ducts. This arrangement (vertically deep and longitudinally shallow) has no detrimental effect on yaw and roll ability during corner entry, and the consistent distance between the trailing wing tips and the inner fairing wall limits separation of the airflow, producing maximum downforce.

The wing angle balances opposing right/left downforces from the dihedral and twist angles when yaw occurs through a corner, for stable behavior. Flow speeds over the top and below the wings differ to prevent air getting “trapped” on the fairing sides and affecting handling.

Dash
A high resolution, full-color 5-inch TFT screen provides full and intuitive control of the Fireblade SP’s systems. The screen is fully customizable to show exactly what the rider wants to see. The compact left-hand switchgear houses an easy-to-use four-way switch; the top/bottom buttons set riding-mode parameters, while the left/right buttons cycle screen-display information.

Honda’s Smart Key System operates the ignition and handlebar lock without having to be inserted. This is convenient in day-to-day use and allows for a competition-style top triple clamp, with optimum space for the ram air system.

One-year, transferable, unlimited-mileage limited warranty; extended coverage available with Honda Protection Plan.

  • Meets current EPA and CARB standards



Europe Features

Engine

The Fireblade’ SPs 1000cc, inline four-cylinder semi-cam gear engine was designed with heavy input from the HRC MotoGP development program. It generates peak power of 160Kw @ 14,500rpm, with peak torque of 112Nm @ 12,500rpm. To achieve the required valve size, combustion efficiency and friction reduction to generate these numbers, the Fireblade’s engine shares the same ‘over square’ 81mm bore and 48.5mm stroke as the RC213V. Compression ratio has increased from 13.2:1 to 13.4:1.

Air is fed into the engine via a ram-air duct located at the high-surface pressure tip of the front fairing; the size of its aperture is equivalent to that of the RC213V MotoGP machine. A ribbed ‘turbulator’ to the right, left and above the duct entrance ensures maximum induction of moving air with minimal impact on handling. The draft angle of the aperture’s interior wall maintains flow under high-speed and acceleration.

To maintain stable performance across a wide speed range, pressurised air takes a straight shot through the headstock, around the steering stem and into the airbox. This smooth path is made possible by Honda’s Smart Key system and steering angle of 25°. To draw the volume of air needed the throttle bodies employ 52mm diameters.

New for 22YM, for smoother airflow on an opening throttle, the ‘dirty’ side of the air filter has been adjusted to control the direction of intake air separation and vortex generation. On the ‘clean’ side, filtered air now feeds slash-cut intake funnels, with #2 and #3 shortened by 15mm. Also, and to match, the inner diameter of the intake ports has been partially narrowed to increase airflow velocity, improving filling efficiency thus performance through the mid-range. Supplementing this change, with the same aim of improved acceleration through the gears in the mid-range, while maintaining high-rpm output, the rear sprocket goes from 40 to 43 teeth.

Mirroring the intake side, the four exhaust downpipes use an oval cross section. For 22YM, the 4-2-1 exhaust now features a redesigned ‘2’ section, feeding the catalyser (and the catalyser itself), for optimised gas flow.

Constructed from titanium, the Akrapovič-design muffler’s small physical size and light weight contribute to mass centralisation and right-side lean angle. The exhaust valve was also designed with Akrapovič to deliver both low-rpm torque and high-rpm power; a valve stopper (patent-pending) stops exhaust-gas leak when closed while also reducing noise.

The inlet valves are 32.5mm diameter, with 28.5mm exhaust; they’re operated by finger-follower rocker arms; valve angle on the intake side is 9°, reducing the surface area of the combustion chamber and improving combustion efficiency.

MotoGP technology is everywhere internally. Friction is reduced by the use of Diamond Like Carbon (DLC) on the cam lobes – just like the RC213V-S. 20YM marked the first time this process was used on a mass-produced motorcycle and sees a reduction in valve train frictional loss of 35% compared to non DLC-coated lobes.

The valve train is driven by a semi-cam gear train system. To drive such high-rpm/high-cam lift performance the chain is driven from the timing gear located on the crank shaft via the cam idle gear; this makes it shorter in length.

Forged, lightweight TI-64A Titanium (a material developed by Honda) con-rods and con-rod caps save 50% in weight compared to Chromium Molybdenum steel versions; they also employ HB 149 Chromium Molybdenum Vanadium (Cr-Mo-V, again a Honda development) steel bolts and do without fastening nuts.

To ensure durability the same configuration as the RC213V-S is applied to the sliding surfaces; the small-end bushings are made of shaved C1720-HT Beryllium copper (because of its high-rpm reliability) while the surfaces of the big-ends are treated with DLC.
The pistons are forged from A2618 aluminium (like the RC213V-S) for lightweight strength and durability. To guarantee high-rpm wear resistance the piston skirts feature an Ober coating (Teflon and Molybdenum base) and nickel-phosphorous plating for the piston-pin clip-groove.

To manage temperature the pistons use a multi-point piston jet which sprays cooling oil in multiple directions through each cycle. At low rpm – when not needed – check balls within the jets shut off the flow of oil in order to limit oil pressure loss and reduce friction.

To reduce bore distortion (and thus friction), the cylinder features a built-in bottom bypass. This system circulates cool water from the radiator into the main water jacket, while the area below uses non-cooled water. The net effect is a lower, and more even, temperature at all points across the bores.

Minimising width the engine is started by rotation of the clutch main shaft rather than the crankshaft. This design for a more compact crankshaft while double use of the primary driven gear (which itself has fewer teeth) to also transmit rotation from the starter motor saves space; the engine is short in length thanks to reduction in distance between the crankshaft, counter shaft and main shafts. The rear of the engine block also serves as upper shock mount.

Engine Electronics

The 17YM CBR1000RR was the first in-line four-cylinder engine from Honda to use Throttle by Wire (TBW). Derived and developed from the system used by the RC213V-S, it controls the throttle butterfly valve angle (relative to input from the throttle) to provide a linear delivery and puts precise throttle control – and a natural feel – in the rider’s right hand.

It’s a critical area and for 22YM, to match the increased drive, the TBW return spring load has been reduced, further enhancing the response and linearity of throttle input.

In conjunction the 9-level (plus off) Honda Selectable Torque Control (HSTC) has also been upgraded. For 20YM The CBR1000RR-R Fireblade HSTC gained slip rate control (which monitors the rate at which slip is changing based on the ratio of front/rear wheel speeds) to smoothly moderate rapid wheel spin. For 22YM the gap between the intervention timing and slip rate has been changed for much smoother, intuitive grip management, with software developed with wide-ranging, top-level feedback from around the world, including HRC’s riders.

There are three default riding modes, with options to change engine output and character. Power (P) operates through levels 1-5 with 1 giving ultimate outright power. Engine Brake (EB) manages performance on a closed throttle through levels 1-3, with 1 being the strongest engine braking; Wheelie (W) manages through levels 1-3 (plus off) with 1 giving the weakest intervention.

Wheelie Control uses information gathered by the IMU on the Fireblade SP’s pitch angle, along with front and rear wheel speed sensors to maintain torque and deal with the wheelie without sacrificing forward drive.

The Fireblade SP is also equipped with Start Mode for race starts. It limits engine rpm at 6,000, 7,000, 8,000 and 9,000rpm set-points, even with a wide-open throttle, letting the rider focus on clutch release (and lights) alone. The standard-fit quick shifter is also now quicker. It’s been through development for a shorter fuel cut time while shifting and smoother torque pickup after shifting.



Chassis

The diamond-style main frame is constructed from 2mm aluminium with an extremely accurate tuning of the rigidity balance; in manufacture, after the four main frame components are welded, the engine mounts in six locations improving machine handling. Vertical and torsional rigidity are carefully balanced against each other, with the aim of producing maximum levels of feel.

Wheelbase is set at 1,460mm, with rake and trail of 24°/102mm. Wet weight is 201kg. Weight distribution is set at 53%/47% while a high c-of-g improves side-to-side agility.

The swingarm – constructed from 18 individual thicknesses of aluminium and as used by the RC213V-S – is 622.7mm long. Like the main frame its horizontal and vertical rigidity are tuned together to generate grip and feel.

For optimum frame rigidity (and to save weight) the top mount of the Pro-Link rear shock attaches to the rear of the engine block via a bracket. This also isolates the rear wheel from the headstock, improving high-speed stability and feel for rear wheel traction.

Round, thin-wall aluminium tubing forms the minimal subframe. It also mounts to the frame from the top to narrow the area around the rear of the fuel tank and seat, making for a compact – and aerodynamically efficient – riding position. Seat height is 830mm, with forward-set handlebars (for leverage) and raised, rear-set foot pegs.

A Bosch six-axis Inertial Measurement Unit (IMU) delivers accurate calculation of pitch and roll for precise control of the bike’s behaviour. The Fireblade SP is also equipped with Showa’s Honda Electronic Steering Damper (HESD), a lightweight, through-rod design that mounts on the bottom of the steering stem and attaches to the bottom yoke. HESD is controlled by input from the wheel speed sensors and IMU; 3 levels of control are available.

Semi-active Öhlins Electronic Control (S-EC) suspends the Fireblade SP. The 43mm NPX fork uses a pressurised damping system to minimise cavitation, resulting in more stable damping control and improved bump absorption at race-track speeds. Feel for front tyre grip is also enhanced. Its length also offers greater freedom for geometry changes. The shock is a TTX36 unit.

In conjunction with the hardware Öhlins Objective Based Tuning interface (OBTi)
offers much finer suspension adjustment front and rear; both can be set independently from the default settings and 3 individual modes can be set and stored allowing the rider to configure multiple settings for conditions such as, weather, tyre wear or fuel load and switch instantly while riding.

Brembo Stylema four-piston radial mount brake calipers are operated by Brembo master cylinder and brake lever. They grip 330mm diameter/5mm thick diameter discs that dissipate heat efficiently. The rear brake caliper is the same Brembo unit used by the RC213V-S.

Rear lift control and ABS-managed brake force relative to lean angle boost confidence on turn-in. The system feature two switchable set ups; SPORT mode focuses on road-riding performance, with high brake force and less pitching, while TRACK mode offers performance in braking from much higher circuit speeds.

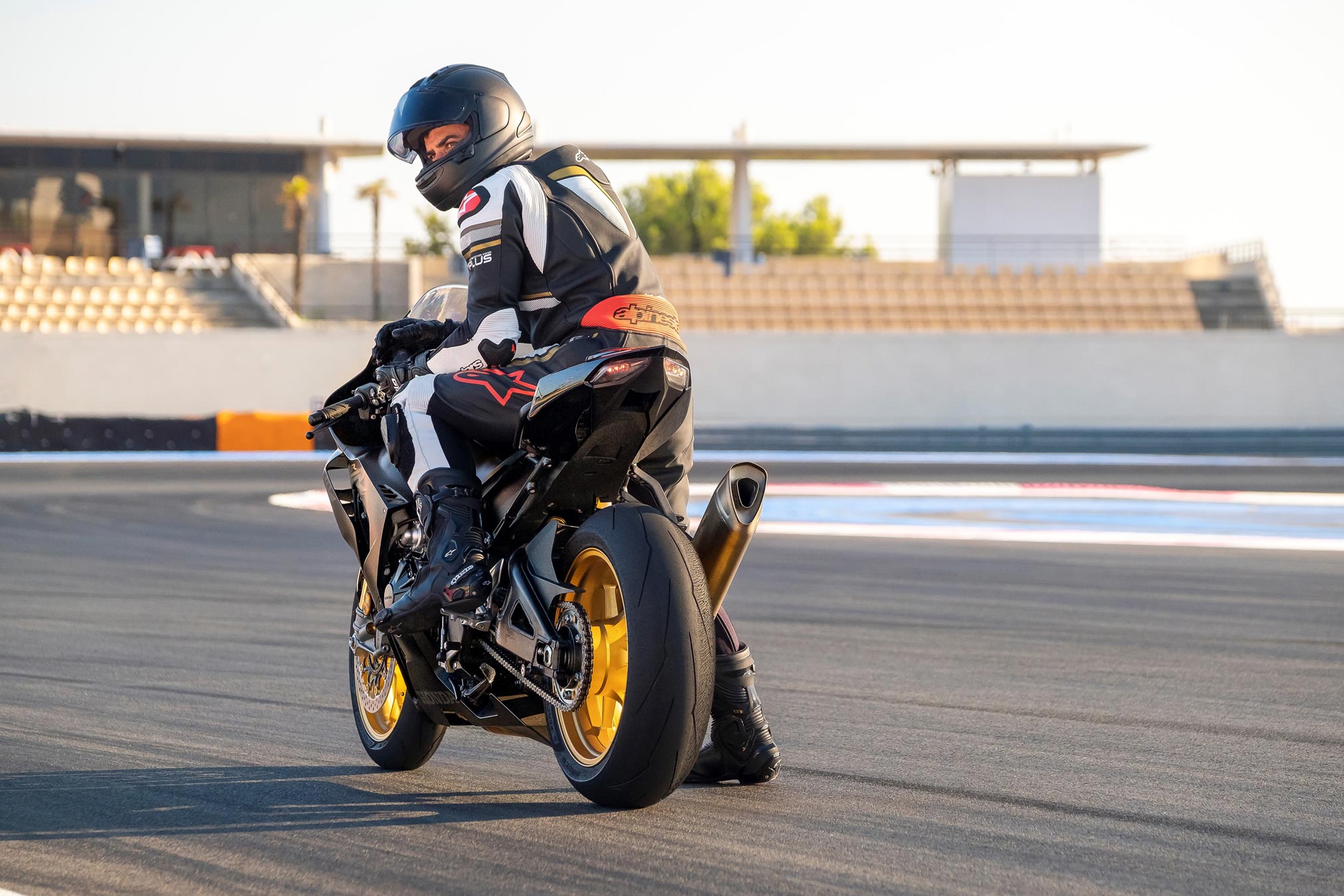

The rear 17-inch rim mounts a 200/55-ZR17 sized tyre, minimising the change in chassis geometry when going from street to track rubber. The front rim mounts a 120/70-ZR17 tyre; both wheels now feature a striking gold finish for 2022, visually setting the Fireblade SP apart from the standard Fireblade.



Aerodynamic Package & Equipment

An aggressive fairing design is no mere styling exercise: it’s designed to create a class-leading drag coefficient (with a tucked-in rider under track conditions) and restrict lift under acceleration while improving braking stability.

The fuel tank cover is set low, decreasing the frontal area with the rider prone. At a 35° angle the screen smoothly channels airflow from the upper fairing over the rider and seat cowl, which itself presents the minimum possible drag resistance. The left and right upper fairing slits reduce yaw and roll resistance while turning.

To make steering easier a convex surface on each side of the front mudguard moves air flow away from the front wheel, smoothly directing it to the fairing sides. Cooling air for radiator and oil cooler is optimised by aerodynamic management of both velocity and pressure of air flowing from the tyre.

The lower fairing extends close to the rear tyre, and is shaped to channel air downward. This has two effects: in dry conditions, less air hits the tyre, lowering drag; in the wet, less water hits the tyre, improving grip. To let air flow around the rider’s feet with minimum resistance the sides of the rear hugger are carefully shaped ,while its upper side is cut-out to vent air that channels up from underneath either side of the swingarm, decreasing rear lift.

The net result, with the Fireblade SP in stock race trim, is a best-in-class drag coefficient value of 0.270.

To generate downforce at track speeds – and maintain the smallest possible frontal area – the fairing also employs winglet structures that effectively generate the same downforce as the 2018 RC213V MotoGP machine. The results are a reduction in wheelies under acceleration and increased stability on braking and corner entry.

Three wings are arranged in a vertical line inside both left and right fairing ducts. This arrangement (vertically deep and longitudinally shallow) has no detrimental effect on yaw and roll ability during corner entry. And the consistent distance between the trailing wing tips and the inner fairing wall limits separation of the airflow, producing maximum downforce.

The wing angle balances opposing right/left downforces from the dihedral and twist angles when yaw occurs through a corner, for stable behaviour. Flow speeds over the top and below the wings differ to prevent air getting ‘trapped’ on the fairing sides and affecting handling.

For full and intuitive control of the Fireblade’s systems there’s a high resolution, full colour 5-inch TFT screen. It’s fully customisable to show exactly what the rider wants to see. The compact left hand switchgear houses a four-way switch; fast and easy to use, the top/bottom buttons set riding mode parameters, while the left/right buttons cycle screen display information.

Honda’s Smart Key System operates the ignition without having to insert a key, and the handlebar lock. This is both convenient in day-to-day use and allows use of a competition-style top yoke, with optimum space for the ram air system.



Accessories

A range of Honda Genuine Accessories are available for the 22YM CBR1000RR-R Fireblade SP both individually or as part of either the ‘Carbon’, ‘Racing’ and ‘Long Distance’ accessory packs.

  • Carbon airbox cover
  • Carbon under cowl
  • Carbon front mudguard
  • Carbon rear hugger
  • Colour matched rear seat cowl
  • Frame sliders
  • Rear sprocket cover
  • High screen (smoked and clear)
  • Tank pad
  • Alcantara seat
  • HRC oil filler cap
  • Wheel stickers
  • USB power socket
  • 7L Tank bag
  • Expandable 15-22L rear seat bag
  • Inside and outside motorcycle covers









2022 Honda CBR1000RR-R Fireblade SP – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $28900 USD
Canada MSRP Price: $ 35999 CDN
Europe/UK MSRP Price: £ See Dealer GBP (On The Road inc 20% Vat)
Model

CBR1000RR-R Fireblade SP

ENGINE


Type 999 cc liquid-cooled 32º in-line-four-cylinder four-stroke
Valve Train DOHC; 4 valves per cylinder
Bore x Stroke 81.0 mm x 48.5 mm
Compression Ratio 13.4:1
Induction PGM-FI; 52 mm throttle bodies
Ignition Digital transistorized w/ electronic advance
Starter Electric
Transmission Manual 6 speed
Clutch Multiplate wet
Final Drive 16T/43T; #525 chain

SUSPENSION


Front Öhlins NPX 43 mm telescopic fork w/ Electronic Control (S-EC); 4.9 in. travel
Rear Pro-Link® system; single Öhlins shock w/ Electronic Control (S-EC); 5.6 in. travel
BRAKES
Front Two 330 mm discs w/ Brembo Stylema 4-piston radial-mount hydraulic calipers; ABS
Rear Single 220 mm disc w/ Brembo hydraulic calipers; ABS

TIRES


Front 120/70ZR-17
Rear 200/55ZR-17

MEASUREMENTS


Rake (Caster Angle) 24º
Trail 102 mm (4.0 in.)
Length 82.7 in.
Width 29.3 in.
Height 44.9 in.
Seat Height 32.7 in.
Ground Clearance 4.5 in.
Wheelbase 57.4 in.
Fuel Capacity 4.3 gal.
Curb Weight* 445 lbs.

OTHER


Color Pearl White

*Includes all standard equipment, required fluids and full tank of fuel—ready to ride
Meets current EPA standards
Models sold in California meet current CARB standards and may differ slightly due to emissions equipment Specifications subject to change





2022 Honda CBR1000RR-R Fireblade SP – Totalmotorcycle.com Canada Specifications/Technical Details

Engine & Drivetrain
Engine Type Liquid-cooled in-line four cylinder
Displacement 1,000 cc
Bore & Stroke 81 mm x 48.5 mm
Compression Ratio 13.2:1
Valve Train Chain-driven DOHC, four valves per cylinder
Fuel Delivery PGM-DSFI – Dual Stage Fuel Injection with 52 mm throttle bodies
Transmission 6-speed (with Quickshifter)
Final Drive #520 O-ring sealed chain (16T/43T)
Chassis & Suspension
Front Suspension 43 mm telescopic inverted fork Öhlins NPX Smart Electronically Controlled suspension (Smart-EC) with preload, compression and rebound adjustments; 114 mm (4.5 in) travel.
Rear Suspension Pro-Link® with gas-charged Öhlins TTX36 Smart-EC single shock featuring preload, compression and rebound adjustments; 143 mm (5.6 in) travel.
Additional Information
Tires Front: 120/70-ZR17
Rear: 200/55-ZR17
Brakes Front: Dual 330 mm discs with 4-piston Brembo Stylema radial-mount calipers
Rear: Single 220 mm disc with 2-piston Brembo caliper
ABS: 2-channel ABS with switchable SPORT/TRACK modes
Seat Height 830 mm (32.7 in)
Wheelbase 1,455 mm (57.3 in)
Curb Weight 201 kg (443 lb.) including required fluids and full tank of gas—ready to ride
Fuel Capacity 16.1 litres
Colour Tricolour







2022 Honda CBR1000RR-R Fireblade SP – Totalmotorcycle.com European Specifications/Technical Details
ENGINE
Type Liquid-cooled 4-stroke 16-valve DOHC Inline-4
Engine Displacement (cm³) 1000cc
No. of Valves per Cylinder 4
Bore ´ Stroke (mm) 81mm x 48.5mm
Compression Ratio 13.4:1
Max. Power Output 160kW @ 14,500rpm
Max. Torque 112Nm @ 12,500rpm
Noise Level Lurban – 74dB, Lwot – 77dB
Oil Capacity 4.0L
FUEL SYSTEM
Carburation PGM-FI
Fuel Tank Capacity 16.1L
C02 Emissions WMTC 153 g/km
Fuel Consumption 15.2km/L (6.6L/100km)
ELECTRICAL SYSTEM
Starter Electric
Battery Capacity 12-2Ah HY85S (Li-ion)
DRIVETRAIN
Clutch Type Wet, multiplate hydraulic clutch
Transmission Type Manual 6-speed
Final Drive Chain
FRAME
Type Aluminium Twin Tube composite twin spar
CHASSIS
Dimensions (L x W x H) 2100 x 745 x 1140mm
Wheelbase 1460mm
Caster Angle 24o
Trail 102mm
Seat Height 830mm
Ground Clearance 115mm
Kerb Weight 201kg
SUSPENSION
Type Front Öhlins NPX S-EC 43mm telescopic fork with preload, compression and rebound adjustments, 125mm stroke.
Type Rear Öhlins TTX36 S-EC Pro-Link swingarm with preload, compression and rebound damping, 143mm stroke.
WHEELS
Rim Size Front 17 inch x 3.5
Rim Size Rear 17 inch x 6.0
Tyres Front 120/70-ZR17 M/C (58W)

Pirelli Diablo Supercorsa SP

Bridgestone RS11

Tyres Rear 200/55-ZR17 M/C (78W)

Pirelli Diablo Supercorsa SP

Bridgestone RS11

BRAKES
ABS System Type 2 Channel
Front 330mm disc with radial-mount 4-piston Brembo Stylema caliper
Rear 220mm disc with 2-piston Brembo caliper
INSTRUMENTS & ELECTRICS
Instruments TFT-LCD
Security System Honda Smart Key
Headlight LED
Taillight LED
Auto Winker Cancel Yes
Quickshifter Yes



All specifications are provisional and subject to change without notice.



** Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

About Michael Le Pard 10138 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle, the World’s Largest Motorcycle Site with over 425 million readers since 1999. Total Motorcycle is my pride and joy and being able to reach 425 million people has been incredible and I could not have done it without the support of my visitors, readers and members...thank you so much! We are all making a difference to millions of riders worldwide.
