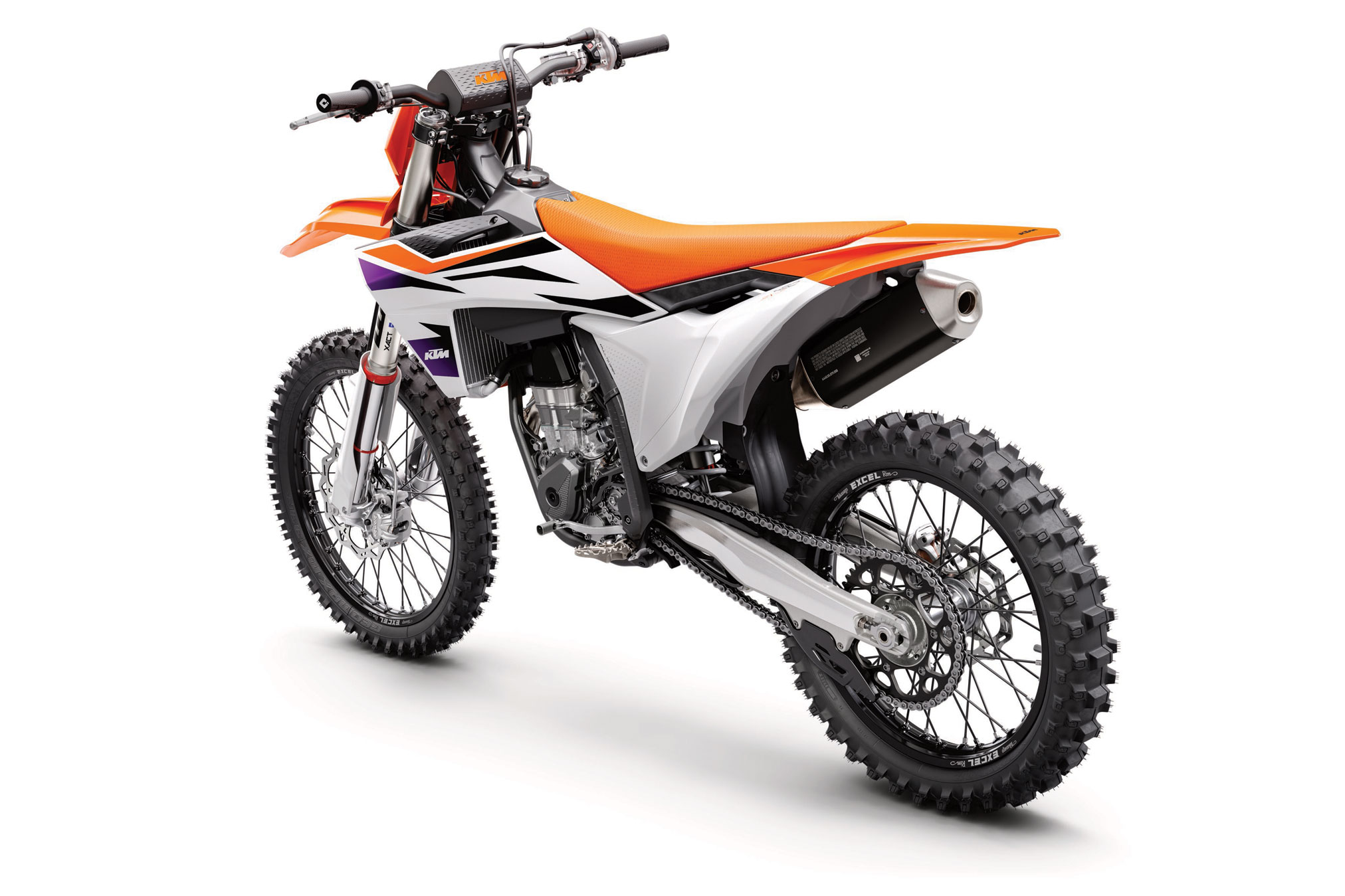

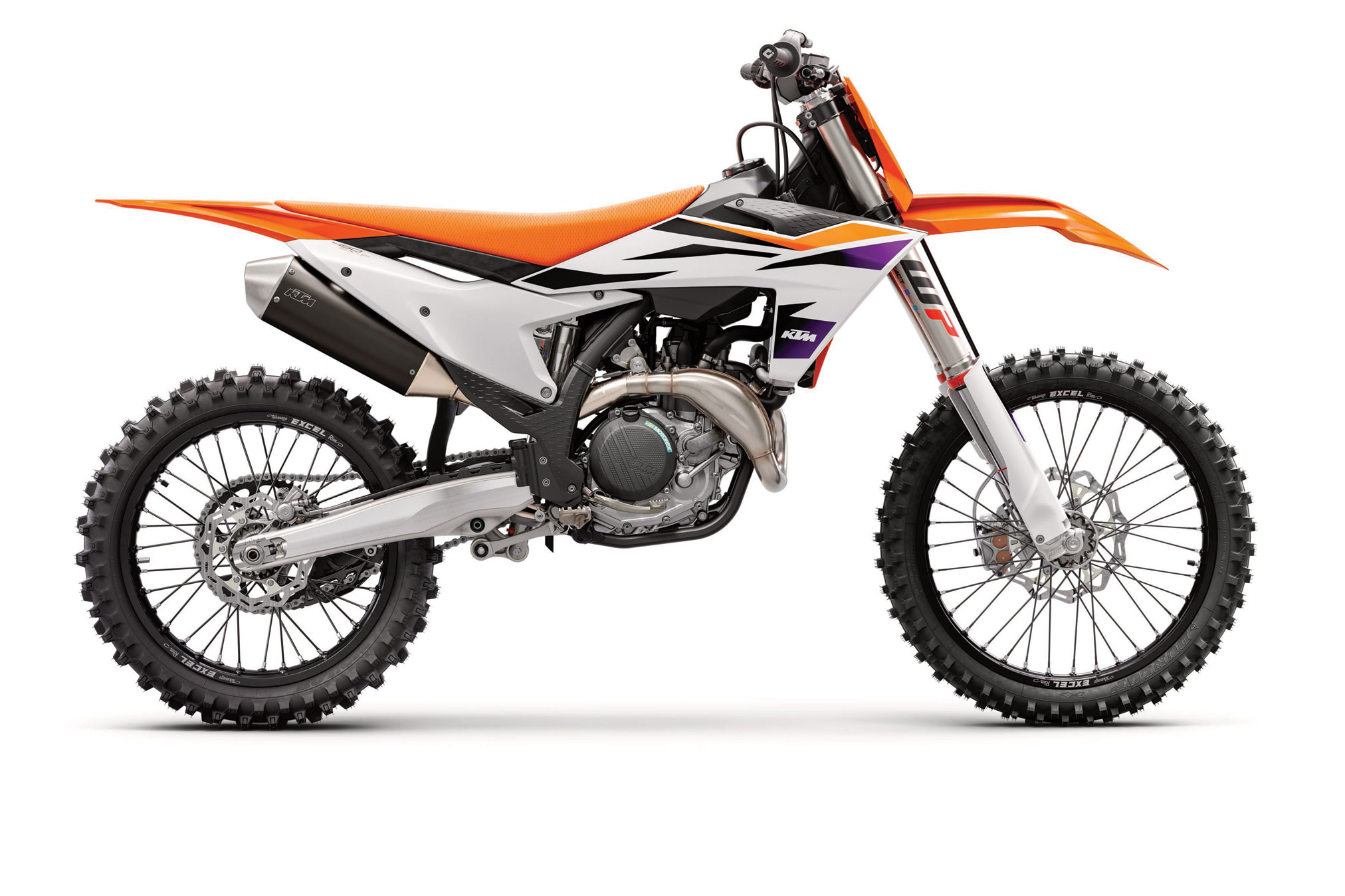

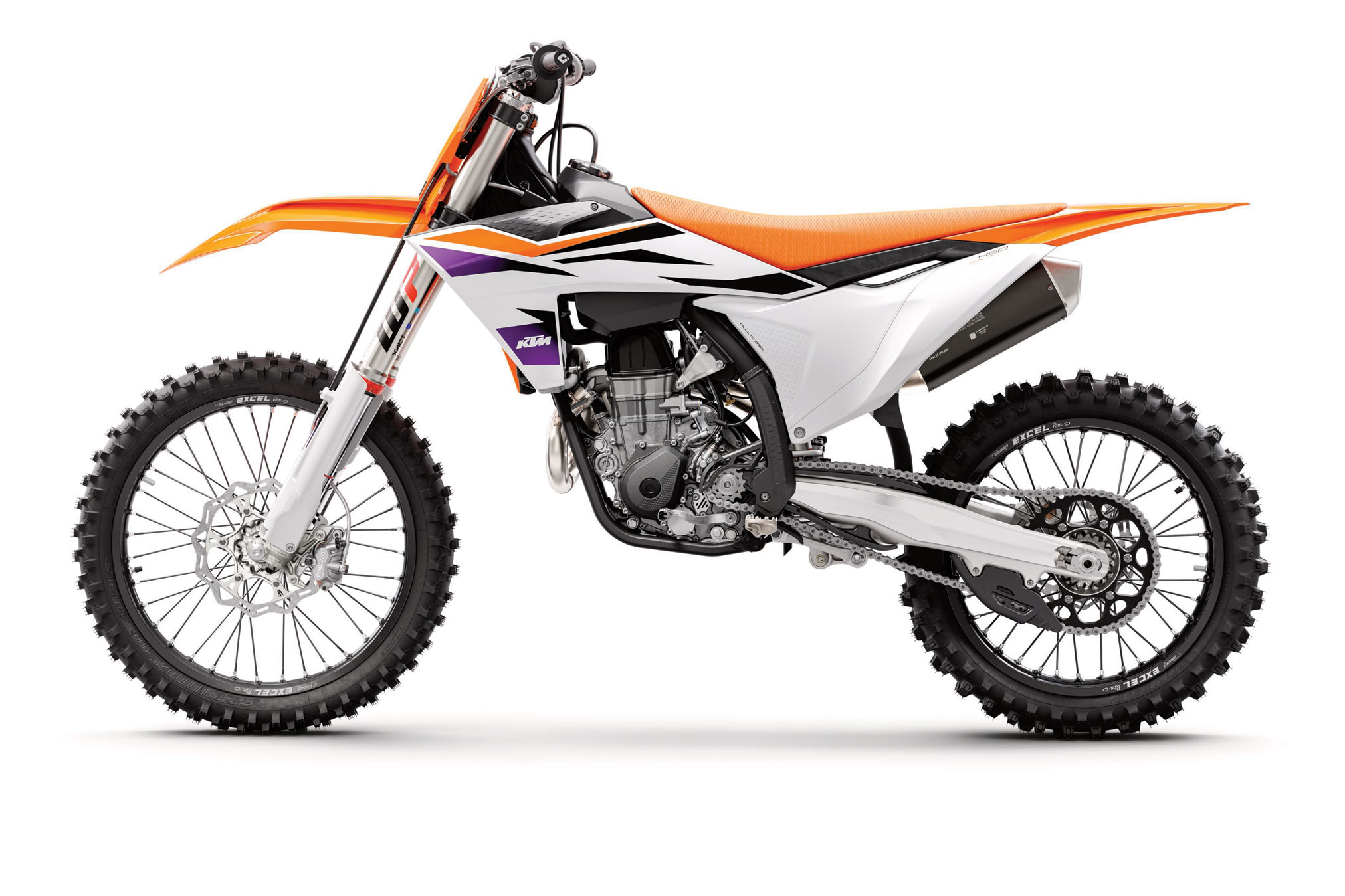

2024 KTM 450 SX-F: THE TOP OF THE FOODCHAIN.
Introducing the 2024 KTM 450 SX-F…
We aren’t ones to brag, but with a trophy cabinet ready to rip at the seams, the KTM 450 SX-F is the epitome of a podium hunter. With 5 AMA 450 supercross titles in the last 7 seasons, the 2024 KTM 450 SX-F rolls into the pit already armed with the learnings of past championships. It’s time to extend the trophy room.
HOLESHOT HUNGRY 4-STROKE DOMINATION
Boasting accolades as the most technologically advanced motocross range available, the KTM SX-F stable is built to dominate. With advancements such as Launch Control, Traction Control and a Quickshifter as standard, very few machines can keep up.
2024 KTM 450 SX-F Totalmotorcycle.com Key Features
THE DOMINATION CONTINUES WITH THE 2024 KTM MOTOCROSS RANGE NOTHING TO HOLD YOU BACK
Following the introduction of the completely renewed 2023 KTM SX range, the 2024 KTM motocross range lines up at the gate with reworked suspension settings and a fresh new look.
Sleeker, slimmer, and engineered to provide riders with unmatched levels of control, the 2023 KTM SX range of motocross superiority shot onto the podium as the most innovative and highest-performing READY TO RACE production motocross machines ever built.
As a recap, the 2023 KTM SX range debuted a completely redesigned chassis built around a hydro-formed, laser-cut, and robot-welded frame, a 2-piece polyamide reinforced aluminum subframe, and a hollow, die-cast aluminum swingarm.
Designed and constructed with specifically calculated parameters of longitudinal and torsional flex, the frame provides exceptional rider feedback, energy absorption, and straight-line stability at speed.
For 2024, the KTM SX and SX-F range retains these advancements, with the addition of renewed suspension settings focused on improving bike balance and comfort. These improvements are also significantly noticeable when it comes to cornering agility.
At the rear, a WP XACT rear shock provides advanced damping characteristics for unsurpassed traction and energy absorption, while up front, the 48 mm WP XACT front fork provides improved bottoming-out resistance, and damping, and allows the fork to stay lower and more planted on initial acceleration after a hard landing.
Ergonomically, the 2024 KTM SX and SX-F range retains a best-in-class rider triangle, resulting in exceptional knee contact, especially when standing on the pegs. This, along with added contact surfaces on the bodywork, and a flat seat profile, improves overall handling, agility, and confidence.
Above the surface, an all-new graphics set takes center stage, which like the previous year, takes inspiration from the early 1990s. The designers of the 2024 CTG used purple as a highlight color as a nod to when purple was a predominant hue in the KTM signature styling. However, orange, and white tones still dominate the overall look and are applied using time-proven in-mold technology.
Armed with the 2022 MX2 Championship trophy, more forgiving suspension, unmatched performance, and cutting-edge technology within easy reach for riders of all ages and riding levels, the 2024 KTM SX and SX-F range continues its assault on motocross competition.
2024 KTM 450 SX-F Totalmotorcycle.com Features and Benefits
Before The Gate
Easy Suspension Adjustment
Get dialed in! The 2024 KTM SX range boasts totally tool-free suspension setup at both ends. Thanks to the shock absorber design featuring hand-adjustable dual compression control, it allows riders to adjust high- and low-speed settings in a matter of seconds. On the front end, the forks are also easily adjusted thanks to a single air pressure preload valve, as well as through easy access click adjusters for compression and rebound. We’ll even throw the air pump in as standard.
BREATHE EASY
Air filter box
Designed to provide maximum airflow, the air filter box has precisely positioned inlet ducts aimed at preventing air deformation and maintaining filter protection. The Twin Air filter and air filter support design feature a simple fail-proof mounting system for secure and accurate filter installation, ensuring the air filter is easily accessed, without tools, by removing the left side panel, for easy track-side maintenance. A vented air filter box cover is also included for all SX and SX-F models in the by-pack.
LESS FOCUS ON THE TOOL, MORE FOCUS ON THE TRACK
Serviceability
The 2024 KTM SX and SX-F range is engineered and designed to provide riders with easy-to-access service parts, as well as suspension adjustability. This allows faster track-side and off-season maintenance, as well as making motocross more accessible for novice riders without pit crews.
Start Strong
TOTAL TRACTION
Selectable Maps + TC
The map select switch on the 2024 KTM SX models features a simpler design, allowing for easier functionality in switching between 2 engine maps. Map 1 provides a more linear power curve, while map 2 punches all-out with aggressive throttle and explosive power. Luckily, traction control is easy toggled to an on or off position from the same switch, ensuring maximum traction and a distinct advantage in wet or muddy conditions.
UNMATCHED PERFORMANCE
More Usable Power
When the war drums sound and the gate drops, you need to be the first off the line in a bid to rule the roost. The 2024 KTM 450 SX-F boasts one of the most powerful 4-stroke powerplants in the pits, with its SOHC engine proving to be the perfect example of advanced engineering. With with massive power in a light package, you’ll leave the competition with more than a little mud on the face.
DROP THE CLUTCH
Launch Control & Quickshifter
Launch control, ENGAGED! Designed for the holeshot, the 2024 KTM SX-F range comes standard with launch control and a Quickshifter function, allowing for fast upshifts without using the clutch. Launch control is easily engaged by pressing the traction control and Quickshifter buttons simultaneously and works by limiting the amount of power to the rear wheel, improving traction, and preventing loss of control under hard acceleration. Meanwhile, the Quickshifter function means you can bang through from 2nd to 5th gear with your focus solely on the first corner.
Calm Under Fire
SLEEKER FOR YOU TO SCRUB CLEANER
Absolute Control
No matter how gnarly the track is, you’ll find complete confidence thanks to the frame design that has not only been engineered for longitudinal rigidity but also repositions rotating mass closer to the center of gravity. The shock mounting also provides improved anti-squat behavior for better traction out of corners, while the footpeg mounting position has moved inwards for less risk of hooking up in deep ruts or when scrubbing jumps.
FLUID RIDER MOTION
Ergonomics
The rider triangle provides ample knee contact – especially when standing on the pegs – to ensure enough gripping surfaces all around. The plastics work to expel mud buildup in wet, muddy conditions, with a flat seat profile and high grip seat cover providing exceptional rider movement and control. The polyamide reinforced aluminum subframe further enhances rider feel and feedback.
UNMATCHED PERFORMANCE
Performance
The KTM 450 SX-F engine position greatly improves mass centralization and reduces overall weight, benefiting handling and anti-squat behavior.
Hit The Big Stuff
HARNESSING GRAVITY
Mass Centralization
Ready to rip your arms out of the sockets? Together with the benefits of mass centralization and overall reduced weight, the anti-squat behavior of the chassis is significantly improved by changing the backbone of the steel frame concept. In layman’s terms, the 2024 KTM 450 SX-F gets its power down perfectly when tearing out of corners.
UNFLAPPABLE FRONT END
WP XACT Fork
48mm air type WP XACT front fork with a split damping function provides all the confidence you need to attack the track. Hydrostops in the fork legs improves bottoming-out resistance and account for less rebound when attacking big jumps, bumps, and thumps. Redesigned fork protection rings also increase protection against dirt, making them as reliable as they are awesome.
RACING ON RAILS
Stability
The 2024 KTM 450 SX-F is rock-solid at any speed thanks to a repositioned and forged steering head connection and CNC milled triple clamps. Made from high-grade aluminum, these feature optimally tuned steering stem stiffness, perfect alignment of the fork tubes, and precise geometry of the fork clamps to ensure highly responsive and smooth fork action – not to mention unwavering stability when charging across ruts and onto the podium.
Maintaining Momentum
PRECISE, LAP AFTER LAP
Consistency
A WP XACT shock absorber provides unmatched consistency lap after lap, thanks to low-friction SKF linkage seals and advanced damping characteristics for unsurpassed traction and energy absorption.
UNOBTRUSIVE IMPACT
Energy absorption
Besides the expertly crafted, hydro-formed, laser-cut, and robot-welded frame being engineered to provide exceptional rider feedback and straight-line stability, it consists of specifically calculated parameters of longitudinal and torsional flex. This means the frame acts as a “shock absorber” of sorts, making for a less harsh ride, resulting in less rider fatigue over many hard laps.
NOTHING TO HOLD YOU BACK
Ground clearance
No one enjoys a bad hook-up. Luckily, the frame and shock absorber geometry on the 2024 KTM 450 SX-F improves ground clearance of the linkage, with topology optimized die-cast footpegs that are less susceptible to hooking on deep ruts, and take-offs when scrubbing.
2024 KTM 450 SX-F – Totalmotorcycle.com International Specifications/Technical Details
US MSRP Price: $ See Dealer for Pricing USD
Canada MSRP Price: $ See Dealer for Pricing CDN
Europe/UK MSRP Price: £ See Dealer for Pricing (On The Road inc 20% Vat)
Engine
Transmission 5-speed
Starter Electric starter
Stroke 63.4mm
Bore 95mm
Clutch Wet, DDS multi-disc clutch, Brembo hydraulics
Displacement 449.9cm³
EMS Keihin EMS
Design 1-cylinder, 4-stroke engine
Chassis
Weight (without fuel) 102.6kg
Tank capacity (approx.) 7.2l
Front brake disc diameter 260mm
Rear brake disc diameter 220mm
Front brake Disc brake
Rear brake Disc brake
Chain 520, Non-sealed
Frame design Central double-cradle-type 25CrMo4 steel
Front suspension WP XACT-USD, Ø 48 mm
Ground clearance 359mm
Rear suspension WP XACT Monoshock with linkage
Steering head angle 63.9°
Suspension travel (front) 310mm
Suspension travel (rear) 300mm
