2002 Triumph Daytona 955i

Back to 2002 Triumph Motorcycle Index Page

Click photo to enlarge.
It makes a great desktop image.

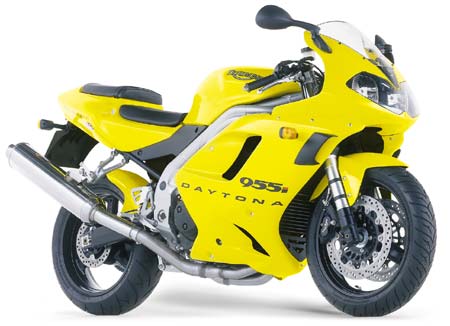

2002 Triumph Daytona 955i

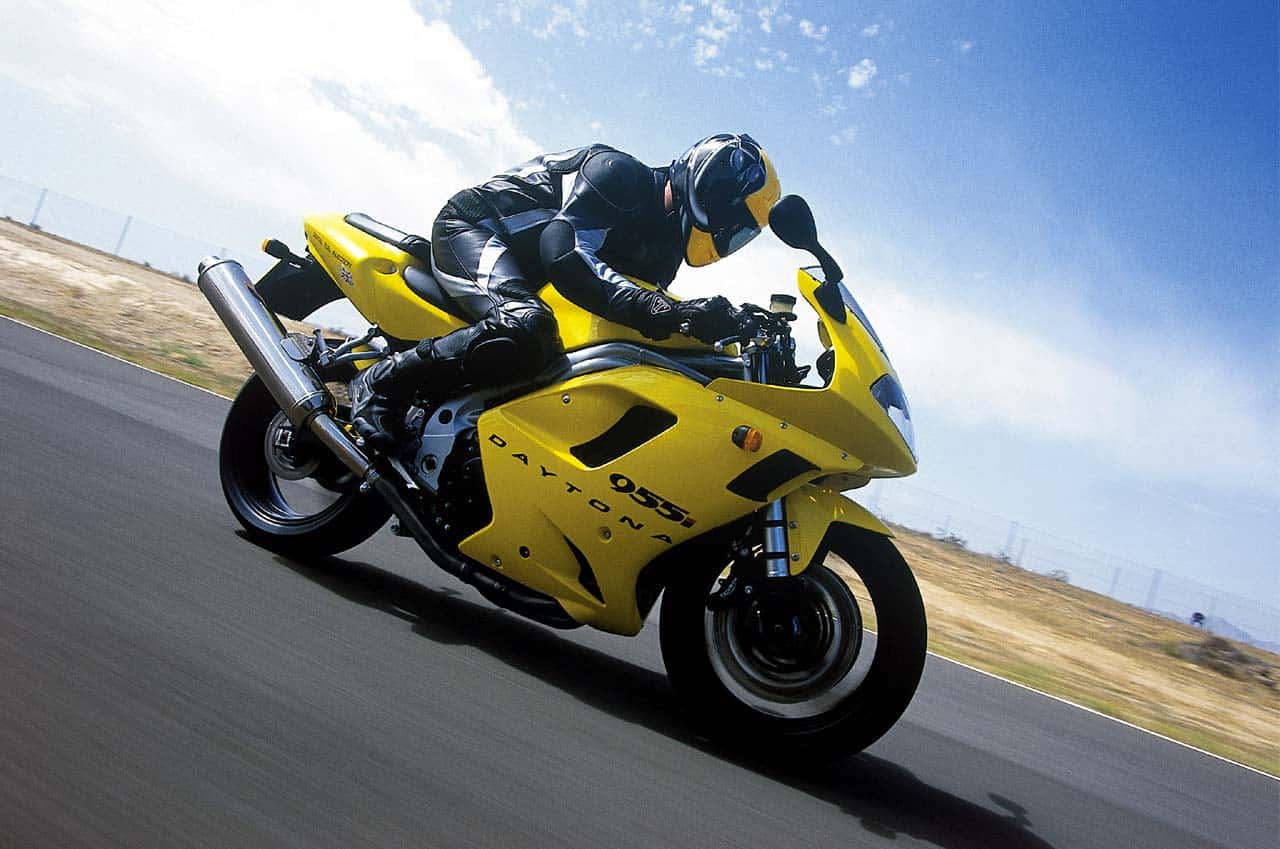

2002 Triumph Daytona 955i

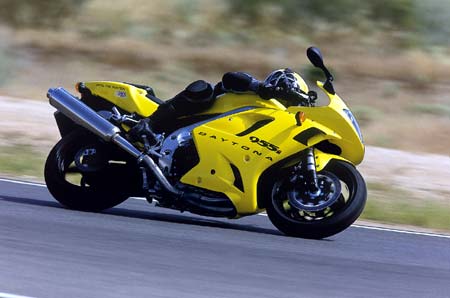

2002 Triumph Daytona 955i

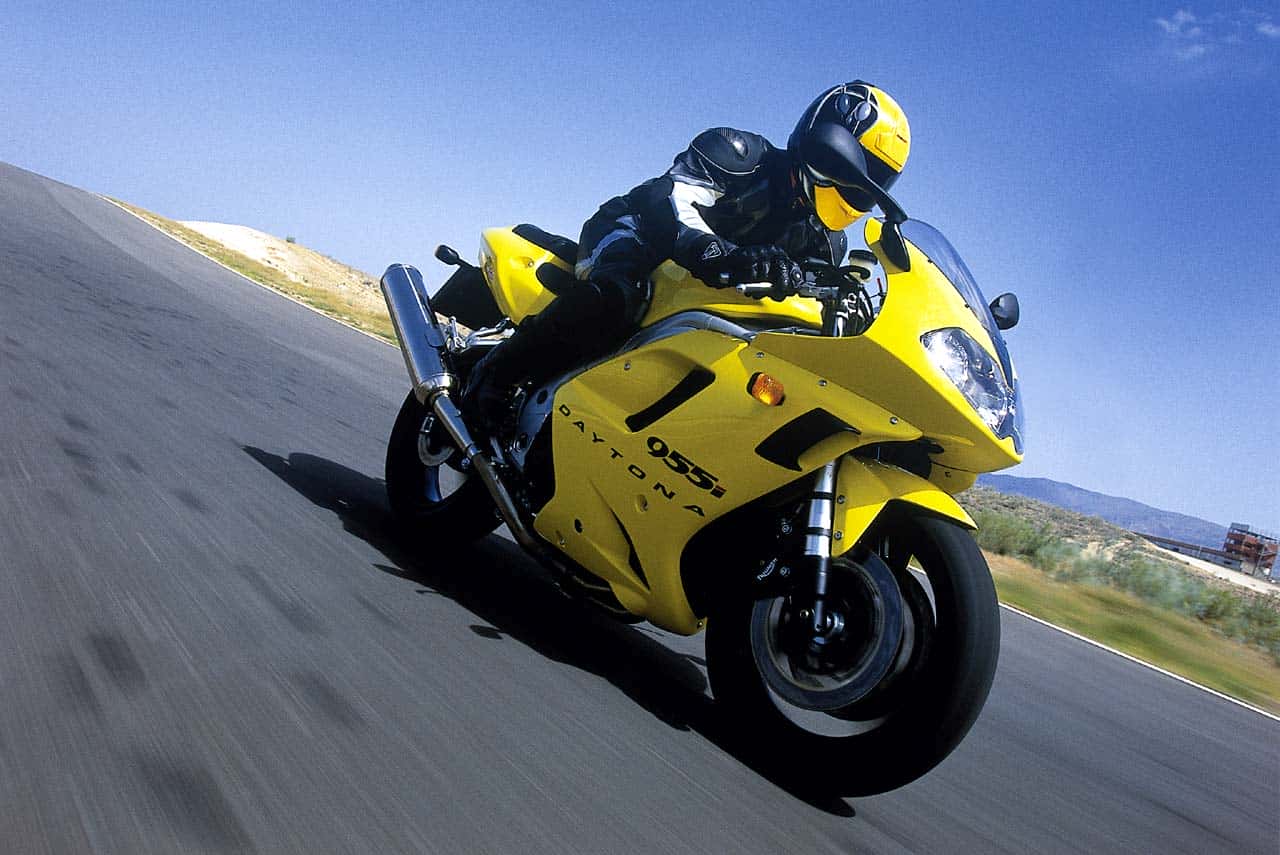

2002 Triumph Daytona 955i



– 2002 Triumph Daytona 955i

Triumph Daytona 955i

The awesome Daytona 955i – heavily revised earlier this year and now sharper, lighter and faster than ever – remains the flagship of the Triumph range.

Launched in 1997, gradual development and continual improvements had always kept the Daytona competitive, but the latest engine, chassis and bodywork redesign elevated the machine to new levels of performance.

Powered by Triumph’s second-generation fuel-injected engine – more refined, quieter and with lighter internals – the Daytona breathes easier, runs cooler and revs higher. Packing a mighty 147bhp punch it’s capable of blistering acceleration on the track while the generous spread of torque ensures its road going performance is as useable as ever.

The new lightweight chassis has won much praise for its first-rate, confidence-inspiring handling thanks to the combination of shorter wheelbase, steeper steering geometry, lighter twin-sided swingarm, lightweight 17′ front wheel and multi-adjustable suspension.

For 2002, a striking third colour choice – Acidic Yellow – is added to the popular Caspian Blue and Aluminium Silver options.

Key Changes:
– New Acidic Yellow colour option

Colour Options:
– Caspian Blue
– Acidic Yellow
• Aluminium Silver

Accessories:
– Performance Aftermarket Silencer – Carbon Finish
– 2×2 carbon weave hi-temp carbon fibre wrap
– thermal blanket protection
– nitro-tec hardened bracket
– stainless steel external construction
– bespoke fuel injection mapping
– Performance Aftermarket Silencer – Stainless Steel Finish
– Triumph branding
– thermal blanket protection
– nitro-tec hardened bracket
– stainless steel external construction
– bespoke fuel injection mapping
– Tank Bag
– 16 litres expandable to 24 litres
– removable map pocket
– integral water resistant cover
– shoulder strap
– separate harness
– Sports Throw-over Panniers
– high visibility reflective edging
– 1250 denier polyester construction
– integrated, quick release panel protectors (also available separately)
– 24 litres capacity expandable to 48 litres
– integral water resistant covers
– Integrated Alarm
– two circuit immobilisation
– ‘fail-safe’ engine immobilisation
– ‘hot-wire’ detection circuit
– internal rechargeable battery
– current draw of less than 5 mA
– Thatcham MC1 approved
– Sports Top Rack
– integral bungee hooks
– Aero Screen
– Carbon Fibre Side Panels
– Carbon Fibre Cockpit Infils
– Grabrail
– Seat Cowl and Pad
– Carbon Fibre Tank Pad
– Carbon Print Tank Pad
– Front Mudguard Extension Kit
– Auxiliary Power Plug
– facilitates remote charging of motorcycle battery

DAYTONA 955i SPECIFICATION

ENGINE
Type Liquid-cooled, DOHC, in-line 3-cylinder
Capacity 955cc
Bore/Stroke 79 x 65mm
Compression Ratio 12.0:1
Fuel System Multipoint sequential electronic fuel injection
Ignition Digital – inductive type – via electronic engine management system

TRANSMISSION
Primary Drive Gear
Final Drive X ring chain
Clutch Wet, multi-plate
Gearbox 6-speed

CYCLE PARTS
Frame Tubular, fabricated aluminium alloy perimeter
Swingarm Twin-sided, aluminium alloy
Wheels FrontRear Alloy 3 spoke, 17 x 3.5inAlloy 3 spoke, 17 x 5.5in
Tyres FrontRear 120/70 ZR 17180/55 ZR 17
Suspension FrontRear 45mm forks with dual rate springs and adjustable pre-load, compression and rebound dampingMonoshock with adjustable pre-load, compression and rebound damping
Brakes FrontRear Twin 320mm floating discs, 4 piston calipersSingle 220mm disc, single piston caliper

DIMENSIONS
Length 2072mm (81.6in)
Width (handlebars) 725mm (28.5in)
Height 1165mm (45.9in)
Seat Height 815mm (32.1in)
Wheelbase 1417mm (55.8in)
Rake / Trail 22.8º / 81mm
Weight (Dry) 188kg (414lb)
Fuel Tank Capacity 21 litres (5.5 gal US)

PERFORMANCE
(measured at crankshaft to DIN 70020)
Maximum Power 149PS (147bhp) at 10,700 rpm
Maximum Torque 100Nm (74ft.lbf) at 8,200 rpm

COLOURS
Caspian Blue, Acidic Yellow, Aluminium Silver

WARRANTY
2 years, unlimited mileage

SERVICE INTERVALS
6000 miles or one year, whichever comes first
