2006 Harley-Davidson FXSTB/I Night Train
Back to 2006 Harley-Davidson Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

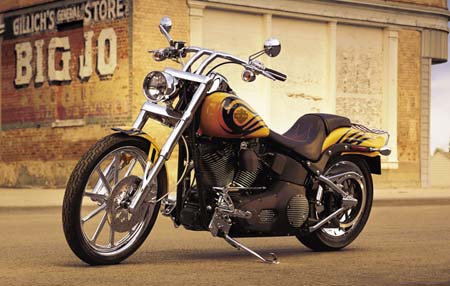

2006 Harley-Davidson FXSTB/I Night Train

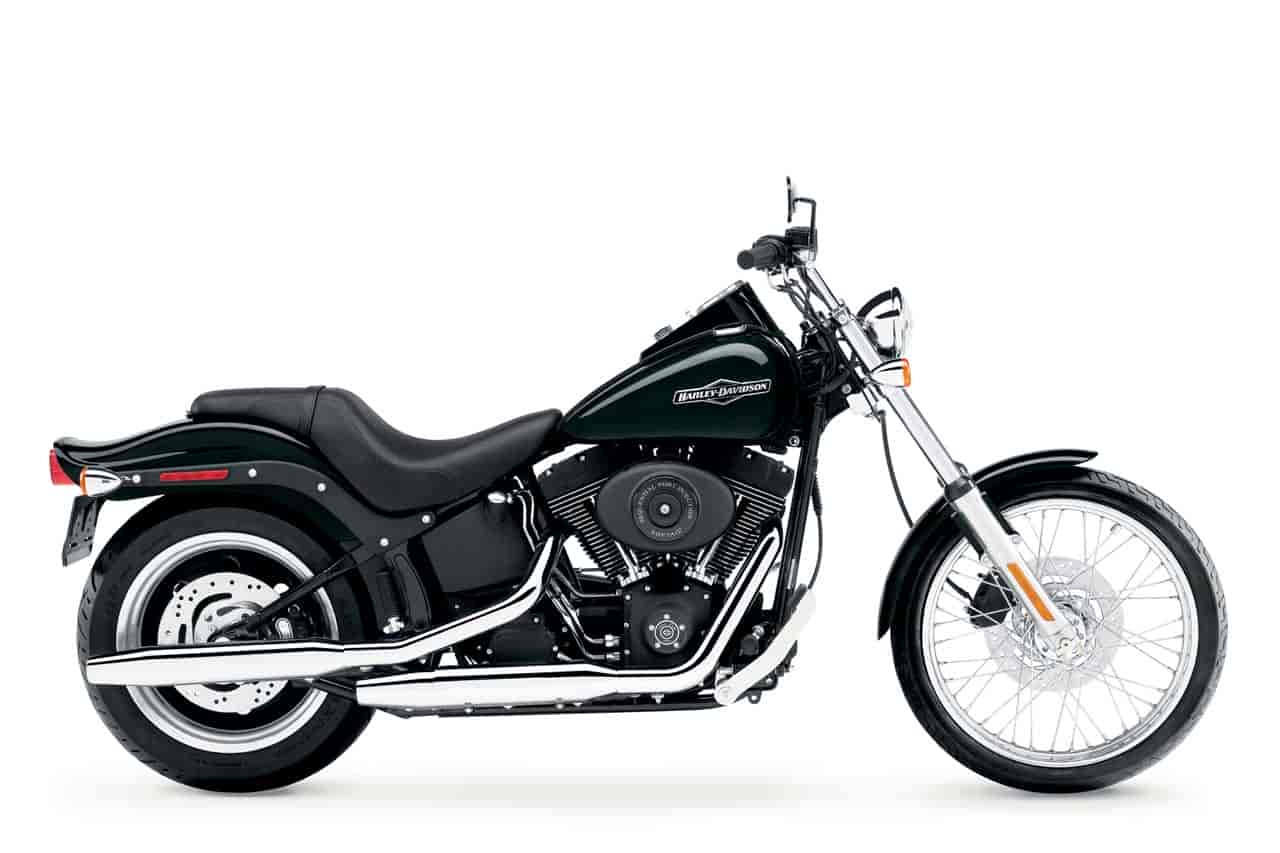

2006 Harley-Davidson FXSTB/I Night Train

2006 Harley-Davidson FXSTB/I Night Train

2006 Harley-Davidson FXSTB/I Night Train



– 2006 Harley-Davidson FXSTB/I Night Train

Get in the Badlander® seat. Reach for the drag-style bar. Then stretch out to the forward controls. In this riding position, it’s easy to see why the Night Train® is notorious for causing a stir. This year, it gets a fatter 200mm rear tire on a Black Slotted Aluminum Disc wheel — the aggressive look you want, done right by the factory. New, widened bobtail fender. All nicely balancing out a narrow, raked front. To push the custom street look further, we blacked out the tank console, air cleaner cover, oil tank and rear fender supports. At the center is the black powder-coated Twin Cam 88™ engine belting out a haunting melody. No matter the hour, night is always just a throttle turn away.

OVERVIEW
FXSTB/I Softail® Night Train® Model Overview
A new 200mm rear tire, Black Slotted Cast Aluminum Disc rear wheel with color-matched belt sprocket and a wider bobtail fender have the already menacing FXSTB/I Night Train looking tougher than ever for 2006. Staggered chrome pipes flash in front of an all-black powertrain with wrinkle-black trim on the engine covers and air cleaner, oil tank and rear fender supports. A black console is perched on the fuel tank. The raked FX front end carries a 21-inch laced wheel. The Chrome Aluminum Profile Laced front wheel and Forged Polished Aluminum Disc rear wheel are available as factory-installed options. Available in Vivid Black, Black Pearl and Black Cherry, of course.

FXSTB/I Night Train features:

Rigid-mount, 1450cc Twin Cam 88B balanced engine
Black powder-coated engine with wrinkle-black and texture-black covers
Hardtail styling with hidden, horizontal rear shocks
New 200mm rear tire
New Slotted Black Cast Aluminum Disc rear wheel
New black color-matched belt sprocket
New wide rear bobtail fender
Laced 21-inch front wheel
Low, smooth Badlander seat
Drag bars on six-inch risers
Black tank console, air cleaner, oil tank and rear fender supports
Three-dimensional tank emblem



2006 FXSTB/I NIGHT TRAIN® SPECIFICATIONS1

DIMENSIONS
Length 95.0 in. (2413.0 mm)
Seat Height:
Laden2 26.0 in. (660.4 mm)
Unladen 27.6 in. (701.0 mm)
Ground Clearance 6.0 in. (152.4 mm)
Rake (steering head) 32°
Fork Angle 33.5°
Trail 5.0 in. (127.0 mm)
Wheelbase 66.9 in. (1699.3 mm)
Tires (Dunlop® Harley-Davidson Series):
Front – D402F MH90-21 54H
Rear – D401 200/55R17 78V
Fuel Capacity3 (includes 0.5-gallon reserve) 5.0 gal. (18.9 L)
Reserve Fuel Capacity Carburetor: 0.5 gal. (1.9 L)
(warning light at approx. ESPFI: No reserve due
1.0 gal. for ESPFI models) to fuel injection
Oil Capacity 3.5 qts. (3.3 L)
Weight:
Dry Weight 651 lbs. (296 kg)
Vehicle Weight in Running Order 682 lbs. (310 kg)
Gross Vehicle Weight Rating 1125 lbs. (511 kg)



ENGINE
Engine4 Air-cooled Twin Cam 88BTM (balanced)
Valves Pushrod-operated, overhead valves w/hydraulic,
self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.00 in. (95.18 mm x 101.52 mm)
Displacement 88 cu. in. (1450 cu. cm)
Compression Ratio 8.9:1
Fuel System3 Carburetor or Electronic Sequential
Port Fuel Injection (ESPFI)



DRIVETRAIN
Primary Drive Chain, 36/25 ratio
Final Drive Belt, 32/70 ratio
Clutch 9-plate, wet
Transmission 5-speed
Overall Ratio:
1st 10.110
2nd 6.958
3rd 4.953
4th 3.862
5th 3.150



CHASSIS
Frame Mild steel tubular frame; rectangular section
backbone; stamped, cast and forged junctions;
forged fender supports; MIG welded
Swingarm Mild steel, rectangular tube sections,
stamped junctions, MIG welded
Rear Shocks Hidden, horizontal-mounted, coil-over
Front Fork 41.3 mm telescopic
Wheels5 (Chrome Aluminum Profi le Laced front; forged aluminum disc rear option):
Front 21-inch Steel Laced
Rear 17-inch black cast aluminum disc
Brakes:
Caliper Type 4-piston front and rear
Rotor Type (diameter x width): Patented, uniform expansion rotors
Front 11.5 in. x .20 in. (292.1 mm x 5.08 mm)
Rear 11.5 in. x .23 in. (292.1 mm x 5.84 mm)
Suspension Travel:
Front Wheel 5.6 in. (142.2 mm)
Rear Wheel 4.3 in. (109.2 mm)



PERFORMANCE
Engine Torque (per SAE J607)6:
North America 85 ft. lbs. @ 3000 rpm (115 NM @ 3000 rpm)
Lean Angle (per SAE J1168):
Right 35°
Left 34°
MPG (EPA urban/highway test)7:
Carbureted 42/50 mpg (5.6/4.7 L/100 km)
ESPFI 44/50 mpg (5.3/4.7 L/100 km)



ELECTRIC
Battery Sealed, maintenance-free, 12V, 19-amp/hour,
270 cca (per Battery Council International Rating)
Charging Three-phase, 38-amp system
(439W @ 13V, 2000 rpm, 489W max power @ 13V)
Starting 1.2 kW electric w/solenoid shift
starter motor engagement
Lights (as per country regulation):
Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
Tail/Stop Lights 8W/28W (5W/21W)
Turn Signal Lights 28W (21W) self-canceling
Indicator Lamps High beam, neutral, low oil pressure,
turn signals, engine diagnostics,
security system8 (optional)



STYLING/CONVENIENCE
Engine Trim Black powder-coated w/Wrinkle-Black treatment
Exhaust System Chrome, staggered shorty duals
Oil Tank Wrinkle black “horseshoe” w/chrome external oil lines
Ignition Tank console-mounted
Seat Badlander
Handlebars Stainless steel, drag
Foot Supports Forward-mounted footpegs and controls
Rear Fender Bobtail
Rear Fender Supports Wrinkle-Black fi nish
Fork Lock Common w/ignition key
Instruments Electronic speedometer w/odometer and
resettable tripmeter, diagnostic readout
Hazard Warning Integrated into turn signal controls



COLORS9
Vivid Black, Black Cherry Pearl, Black Pearl



WARRANTY
Warranty10 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every
5,000 miles (8,000 km) thereafter11



1 Harley-Davidson reserves the right to discontinue models or change specifications
at any time without incurring any obligations. Vehicle specifications may vary from
country to country depending on local laws. Some models are not available in
certain countries.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Includes reserve on carburetor-equipped models.
4 Recommended 91 octane or higher fuel (R+M)/2 (87 octane or higher for XL883 models).
5 Standard and optional wheels may vary by country and region.
6 Values shown are nominal. Performance varies by country.
7 Based on tests conducted under ideal lab conditions per U.S. EPA test procedures.
Your mileage will vary depending on your personal riding habits, weather conditions,
trip length, vehicle conditions, and vehicle configuration. Break-in mileage will vary.
8 North American security system includes immobilizer; outside North America the
security system includes immobilizer and siren.
9 Availability may vary from dealer to dealer, and is subject to change without notice.
10 See motorcycle owner’s manual for complete details.
11 Inspections of certain systems and components are required at 2,500 mile
