– 2006 Honda Shadow Spirit 750

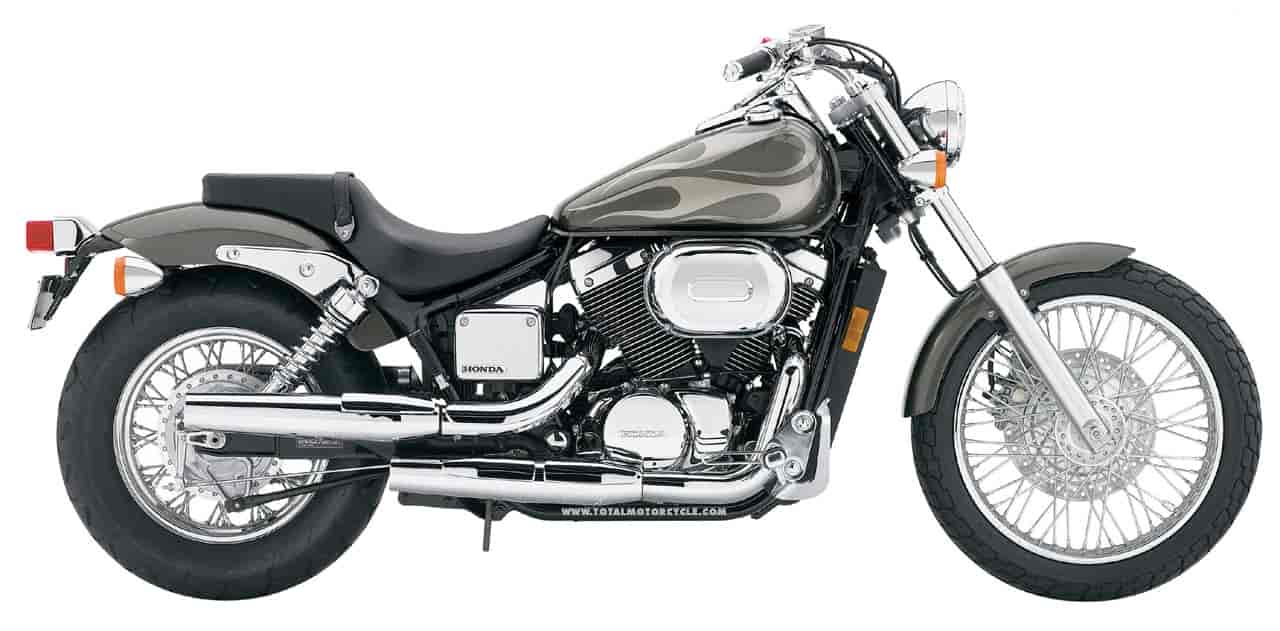

Shadow Spirit 750

Street-rod styling and the impressive torque of its long-stroke 52-degree V-twin engine make the Shadow Spirit 750 a mainstay on America’s backroads and boulevards.

FEATURES & BENEFITS

NEW FOR 2006

– New Candy Orange, Titanium Flame and Candy Dark Red Flame colors join classic Black.

ENGINE/DRIVETRAIN

– 745cc liquid-cooled V-twin engine produces impressive low-rpm torque and usable power over a broad rpm range.

– Long-stroke 52° V-twin engine design provides a satisfying, classic V-twin feel.

– Dual 34mm constant-velocity carburetors offer crisp throttle response.

– Carburetor electric-heater system improves rideability and ensures smooth operation in cold conditions.

– Three-valve cylinder-head design utilizes two spark plugs per cylinder for excellent combustion efficiency and high power output.

– CD ignition with electronic advance offers dependability and is maintenance-free.

– Silent-type maintenance-free camshaft-chain adjusters.

– Aluminum radiator with cooling fan maintains consistent engine temperature for optimum performance and long engine life.

– Sleek two-into-two exhaust system features bullet-style mufflers for a classic street-rod style.

– Wide-ratio five-speed transmission.

CHASSIS/SUSPENSION

– Large, rectangular-section steel tube backbone frame and massive cast steering head are both strong and very rugged.

– Frame features forged pivot-plates, rigid engine-mounting and large, rectangular-section swingarm.

– Sturdy and responsive 41mm front fork features a large billet-aluminum triple-clamp. Together they deliver confident, neutral handling and a plush ride with 5.1 inches of wheel travel.

– Large 4mm-thick fork brace mounted under fender enhances rigidity and steering precision.

– Dual chromed rear shocks feature an advanced internal valve system and five-position spring preload adjustability, while offering 3.2 inches of wheel travel for a smooth, well-controlled ride.

– Progressive springs and plush front and rear suspension settings provide a low-slung street-rod look while delivering excellent handling characteristics.

– Traditional spoked wheels with wide chromed rims.

– Large 110/80-19 front and 160/80-15 rear tires provide abundant traction and complement the Spirit 750’s stylish good looks.

– Single 296mm front disc brake with twin-piston caliper grips the drilled rotor between sintered metal pads. Rear brake features a 180mm drum.

– Durable O-ring-sealed drive chain.

ADDITIONAL FEATURES

– Tank-mounted speedometer features an attractive chrome instrument housing.

– Semi-swept handlebar design provides a comfortable, upright riding position. The handlebar is mounted on rubber-cushioned risers to reduce vibration.

– Dragster-style seat boasts a low 26.6-inch seat height for confidence during low-speed maneuvers.

– Chrome highlights include: cylinder-head cover, air cleaner cover, left and right engine sidecovers, brake and clutch lever brackets, rear brake pedal, shift lever, footpeg brackets, sidestand, chainguard and swingarm pivot cap.

– Buffed aluminum front brake master cylinder.

– Black treatment of engine center cases and cylinders with polished treatment on cylinder fins.

– Computer-designed multi-reflector headlight features a 60W/55W halogen bulb for superb lighting.

– Custom-styled taillight and attractive bullet-shaped turn indicators.

– Long, custom-designed 3.6-gallon fuel tank.

– Chopper-style rear fender.

– Durable, maintenance-free 12-amp-hour battery.

– Steering-head lock for added security when parked.

– Transferable one-year unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

– Ownership includes one-year complimentary membership for an individual in the Honda Rider’s Club of America™ (HRCA®). Benefits include: discounts, travel benefits, roadside assistance, one year of Honda Red Rider™ magazine, access to HRCA Clubhouse Web site (www.hrca.honda.com) and access online to Honda Common Service Manual. For HRCA details, call 1-800-847-HRCA. For dealers only, please call (310) 783-3958.

AVAILABLE ACCESSORIES

– TOURING ACCESSORIES: Custom Windshield, Leather Saddlebags, Leather Tank Belt, Leather Front Pouch, Leather Backrest Bag, Leather Touring Bag, Solo Seat with Rear Fender Panel, Backrest with Pad (Tall and Low) and Rear Carrier (Square Tube).

– CHROME BILLET ACCESSORIES: Master Cylinder Cap, Handlebar Clamps, Oil Dipstick, Brake Caliper Cap and License Plate Frame.

– ADDITIONAL ACCESSORIES: Cycle Cover.

(Accessory availability and specifications subject to change without notice.)

SPECIFICATIONS

Model: VT750DC

Engine Type: 745cc liquid-cooled 52° V-twin

Bore and Stroke: 79mm x 76mm

Compression Ratio: 9.0:1

Valve Train: SOHC; three valves per cylinder

Carburetion: Two 34mm diaphragm-type constant-velocity

Ignition: CD with electronic advance, two spark plugs per cylinder

Transmission: Wide-ratio five-speed

Final Drive: O-ring-sealed chain

Suspension
Front: 41mm fork; 5.1 inches travel
Rear: Dual shocks with five-position spring preload adjustability; 3.2 inches travel

Brakes
Front: Single 296mm disc with twin-piston caliper
Rear: Drum

Tires
Front: 110/80-19
Rear: 160/80-15

Wheelbase: 64.8 inches

Rake (Caster Angle): 34°

Trail: 152mm (6.0 inches)

Seat Height: 26.6 inches

Dry Weight: 496 pounds

Fuel Capacity: 3.6 gallons, including 1.3-gallon reserve

Colors: Candy Orange, Titanium Flame, Candy Dark Red Flame, Black

Meets current CARB and EPA standards.

California version differs slightly due to emissions equipment.
