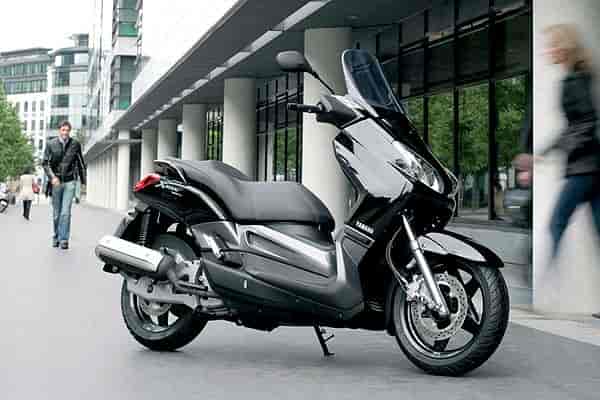

– 2006 Yamaha X-Max 125
X-Max 125 – Europe Model
X-Max 125 Because Life is a sport
The exciting new X-Max 125 brings a new sporting dimension to 125cc scooters.
New member to the ‘Max’ family
This great new model features a class leading powerful new engine – a liquid-cooled four-stroke with 15hp which is compliant with the tough forthcoming EU3 regulations. The chassis is exceptionally stiff, and it’s fitted with large diameter 15” front and 14” rear wheels for ideal cornering and high speed stability. Disc brakes front and rear ensure it has the power to stop as well as go. The fresh, exciting look is dynamic and active, and that’s how it rides: manoeuvrable, sharp steering and hard accelerating.
Being a ‘Max’ family member, it’s also brilliantly practical, with a massive underseat storage, enough for two full face helmets, and the ability to easily carry a rider and passenger in comfort. The large capacity 12.5 litre fuel tank means distance is not an obstacle.
Exhilarating to own, to ride, and to see!
New liquid-cooled EU3 compliant engine
Huge underseat storage – enough for two full face helmets
Rigid chassis ensures motorcycle-style handling
Large diameter 15” front and 14” rear wheels maximise stability and handling accuracy
267mm Ã˜ front and 240mm Ã˜ rear discs offer great stopping power
Twin headlights for Max family style and high visibility
Large 12.5 litre capacity fuel tank for big ‘out-of-town’ range
Deep Pacific Blue
To compliment the useability of the X-Max 125, a great range of practical Genuine Yamaha Accessories will be available.
These will include:
Smoked low level screen for a cool and sportier style with good weather protection
Hand protectors match the style of the Xmax and help to keep off the weather
Carrier with colour matched topcase look good and add plenty of carrying capacity
Waterproof seat cover keeps the seat dry while you’re away
Type Liquid-cooled, 4-stroke single cylinder
Displacement 124.66 cc
Bore and stroke 52 x 58.6 mm
Compression ratio 11.2:1
Max. power 10.3 kW (11.2 HP) @ 8,750 rpm
Max. torque 11.3 Nm (1.15 kg-m) @ 6,500rpm
Lubrication Wet sump
Carburettor/fuel supply EFI
Clutch type Automatic centrifugal
Ignition Electronic ECU
Starter system Electric
Transmission Automatic with V-Belt
Catalytic exhaust system Yes
Front suspension Hydraulic telescopic fork
Front wheel travel 110 mm
Rear suspension Hydraulic unit swingarm
Rear wheel travel 95 mm
Front brake Single disc, Ã˜ 267mm
Rear brake Single disc, Ã˜ 240 mm
Front tyre 120/70-15 M/C (56P or 56S)
Rear tyre 140/70-14 M/C (68P or 68S)
Rim size – Front 15 x MT3.50
Rim size – Rear 14 x MT3.75
Rim material Aluminium
Overall length 2,210 mm
Overall width 790 mm
Overall height 1,385 mm
Seat height 785 mm
Wheelbase 1,525 mm
Min. ground clearance 112.7 mm
Dry weight 153 kg
Maximum allowable weight 355 kg
Fuel tank capacity 12.5 litres
