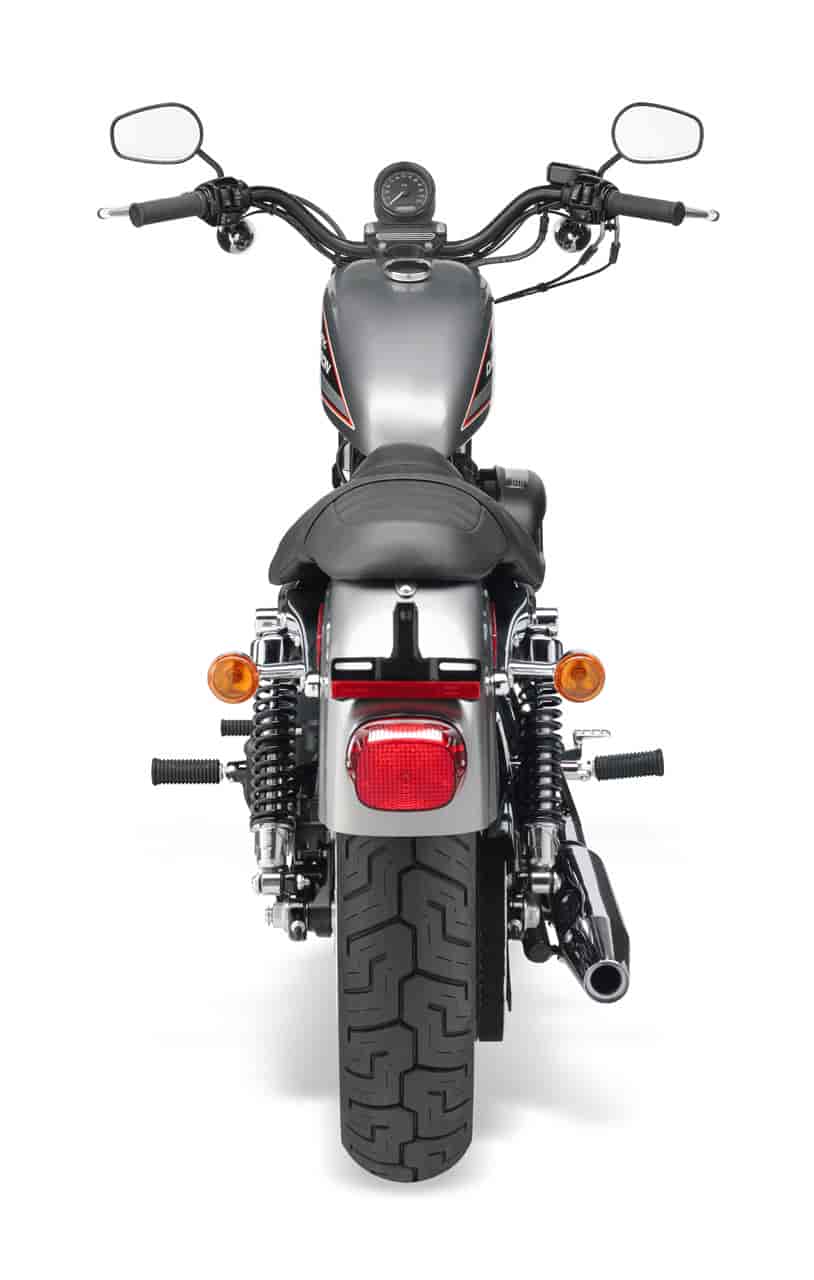

2007 Harley-Davidson XL 883R Sportster 883R
2007 Harley-Davidson XL 883R Sportster 883R

2007 Harley-Davidson XL 883R Sportster 883R
2007 Harley-Davidson XL 883R Sportster 883R

2007 Harley-Davidson XL 883R Sportster 883R
2007 Harley-Davidson XL 883R Sportster 883R

2007 Harley-Davidson XL 883R Sportster 883R

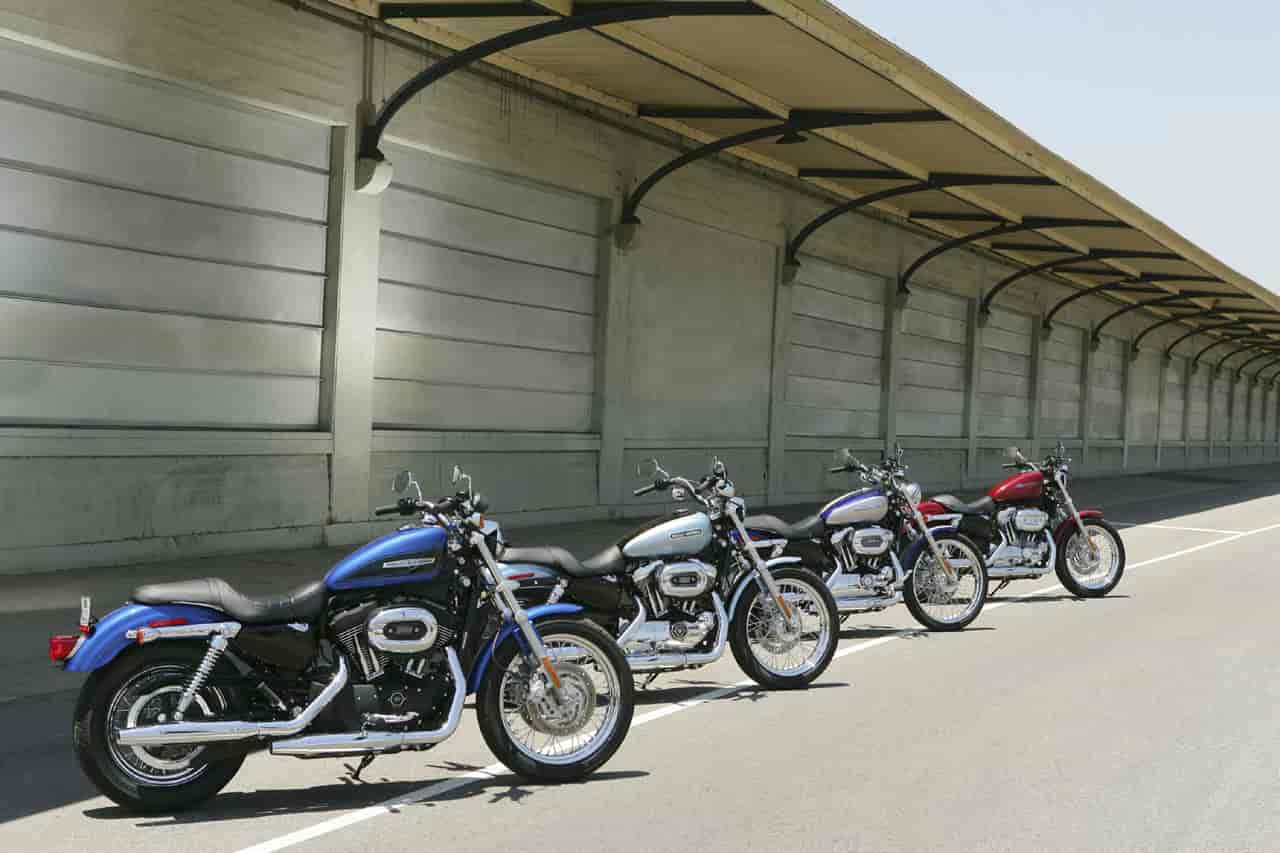

2007 Harley-Davidson XL 883 Sportster Group Shot


– 2007 Harley-Davidson XL 883R Sportster 883R

2007 Harley-Davidson XL 883R Sportster 883R

XL 883R Sportster® 883R Model Overview
It is the racing history of the Sportster family, specifically the Harley-Davidson XR flat-track racers, that fuels the 2007 XL Sportster 883R design. A fuel-injected Evolution V-Twin powertrain with new cams for better performance is finished in wrinkle-black powdercoat. New gauges include a clock on the odometer, low fuel warning light and two trip set odometers. Front brake lever effort is reduced by 14 percent and clutch lever effort is eight percent easier. The 13-spoke Cast Aluminum wheels, handlebar, fork sliders, headlamp eyebrow, air cleaner cover and rear springs are finished in black. The original Harley-Davidson racing-inspired graphics on the fuel tank are at home on the street or at the track. Chrome Laced Steel wheels and the Smart Security System are options. Available for 2007 in Vivid Black, Mirage Orange Pearl or Pewter Pearl.



XL Sportster 883R features:

Rubber-mounted XL Evolution 883cc engine
Black powder-coated engine with wrinkle-black treatment
Standard Electronic Sequential Port Fuel Injection (ESPFI)
New cams on retuned powertrain for improved performance
New gauges with odometer clock, low fuel warning light and two trip set odometers
New lighter clutch effort
Black low-rise handlebar, air cleaner cover, fork sliders, headlamp eyebrow and springs
Race-inspired fuel tank graphics
One-piece, two-up seat
Black, 13-spoke Cast Aluminum wheels
Dual front disc brakes
Chrome staggered shorty dual exhaust
Mid-mount foot controls
Classic 3.3-gallon fuel tank





SPECIFICATIONS:

Dimensions
Length 90.1 in. (2288.5 mm)
Overall Width 32.7 in. (830.6 mm)
Overall Height 44.8 in. (1137.9 mm)
Seat Height:
– Laden2
– Unladen
28.1 in. (713.7 mm)
29.9 in. (759.5 mm)
Ground Clearance 5.6 in. (141.0 mm)
Rake (steering head) 29.6°
Fork Angle 29.6°
Trail 4.6 in. (116.8 mm)
Wheelbase 60.0 in. (1524.0 mm)
Tires (Dunlop® Harley-Davidson Series, blackwall):
– Front – D401F
– Rear – D401
100/90-19 57H
150/80B16 71H
Fuel Capacity 3.3 gal. (12.5 L)
(warning light at approximately 0.8 gal.)
Oil Capacity (w/filter) 3.6 qts. (3.4 L)
Weight:
– As Shipped
– In Running Order
– Gross Vehicle Weight
Rating
568 lbs. (258 kg)
588 lbs. (267 kg)
1000 lbs. (454 kg)



Engine
Engine Air-cooled, Evolution®
Valve Train Pushrod-operated, overhead valves
with hydraulic, self-adjusting lifters;
two valves per cylinder
Bore x Stroke 3.00 in. x 3.81 in.
(76.20 mm x 96.82 mm)
Displacement 53.86 cu. in. (883 cc)
Compression Ratio 8.9:1
Fuel System3 Electronic Sequential Port Fuel Injection
(ESPFI)
Air Cleaner Paper cartridge type
Lubrication System Dry-sump



Drivetrain
Primary Drive Chain, 57/34 ratio
Final Drive Belt, 68/28 ratio
Clutch 9-plate, wet
Transmission 5-speed
Gear Ratios (overall):
– 1st
– 2nd
– 3rd
– 4th
– 5th
U.S. HDI JPN
10.782 10.782 10.782
7.702 7.702 7.702
5.728 5.728 5.728
4.748 4.748 4.748
4.071 4.071 4.071


Chassis
Frame Mild steel tubular frame; circular sections;
cast junctions
Swingarm Mild steel, rectangular tube sections,
stamped junctions; MIG welded
Front Fork 39 mm
Rear Shocks Coil-over; preload dual-adjustable
Wheels4 (Chrome, Laced
Steel option):
Black, 13-spoke Cast Aluminum
– Front
– Rear
19 in. x 2.15 in. (482.6 mm x 54.61 mm)
16 in. x 3.0 in. (406.4 mm x 76.2 mm)
Brakes:
– Caliper Type
– Rotor Type
(diameter x width):
– Front (dual)
– Rear
Dual-piston front, single-piston rear
Patented, uniform expansion rotors
11.5 in. x .20 in. (292.1 mm x 5.08 mm)
11.5 in. x .23 in. (292.1 mm x 5.84 mm)
Suspension Travel:
– Front Wheel
– Rear Wheel
5.6 in. (141.0 mm)
4.1 in. (104.1 mm)


Performance
Engine Torque (per SAE J1349)5:
– North America 55.0 ft. lbs. @ 3500 rpm
(74.6 NM @ 3500 rpm)
Lean Angle (per SAE J1168):
– Right
– Left
32°
32°
Fuel Economy9
(EPA urban/highway test)
45.0/59.7 mpg (5.23/3.94 L/100 km)


Electric
Battery (per Battery Council
International Rating)
Sealed, maintenance-free, 12V,
12-amp/hour, 200 cca
Charging Single-phase, 30-amp system
(357W @ 13.5V, 2000 rpm, 405W max power @ 13.5V)
Starting 1.2 kW electric with solenoid shift starter
motor engagement
Lights (as per country regulation):
– Headlamp
(quartz halogen)
– Tail/Stop Lights
– Turn Signal Lights
– Indicator Lamps
55-watt low beam, 60-watt high beam
8W/28W (5W/21W)
28W (21W) self-canceling
High beam, neutral, low oil pressure,
turn signals, engine diagnostics, low fuel
warnings, security system6 (optional)


Styling / Convenience
Engine Trim Black powder-coated with
Wrinkle-Black treatment
Exhaust System Chrome, staggered shorty duals
Foot Supports
and Controls
Mid-mounted rider footpegs with brake and
shift levers; standard passenger footpegs
Handlebars Black, low-rise
Seat One-piece, two-up Sportster classic
Instruments Electronic speedometer with odometer,
time-of-day clock on odometer, dual
resettable tripmeter, fuel gauge with
low fuel warning light, low oil pressure
indicator light, diagnostics readout,
LED lights
Hazard Warning Integrated into turn signal controls
Smart Security System Optional, next-generation hands-free
security fob; operates based on proximity
to vehicle

Colors10
Vivid Black, Pewter Pearl (new), Mirage Orange Pearl


Warranty
Warranty7 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km),
every 5,000 miles (8,000 km) thereafter8


1 Harley-Davidson reserves the right to discontinue models or change specifications at
any time without incurring any obligations. Vehicle specifications may vary by country
and region depending on local laws. Some models are not available in certain countries.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Recommended 91 octane or higher fuel (R+M)/2 (87 octane or higher for XL 883 models).
Standard and optional fuel systems may vary by country and region.
4 Standard and optional wheels may vary by country and region.
5 Values shown are nominal. Performance may vary by country and region.
6 North America security system includes immobilizer; outside North America the security
system includes immobilizer and siren.
7 See motorcycle owner’s manual for complete details.
8 Inspections of certain systems and components are required at 2,500 mile
(4,000 km) intervals.
9 Estimated from fuel economy tests on a sample motorcycle from the corresponding
family conducted by Harley-Davidson under ideal laboratory conditions. Not all
motorcycle models undergo fuel economy testing. Fuel economy and mileage may
vary among motorcycle models within a family. Your mileage may vary depending on
your personal riding habits, weather conditions, trip length, vehicle condition and vehicle
configuration, and other conditions. Break-in mileage may vary.
10 Availability may vary from dealer to dealer, and is subject to change without notice.
