2007 Honda VTX1800T

You are here: HomeNew 2007 Models — 2007 Honda Motorcycle Models

2007 Honda VTX1800T
Back to 2007 Honda Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

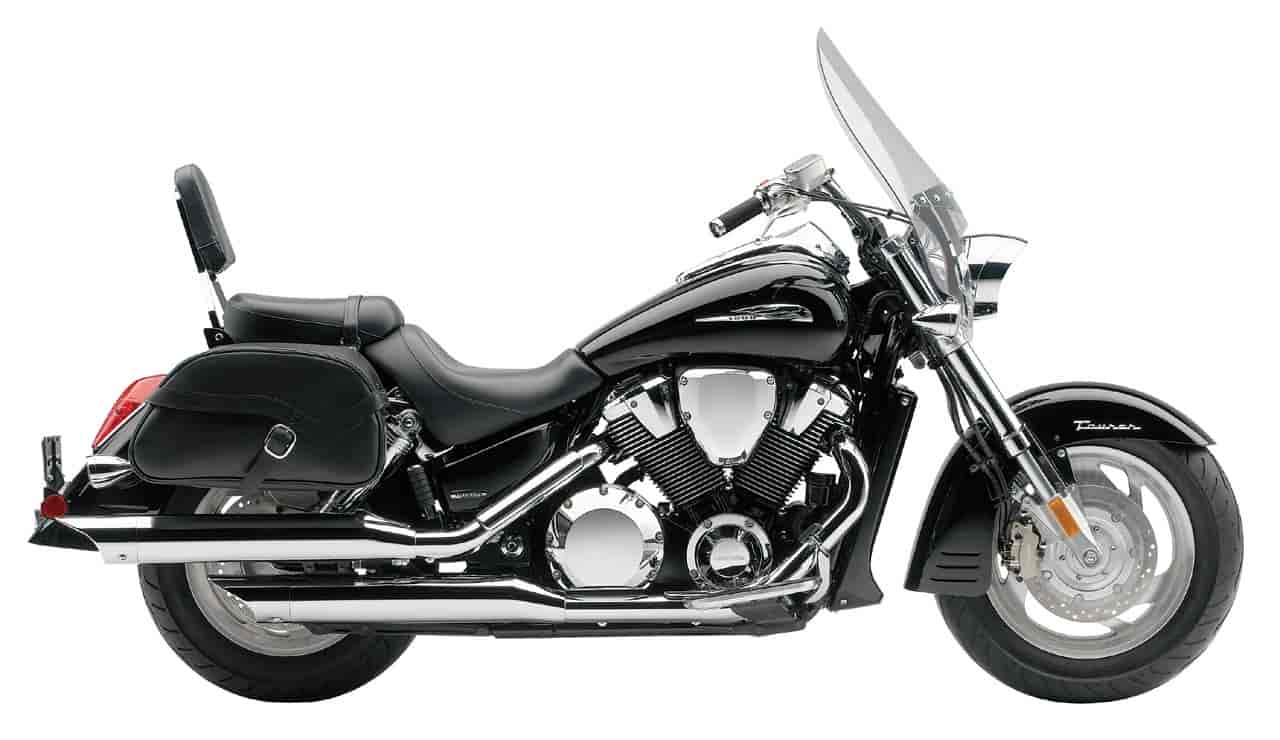

2007 Honda VTX1800T

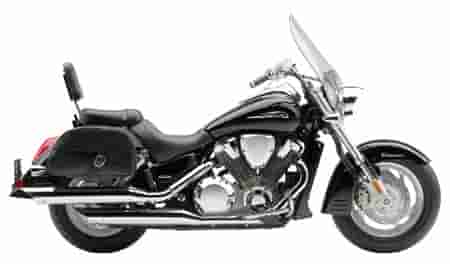

2007 Honda VTX1800T

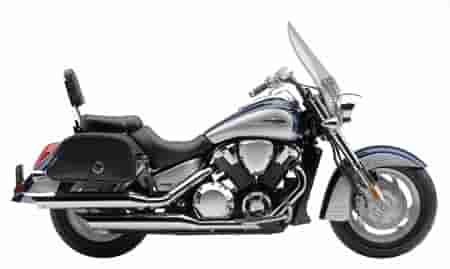

2007 Honda VTX1800T
2007 Honda VTX1800T

2007 Honda VTX1800T
2007 Honda VTX1800T

2007 Honda VTX1800T
2007 Honda VTX1800T



– 2007 Honda VTX1800T

2007 Honda VTX1800T

New to the line for 2007, the VTX1800T combines retro-custom styling and long-distance-touring amenities in a turnkey package to become Honda’s most powerful V-Twin tourer ever.



Features & Benefits

New for 2007

– Stylish custom windscreen for rider and passenger touring comfort.

– The 24-liter leather saddlebags provide ultimate touring convenience.

– Chrome backrest for passenger comfort.

– Exclusive Tourer badging on front fender.

– The VTX®1800T is available in these exciting colors: Black/Red, Dark Blue Metallic/Metallic Silver and Black.



Unique features

– VTX1800T is available in two distinctive build variations: Spec 1 and 2.

– Full-flowing, deeply valanced classic retro-style front and rear steel fenders.

– Wedge-shaped mirrors offer an aerodynamic look.

– Flangeless 5.3-gallon fuel tank offers excellent cruising range.

– High-capacity radiator for optimal cooling capacity.

– Chrome-plated VTX badge surrounds jet-black-filled graphics for a truly distinctive look.

– Bullet-style turn indicators feature chrome visors, clear lenses and amber flasher bulbs.

– Tank-mounted speedometer features a meter face with black background and classic graphics.

– Classic taillight design.

– VTX’s specially designed seat features a low 27.4-inch seat height and is designed for all-day comfort for rider and passenger.

– Relaxed handlebar position and large levers contribute to the classic design.

– Staggered dual exhaust with stylish slash-cut mako tips.

– Fat 150/80 front tire on a 17-inch wheel gives the VTX a commanding profile.

– California model utilizes an electronic control unit (ECU), closed-loop emissions system with two oxygen sensors to constantly deliver a precise air/fuel mixture while two exhaust catalyzers reduce emissions of carbon monoxide, hydrocarbons and oxides of nitrogen to meet 2008 California Air Resources Board (CARB) emissions standards.



Spec 1 Custom-Building Options

– Crankcases, cylinder, starter motor: Silver finish.

– Handlebar: Cast-aluminum risers and caps with satin-brushed finish.

– Clutch and Brake Levers: Smooth, cast-aluminum finish.

– Fork Tubes: Satin-brushed finish inverted fork tubes with satin-brushed caps.

– Upper and lower triple clamps: Cast-aluminum with hairline satin-brushed finish.

– Switch Housings: Smooth, cast-aluminum finish.

– Radiator Cover: Gloss-black finish.

– Floor Boards: Hairline satin-brushed aluminum.

– Final-Drive Housing: Silver finish.

– Wheels: Satin-brushed cast-aluminum.



Spec 2 Custom-Building Options

– Crankcases, cylinder, starter motor: Satin-black finish with milled cylinder fin edges.

– Handlebar: Chrome-plated aluminum handlebar mounts and VTX-logo cap.

– Clutch and Brake Levers: Highly polished aluminum finish.

– Fork Tubes: Chrome steel covers and chrome caps highlight fork tubes.

– Upper and lower triple clamps: Highly polished cast-aluminum.

– Switch Housings: Hairline satin-brushed finish.

– Radiator Cover: Gloss-black finish.

– Floor Boards: Hairline satin-brushed aluminum.

– Final-Drive Housing: Silver finish.

– Wheels: Satin-brushed cast-aluminum.



Engine/Drivetrain

– Engine is a 1795cc liquid-cooled 52-degree V-twin that hammers out immense power–106 bhp at 5000 rpm and 120 lb./ft. of torque at 3500 rpm.

– V-twin engine features 4-inch cylinder bores and the largest connecting rods and cylinders Honda has ever made.

– Offset dual-pin crankshaft with two primary-shaft-mounted balance weights allows a high-performance engine design while eliminating harsh engine vibration. The result: muscular power across a broad rpm range for unequaled acceleration and roll-on performance.

– The 41.4-pound forged-steel crankshaft uses bolt-on weights, reducing crankcase width nearly 2 inches and reducing crankshaft weight 8.8 pounds compared to a conventional one-piece design.

– The engine mounting system uses carefully matched hangers and rubber mounts to eliminate unwanted vibration, while preserving the powerful character of the engine’s V-twin design.

– Each three-valve cylinder head features two large 36mm intake valves and a huge 45mm exhaust valve to produce optimum flow for the air/fuel charge.

– Two iridium-tip spark plugs per cylinder for efficient combustion at all engine speeds.

– Simple-to-service screw-and-locknut valve-clearance adjusters.

– 4.5-liter airbox supplies a large volume of cool, clean air to the engine.

– Advanced high-pressure programmed fuel injection (PGM-FI) features 42mm-diameter throttle bodies delivering air to two specially designed Denso 50-psi high-pressure fuel injectors. Fuel is delivered through 12 nozzle holes in each injector, producing an atomized fuel mixture that is highly combustible for maximum efficiency and power.

– ECU provides individual digital 3-D fuel-injection and ignition maps for each cylinder, creating ideal fuel mixture and spark advance settings for superb rideability.

– A unique dry-sump oiling system utilizes a closed crankcase design and places the oil tank inside the gearbox case. The result is a freer-revving engine for improved power and a lower engine height, allowing optimum rider ergonomics and a low 27.4-inch seat height.

– High-capacity radiator with cooling fan maintains consistent engine temperature for optimum performance and long engine life.

– Maintenance-free automatic cam-chain tensioners.

– Reliable electric-starter system.

– Primary-drive gear uses a cam-type damper to minimize powertrain lash.

– Sturdy, maintenance-free eight-plate hydraulic clutch with clutch-center damper ensures smooth gear shifting.

– Five-speed transmission with carefully selected gear ratios for relaxed cruising and exciting roll-on performance.

– Shaft final-drive system provides smooth, low-maintenance operation.

– Driven-flange design at the final-drive gear eliminates final-drive noise and wear and
simplifies rear-wheel installation.



Chassis/Suspension

– Massive tubular steel frame contains the engine’s power and gives the VTX a long, low, muscular stance.

– Large 45mm inverted front fork provides 5.1 inches of plush yet responsive wheel travel.

– Ribbed-design, chromed rear shocks with hairline satin-brushed top mounts have 3.9 inches of wheel travel and feature an advanced internal valve system for a comfortable ride.

– The VTX’s braking system features two three-piston front calipers and a single twin-piston rear caliper. Rider application of the front brake lever activates the two outer pistons of the front calipers. Application of the rear brake pedal activates the two pistons of the rear caliper and the center pistons of the front calipers. When only the rear brake pedal is used, an inline delay valve smooths application of the front caliper center pistons.



Additional Features

– Distinctive, chrome hooded-headlight housing features a powerful 55/60-watt halogen bulb with a computer-designed multireflector for superb lighting in all conditions.

– Tank-mounted chrome nacelle houses the fuel cap, tripmeter/odometer reset and indicator/ warning lights for the turn signals, high beam, neutral indicator, low fuel level, oil pressure, coolant temperature and fuel injection.

– Extensive chrome-finishing of engine parts includes cylinder-head covers, valve inspection covers, spark plug covers, airbox cover, left crankcase cover, clutch cover and left-rear engine cover.

– Spec 1 features silver finish on crankcases and cylinders; Spec 2 has a satin-black finish with milled fin edges that completes the custom look.

– Large, distinctive speedometer with easy-to-read numerals.

– Comfortably padded, large-diameter handgrips with smooth cast (Spec 1) or polished (Spec 2 ) aluminum handlebar switch-housings and triple-clamp assembly.

– Reliable 300-watt alternator.

– Durable, maintenance-free battery.

– Handlebar switches and controls use internationally approved ISO graphic symbols.

– Convenient push-to-cancel turn-signal switch.

– Transferable one-year unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

– Assembled in Marysville, Ohio.

– Purchase of a new, previously unregistered Honda unit by an individual retail user in the United States qualifies the owner for a one-year complimentary membership in the Honda Rider’s Club of America® (HRCA®). Benefits include roadside assistance, online access to the Honda Common Service Manual, six issues of the bimonthly Honda Red Rider™ magazine, travel discounts, trip routing and MSF reimbursement, plus access to the HRCA Web site (www.hrca.honda.com). For details on the HRCA, dealers should call (310) 783-3958, 8:30 a.m. to 5 p.m. Pacific Time.



VTX®1800T1 and 2 Honda Genuine Accessories

Backrests and Rear Carriers: Deluxe Chrome Backrest w/ Pad, Deluxe Chrome Backrest Trim w/ Emblem, Deluxe Chrome Rear Carrier, Deluxe Chrome Backrest/Rear Carrier Mount Brackets, Adjustable Chrome Backrest w/ Pad (5-Position), Chrome Backrest w/ Pad (Tall, Studded Traditional), Chrome Backrest Trim (Tall, Traditional), Chrome Backrest w/ Pad (Low, Studded Traditional), Chrome Backrest w/ Pad (Low, Plain Traditional), Chrome Backrest Trim (Low, Traditional), Chrome Rear Carrier (Traditional), Chrome Backrest/Rear Carrier Mounting Brackets (Traditional), Chrome Backrest w/ Pad (Tall, Neo-Retro), Chrome Backrest Trim (Tall, Neo-Retro), Chrome Backrest w/ Pad (Low, Neo-Retro), Chrome Backrest Trim (Low, Neo-Retro), Chrome Rear Carrier (Neo-Retro), Chrome Backrest/Rear Carrier Brackets (Neo-Retro), Chrome Passenger Grabrails (Fits all style backrests).

Windscreens: Custom Windscreen (Performance Style), Boulevard Screen (Clear), Boulevard Screen (Smoke), Boulevard Screen Mount Kit (Neo-Retro), Sport Screen, Lower Wind Deflectors.

Lightbars: Chrome Lightbar (Neo-Retro), Chrome Lightbar, Chrome Spotlight Visors, Chrome Fork Tube Cover Set (available on Spec 2 only).

Leather: Leather Saddlebags (18 l Plain), Leather Saddlebags (18 l Studded), Leather Saddlebags (18 l Fringed), Leather Saddlebags (24 l Fringed), Leather Tank Belt (Plain), Leather Tank Belt (Studded), Leather Touring Bag (Studded), Leather Touring Bag (Plain), Leather Touring Bag (Fringed), Leather Front Pouch (Studded), Leather Front Pouch (Plain), Leather Front Pouch (Fringed).

Chrome Appearance: Chrome Driveshaft Cover, Chrome Radiator Guard, Chrome Solo Rider Rear Carrier, Chrome Front Fender Guard Rail, Chrome Rear Fender Guard Rail, Chrome Front Fender Ornament, Chrome Rear Fender Trim, Chrome Front Fender Trim, Chrome Front Fender Tip, Chrome Master-Cylinder Cap, Chrome Allen-Bolt Inserts.

Chrome Billet: Chrome Billet Master-Cylinder Cap (Fluted), Chrome Billet Master-Cylinder Cap (Neo-Retro), Chrome Billet Master-Cylinder Cap (V Design), Chrome Billet Dipstick (Fluted), Chrome Billet Dipstick (Neo-Retro), Chrome Billet Clutch Cover (Fluted), Chrome Billet Clutch Cover (Neo-Retro), Chrome Billet Timing and Crankshaft Cover Set (Fluted), Chrome Billet Timing Cover (Neo-Retro), Chrome Billet, Countershaft Cover Trim (Fluted), Chrome Billet Countershaft Cover Trim (Neo-Retro), Chrome Billet Upper Countershaft Cover Trim (Fluted), Chrome Billet Driveshaft Bolt Cover (Fluted), Chrome Billet Driveshaft Bolt Cover (Neo-Retro) , Chrome Billet Driveshaft Bolt Cover (V Design), Chrome Billet Swingarm Pivot Cover Set (Fluted), Chrome Billet Swingarm Pivot Cover Set (Neo-Retro), Chrome Billet License-Plate Frame (Fluted), Chrome Billet License-Plate Frame (Neo-Retro), Chrome Billet License-Plate Frame (V Design), Chrome Billet Upper Fork Nut Covers, Chrome Billet Banjo Bolt Covers.

Additional Accessories: Chrome Heated Grips, Cycle Cover.





Specifications

Model: VTX1800T

Engine Type: 1795cc liquid-cooled 52° V-twin

Bore and Stroke: 101mm x 112mm

Compression Ratio: 9.0:1

Valve Train: SOHC; three valves per cylinder

Carburetion: PGM-FI with automatic choke

Ignition: Digital, two spark plugs per cylinder

Transmission: Five-speed

Final Drive: Shaft

Suspension
Front: 45mm inverted fork; 5.1 inches travel
Rear: Dual shocks with five-position spring preload adjustability; 3.9 inches travel

Brakes
Front: Dual 296mm disc with LBS three-piston calipers
Rear: Single 316mm disc with LBS twin-piston caliper

Tires
Front: 150/80R-17 radial
Rear: 180/70R-16 radial

Wheelbase: 67.5 inches

Rake (Caster Angle): 32.0°

Trail: 163mm (6.4 inches)

Seat Height: 27.4 inches

Dry Weight: TBD

Fuel Capacity: 5.3 gallons

Colors: Black/Red, Dark Blue Metallic/Metallic Silver, Black
(Spec 1 available only in Black)

Meets current EPA standards.

California version meets current CARB standards and may differ slightly due to emissions equipment.



2007 Honda VTX Pricing

Name
2007 Model
(“L” designates
California version)
Color
Suggested Retail Price
VTX1800C Spec 1 VTX18C17 Black
$12,899.00
Type C
VTX18C1L7 Black $12,899.00


VTX18CF17 Red/Black Flame $13,299.00


VTX18CF1L7  Red/Black Flame $13,299.00
VTX1800F Spec 1 VTX18F17 Metallic Black $13,499.00
Type F
VTX18F1L7 Metallic Black $13,499.00

Spec 2 VTX18F27 Metallic Black $14,549.00



Pearl Yellow $14,549.00


VTX18F2L7 Metallic Black $14,549.00



Pearl Yellow $14,549.00


VTX18FF27 Red/Black Tribal $14,849.00


VTX18FF2L7  Red/Black Tribal $14,849.00

Spec 3 VTX18F37 Metallic Black $15,499.00



Pearl Yellow $15,499.00


VTX18F3L7 Metallic Black $15,499.00



Pearl Yellow $15,499.00


VTX18FF37 Red/Black Tribal $15,799.00


VTX18FF3L7  Red/Black Tribal $15,799.00
VTX1800N Spec 1 VTX18N17 Metallic Black $13,699.00
Type N
VTX18N1L7 Metallic Black $13,699.00

Spec 2 VTX18N27 Metallic Black $14,849.00


VTX18N2L7 Metallic Black $14,849.00


VTX18NC27 Metallic Black/Red Custom Art $15,249.00



Dark Red/Red Custom Art $15,249.00


VTX18NC2L7  Metallic Black/Red Custom Art $15,249.00



Dark Red/Red Custom Art $15,249.00

Spec 3 VTX18N37 Metallic Black $16,249.00


VTX18N3L7 Metallic Black $16,249.00


VTX18NC37 Metallic Black/Red Custom Art $16,649.00



Dark Red/Red Custom Art $16,649.00


VTX18NC3L7  Metallic Black/Red Custom Art $16,649.00



Dark Red/Red Custom Art $16,649.00
VTX1800R Spec 1 VTX18R17 Black $13,399.00
Type R
VTX18R1L7 Black $13,399.00

Spec 2 VTX18R27 Black $14,549.00


VTX18R2L7 Black $14,549.00


VTX18RT27 Dark Blue Metallic/Metallic Silver $14,949.00



Black/Red $14,949.00


VTX18RT2L7  Dark Blue Metallic/Metallic Silver $14,949.00



Black/Red $14,949.00

Spec 3 VTX18R37 Black $15,849.00


VTX18R3L7 Black $15,849.00


VTX18RT37 Dark Blue Metallic/Metallic Silver $16,249.00



Black/Red $16,249.00


VTX18RT3L7  Dark Blue Metallic/Metallic Silver $16,249.00



Black/Red $16,249.00
VTX1800T Spec 1 VTX18T17 Black $14,899.00
Type T
VTX18T1L7 Black $14,899.00

Spec 2 VTX18T27 Black $16,049.00


VTX18T2L7 Black $16,049.00


VTX18TT27 Dark Blue Metallic/Metallic Silver $16,449.00



Black/Red $16,449.00


VTX18TT2L7  Dark Blue Metallic/Metallic Silver $16,449.00



Black/Red $16,449.00
VTX
VTX1300C7 Black $9,599.00


VTX1300CL7  Black $9,599.00


VTX13C7 Pearl White $9,699.00



Pearl Dark Blue $9,699.00



Dark Red $9,699.00


VTX13CL7 Pearl White $9,699.00



Pearl Dark Blue $9,699.00



Dark Red $9,699.00


VTX1300CG7 Pearl Bright Green $9,799.00


VTX1300CGL7 Pearl Bright Green $9,799.00
VTX
VTX1300R7 Black $9,599.00


VTX1300RL7  Black $9,599.00


VTX13R7 Titanium $9,699.00



Metallic Blue $9,699.00



Dark Red Metallic $9,699.00


VTX13RL7 Titanium $9,699.00



Metallic Blue $9,699.00



Dark Red Metallic $9,699.00
VTX
VTX1300S7 Black $9,599.00


VTX1300SL7  Black $9,599.00


VTX13S7 Titanium $9,699.00



Metallic Blue $9,699.00



Dark Red Metallic $9,699.00


VTX13SL7 Titanium $9,699.00



Metallic Blue $9,699.00



Dark Red Metallic $9,699.00

Prices are subject to change without notice



VTX Accessories

Custom Windshield (Detachable)
This Lexan® Custom Windshield enhances the VTX’s aggressive styling and features a quick-detach system for easy installation and removal. Mounting hardware included.

Headlight Cowl with Windscreen
Give the new VTX an even more extreme look with this color-matched Headlight Cowl.

Lower Cowl
Impact-resistant cowl protects radiator and enhances aggressive style. The smooth lines of this color-matched cowl make it ideal for a performance custom look.

Leather Saddlebags (Detachable)
These heavy-duty genuine Leather Saddlebags are the perfect addition when road trips begin. Saddlebag Mounting Brackets required.

Saddlebag Mounting Brackets
Leather Saddlebags will stay where they belong with these Saddlebag Mounting Brackets. Required for Leather Saddlebags.

Chrome Lightbar
Add styling and extra visibility to the front of the VTX with this Chrome Lightbar.

Chrome Rider Floorboards
These non-slip, neoprene-pad floorboards offer styling and comfort for a more enjoyable ride.

Deluxe Chrome Backrest Trim
This chrome-plated Backrest Trim is the perfect way to add a little flash to the new VTX. Mounts to the VTX’s Deluxe Chrome Backrest.

Deluxe Chrome Backrest with Pad
Plush and comfortable, this Backrest pad keeps passengers content, and gives the VTX a little extra style at the same time. Deluxe Chrome Backrest Mounting Brackets required.

Deluxe Chrome Backrest/Rear Carrier Mounting Brackets
When adding a Chrome Backrest, use these high-quality Chrome Backrest Mounting Brackets engineered for the VTX.

Deluxe Chrome Rear Carrier
High-quality chrome-finish Carrier is built for stability and durability. Deluxe Chrome Rear Carrier Mounting Brackets required.

Chrome Rear Fender Panel
A great addition to complete the look of the VTX.

Chrome Backrest with Pad (Tall)
This comfortable, padded Chrome Backrest will make passengers happy. Chrome Backrest Mounting Brackets required.

Chrome Backrest with Pad (Low)
Looking for a shorter backrest? Here it is. Passenger will be just as comfortable and secure, but the VTX will get a different look. Chrome Backrest Mounting Brackets required.

Chrome Backrest/Rear Carrier Mounting Brackets
When adding a rear carrier or backrest to the VTX, be sure to use these high-quality chrome mounting brackets.

Chrome Rear Carrier (Round-tube)
Built with round-tube construction, this Chrome Rear Carrier allows the rider to strap on the gear and go. Fits Chrome Backrest (Tall) and Chrome Backrest (Low). Chrome Backrest/Rear Carrier mounting brackets required.

Chrome Swingarm Cover
This brilliant Chrome Swingarm Cover has been buffed and polished for a finish that really stands out.

Chrome Driveshaft Cover
Every inch of this Chrome Driveshaft Cover has been designed specifically for the VTX with Honda quality.

Billet Passenger Floorboards
Passengers can enjoy the benefits of non-slip, neoprene-pad floorboards too when adding this accessory.

Billet Backrest Trim
This Billet Backrest Trim provides another way to dress up the VTX when adding a backrest. Fits Deluxe Chrome Backrest.

Billet Master Cylinder Cap
When adding billet to the VTX, don’t forget this master-cylinder cap for a unique look.

Billet Front Caliper Cap Set
A high-quality billet finish. A great finishing touch to the front of the VTX.

Billet Rear Caliper Cap
A great finishing touch for a unified custom billet look. All billet items feature exclusive integrated fluted design.

Billet Dipstick
Even checking the oil is fun with a Billet Dipstick. Installation couldn’t be easier.

Billet Spark Plug Cover Set
Here’s an area everyone else overlooks. These Billet Spark Plug Covers are the perfect accents to the VTX.

Billet Driveshaft Bolts Cover
The clean lines and beautiful finish of this Billet Driveshaft Bolts Cover are reflected in our entire line of billet accessories.

Billet Timing and Crankshaft Cover Set
Integrated fluted design matches other billet offerings.

Billet Clutch Cover
You wouldn’t believe the size of the billet we start with when we machine this beauty. It makes a huge visual impact.

Billet Countershaft Cover Trim
When customizing the VTX, you can add a little more show quality billet with this Billet Countershaft Cover Trim.

Billet Upper Countershaft Cover Trim
Give a complete custom look by adding this Billet Upper Countershaft Cover Trim.

Billet Swingarm Pivot Cover Set
This brilliant billet cover set has been crafted specifically for the VTX.

Cycle Cover
Constructed of weather-resistant synthetic material, this Cycle Cover features a moisture venting system, as well as a soft inner liner to prevent windshield scratching.





About Michael Le Pard 862 Articles

“Mr. Totalmotorcycle”. Owner and Founder of Total Motorcycle. Supporting Motorcyclists and Motorcycling for 18 great years.

Be the first to comment

Leave a Reply
