2009 Harley-Davidson Fire/Rescue Electra Glide
Back to 2009 Harley-Davidson Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

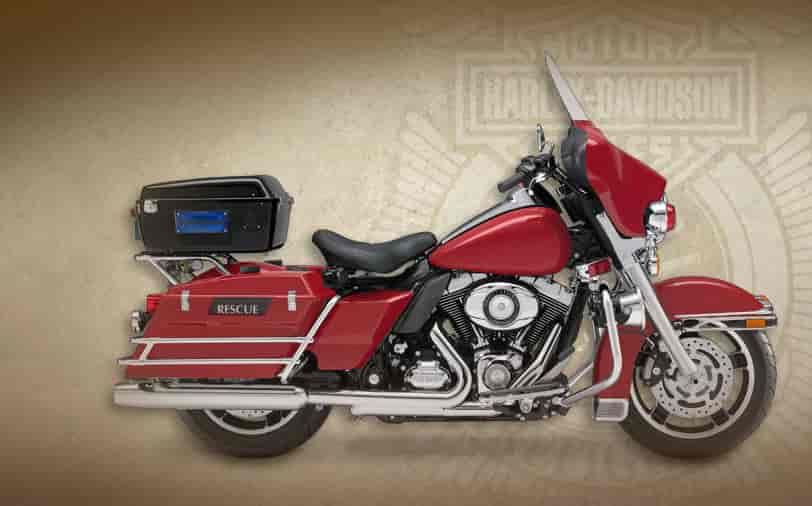

2009 Harley-Davidson Fire/Rescue Electra Glide
2009 Harley-Davidson Fire/Rescue Electra Glide

– 2009 Harley-Davidson Fire/Rescue Electra Glide

2009 Harley-Davidson Fire/Rescue Electra Glide

The one. The only. The legend.

Harley-Davidson® Fire and Rescue motorcycles are known the world over as the vehicle of choice for those who protect and serve. A motor officer shouldn’t have to settle for anything less.



NEW IN 2009
ALL-NEW FRAME AND SWINGARM
Features 50% fewer parts and welds and provides greater load carrying capacity.
NEW 68-TOOTH RUBBER ISOLATED REAR DRIVE SPROCKET
With Isolated Drive System, offers smoother power delivery and increased acceleration.
NEW 2-1-2 EXHAUST
Creates more passenger leg room and improves rider/passenger comfort.
NEW LED REAR FENDER TIP LIGHT AND LED LICENSE PLATE ILLUMINATION



TRAINING

Like no one else in the industry, Harley-Davidson completes its motorcycle offering with professional
partnerships to provide outstanding operator and technician training.

NORTHWESTERN UNIVERSITY CENTER FOR PUBLIC SAFETY
For more than 20 years, the Harley-Davidson Motor Company has worked with Northwestern University Center for Public Safety to make motor officers safer through training. From our humble beginnings, moving six motorcycles in a U-Haul four times a year, we’ve built a nationwide program, transporting 21. training motorcycles in a custom tractor-trailer to as many as 13 locations each year.

Our instructors are second to none. We also provide an on-site technician and a complete inventory of
parts to handle any mechanical issues, ensuring uninterrupted training. And it’s all included in student tuition. We want to make affordable, topquality operator and instructor training available to all motor officers.

MOTORCYCLE MECHANICS INSTITUTE
Training for technicians who serve law enforcement agencies that use Harley-Davidson® police
motorcycles is offered at the Motorcycle Mechanics Institute in Orlando, Florida and Phoenix, Arizona.
Working with Harley-Davidson University, we provide a curriculum similar to that offered for dealership technicians. Five classes are held in spring and fall: Vehicle Maintenance, Electrical
Diagnostics, Air-Cooled Powertrain, Engine Management Systems and Chassis/ABS Service.







2009 Harley-Davidson Fire/Rescue Electra Glide – Specifications

U.S. UNITS

DIMENSIONS U.S. UNITS
Length 95.14 in.
Seat Height
Laden 1 27.3 in.
Unladen 30.7 in.
Ground Clearance 5.10 in.
Rake Steering Head/Trail 26° / 6.69 in.
Wheelbase 63.5 in.
Track Width N/A
Fuel Capacity 6.0 gal.
Oil Capacity 4.0 qt.
Weight
Dry Weight 791.0 lbs.
Running Order 828.0 lbs.
Luggage Capacity
Volume N/A
Weight N/A

POWERTRAIN
Engine 2 Air-cooled, Twin Cam 103™
Displacement 103.00 cu. in.
Bore x Stroke 3.88 in. x 4.38 in.
Engine Torque 3 102 ft lbs @ 2500 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 9.6:1
Miles per Gallon 5
ESPFI 54 hwy / 35 city
Primary Drive Chain, 34/46 ratio
Gear Ratio (overall)
1st 9.593
2nd 6.65
3rd 4.938
4th 4
5th 3.407
6th 2.875

WHEELS/TIRES
Wheels 6
Front Black, Slotted Disc Cast Aluminum
Rear Black, Slotted Disc Cast Aluminum
Wheel Option N/A
Tire Size
Front D407F BW
Rear D407 BW

ELECTRICAL
Instruments Tank-mounted electronic speedometer with odometer, tachometer.
Indicator Lamps 7 High beam, turn signals, hazard signals, neutral, low oil pressure, engine diagnostics, low fuel, police emergency light activation, 6-speed, ABS light (optional)
Reverse Function N/A

CHASSIS
Brakes 32 mm 4-piston fixed front and rear
Parking Brake N/A
Lean Angle (per SAEJ1168) 31° / 33°
Exhaust System Chrome, cross-over exhaust w/ dual mufflers and taper End Caps

COLOR OPTIONS
Fire Engine Red

PRICING 8
MSRP
Black $ N/A
Color $ N/A
Two-Tone $ N/A
Custom Color $ N/A
Security $ N/A
Wheel Option $ N/A
ABS Option $ N/A
Reverse Option $ N/A
Cruise Control $ N/A
California Emissions $ N/A
Freight $ N/A



METRIC UNITS
DIMENSIONS

Length 2416.56 mm
Seat Height
Laden 1 693.42 mm
Unladen 779.78 mm
Ground Clearance 129.54 mm
Rake Steering Head/Trail 26° / 169.93 mm
Wheelbase 1612.9 mm
Track Width N/A
Fuel Capacity 22.71 L
Oil Capacity 3.78 L
Weight
Dry Weight 358.79 kg
Running Order 375.57 kg
Luggage Capacity
Volume N/A
Weight N/A

POWERTRAIN
Engine 2 Air-cooled, Twin Cam 103™
Displacement 1688 cm³
Bore x Stroke 98.55 mm x 111.25 mm
Engine Torque 3 138.31 Nm @ 2500 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 9.6:1
Liters per 100 KM
ESPFI 4.36 hwy / 6.72 city
Primary Drive Chain, 34/46 ratio
Gear Ratio (overall)
1st 9.593
2nd 6.65
3rd 4.938
4th 4
5th 3.407
6th 2.875

WHEELS/TIRES
Wheels 5
Front Black, Slotted Disc Cast Aluminum
Rear Black, Slotted Disc Cast Aluminum
Wheel Option N/A
Tire Size
Front D407F BW
Rear D407 BW

ELECTRICAL
Instruments Tank-mounted electronic speedometer with odometer, tachometer.
Indicator Lamps 6 High beam, turn signals, hazard signals, neutral, low oil pressure, engine diagnostics, low fuel, police emergency light activation, 6-speed, ABS light (optional)
Reverse Function N/A

CHASSIS
Brakes 32 mm 4-piston fixed front and rear
Parking Brake N/A
Lean Angle (per SAEJ1168) 31° / 33°
Exhaust System Chrome, cross-over exhaust w/ dual mufflers and taper End Caps

COLOR OPTIONS
Fire Engine Red

PRICING 7
MSRP
Black $ N/A
Color $ N/A
Two-Tone $ N/A
Custom Color $ N/A
Security $ N/A
Wheel Option $ N/A
ABS Option $ N/A
Reverse Option $ N/A
Cruise Control $ N/A
California Emissions $ N/A
Freight $ N/A


1 Measurement reflects 180 lb./81.7 kg operator weight.
2 Recommended 91 octane or higher fuel (R+M)/2.
3 Values shown are nominal. Performance may vary by country and region.
4 Standard and optional fuel systems may vary by country.
5 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6 Standard and optional wheels may vary by country and region.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 Prices listed are the Manufacturer’s Suggested Retail Prices. Options such as color are available at additional cost. Prices exclude dealer setup, taxes, title and licensing and are subject to change. Dealer prices may vary.

Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered.
All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed.

Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation.
Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information.

All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
