2009 Harley-Davidson Police TLE Sidecar

You are here: Home2009 Models — 2009 Harley-Davidson Motorcycle Models

2009 Harley-Davidson Police TLE Sidecar
Back to 2009 Harley-Davidson Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

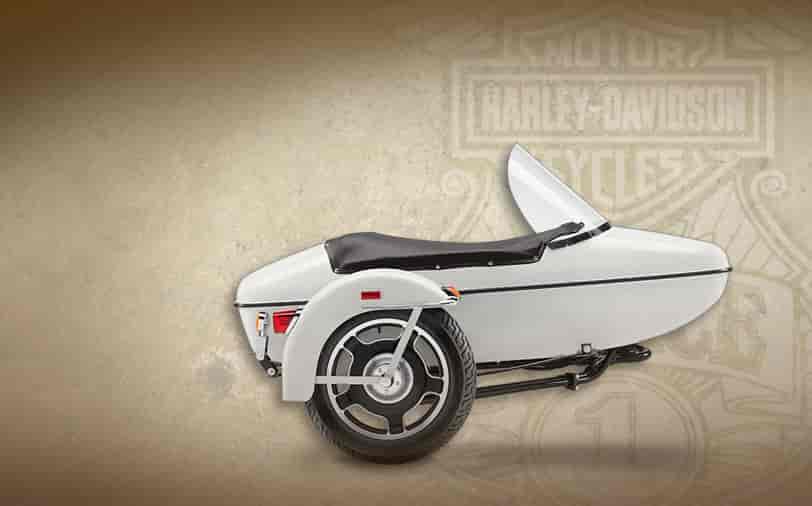

2009 Harley-Davidson Police TLE Sidecar
2009 Harley-Davidson Police TLE Sidecar

– 2009 Harley-Davidson Police TLE Sidecar

2009 Harley-Davidson Police TLE Sidecar

Sidecar

The second century of Harley-Davidson® police motorcycles is underway—and thanks to innovative
new technology, this year’s models are arguably our most capable, dependable police motorcycles ever.





2009 Harley-Davidson Police TLE Sidecar – Specifications

U.S. UNITS

DIMENSIONS
LENGTH 78.4 in.

WIDTH

SIDECAR WIDTH 23.5 in.

WIDTH FROM BRACKET TO SIDECAR WHEEL 53.3 in.

OVERALL HEIGHT 42.1 in.

WEIGHT

WEIGHT 234 lbs.

GROSS AXLE WEIGHT RATING 300 lbs.


WHEELS/TIRES
WHEELS Black, 9-spoke cast aluminum

TIRE SIZE D402 MT90B16

ELECTRICAL
LIGHTS Directional signal, tail lights, fender tip lamp

CHASSIS
FRAME Easy toe in/out adjustment

BRAKES Single disc; hydraulic disc brake on third wheel

SUSPENSION Single leaf-spring

COLOR OPTIONS
Birch White; also available color-matched to model year 2004-2007 Police Color Palette.



METRIC UNITS
DIMENSIONS

LENGTH 1989.2 mm

WIDTH

SIDECAR WIDTH 596.4 mm

WIDTH FROM BRACKET TO SIDECAR WHEEL 1351.5 mm

OVERALL HEIGHT 1069.1 mm

WEIGHT

WEIGHT 106.14 kg

GROSS AXLE WEIGHT RATING 136.2 kg


WHEELS/TIRES
WHEELS Black, 9-spoke cast aluminum

TIRE SIZE D402 MT90B16

ELECTRICAL
LIGHTS Directional signal, tail lights, fender tip lamp

CHASSIS
FRAME Easy toe in/out adjustment

BRAKES Single disc; hydraulic disc brake on third wheel

SUSPENSION Single leaf-spring

COLOR OPTIONS
Birch White; also available color-matched to model year 2004-2007 Police Color Palette.


Consult your Harley-Davidson dealer regarding ABS-equipped models.
Availability may vary from dealer to dealer, and is subject to change without notice.
Harley-Davidson reserves the right to discontinue models or change specifications at any time without incurring any obligations. Vehicle specifications may vary from country to country depending on local laws, and some models are not available in certain countries.
