2009 KTM 530 EXC
Back to 2009 KTM Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

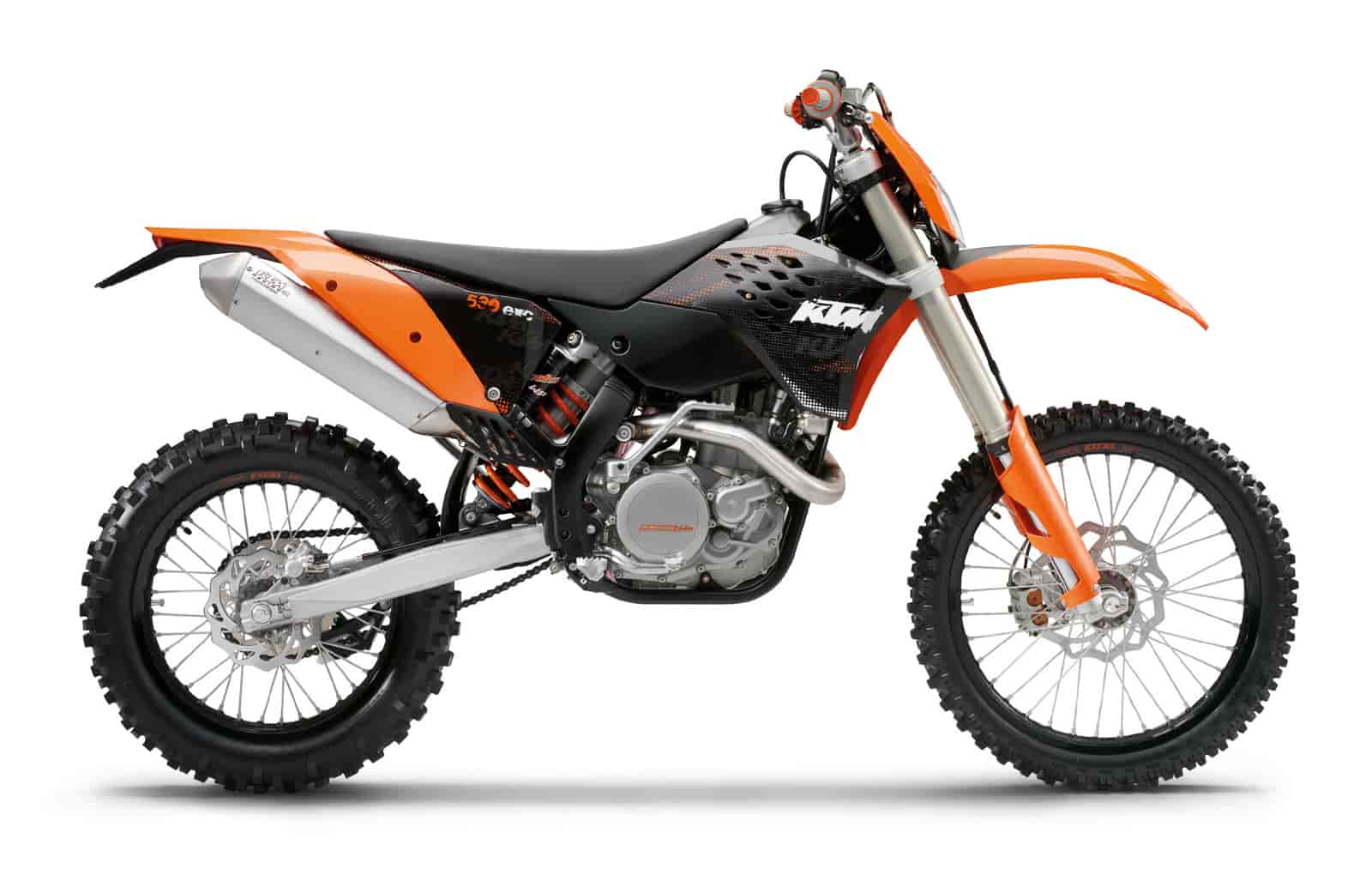

2009 KTM 530 EXC

2009 KTM 530 EXC

2009 KTM 530 EXC

2009 KTM 530 EXC

– 2009 KTM 530 EXC

2009 KTM 530 EXC

Those who feel the 530 EXC beneath them know what to expect: the ultimate combination of fighting machine and workhorse. The large SOHC engine develops brutal four-stroke power and also convinces with smooth power delivery on selective trails. In combination with the completely overhauled chassis, the new 530 EXC is the first choice for everyone who simply can’t get enough.

2009 KTM 530 EXC – Specifications

Engine type Single cylinder, 4-stroke
Displacement 510.4 cc
Bore x stroke 95/72 mm (3.74/2.83″)
Compression ratio 11.9:1
Starter/Battery Kick- and electric starter/12V 4Ah
Transmission 6 gears
Carburetor Keihin FCR MX 39
Control 4 V / OHC with rocker levers
Lubrication Pressure lubrication with 3 oil pumps
Engine lubrication Motorex, SAE 15W-50
Transmission oil Motorex, SAE 15W-50
Primary drive 33:76
Final drive 15:45 (14:52)
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Kokusan digital


Frame Central double-cradle-type 25CrMo4 steel
Subframe Aluminium 7020
Handlebar Neken, Aluminium Ø 28/22 mm (1.10/0.87″)
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP PDS shock absorber
Suspension travel front/rear 300/335 mm (11.81/13.19″)
Brakes, front/rear Disc brakes Ø 260/220 mm (10.24/8.66″)
Rims, front/rear 1.60 x 21″; 2.15 x 18″ Excel
Tires, front/rear 90/90-21″; 140/80-18″
Chain X-ring chain 5/8 x 1/4″
Main silencer Aluminium
Steering head angle 63.5°
Wheel base 1475 ± 10 mm (58.0 ± 0.39″)
Ground clearance (unloaded) 380 mm (15″)
Seat height 985 mm (38.78″)
Tank capacity approx. 9 liters (2.38 gal)
Weight (no fuel) approx. 113.9 kg (251,10 lbs)
