2009 KTM 990 Super Duke R
Back to 2009 KTM Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

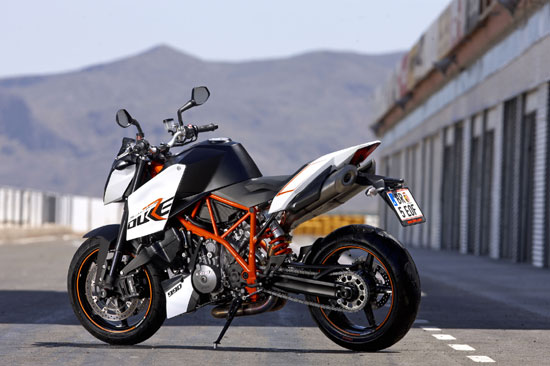

2009 KTM 990 Super Duke R

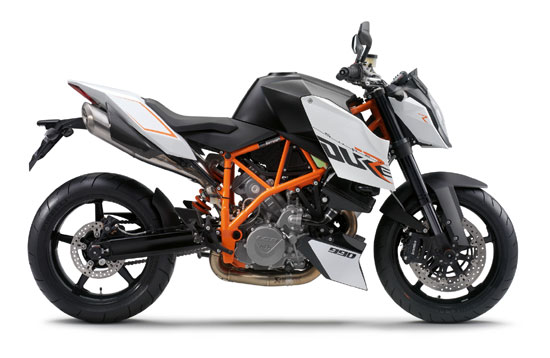

2009 KTM 990 Super Duke R

2009 KTM 990 Super Duke R

2009 KTM 990 Super Duke R

– 2009 KTM 990 Super Duke R

2009 KTM 990 Super Duke R

The 990 Super Duke R has to be the hottest bike available manufactured in series. In this case, the KTM engineers did their utmost to develop a “machine” that would exploit to the fullest every last inch of leeway in road traffic certification: Fully adjustable 48 WP forks, ultralight mono-seat tail section, chromium molybdenum tubular trellis frame weighing a mere 9 kg as well as an additional steering damper for extreme circuit times. Out of the rut and into the race.

2009 KTM 990 Super Duke R – Specifications

Engine type Twin cylinder, 4-stroke, V 75°
Displacement 999 cc
Bore x stroke 101 x 62.4 mm (3.98 x 2.46″)
Performance (homologated) 97 kW @ 10000 rpm
Max. torque 102 Nm @ 8000 rpm
Compression ratio 11.5:1
Starter/Battery E-Starter/12 V 11.2 Ah
Transmission 6 gears, dog-clutch engagement
Fuel Mixture Generation Keihin electronic fuel injection
Control 4 V/DOHC
Lubrication Pressure lubrication with 2 Eaton pumps
Engine lubrication Motorex, fully synthetic, SAE 10W-50
Primary drive 67:35
Final drive 16:38
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Motor Management Keihin EMS


Frame Chromium-Molybdenum trellis frame, powder coated
Subframe Aluminium 7020
Handlebar Aluminium, Ø 28/22 mm (1.10/0.87″), tapered
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP mono shock
Suspension travel front/rear 135/150 mm (5.31/5.91″)
Front brake 2 x Brembo Vierkolben-Radialfestsattel, Bremsscheiben Ø 320 mm
Rear brake Brembo single-piston, floating caliper, brake disc Ø 240 mm (9.45″)
Rims, front/rear Cast aluminium wheels 3.5 x 17″; 5.5 x 17″
Tires, front/rear 120/70 ZR 17″; 180/55 ZR 17″
Chain X-Ring 5/8 x 5/16″
Battery 12 V/11.2 Ah
Main silencer Stainless steel silencer with regulated catalytic converter
Steering head angle 67.3°
Trail 93.9 mm
Wheel base 1450 ± 15 mm (57.09 ± 0.59″)
Ground clearance (unloaded) 140 mm (5.51″)
Seat height 865 mm (34.06″)
Tank capacity approx. 18.5 liters/2.5 liters reserve (4.89/0.66 gal)
Weight (no fuel) approx. 186 kg (410.05 lbs)
