2009 Suzuki Bandit 1250SEA ABS Touring

You are here: Home2009 Models — 2009 Suzuki Motorcycle Models

2009 Suzuki Bandit 1250SEA ABS Touring
Back to 2009 Suzuki Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

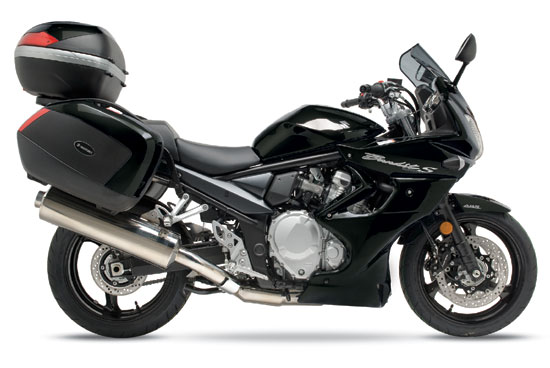

2009 Suzuki Bandit 1250SEA ABS Touring
2009 Suzuki Bandit 1250SEA ABS Touring


– 2009 Suzuki Bandit 1250SEA ABS Touring

2009 Suzuki Bandit 1250SEA ABS Touring

The Bandit 1250SEA ABS Touring (1250SA ABS in Canada) has a Suzuki fuel-injected four-cylinder engine that offers thrilling acceleration in every gear, with a rush of high-RPM performance. That excitement is matched by its crisp, agile handling and aggressive styling.



Engine Features

– Suzuki Composite Electrochemical Material (SCEM) plating on cylinders is durable and efficient

– Secondary balancer shaft for smooth engine operation

– Liquid-cooled, fuel injected, DOHC engine featuring a bore and stroke of 79.0mm x 64.0mm for a full 1255cc of torque-producing performance

– Suzuki Dual Throttle Valve fuel injection system featuring 36mm throttle bodies for optimum performance and smooth accelerations

– Compact engine design with a central cam chain, staggered transmission shafts, tighter spacing between the pairs of cylinders and a secondary balancer shaft for reduced vibration

– A catalyzer equipped high-volume muffler combined with an effective engine management system, Suzuki PAIR system, and oxygen sensor for reduced emissions meeting tough Euro 3 standards

– Suzuki Idle Speed Control (ISC) system for improved cold starting, consistent idle control and reduced emissions

– Hydraulic clutch with coil springs for improved lever feel and control

– Liquid cooled oil cooler for reduced oil temperatures

– Cylinder head featuring 31mm exhaust valves and 27mm intake valves set at a narrow 16 degree valve angle



Chassis Features

– Analog tachometer, LCD digital speedometer, LCD fuel gauge and clock, and LED indicator lamps.

– Anti-Lock Braking (ABS) monitors wheel speed and matches braking power to available traction.

– A slick shifting six speed transmission improves acceleration while reducing top gear rpm at highway speeds

– Tube frame chassis featuring larger diameter down tubes for optimum torsional rigidity designed for excellent balance of sporty handling and comfortable highway cruising

– Innovative seat height adjustment system can be adjusted up or down by 20mm with a simple spacer seat mounting system.

– 43mm front forks combined with a single rear shock with preload adjustability for riding with or without passengers

– 310mm dual front disc brakes with four piston calipers along with a 240mm rear disc and single piston caliper. Anti-Lock Braking (ABS) is also available and monitors wheel speed and matches braking power to available traction.

– Cast three spoke aluminum wheels carrying radial tires and a standard easy-to-use centerstand

– The Bandit 1250SEA ABS Touring features a sleek half fairing, with built in line-beam headlights, an effective windscreen and fairing mounted mirrors

– Wide, comfortable seat with low seat height

– Large capacity fuel tank for long operating range

– Easy-to-operate centerstand with high leverage ratio to reduce effort






2009 Suzuki Bandit 1250SEA ABS Touring – USA Specifications
MSRP: $9,199 USD

Model Number GSF1250SAK9
Type Standard
Warranty
Suggested Retail $9199
SEP $0
Engine 1255 cc (76.6 cu. in), 4-stroke, liquid-cooled, DOHC
Bore & Stroke 79.0 mm (3.110 in) x 64.0 mm (2.520 in)
Compression Ratio 10.5 : 1
Fuel System Fuel injection
Lubrication Wet sump
Ignition Electronic ignition (Transistorized)
Starter Electric
Transmission 6-speed constant mesh
Final Drive RK GB50GSVZ3, 118 links
Overall Length 2130 mm (83.9in)
Overall Width 790 mm (31.1 in)
Overall Height 1235 mm (48.6 in)
Seat Height 785/805 mm (30.9/31.7 in) – Low/High
Ground Clearance 135 mm ( 5.3 in)
Wheelbase 1485 mm (58.5 in)
Curb Weight 254 kg (560 lbs)
Suspension Front Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Disc brake, twin
Brakes Rear Disc brake
Tires Front 120/70ZR17M/C (58W), tubeless
Tires Rear 180/55ZR17M/C (73W), tubeless
Fuel Tank Capacity
Color Black, Blue




2009 Suzuki Bandit 1250SEA ABS Touring – Canada Specifications
MSRP: $10,899 CDN

Chassis:
Brakes Front Disc brake,
Brakes Rear Disc brake
Color Black, Blue
Curb Weight 254 kg (560 lbs)
Final Drive RK GB50GSVZ3, 118 links
Fuel Tank Capacity 19 L (4.18 Imp gal)
Ground Clearance 135 mm ( 5.3 in)
Overall Length 2130 mm (83.9in)
Overall Width 790 mm (31.1 in)
Seat Height 785/805 mm (30.9/31.7 in) – Low/High
Suspension Front Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Tires Front 120/70ZR17M/C (58W), tubeless
Tires Rear 180/55ZR17M/C (73W), tubeless
Transmission 6-speed constant mesh
Wheelbase 1485 mm (58.5 in)

Engine:
Bore Stroke 79.0 mm (3.110 in) x 64.0 mm (2.520 in)
Compression Ratio 10.5 : 1
Engine 1255 cc (76.6 cu. in), 4-stroke, liquid-cooled, DOHC
Fuel System Fuel injection
Ignition Electronic ignition (Transistorized)
Lubrication Wet sump
Starter Electric

Warranty:
Warranty 12 Month unlimited mileage limited warranty

Prices and specifications subject to change without notice.
