2010 Ducati Monster 1100

Back to 2010 Ducati Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

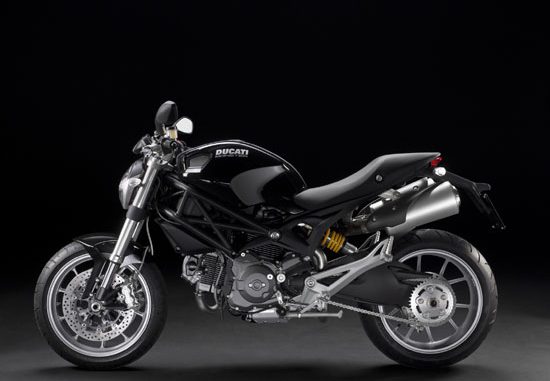

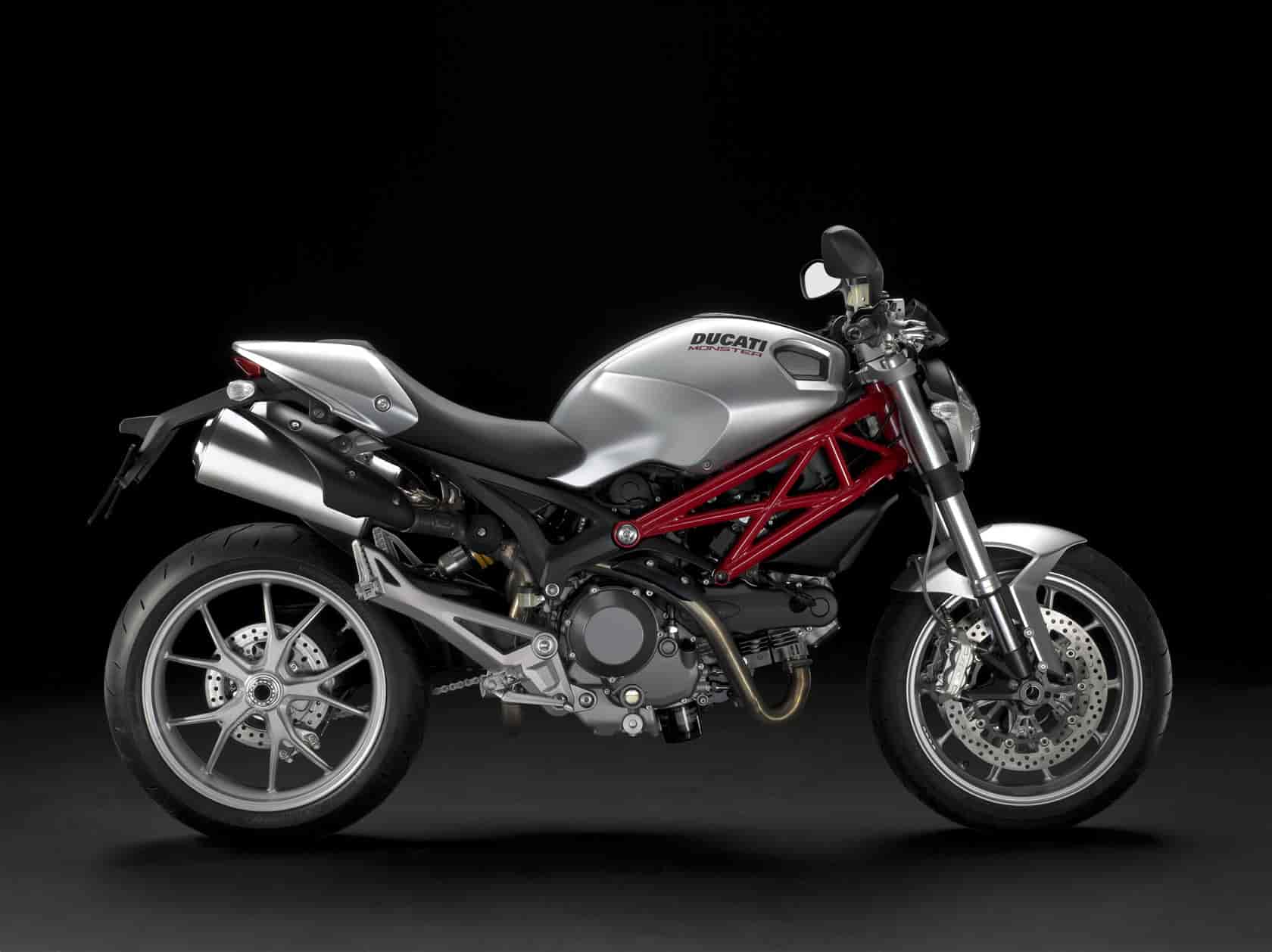

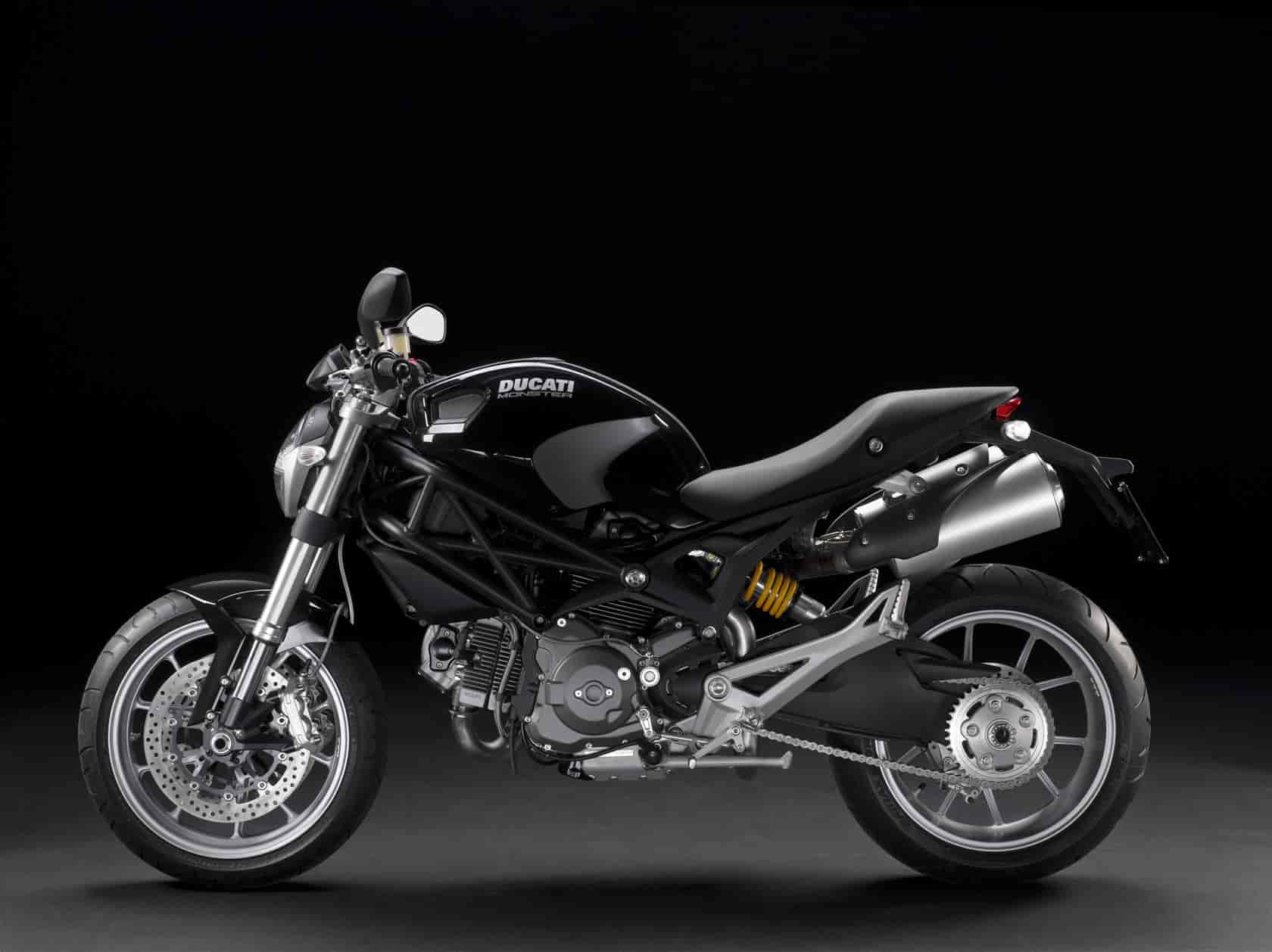

2010 Ducati Monster 1100
2010 Ducati Monster 1100

2010 Ducati Monster 1100
2010 Ducati Monster 1100

2010 Ducati Monster 1100
2010 Ducati Monster 1100



– 2010 Ducati Monster 1100

2010 Ducati Monster 1100

In search of the perfect corner.

The ‘less-is-more’ philosophy that made the Monster a motorcycling icon is now further enhanced to redefine your naked expectations. Less weight plus more torque equals fun-filled riding.

Chassis set-up

In search of the perfect corner

At just 169kg (373lb), the Monster 1100 is the lightest bike in its class.
The exceptional handling, combined with 10.5kgm (75.9lb-ft) of torque from the Ducati Desmo engine, results in a pure, adrenalin-filled ride.

Every single component has been created to satisfy a Ducati rider’s needs and provide unrivalled agility and handling. That is why Ducati engineers, designers and testers have aimed for the best possible set-up and the Monster is able to ensure the best handling of all naked bikes.

With a 40mm higher ride-height than the 696, the increased ground clearance of the Monster 1100 enables impressive lean angles, letting you explore the sports side of this new naked bike to the full. The extremely lightweight aluminium alloy Y-shaped, 5-spoke wheels reduce unsprung weight and improve agility. The 3.50×17 front wheel is fitted with a 120/70ZR tyre while the rear 5.50×17 wheel has a 180/55ZR. The result is lightweight, precise steering that is extremely responsive at all speeds while giving the vehicle exceptional stability.

The steering lock has been improved to a considerable 64 degrees overall by using the extra distance allowed by cleverly shaped air ducts in the fuel tank covers which feed the new ten litre airbox. The sports feel of the bike is further accentuated by the new aluminium tapered handlebars.

Suspension

The 43mm fully adjustable Showa forks and Sachs rising-rate rear suspension unit, with adjustable spring pre-load and return damping, offer sufficient personalisation to suit all riding styles and provide that perfect ‘feel’. Using the proven ‘cantilever’ system, the steeply angled rear unit compresses in a movement non-linear to the rear swingarm radius, thus achieving a progressive action. This enables easy access to the spring pre-load and rebound damping adjuster, while eliminating the weight of the rocker-arm mechanism.

High performance Trellis frame

The Trellis frame, developed in conjunction with Ducati Corse and using the Desmosedici short frame concept, uses the same tube diameter and thickness as the 1198 R. The rear subframe is also derived from Desmosedici RR technology using cast aluminium to create a sturdy and yet lightweight structure for rider and passenger. The lightweight Trellis frame not only boasts unequalled rigidity, but its simple and essential lines perfectly link up the aluminium footpeg assemblies and single-sided swingarm in pure Ducati style.

Maximum control braking

The power and charisma of the new Monster 1100 can rely upon a best-in-category braking system that provides excellent, precise and controllable braking performance.
The vigorous Brembo system is the direct result of Ducati Corse racing experience, featuring radial pumps with adjustable levers feeding four-piston radial callipers which grip twin 320mm discs. The rear brake uses a 2-piston calliper operating on a 245mm disc.

Single-sided swingarm

The beautifully shaped single-sided swingarm gives the Monster a ‘tough’ look while ensuring higher rigidity, reduced weight and enhanced road holding. The swingarm is chill-cast using aluminium in its most noble form. Gravity cast and heat treated, the component achieves the best mechanical characteristics as well as reduced final weight for improved handling.

Style

The Monster 1100 takes its place at the top of Monster family, inheriting and developing the groundbreaking features that took the 696 to the top just weeks after its launch.
The colour schemes have elegant combinations including grey with red frame while the racing gold wheels of the ‘S’ version accentuate the sports side of the new, naked Ducati.

Instrumentation

The digital instrumentation enables you to keep an eye on your Monster 1100’s performance at all times, thanks to the many viewing options offered by the on-board computer. The display, which is scrollable from the left-hand switchgear, is made even more attractive and easier to read thanks to the white screen back-lighting. Information includes: service reminders, oil temperature, air temperature, speedometer, lap time, fuel reserve warning light, low oil pressure warning light, indicators, over-rev warning light, neutral position and immobilizer. The instrumentation is also ready to accommodate the DDA (Ducati Data Analyser) system.

Desmodromic charisma

The Monster 1100 power unit is the legendary 1100cc, air-cooled, Dual Spark L-Twin engine whose 95hp gives it that unmistakable Ducati sound. Developed for an incredibly flexible power delivery, the 1100 Desmodromic engine provides the rider with enough torque to exit the most challenging of corners. The impressive 10.5kgm (75.9lb-ft) of torque, typical of the Ducati L-Twin engines, will excite with every twist of the throttle.

The two-valve engine on the new Monster 1100 features an all-new crankcase which significantly reduces overall engine weight. They are produced using the same innovative Vacural technology that Ducati previously applied only to Supersport models such as the 848.
This method of production relies on vacuum die-casting, which improves the quality of the casting by avoiding porosity, air pockets and oxidation. This enables greater dimensional accuracy and higher ductility for the aluminium alloy. Ducati designers have drawn upon the benefits of this innovative process, redefining the conformation and thickness of the sides on the new crankcase using finite element simulations (FEM) and tests, which resulted in achieving the required reliability standards as well as attaining a significant weight reduction of 3kg (6.6lb) compared to previous versions of the 1100cc engines.
The new geometry of the crankcase, their black cylinders and the new carbon grey finish on the cam covers give the Monster 1100 engine a brand new look.

To help control the powerful 95hp twin-cylinder engine, an entirely new engine control system has been adopted based on a combined alfa-n and speed-density strategy for carburation adjustment.

Used alongside the traditional alfa-n system, the speed-density strategy makes it possible to optimise engine carburation, in particular when using small throttle openings. This ensures a greater control over the torque delivered and improved control of harmful emissions.

The 1100 engine boasts a 98mm bore and a 71.5mm stroke, delivering 95hp at 7500rpm and an impressive torque of 10.5kgm (79.5lb-ft) at 6000rpm. The excellent torque and power values of the most advanced air-cooled L-Twin cylinder engine ever designed by Ducati combined with the exceptional light weight of the motorcycle accentuate the riding pleasure and charisma of the new Monster 1100.

To underline the sports side of the bike, the new Monster 1100 is fitted with Ducati’s very own dry clutch, which offers a variety of customisation options with the Ducati Performance accessories.

Exhaust system

The Monster 1100 has a specially designed exhaust system which features an electronically controlled exhaust valve that enables the use of silencers similar to those of the 696. The exhaust system on the 1100 has one Lambda probe dedicated to each cylinder, enabling precise fuelling for a smoother power delivery as well as complying with current emission regulations. The routing of the exhaust system enables optimum footpeg positioning.

Other 2010 introductions to the Monster family include new exhaust guards, which feature a longer shape and provide improved heat protection and brand new crankcases for the 696, which are an impressive 1.2kg (2.6lb) lighter. In addition, user-friendliness of the controls has been improved with 4-point adjustable clutch and brake levers to suit all hand sizes.

ABS ON THE MONSTER

For the first time since its debut, both the 696 and 1100 Monsters will be available with ABS (anti-lock braking system).

The ABS developed by Ducati and applied to the Monster family is the most sophisticated version available in the world of motorcycling. Designed to reduce the risk of wheel-locking under heavy braking or when braking in low grip conditions, the system reads wheel speed data from phonic wheel sensors to detect wheel lock. If a wheel speed falls below a specific safety limit, the control unit immediately reduces the brake system pressure to the appropriate calliper to avoid wheel lock. The pressure reduction on each individual braking circuit is activated by electronically controlled valves, which then close as the wheel speed moves away from a locking scenario.

Unlike the majority of motorcycle ABS set-ups, this system has the advantage of ensuring a more natural braking ‘feel’ for the rider.

Monster ART

The Monster has proven itself as the Ducati that most inspires and stimulates the art of personalisation. Designers, artists, actors, singers and, above all, bike fans from all over the world have been moved by the Monster to create their very own “two-wheeled work of art”.

The link between the Monster and the world of art appears again and again. Spontaneous shows dedicated to the interpretation and personalisation of the Monster are countless, with news of competitions, exhibitions and “customisations” of every kind, from all around the world, filling the pages of important sector and lifestyle magazines.

This incredible phenomenon, that in sixteen years has seen the Monster receive worldwide acclaim as a symbol of “coolness” and modernity, has motivated Ducati to initiate a project that celebrates and highlights the great artistic potential of this bike.

“Colour Therapy” represents the first stage of the Monster ART project.

Ducati with Colour Therapy offers ten new colour options: “Rosso GP” Red, “Verde Tricolore” Green, “Giallo Ducati” Yellow, “Lilla Glamour” Lilac, “Blu Italia” Blue, “Azzurro Mediterranei” Azure-Blue, “Arancione Scrambler” Orange, “Amaranto Glossy” Rich Purple, “Argento Vivo” Silver and “Oro Puro” Gold.

In Italy, France and Spain, you can choose all the new colour options at an additional price when purchasing the bike, or they can be purchased separately as a Ducati accessory (tank cover, mudguard, micro-bikini fairing and seat cover).

The 10 “Monster ART Kits” gives Monster owners the freedom to change the bike’s colour at any time, so while today feels right for a classic colour, tomorrow just might call for a trendier shade. And changing the colour of the bike couldn’t be simpler: In just 10 minutes the Monster can be totally transformed.







Features and Benefits

HEADLIGHT: The triple-parabola headlamp uses the latest optical technology to provide a deep, wide beam which makes riding at night both easier and safer. The highly advanced construction of the assembly provides one of the most compact headlamps available.

AIRBOX AND FUEL TANK: The use of advanced moulding techniques have not only enabled greater fuel capacity but also a larger airbox. The new fuel tank now holds 15 litres (3.8 US gal) while the airbox contains a power-enhancing 10 litres of air.

MIRRORS: The rear view mirrors have been completely redesigned, making them lower, smoother and more aerodynamic while ensuring a clear view to the rear. Their design accentuates the curves and lines of the handlebars and fuel tank.

LED REAR LIGHT: The minimalist spirit of the Monster and the desire to reduce weight to a minimum were the reasons behind the choice of an LED lighting system for the rear.

GULL-WING FORK CLAMPS: Just like the race-winning Ducatis, the Monster 1100 is fitted with extremely robust fork clamps. Their ‘gull-wing’ shape achieves exceptional torsional strength.








2010 Ducati Monster 1100 – International Specifications
MSRP: See Dealer

Chassis

Frame
Tubular steel Trellis frame
Wheelbase
1450mm (57.1in)
Rake
24°
Front Suspension
Showa 43mm fully adjustable upside-down forks
Front Wheel Travel
130mm (5.1in)
Front Wheel
Y-shaped, 5-spoke in light alloy 3.50 x17
Front Tyre
120/70 ZR17
Rear Suspension
Progressive with preload and rebound Sachs adjustable monoshock
Rear Wheel Travel
148mm (5.8in)
Rear Wheel
Y-shaped, 5-spoke in light alloy 5.50 x 17
Rear Tyre
180/55 ZR17
Front Brake
2 x 320mm discs, 4-piston radial caliper
Rear Brake
245mm disc, 2-piston caliper
Fuel Tank Capacity
15l – 3.8gallon (US) / 13.5l – 3.6gallon (US) ABS version
Dry Weight
169kg (373lb) / 171kg (377lb) ABS version

Instruments
Digital unit displaying: Speedometer, rev counter, clock, scheduled maintenance warning, oil temperature, trip fuel, lap time, warning light for low oil pressure, fuel level, fuel reserve, neutral, turn signals, overrev, immobilizer. Ready for DDA system

Warranty
2 years unlimited mileage
Body Colour (Frame/Wheel)
Red (red / silver) – Silver (red / silver) – Black (matt black / silver)
Versions
Dual seat
Seat Height
810mm (31.9in)

DDA
DDA system-ready for Ducati Performance accessory


DTC
Not available on this model


ABS
Available upon request

Engine
Type
L-Twin cylinder, 2 valve per cylinder Desmodromic, air cooled
Displacement
1078cc
Bore x Stroke
98×71.5mm
Compression Ratio
10.7:1
Power
69.8kW – 95hp @ 7500rpm
Torque
10.5kgm – 75.9lb-ft @ 6000rpm
Fuel injection
Siemens electronic fuel injection, 45mm throttle body
Exhaust
2 aluminum mufflers

Transmission
Gearbox
6 speed
Ratio
1st 37/15, 2nd 30/17, 3rd 27/20, 4th 24/22, 5th 23/24, 6th 24/28
Primary Drive
Straight cut gears, Ratio 1.84:1
Final Drive
Chain; Front sprocket 15; Rear sprocket 39
Clutch
Dry multiplate with hydraulic control

Emissions
Standard
Euro 3







Media Press Release

DUCATI PRESENTS 2010 INNOVATIONS

Finally unveiled, world preview of the new and eagerly anticipated Multistrada 1200.

Also new for 2010: new “Corse” livery for the 1198, two new Hypermotard 1000evo models and technical advances in the Monster family.

As is tradition prior to the opening of the EICMA show, Ducati has officially revealed the innovations of its 2010 product range.
Dream bikes, the fruit of Italian ingenuity and creativity, and destined to become new points of reference on the international market, are ready to take the spotlight at EICMA 2009, the 67th edition of the International Motorcycle Exhibition, taking place at the Fiera Internazionale di Milano in Rho, from 10 – 15 November.

Before the unveiling of the 2010 line-up, the new Ducati Corse logo was presented to the international press, an evolution of the historic brand in the form of a new graphic, following on from the launch of the new Ducati logo at last year’s EICMA show.

A press conference, eagerly anticipated and rich in content, took place immediately prior to the official opening of the trade show. Gabriele Del Torchio, President of Ducati Motor Holding, met with representatives of the international media to present the company’s recent sporting and commercial results, confirming the Italian manufacturer’s strength and performance, despite the difficulties that the sector is currently experiencing.

“In 2009 Ducati has faced a year of important challenges but also one of important opportunities,” stated Gabriele Del Torchio, President of Ducati, during the conference. “The challenges arrive from a market that has entered a significant worldwide slump and where the segment in which we operate could have dropped by 35% by the end of this year. In this scenario Ducati knew how best to react, so much so that our shares have continuously grown and in 2009 we will register a record share of 7.2% on a worldwide level. This result was achieved by sticking strictly to the objectives we had set ourselves, in relation to the company’s three fundamental pillars. Firstly, product, with the 2010 innovations the clearest demonstration of how we have followed an intelligent plan for continuous renewal. Then the distribution network, constantly renewed and reinforced to improve and expand the service. Thanks also to the recent opening of stores in Shanghai, Mexico City and in Vietnam, Ducati today distributes in 80 countries of the world. Last but not least, the brand. We continue to work on the recognition of our brand name, and above all, on the role that Ducati has as an ambassador of Italian style across the world, a factor that is of fundamental value to us.”

Claudio Domenicali, General Director of Ducati Motor Holding, then presented the many new bikes lining-up in Ducati’s 2010 Model Year.

“We are present at EICMA with a series of important innovations, in accordance with our strategic industrial plan,” declared Claudio Domenicali, Ducati’s General Director, while presenting the 2010 Model Year. “The new Multistrada 1200 provides Ducati with an important opportunity to penetrate what is, for us, a completely new market segment, with a totally innovative concept, in terms of performance, usability and technological content. Four bikes in one, with four different riding modes, traction control and electronic suspension but, most importantly, a true Ducati, in its style, design and advanced technology, derived directly from Ducati’s racing experience on tracks across the world. The Hypermotard 796 e 1100 evo, the new “Corse” liveries for the 1198 S and 1198 R, as well as countless technical and style updates, complete the 2010 line-up of which we are so proud.”

The undeniable star is the eagerly awaited Ducati Multistrada 1200, already in the running to take the prize for “best bike in show.”

Faithful to the original intuition, which combined sport bike technology with comfort and versatility, Ducati now extends the concept further with a brand new Multistrada 1200 designed to satisfy the demands of all motorcyclists. Ducati have designed a motorcycle to tackle all kinds of journey and road surface using technology derived from the Bologna made race bikes in MotoGP and World Superbike.

A bike with no limits, that can transform itself to suit the rider’s demands, from a supersport to a tourer for long journeys with a passenger and luggage, to an everyday bike which can breeze through the daily commute and also tackle off-road routes with the agility of an enduro; in other words, four bikes in one!

Ducati have once again pushed the limits of motorcycle design by adding Italian innovation to the elegance, style and technology which characterise the motorcycles that leave the Bologna factory.

All it needed was a heart, the perfect engine to fulfill the potential of this new design. The obvious starting point was the World Championship-winning engine, the Testastretta, used on the Superbike 1198. Engineers in Bologna have succeeded in harnessing the immense power of this engine, making it smooth and adaptable to any situation. The new Testastretta 11° engine is thus born, and represents a milestone in combining performance with usability.

2010 Special Editions celebrate the historic Ducati Corse logo change and two world titles in Superbike and Superstock. The 1198 S Corse Special Edition and 1198 R Corse Special Edition, both equipped with factory team-style aluminium fuel tanks, Ducati Traction Control and a special celebratory Ducati Corse livery, now complement the lightweight and agile 848 now in Dark colour scheme, the awesomely powerful 1198, and the high-spec 1198 S to complete the 2010 Superbike model line-up.

There are more exciting new products in the Ducati Hypermotard range that now becomes a fully-fledged family of bikes in 2010. No longer just one, but three versions, designed to suit different needs, but each with the same specific objective: to provide excitement and fun. So here is the new, agile Hypermotard 796, which joins the new and even more powerful Hypermotard 1100EVO as well as the extreme version, the as yet unseen Hypermotard 1100 EVO SP.

Hot on the heels of its early model year 2010 launch in October, the lightweight 796 is now joined by an evolution of the 1100 model that rolls out at an incredible 7kg (15.5lb) lighter and 5hp more powerful than the original.
And if further weight reduction and more punch wasn’t already enough on a bike that was built to thrill, the Hypermotard 1100EVO SP pushes the limits even further with a model intended to perform on the track as well as the street.

The exciting introduction to the Monster family for 2010 are the ABS equipped versions of the 696 and 1100 (basic and S), the first time that Ducati has ever equipped the Monster family with a safety-enhancing anti-lock braking system.

Other 2010 introductions to the Monster family include new exhaust guards, which feature a longer shape and provide improved heat protection.

Brand new crankcases for the 696, which are an impressive 1.2kg (2.6lb) lighter and, furthermore, the user-friendliness of the controls has been improved with 4-point adjustable clutch and brake levers to suit all hand sizes.

In addition, Ducati presents many new accessories, special components and a new collection of Ducati clothing.
