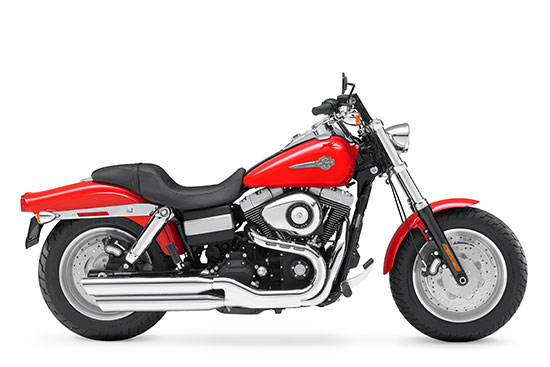

2010 Harley-Davidson Dyna Fat Bob FXDF
A Big Twin with big attitude, the Dyna® Fat Bob® leads with a brawny front end topped with dual head lights, rolls on chunky tires, and exits with a flip of its bobtail rear fender.
The Harley-Davidson® Dyna family has its roots in the factory-custom revolution of the 1970s, and combines Big Twin performance with an extended FX front end. Dyna models deliver great handling and bold styling.
New Helical cut 5th gear for improved transmission sound
– Black powder-coated powertrain with polished covers
– Chrome, “Tommy Gun” 2-1-2 collector exhaust with dual mufflers
– 5.0-gallon Fat Bob fuel tank
– Silver, Slotted Disc Cast Aluminum wheels
– Sport front fender with painted brace supports
– Bobtail rear fender with chrome supports
– One-piece, two-up Dyna classic seat
– Stainless steel drag-style handlebar on black riser
– Black fork lowers and mirrors
– Polished aluminum triple clamps
– High-performance, chrome-covered, coil-over rear shocks
– Chrome low-profile tank console with electronic speedometer
– Twin chrome headlamps
A Big Twin with big attitude, the Dyna® Fat Bob® leads with a brawny front end topped with dual
head lights, rolls on chunky tires, and exits with a flip of its bobtail rear fender. The Harley-Davidson® Dyna family has its roots in the factory-custom revolution of the 1970s, and combines Big Twin performance with an extended FX front end. Dyna models deliver great handling and bold styling.
– Rubber-mounted Twin Cam 96™ V-Twin engine with Electronic Sequential Port Fuel Injection
(ESPFI), rated at 92 ft. lbs. of torque
– 6-speed Cruise Drive® transmission
– Exposed under-seat battery box
– Forward-mounted rider footpegs with brake and shift levers
– Optional Harley-Davidson® Smart Security System with hands-free security fob
2010 Harley-Davidson Dyna Fat Bob FXDF – Specifications
USA MSRP: Vivid Black $14,999, Solids $15,374
Canada MSRP: See Local Canadian Dealer For Pricing
Engine4 Air-cooled, Twin Cam 96™
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.38 in. (95.25 mm x 111.25 mm)
Displacement3 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System5 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass Media, washable
Lubrication System Pressurized, dry-sump
Primary Drive Chain, 34/46 ratio
Final Drive6 Belt, 32/66 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
U.S. Gear Ratios (overall):
o 1st 9.311
o 2nd 6.454
o 3rd 4.793
o 4th 3.882
o 5th 3.307
o 6th 2.790
Frame Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded
Front Forks 49 mm with polished aluminum fork triple clamp and dual-rate springs
Rear Shocks Fully Covered, Coil-over shock
o Front Silver, Solid Disc Cast Aluminum 16 in. x 3 in. (406.40 mm x 76.20 mm)
o Rear Silver, Slotted Disc Cast Aluminum 16 in. x 5 in. (406.40 mm x 127.0 mm)
o Caliper Type 4-piston fixed front, and 2-piston torque-free floating rear
o Rotor Type (diameter x width): Patented, uniform expansion rotors (floating, front only)
o Front (dual floating) N/A
o Rear 11.50 in. x .23 in. (292.10 mm x 5.84 mm)
o Front Wheel 5 in. (127.0 mm)
o Rear Wheel 2.13 in. (54.10 mm)
Engine Torque (per SAE J1349):
o North America 92 ft. lbs. @ 3000 rpm (124.75 Nm @ 3000 rpm)
Lean Angle (per SAE J1168):
o Right 30°
o Left 31°
(EPA urban/highway test) 34/53 mpg (6.92/4.44 L/100 km)
Battery (per Battery Council International Rating) Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 40-amp system (493W @ 13.5V, 2000 rpm, 540W max power @ 13.5V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
o Headlamp (dual quartz halogen) 55-watt low beam, 60-watt high beam
o Tail/Stop Lights 8W/28W (5W/21W)
o Turn Signal Lights 28W (21W) self-canceling
o Indicator Lamps High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system8 (optional), 6-speed, low fuel warnings
Electric Power Outlet Standard
– Vivid Black
– Scarlet Red
– Black Denim
– Brilliant Silver Denim
– Red Hot Sunglo
Vivid Black $14,999
Length 91.70 in. (2329.18 mm)
Overall Width 35.0 in. (889.0 mm)
Overall Height 44.50 in. (1130.30 mm)
o Laden2 26.10 in. (662.94 mm)
o Unladen 27.0 in. (685.80 mm)
Ground Clearance 4.92 in. (124.97 mm)
Rake (steering head) 29°
Fork Angle 28°
Trail 4.92 in. (124.97 mm)
Wheelbase 63.70 in. (1617.98 mm)
Tires (Dunlop® Harley-Davidson Series, bias blackwall front and rear):
o Front – D427F 130/90B16 67H
o Rear – D427 180/70B16 77H
Fuel Capacity 5 gal. (18.93 L) (warning light at approximately 0.9 gal.)
Oil Capacity (w/filter) 3 qts. (2.84 L)
Transmission Capacity 1 qts. (0.95 L)
Primary Chain Case Capacity3 1 qts. (0.95 L)
o As Shipped 669.70 lbs. (303.78 kg)
o In Running Order 703 lbs. (318.88 kg)
o Gross Vehicle Weight Rating 1085 lbs. (492.16 kg)
o Gross Axle Weight Rating:
o Front 390 lbs. (176.90 kg)
o Rear 695 lbs. (315.25 kg)
Warranty9 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter
Vehicles depicted may differ from vehicles manufactured and delivered.
Specifications and prices listed may differ from specifications and prices
of vehicles manufactured and delivered. All product descriptions (including
depictions, specifications, dimensions, measurements, ratings and competitive
comparisons) are based on available information at the time of publication.
Although such descriptions are believed correct, errors and changes can
occur and complete accuracy cannot be guaranteed. Harley-Davidson may
make changes at any time to prices and specifications, and may change
or discontinue models, without notice and without incurring any obligation.
Attention: Vehicles in the configurations shown and many of the accessories
described in this catalog may not be available for sale or use in some locations.
Please check with your dealer for complete product details and the latest
information. All models feature 6-speed transmission (VRSC™ models and
Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate
clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Primary case oil fill is 32 oz. or as needed to fill to bottom of diaphragm.
4 Recommended 91 octane or higher fuel (R+M)/2.
5 Standard and optional fuel systems may vary by country and region.
6 U.S. and HDI markets, except Japan: Belt, 32/64 ratio.
7 Standard and optional wheels may vary by country and region.
8 North America security system includes immobilizer; outside North America the
security system includes immobilizer and siren.
9 See motorcycle owner’s manual for complete details.
