2010 Piaggio BV Tourer 500

Back to 2010 Piaggio Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

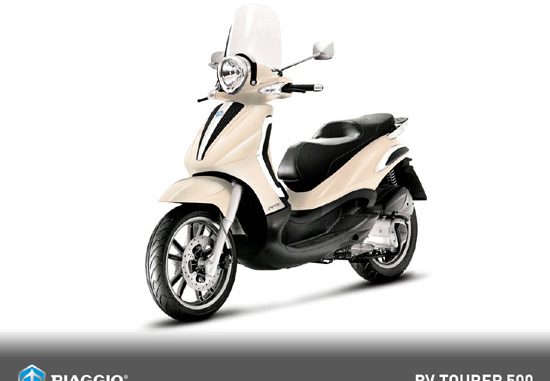

2010 Piaggio BV Tourer 500

2010 Piaggio BV Tourer 500

2010 Piaggio BV Tourer 500

2010 Piaggio BV Tourer 500

– 2010 Piaggio BV Tourer 500

2010 Piaggio BV Tourer 500

A scooter agile enough for the city with added power for touring capabilities, the 2010 Piaggio BV500 Tourer is perfect for long distance rides as well as getting in and around town with power and style. Underneath the plush, split-level seat is a lockable storage compartment. Add on an optional top case and side compartments and you’ll have more than enough storage for urban errand-running or long distance travels.

BV TOURER 500 Perfect for logging highway miles. The BV Tourer combines high wheels and a motorcycle-style ride with the comfort and practicality of a scooter to ensure a safe and precise ride.



2010 Piaggio BV Tourer 500 – Specifications
MSRP: $6,399 USD

ENGINE TYPE Single cylinder, four-stroke catalytic Piaggio MASTER

DISPLACEMENT 492cc

BORE x STROKE 92 mm x 69 mm

MAX POWER AT SHAFT 29 kW at 7,500 rpm (39 bhp)

MAX TORQUE 43 Nm at 5,500 rpm

MAX SPEED 99 mph (159 km/h)

FUEL / TANK CAPACITY Unleaded 3.49 gallons (13.1 litres)

GAS MILEAGE 55-60 mpg
DISTRIBUTION Single overhead camshaft (SOHC) with four valves
COOLING SYSTEM Liquid
LUBRICATION Wet sump
INGINTION Electronic with variable spark advance; high energy inductive coil
GEARS CVT CVT automatic ratio variator (twist-and-go)
CLUTCH Centrifugal
CHASSIS Double cradle in high-tensile steel tubes
FRONT SUSPENSION 41 mm Telescopic Hydraulic Forks
REAR SUSPENSION Two dual effect hydraulic dampers, four-position coil spring
FRONT BREAK Twin stainless steel discs 260 mm with fixed twin piston calipers 32-34 mm left and right respectively
REAR BREAK Stainless steel disc 240 mm with fixed opposed pistons 34 mm
FRONT TIRE Tubeless 110/70, 16″
REAR TIRE Tubeless 150/70, 14″
LENGTH 87.2″ (2215 mm)
WIDTH 30.3″ (770 mm)
WHEELBASE 61″ (1550 mm)
SEAT HEIGHT 30.5″ (775 mm)
DRY WEIGHT 416 lbs (189 kg)
AVAILABLE COLORS Volcano Black, Pearl White
