2010 Yamaha TW200

Back to 2010 Yamaha Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

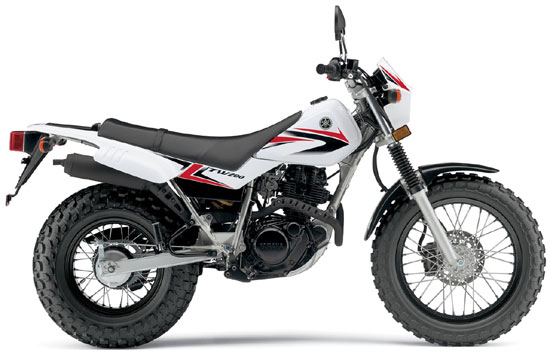

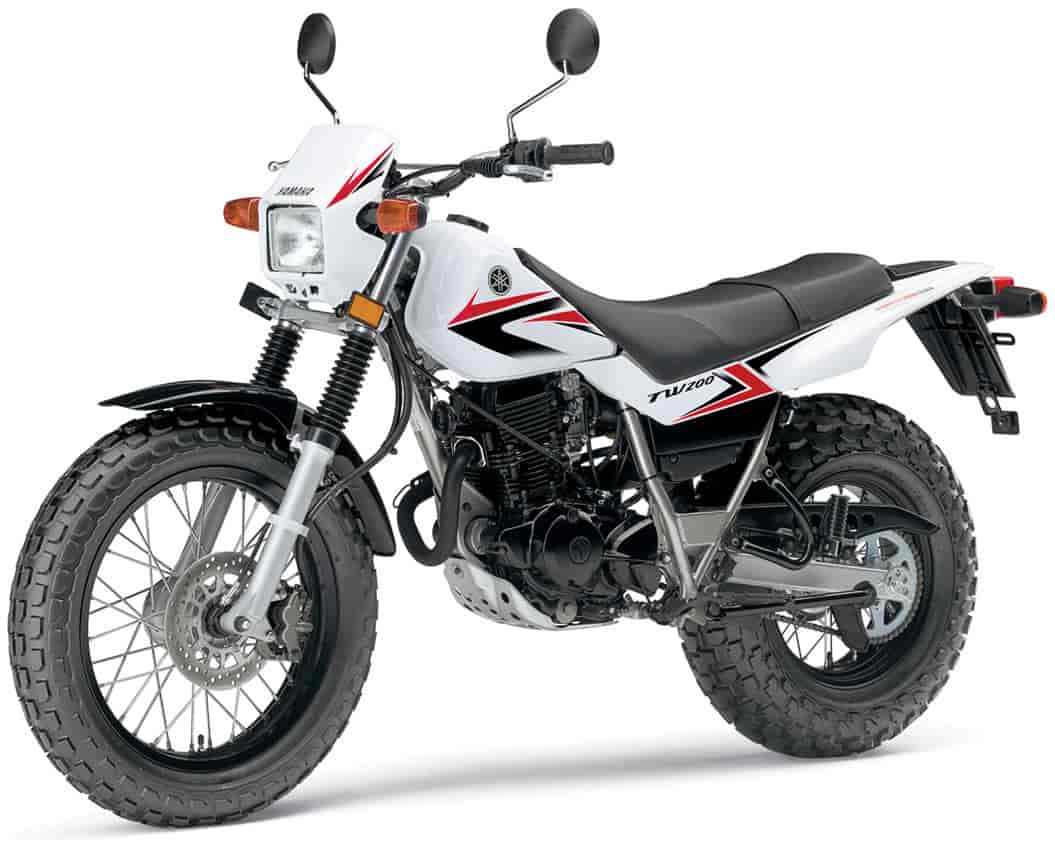

2010 Yamaha TW200
2010 Yamaha TW200

2010 Yamaha TW200
2010 Yamaha TW200

2010 Yamaha TW200
2010 Yamaha TW200

2010 Yamaha TW200
2010 Yamaha TW200

– 2010 Yamaha TW200

2010 Yamaha TW200

Versatility and comfort for a smooth ride, wherever you go.

A low seat, great handling, extra wide tires, and, most importantly, a burly 4-stroke engine, have cemented the 2010 Yamaha TW200’s reputation as a fantastic dual purpose motorcycle. Whether you are a beginner or a veteran; a camper or a city dweller, this bike guarantees good times.

Where to?

Big fat tires that deliver great tractionand rider comfort make the 2010 TW200 the most distinctive dual purpose around. You also get a durable, reliable engine, electric power start and full street equipment for on and offroad riding.

Break your next trail with the 2010 TW200, a unique machine that’s hugely popular with beginners and veterans alike.

The gritty 4-stroke engine delivers smooth, reliable torque with the push of the electric starter button. Running around town or heading to your favorite campsite or fishing spot the TW200 is always as ready to go anywhere as you are. With a low seat height, superior handling, and unique wide tires, you can get there with confidence and have big-time fun along the way.







Highlights:

Fuel Consumption * 33kpl/94mpg(Imp)

196cc, 4-stroke single

Dual purpose adventure






Features andBenefits (USA):

Key Features:

Key Features:
” Those big fat tires deliver great traction and rider comfort over a wide range of terrain, and they make the TW200 the most distinctive-looking dual purpose machine around.

” A low seat and compact chassis help inspire confidence in anybody who rides the TW200, making it one of the most user friendly on/off-road bikes on the market.

” Electric start and full street equipment mean it’s super convenient to ride the TW200 just about wherever you need to go.



Engine:
” Strong-pulling 196cc air-cooled, four-stroke single delivers torquey low- and mid-range power perfectly suited to off-road exploring.

” Smooth-shifting five-speed transmission with manual clutch puts potent powerband to the ground for maximum on- and off-road performance.

” Internal engine counterbalancer keeps vibrations down for greater all-day comfort.

” Maintenance-free CDI ignition system ensures precise, reliable spark for peak engine performance at all rpm.

” Easy, reliable pushbutton electric starting.

” Automatic cam chain tensioner means minimal maintenance and longer engine life.



Chassis/Suspension:

” 33mm telescopic front fork with 6.3 inches of travel soaks up the bumps for a plush ride.

” Lightweight box section swingarm and single rear shock with 5.9 inches of travel help enhance handling and overall comfort both on- and off-road.

” Hydraulic front disc brake ensures greater stopping power with less effort.



Additional Features:

” Long, two-tone, motocross-style seat creates a balanced riding position for optimal rider movement and comfort.

” Durable and wide front fender is designed to keep mud and dirt off the rider off-road.

” Frame-mounted passenger footpegs provide two-up riding capability.

” Enduro-style, 60/55-watt halogen headlight features high/low beams.

” Flex-mounted turn indicators offer greater durability against breakage.

” Durable fork shrouds help prevent rocks and debris from damaging fork sliders.

” Small, bikini-style fairing reduces wind buffeting at highway speeds and provides added protection against weather.

” Standard instrumentation includes a speedometer with odometer and resettable tripmeter as well as indicator lights for neutral, high beam and turn signals.

” Easy-to-use choke lever.

” Standard dual rearview mirrors.

” Dependable, low-maintenance battery.







Features and Benefits (Canada)

Engine:

” Strong-pulling, 196cc, air-cooled, SOHC, 2-valve, 4-stroke single delivers torquey low- and mid-range power perfectly suited to off-road exploring or riding around town.

” Internal engine counterbalancer keeps vibrations down for great all-day comfort.

” Easy, reliable, push-button electric starting

” Maintenance-free CDI ignition system ensures a precise, reliable spark for peak engine performance at all RPMs and easy starting.

” Automatic cam chain tensioner reduces maintenance and mechanical engine noise.

” Teikei 28mm carb provides crisp throttle response and great fuel economy.

” Smooth-shifting, 5-speed transmission with manual clutch puts power to the ground for great on- and off-road performance.

” Washable, foam air filter reduces maintenance costs.

” Environmentally friendly exhaust system produces a quiet note. Heat shield protects rider from hot components. US Forestry approved spark arrestor protects Mother Nature.


Chassis/Suspension

” Rugged, diamond-type, high-tensile steel frame

” Lightweight, box section swingarm is fitted with easy-to-use eccentric chain adjusters. There are grease fittings at the swingarm pivot points.

” 33mm front fork with 160mm (6.3″) of wheel travel soaks up the bumps for a plush ride. Rubber fork boots keep dirt out of fork seals for extended life.

” Monocross link rear suspension uses a single rear shock. Rear wheel travel is 150mm (5.9″) to smooth the roughest trails.

” 220mm front disc brake with twin piston caliper ensures great stopping power.

” Wide, 130/80-18 front and 180/80-14 rear tires deliver extra traction and great rider comfort over a wide range of terrain, and also help make the TW200 the most distinct-looking dual purpose machine in the industry.

” Low, 790mm (31.1″) seat height and compact chassis design helps inspire confidence by letting most riders put both feet down when stopped, making the TW200 one of the most user-friendly on/off-road bikes on the market.

” Rear drum brake with easy-to-use, wing nut style adjuster

” Lightweight, aluminum alloy front and rear rims are fitted with street-legal, dual purpose tires.

” Long, motocross-style seat creates a balanced riding position for optimal rider movement and comfort.

” Durable and wide fenders keeps mud and dirt off the rider when taking one’s exploring off-road.

” Frame-mounted passenger footpegs provide two-up riding capability.

” Powerful, 60/55-watt, halogen, enduro-style headlight

” Small fairing reduces wind buffeting at highway speeds and provides added protection against weather.

” Standard instrumentation includes a speedometer with odometer and resettable trip meter, and indicator lights for neutral, high beam and turn signals.


Details

” Rugged, aluminum engine skid plate

” Flexible turn signals resist damage.

” Helmet lock

” Steering lock

” Handy rear cargo platform

” Bungee cord hook points (4) below the cargo platform

” Easy-to-use, eccentric chain adjusters

” Serrated, folding, steel footpegs

” Passenger footpegs

” Locking fuel cap

” Push-to-cancel turn signals

” On/off/reserve fuel petcock provides peace of mind








2010 Yamaha TW200 – USA Specifications
MSRP* $4,190 (White/Red) Available from September 2009


Engine
Type 196cc air-cooled SOHC 4-stroke; 2 valves

Bore x Stroke 67.0mm x 55.7mm

Compression Ratio 9.5:1

Fuel Delivery Mikuni® 28mm

Ignition CDI

Transmission Constant-mesh 5-speed; multiplate wet clutch

Final Drive Chain


Chassis
Suspension/Front Telescopic fork; 6.3-in travel

Suspension/Rear Single shock; 5.9-in travel

Brakes/Front 220mm single disc

Brakes/Rear 110mm Drum

Tires/Front 130/80-18

Tires/Rear 180/80-14


Dimensions
Length 82.3 in

Width 32.3 in

Height 44.1 in

Seat Height 31.1 in

Wheelbase 52.2 in

Ground Clearance 10.4 in

Fuel Capacity 1.8 gal

Fuel Economy** 78 mpg

Wet Weight 279 lb


Other
Warranty 1 Year (Limited Factory Warranty)








2010 Yamaha TW200 – Canada Specifications
MSRP: $5,199 CDN

Engine 4-stroke, air-cooled, SOHC, 2-valve, single
Displacement 196cc
Bore and Stroke 67 x 55.7mm
Compression Ratio 9.5:1
Maximum Torque 1.4kg-m (10.1ft-lb)@ 7,000 rpm
Fuel Delivery Teikei MV28
Estimated Fuel Consumption* 33kpl / 94mpg (Imp.)
Ignition / Starting CDI / Electric Start
Transmission 5-speed
Final Drive O-ring chain


Suspension (Front) 33mm fork / 160mm (6.3″) travel
Suspension (Rear) Monocross / 150mm (5.9″) travel
Brakes (Front) 220mm disc
Brakes (Rear) Drum
Tires (Front) 130/80-18
Tires (Rear) 180/80-14


Length 2,090mm (82.3″)
Width 820mm (32.3″)
Height 1,120mm (44.1″)
Wheelbase 1,325mm (52.2″)
Seat Height 790mm (31.1″)
Fuel Capacity 7 litres (1.5 imp. gallons)
Wet Weight 127kg (279.4 lb)

Colour(s) Purplish White


* Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha and converted into Canadian measurements. Your actual mileage will vary depending on road condition, how you ride, maintain your vehicle, accessories, cargo and operator/passenger weight.

Specifications, appearance, and price of product are subject to change without notice.

* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less.
