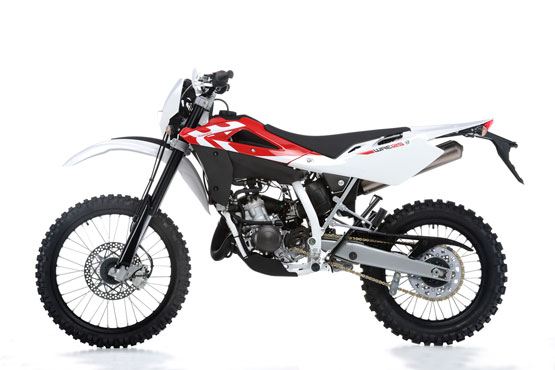

2011 Husqvarna WRE125
2011 Husqvarna WRE125

2011 Husqvarna WRE125
2011 Husqvarna WRE125

2011 Husqvarna WRE125
2011 Husqvarna WRE125

2011 Husqvarna WRE125
2011 Husqvarna WRE125



– 2011 Husqvarna WRE125

2011 Husqvarna WRE125 Review

The WRE 125 that has always been a key contender in the trail world, and recognised by the press as the perfect machine on which to begin off-roading.

This year it has undergone a facelift and its graphic design now reflects the racing-based models with a new red and white colour scheme. The white chassis and anodised black hubs give the bike a look that is even tougher than before.

The multi prize-winning 125cc engine has been refined and brought up to date, with improvements especially in terms of pick-up and power at low to medium revs. The WRE 125 comes with the ECS electronic carburetion system, an integrated system for electronic control of the fuel mix (both air/petrol and petrol/oil), developed in collaboration with Dell’Orto. The control unit also manages the ignition system. This enables the 2-stroke WRE125 to meet Euro 3 requirements, contains costs, boosts commercial competitiveness and maintains all the advantages typical of 2-stroke engines: lightness, performance and low running costs. The new exhaust system and muffler are the fruit of experience gained in the world of racing bikes.

The suspension now features new Marzocchi front forks, specially developed for this model, further enhanced by the Sachs shock absorber with new calibration for the damping allowing greater flexibility and support. The rear braking system has a master cylinder with integrated oil reservoir. As with all Husqvarna Enduro and Dual Purpose models, the WRE125 comes supplied with handlebar guards as an accessory.

Again for rally or road use, the headlight housing has been redesigned and the headlight beam is more powerful. The front cowling is completely new. The registration plate holder has been redesigned and the rear light is now LED.



The 2011 WRE125 gains new Marzocchi forks, Sachs rear shock, revised exhaust system for improved low and mid range performance, new panels with in mould graphics and a new rear light. All these combine to make the WRE125 an even better trail bike for the learner or novice off roader.








2011 Husqvarna WRE125 – International Specifications
MSRP* $ See your local Husqvarna dealer for pricing.

CARATTERISTICHE TECNICHE / Technical data
WRE125
CARATTERISTICHE GENERALI
General features
DIMENSIONI, PESO, CAPACITÀ/
Dimensions, weight, capacities
INTERASSE / Wheelbase ………………………. mm/in. 1462 / 57.56
LUNGHEZZA TOTALE / Overall lenght ……. mm/in. 2208 / 86.93
LARGHEZZA MAX. / Overall width ………… mm/in. 825 / 32.48
ALTEZZA MAX. / Overall height …………….. mm/in. 1245 / 49.01
ALTEZZA SELLA / Saddle height …………… mm/in. 944 / 37.16
ALTEZZA MIN.DA TERRA /
Min. ground clearance …………………………… mm/in. 330 / 13
AVANCORSA / Trail ……………………………… mm/in. 102 / 4.02
PESO IN ORDINE DI MARCIA, SENZA CARBURANTE/
Kerb weight, without fuel ……………………… Kg/lb. 108 / 238.01
CAPACITÀ SERBATOIO CARBURANTE /
Fuel tank capacity ………………………………… l 9,5
U.S. Gallons 2.5
Imp. Gallons 2.09
Q.TA’ OLIO NEL BASAMENTO /
Transmission oil ……………………………………. l 0,65
U.S. Quarts 0.69
Imp. Quarts 0.57
MOTORE / Engine
CARATTERISTICHE / Characteristics
TIPO / Type
MONOCILINDRICO 2 TEMPI / Single cylinder, two stroke
ALESAGGIO / Bore ………………………………. mm/in. 54 / 2.12
CORSA / Stroke ……………………………………. mm/in. 54,5 / 2.14
CILINDRATA / Displacement …………………… cm3/cu.in. 124,82 / 7.61
RAPPORTO DI COMPRESSIONE (A LUCI CHIUSE) /
Compression ratio (at closed ports) ……………………………………….. 8,8: 1
AVVIAMENTO / Starting ………………………… A PEDALE / Kick starter
RAFFREDDAMENTO / Cooling ………………… A LIQUIDO / By liquid
RADIATORI ACQUA / Water radiator ………. N°/No 2
DISTRIBUZIONE / Timing system
TIPO / Type
VALVOLA LAMELLARE IN ASPIRAZIONE NEL CARTER, VALVOLA
“H.T.S.” A COMANDO MECCANICO SULLO SCARICO / Reed valve in
the crankcase and “H.T.S.” valve with mechanic control on the
exhaust port
DIAGRAMMA DISTRIBUZIONE/ Valve timing
SCARICO / Exhaust …………………………………………………………………175°
ASPIRAZIONE / Intake ……………………………… LAMELLARE / Reed valve
TRAVASO / Transfer ………………………………………………………………114°
LUBRIFICAZIONE / Lubrication
MOTORE / Engine
MEDIANTE POMPA ELETTRICA/ By electrical pump
CAMBIO -TRASMISSIONE PRIMARIA / Transmission- primary drive
MEDIANTE L’OLIO CONTENUTO NEL BASAMENTO / By the oil
contained in the crankcase
ACCENSIONE / Ignition
TIPO / Type
ELETTRONICA DIGITALE A SCARICA CAPACITIVA CON ANTICIPO
VARIABILE / C.D.I. electronic, digital type, with adjustable advance
TIPO CANDELA / Spark plug type …………… “CHAMPION” QN84/”NGK”
BR 9EG
DISTANZA ELETTRODI / Spark plug gap …. mm/in 0,6 / 0.024
ALIMENTAZIONE/ Fuel system
MARCA E TIPO DI CARBURATORE / Carburetor manufacturer and
type …………………………………………………….. “DELL’ORTO” VHST 28-CS
DIAMETRO DIFFUSORE / Venturi diameter . mm/in. 28 / 1.1
FRIZIONE / Clutch
TIPO / Type
MULTIDISCO IN BAGNO D’OLIO CON COMANDO MECCANICO / Wet,
multiplate type; mechanic control
N° DISCHI CONDUTTORI / Driving disc no ………………………………………. 7
N° DISCHI CONDOTTI / Driven disc no …………………………………………… 6
TRASMISSIONE PRIMARIA / Primary drive
PIGNONE MOTORE / Engine sprocket ……… Z/Teeth 22
CORONA FRIZIONE / Clutch gear ……………. Z/Teeth 72
RAPPORTO DI TRASMISSIONE / Transmission ratio 3.272
CAMBIO VELOCITÀ/ Transmission
TIPO / Type
CON INGRANAGGI SEMPRE IN PRESA / Constant mesh gear type
N° MARCE / Speed gears no ………………………………………………………… 6
RAPPORTI DI TRASMISSIONE / Internal ratios
…………………………………………………………… 1ª/1st 2,692 (35/13)
…………………………………………………………… 2ª/2nd 1,800 (27/15)
…………………………………………………………… 3ª/3rd 1,333 (24/18)
…………………………………………………………… 4ª/4th 1,100 (22/20)
…………………………………………………………… 5ª/5th 0,954 (21/22)
…………………………………………………………… 6ª/6th 0,869 (20/23)
TRASMISSIONE SECONDARIA / Secondary drive
PIGNONE USCITA CAMBIO /
Transmission sprocket ………………………….. Z/Teeth 13
CORONA POSTERIORE /
Rear wheel sprocket …………………………….. Z/Teeth 49
RAPPORTO DI TRASMISSIONE /
Transmission ratio ……………………………………………………………….. 3,769
CATENA DI TRASMISSIONE / Driving chain
MARCA E TIPO / Manufacturer and type …. “REGINA” 135RX-5/8″x1/4″;
RAPPORTI TOTALI DI TRASMISSIONE / Overall ratios
…………………………………………………………… 1ª/1st 33,211
…………………………………………………………… 2ª/2nd 22,204
…………………………………………………………… 3ª/3rd 16,447
…………………………………………………………… 4ª/4th 13,569
…………………………………………………………… 5ª/5th 11,775
…………………………………………………………… 6ª/6th 10,727





CARATTERISTICHE TECNICHE / Technical data

WRE125
MOTOTELAIO / Chassis
TELAIO / Frame
TIPO / Type
A DOPPIA CULLA IN ACCIAIO AD ALTA RESISTENZA IN TUBI A
SEZIONE CIRCOLARE; TELAIETTO POSTERIORE IN ACCIAIO IN TUBI A
SEZIONE QUADRATA/ Double tube cradle with high resistance steel
round tubes; rear frame with steel square tubes
SOSPENSIONE ANTERIORE / Front suspension
TIPO / Type
FORCELLA TELEIDRAULICA A STELI ROVESCIATI E PERNO AVANZATO
/ “Upside-Down” telescopic hydraulic fork with advanced axle
Ø STELI / Fork legs dia. …………………………. mm/in. 40 /1.57
CORSA SULL’ASSE GAMBE /
Travel on legs axis ……………………………….. mm/in. 260 / 10.24
MARCA FORCELLA /
Front fork manufacturer …………………………………………… “MARZOCCHI”
SOSPENSIONE POSTERIORE / Rear suspension
TIPO / Type
PROGRESSIVA “SOFT DAMP” CON MONOAMMORTIZZATORE
IDRAULICO; REGOLAZIONE DEL PRECARICO DELLA MOLLA /
Progressive “Soft Damp” type with single hydraulic shock absorber;
spring preload adjustment
CORSA RUOTA / Wheel travel ……………….. mm/in. 272 / 10.71
MARCA AMMORTIZZATORE /
Shock absorber manufacturer ………………………………………….. “SACHS”
FRENO ANTERIORE / Front brake
TIPO / Type
A DISCO FISSO CON COMANDO IDRAULICO E PINZA FLOTTANTE /
Fixed disc type with hydraulic control and floating caliper
Ø DISCO / Disc dia. ……………………………….. mm/in 260 / 10.24
FRENO POSTERIORE / Rear brake
TIPO / Type
A DISCO FISSO CON COMANDO IDRAULICO E PINZA FLOTTANTE /
Fixed disc type with hydraulic control and floating caliper
Ø DISCO / Disc dia. ……………………………….. mm/in 220 / 8.66
CERCHIO ANTERIORE / Front rim
MATERIALE / Material…………………………. LEGA LEGGERA / Light alloy
DIMENSIONE / Size ……………………………….. 1,60″x21″
CERCHIO POSTERIORE / Rear rim
MATERIALE / Material…………………………. LEGA LEGGERA / Light alloy
DIMENSIONE / Size ……………………………….. 2,15″x18″
PNEUMATICO ANTERIORE / Front tire
TIPO / Type ……………………………………………………”SAVA” MC 23 ROCK
RIDER
DIMENSIONE / Size …………………………………………………………. 90/90-21″
PNEUMATICO POSTERIORE / Rear tire
TIPO / Type ……………………………………………………”SAVA” MC 23 ROCK
RIDER
DIMENSIONE / Size ……………………………………………………….. 120/90-18″
IMPIANTO ELETTRICO / Electrical equipment
TENSIONE IMPIANTO / Voltage ………………………………………………… 12 V
POTENZA LAMPADE / Lamps wattage
FANALE ANTERIORE / Head light ……………………………………….. 35/35 W
LUCE DI POSIZIONE / Pilot light …………………………………………………..3 W
FANALE POSTERIORE / Tail light ………………………………………………..5 W
LUCE STOP / Stop light ………………………………………………………….. 21 W
INDICATORI DIREZIONE / Turn signals …………………………………….. 10 W
BATTERIA / Battery ……………………………………………………….. 12 V-4 Ah
