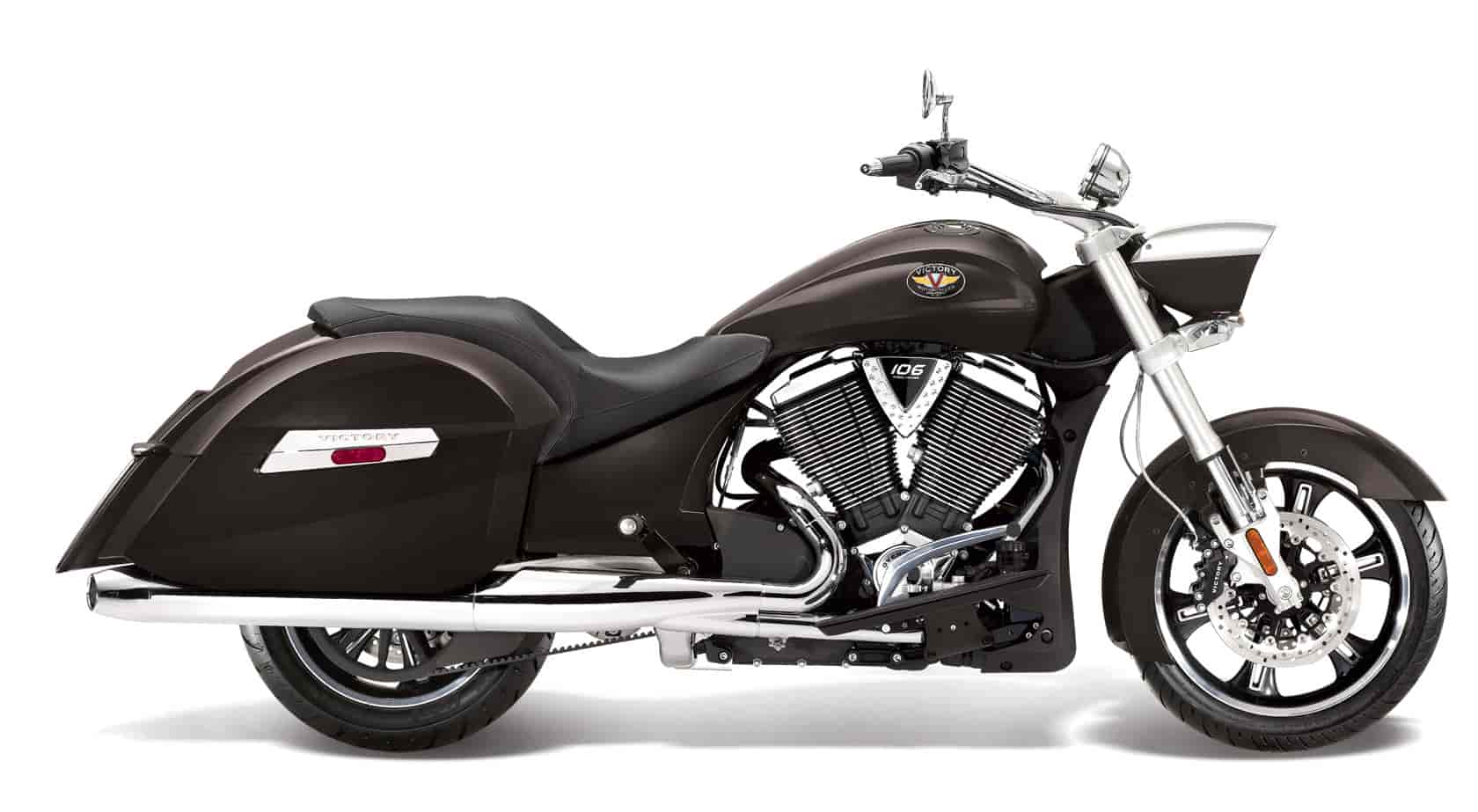

2011 Victory Cross Roads
2011 Victory Cross Roads

2011 Victory Cross Roads
2011 Victory Cross Roads

2011 Victory Cross Roads
2011 Victory Cross Roads




– 2011 Victory Cross Roads

2011 Victory Cross Roads

Choose your color, saddlebags, windshield and tip-over protection. Custom in minutes. With 48 different custom combinations, the Victory Cross Roads Core Custom is the bike you can personalize while you’re at the dealer. No wasted stock parts. No waiting. And no reason not to get right out on the road.




Key Victory Cross Roads Key Features

New 106-Cubic-Inch Freedom V-Twin: The ultra-reliable, smooth-running, counter-balanced Freedom 106/6 Stage 1 V-Twin delivers outstanding power for city driving and long-distance touring.










2011 Victory Cross Roads – Specifications
USA MSRP – $14,999 USD
Canada MSRP – $16,729 CDN

Engine

Engine Type 4-stroke 50o V-Twin
Cooling System Air / oil
Displacement 106 ci / 1731 cc
Bore x Stroke 101 x 108 mm
Compression ratio 9.4 : 1
Valve train Single overhead camshafts with 4 valves per cylinder, self-adjusting cam chains, hydraulic lifters
Fuel System Electronic Fuel Injection with dual 45mm throttle body
Fuel Capacity 5.8 gal / 22 ltr
Exhaust Split dual exhaust with crossover
Oil capacity 5.0 qts / 4.75 ltr
Charging System 38 amps max output
Battery 12 volts / 18 amp hours
Primary Drive Gear drive with torque compensator
Clutch Wet, multi-plate
Transmission 6-speed overdrive constant mesh
Final Drive Carbon Fiber Reinforced Belt



Chassis Dimensions

Length 104.4 in / 2652 mm
Wheelbase 65.7 in / 1670 mm
Seat Height 26.25 in / 667 mm
Ground Clearance 5.8 in / 148 mm
Rake/trail 29.0o / 5.6 in / 142 mm
Dry Weight 745 Lbs / 338 Kg
GVWR 1360 lbs / 618 kg


Suspension

Front Suspension Inverted cartridge telescopic fork, 43 mm diameter, 5.1 in / 130 mm travel
Rear Suspension Single, mono-tube gas, cast aluminum with constant-rate linkage, 4.7 in / 120 mm travel, air adjustable


Brakes

Brake Systmen Type Conventional
Front braking system Dual 300mm floating rotor with 4-piston calipers
Rear braking system 300mm floating rotor with 2-piston caliper


Wheels and Tires

Front Wheel 18 x 3.0 in
Rear Wheel 16 x 5.0 in
Front Tire 130/70R18 Dunlop Elite 3
Rear Tire 180/60R16 Dunlop Elite 3



Color Options

Colors Solid Black, Crimson
