– 2012 Husqvarna SMR125 Review

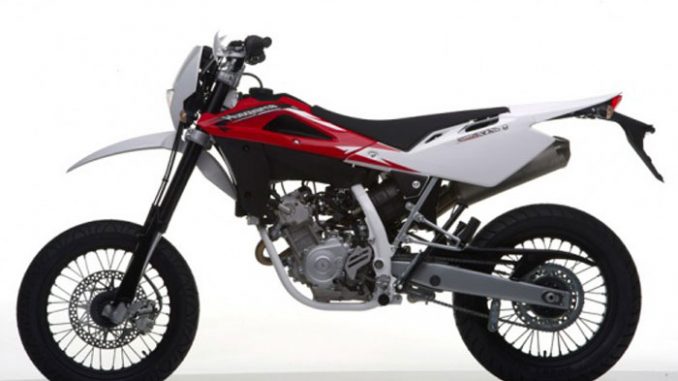

2012 Husqvarna SMR125
The SMR125 is the new four stroke 125 cc model from Husqvarna, aimed at young fans of the brand: for a touch of supermoto and speed in urban traffic. It inherits a look that is particularly aggressive and appealing, reflecting the style of the bikes used in races by the official Husqvarna team.
2012 Husqvarna SMR125 Features and Benefits
The single overhead camshaft (SOHC) 4-stroke, liquid-cooled 124.45 cc engine is the same for both versions, TE and SMR125. Cylinder bore and stroke length are 52 mm and 58.6 mm, with a compression ratio of 11.2:1. The 125 cc engine ensures reduced emissions and consumption and is rated EU3. It has a Keihin 29 mm carburettor and electric ignition. The lubrication is wet sump with claw pump and cartridge filter.
The front suspension forks have a diameter of 40 mm and 260 mm of effective stroke. The rear suspension has a single shock absorber, with adjustable spring preload. Safety: the front brakes are floating calliper double piston with a disc diameter of 260 mm, the rear brakes are also floating calliper, with disc diameter 220 mm.
The frame of the new 4-stroke, 125cc model is a monobeam in Cr-Mo steel with a circular cross section and rear seat rail, also in steel. The new 4 stroke model has greatly reduced weight, only 117 Kg, making them particularly manageable and easy to handle in every situation.
The wheels are made of light alloy, with 17 inch hubs in the supermoto version, allowing use of a 140mm rear tyre which is perfectly adapted to the chassis and gives the SMR125 the look of a big motorbike, with great performance in corners.
2012 Husqvarna SMR125 – North American Specifications/Technical Details
MSRP Price: NA
Model not available in North America
2012 Husqvarna SMR125 – Australian Specifications/Technical Details
AU MSRP Price: See dealer for pricing.
Model not available in Australia
2012 Husqvarna SMR125 – International Specifications/Technical Details
MSRP Price: See dealer for pricing.
Dimensions, weight, capacities
Min. ground clearance10.039in
Kerb weight, without fuel257.94lb / 117kg
Fuel tank capacityU.S. Gallons 2.090 / Imp. Gallons 2.508
Transmission oilU.S. Gallons 0.253 / Imp. Gallons 0.303
TypeSingle cylinder, four stroke
Displacement7.591cu.in / 124,45cc
Water radiator No. 2 (with electric fan)
TypeWet sump with lobe oil pump and cartridge filter
TypeElectronic, inductive discharge, with variable advance (digital control)
Spark plug typeNGK CR 8E
Spark plug gap0.027-0.031in
Brand and typeKeihin 29
TypeWet, multiplate type
Number of driving discs5
Number of driven discs4
TypeConstant mesh gear type
Number of gears6
Transmission sprocketTeeth 14
Rear wheel sprocketTeeth 54
TypeSteel single tube cradle; steel rear frame
TypeUpside-Down telescopic hydraulic fork with advanced axle
Fork legs dia.1.574in
Front fork manufacturerPaioli
TypeProgressive “Soft Damp” type with single hydraulic shock absorber; spring preload adjustment
Shock absorber manufacturerSachs
FrontFixed disc with hydraulic control and floating caliper
RearFixed disc with hydraulic control and floating caliper
FrontPirelli Sport Demon
RearPirelli Sport Demon
Engine sprocketTeeth 24
Clutch gearTeeth 73
Battery12V – 4Ah
TypeSOHC, 4 valve
Overall ratios 1st33,240
