2016 Kawasaki W800

Back to 2016 Kawasaki Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

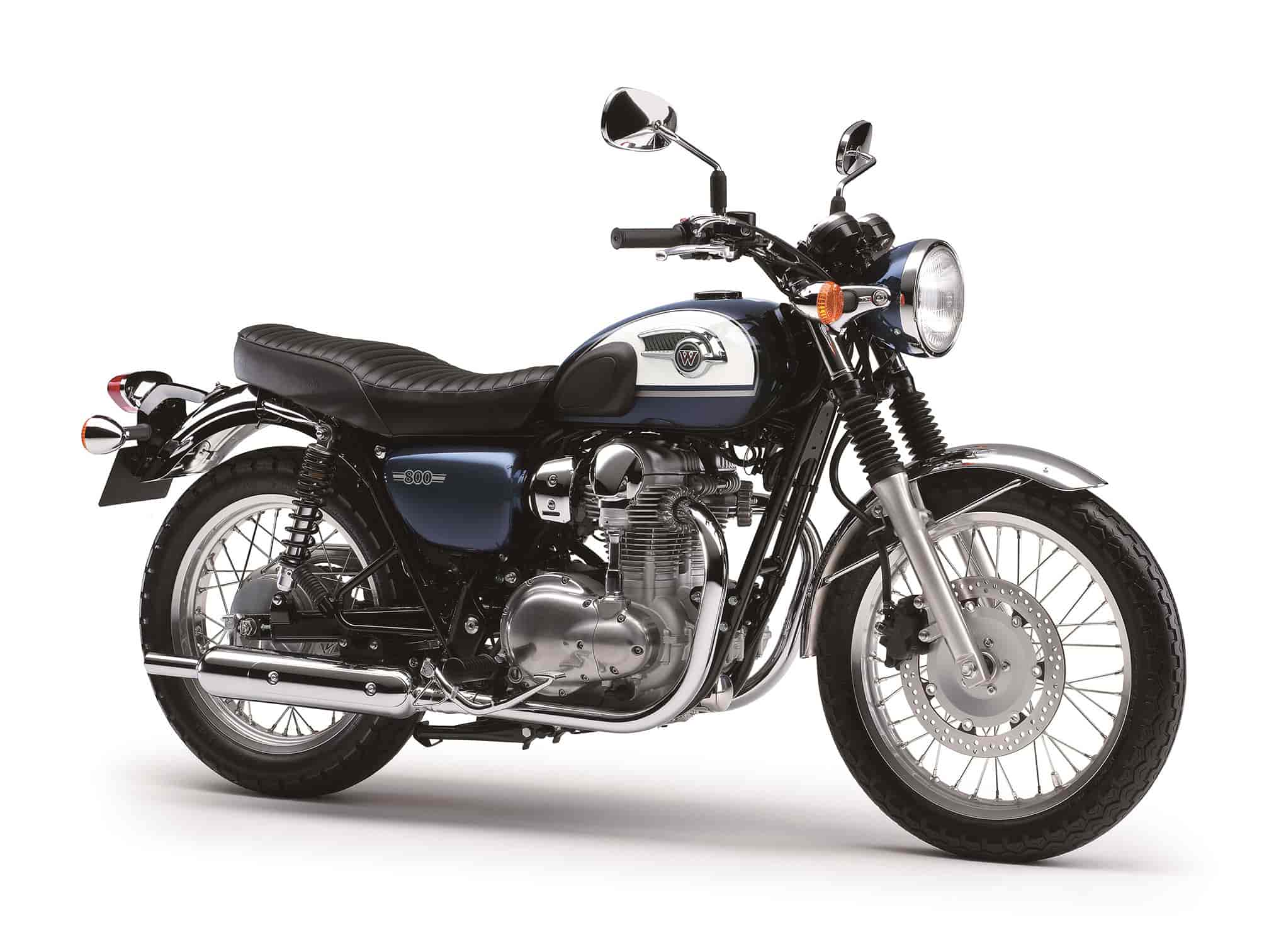

2016 Kawasaki W800

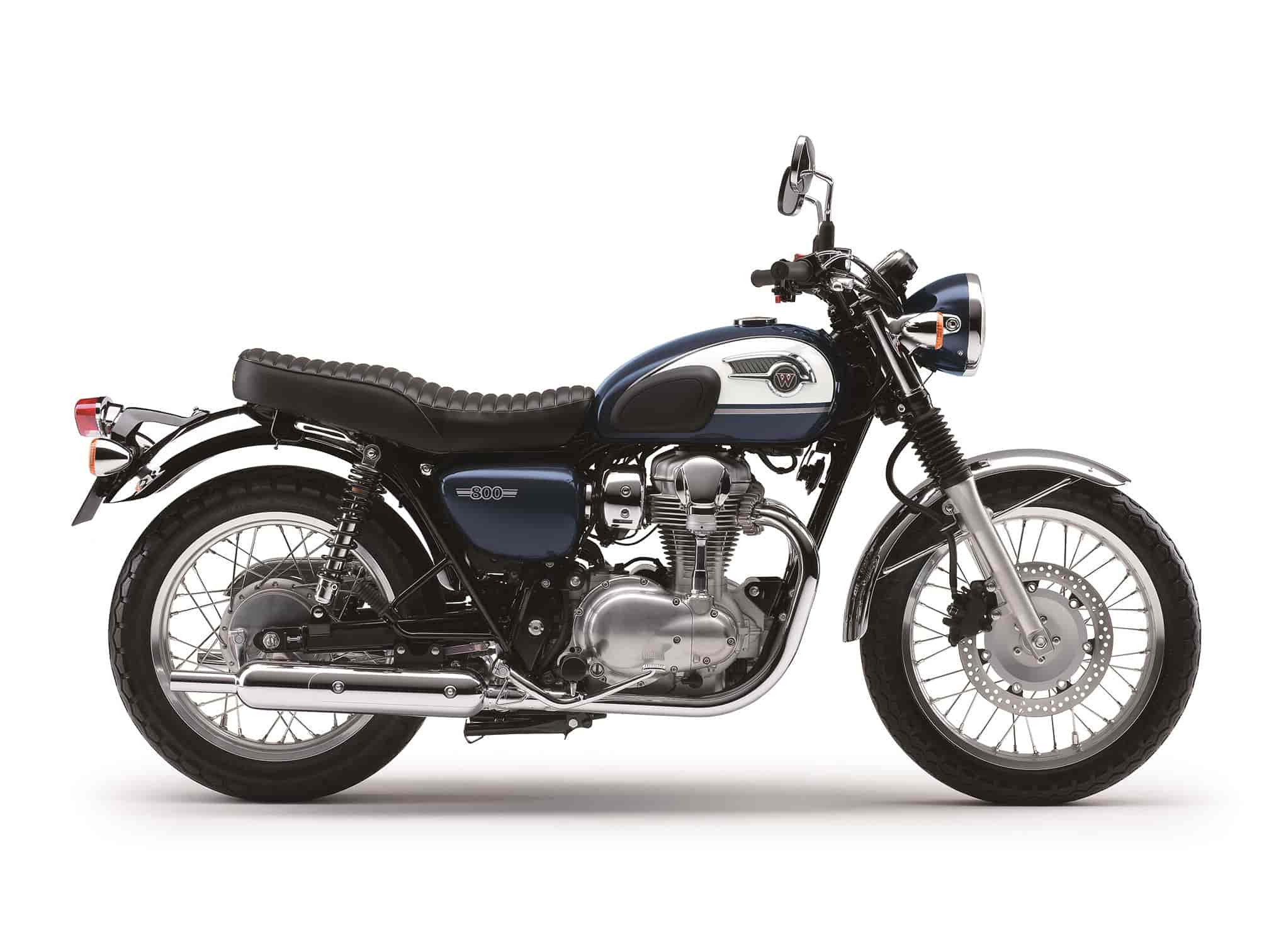

2016 Kawasaki W800

2016 Kawasaki W800
2016 Kawasaki W800

2016 Kawasaki W800
2016 Kawasaki W800



2016 Kawasaki W800 Review

2016 Kawasaki W800 on www.Totalmotorcycle.com

Classic…

Mixing high tech with heritage in one seductive retro package, the W800, with classic, class leading features, makes sound, simple sense in a complicated motorcycling world.



2016 Kawasaki W800 www.Totalmotorcycle.com Key Features







2016 Kawasaki W800 www.Totalmotorcycle.com Features and Benefits

Seat

Long, comfortable seat with thick, ribbed padding has plenty of room for rider and passenger. Urethane at the front of the seat was shaped to facilitate the reach to the ground. Piping around the edge of the seat follows the line between the rider and passenger’s legs to ensure it does not cut into the rider’s thighs when stopped.

“W” styling

Voluptuous fuel tank finished in high-quality paint contributes to the W800’s aura of functional elegance. Newly designed tank emblems, finished in chrome, contribute to the high quality appearance.


Elegant muffler design

Simple, elegant muffler design comprises smooth curves and long, straight lines. Peashooter-style silencers with slim chambers and long tailpipes add a vintage touch.


Classic-styled Engine

“Building a beautiful engine” was a key concept when designing the air-cooled Vertical Twin. The classic-styled engine is lightweight, simple and a joy to behold. Iconic bevel-gear-driven cam adds beauty to the cylinder head while contributing to the engine’s classical appearance.


Instrumentation

Traditional instrumentation includes individual speedometer and tachometer with classic display. A multi-function LCD screen incorporates an odometer, tripmeter, and clock. A full range of indicator lamps includes an FI warning lamp, dual turn signal indicators, low fuel level indicator, high beam indicator, neutral indicator, and oil pressure warning lamp.


Adjustable levers

5-way adjustable clutch lever and 4-way adjustable brake lever enable riders to fine-tune lever span.


Rear shock absorbers

Dual rear shock absorbers, adjustable for spring preload, offer a smooth ride and clean look.


Details

As much as possible, plastic was eschewed in favour of metal. The result is a feeling of authentic quality that can only be obtained from the solid feel of metal parts.



Large headlamp

Large headlamp is offset wonderfully by the speedometer and tachometer and simple console.


Traditionally styled front fork

Traditionally styled front fork uses rubber gaitors to protect the fork tubes and ensure long fork seal life. Outer tubes have a buffed finish, which contributes to the light looking front end.


Front brake

Single 300 mm front disc brake offers sure stopping power.

Dual Throttle Valves

Late-model sport bikes often use large-bore throttle bodies to generate high levels of power. However, with large diameter throttles, when a rider suddenly opens the throttle, the unrestricted torque response is anything but gentle and often more than the rider can handle. Dual throttle valve technology was designed to tame engine response while contributing to performance.

On fuel-injected models, throttle bodies generally have only one throttle valve per cylinder. On models with dual throttle valves, there are two throttle valves per cylinder: in addition to the main valves, which are physically linked to the throttle grip and controlled by the rider, a second set of valves, opened and closed by the ECU, precisely regulates intake airflow to ensure a natural, linear response. With the air passing through the throttle bodies becoming smoother, combustion efficiency in improved and power is increased.

Like other Kawasaki engine management technology, Dual Throttle Valves were designed with the philosophy of “following the rider’s intention, while providing natural-feeling support.” They are featured on many Kawasaki models.











2016 Kawasaki W800 – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $NA USD

NA






2016 Kawasaki W800 – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ See Dealer for pricing in CDN

NA






2016 Kawasaki W800 – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £6,899 GBP (On The Road inc 20% Vat)

Engine
Engine type
Air-cooled, 4-stroke Vertical Twin
Displacement
773 cm³
Bore x stroke
77.0 x 83.0 mm
Compression ratio
8.4:1
Valve/Induction system
SOHC, 8 valves
Fuel system
Fuel injection: ø34 mm x 2 with sub-throttles
Ignition
Digital
Starting
Electric
Lubrication
Forced lubrication, wet sump
Frame
Frame type
Double-cradle, high-tensile steel
Rake/Trail
27° / 108 mm
Wheel travel, front
130 mm
Wheel travel, rear
106 mm
Tyre, front
100/90-19M/C (57H)
Tyre, rear
130/80-18M/C (66H)
Steering angle, left / right
37° / 37°
Performance
Maximum power
35 KW (48 PS) / 6,500 rpm
Maximum torque
60 Nom (6.1 kgfom) / 2,500 rpm
Transmission
Transmission
5-speed, return
Final Drive
Sealed chain
Primary reduction ratio
2.095 (88/42)
Gear ratios: 1st
2.353 (40/17)
Gear ratios: 2nd
1.591 (35/22)
Gear ratios: 3rd
1.240 (31/25)
Gear ratios: 4th
1.000 (28/28)
Gear ratios: 5th
0.852 (23/27)
Final reduction ratio
2.467 (37/15)
Clutch
Wet multi-disc, manual
Brakes
Brakes, front
Single 300 mm discCaliper: Twin-piston
Brakes, rear
Drum, 160 mm
Suspension
Suspension, front
39 mm telescopic fork
Suspension, rear
Twin shocks. Spring preload: 5-way
Dimensions
Dimensions (L x W x H)
2,190 x 790 x 1,075 mm
Wheelbase
1,465 mm
Ground Clearance
125 mm
Fuel capacity
14 litres
Seat height
790 mm
Curb Mass
217 kg



*Starting at MSRP is the manufactured suggested price and excludes delivery, setup, tax, title, license, and additional fees and expenses. Bikes may be shown with optional accessories. Final sale price determined by an authorized dealer. Specifications and MSRP are subject to change.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
