ULTIMATE ROAD ADVENTURE BIKE.

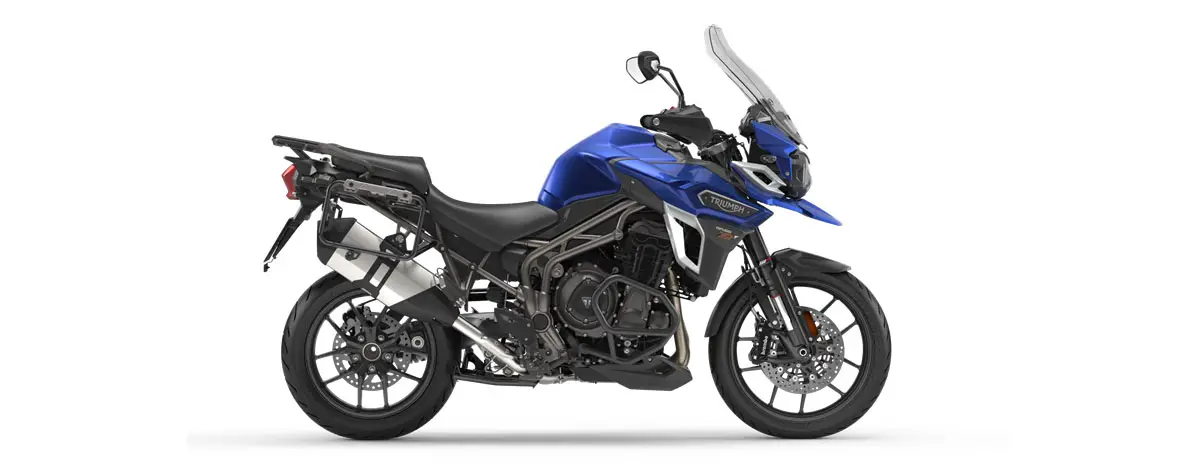

2018 Triumph Tiger Explorer XRt:

The Tiger Explorer XRT packs immense power and linear torque from its signature 1215cc triple engine and is optimised for road riding with cast wheels, ABS, Traction control and Brembo monobloc 4-piston radial callipers at the front, and a single 282mm disc, 2-piston sliding calliper at the rear. The XRT also incorporates Triumph’s electronically controlled semi-active suspension system (TSAS) continuously adjusts the suspension settings as you ride, delivering the best control, comfort and riding experience on any surface.

Five selectable Riding modes; Road, Rain, Sport, Off-Road and fully customizable ‘Rider’ mode, incorporate different setting for ABS, traction control and throttle maps, each optimised to suit the selected mode for maximum control, comfort and rider engagement.

With an electronically adjustable touring screen, hand guards, heated grips, heated seats for both rider and pillion as well as pannier rails and cruise control as standard, crossing continents or the daily commute to work is an ease. It is the ultimate road orientated adventure bike.

2018 Triumph Tiger Explorer XRt Totalmotorcycle.com Key Features

•Hill Hold Control system
•Two extra Riding Modes – the dynamic Sport and the fully customizable Rider
•Electrically adjustable Touring screen
•Heated rider and passenger seat
•Tyre Pressure Monitoring System (TPMS)
•Engine Protection Bars
•Pannier rails ready for Triumph Adventure panniers
•Superior active safety with Optimised Cornering ABS and Traction Control
•6-axis Inertial Measurement Unit
•Triumph Semi Active Suspension (TSAS) with WP forks and RSU
•Dedicated Off-Road Riding Mode
•Cruise Control
•Advanced On Board computer
•Self-cancelling LED indicators
•Heated Grips
•Hand Guards
•Additional 12V Power Socket

PLUS IN ADDITION TO THE STANDARD TRIUMPH EXPLORER XR FEATURES

•Characterful 1215 cc in line-three-cylinder with shaft drive
•Hydraulic Clutch
•Active safety – ABS and Traction Control
•Road and Rain riding modes
•Unique-in-class electrically adjustable screen
•Brembo monobloc M4.32 front brake calipers
•Adjustable WP front and rear suspension
•On Board computer
•New cast wheels with sporty design
•Protective sump guard
•Centre Stand
•12V Power Socket
•Immobiliser

It’s your ride, it’s your journey, and it’s your planet to explore. So whether you choose motorways or mud tracks, twisty tarmac or bumpy town streets, Triumph’s range of adventure and touring motorcycles all share your passion for travel and discovery.

2018 Triumph Tiger Explorer XRt Totalmotorcycle.com Features and Benefits

The new 1200 range represents the pinnacle in Tiger technology with new features including adaptive cornering lighting, full-colour TFT instruments, up to six riding modes, all-LED lighting, back-lit switchgear, keyless ignition and Triumph Shift Assist. All this comes on top of extensive core technology including; Triumph Semi-Active Suspension (TSAS), corner-optimised ABS and traction control, hill hold, and electronically adjustable windscreen.

OFF ROAD ADVENTURE RANGE
For riders who want the best, the highest level of technology, more responsive Triple engine and enhanced ergonomics, the 1200 XC range delivers ultimate off-road capability and all-road comfort. With two models to choose from, the adventure-ready XCX and top specification XCA together represent a new range which is as epic off road, as it’s always been on.

TIGER XC – BUILT FOR THE ULTIMATE ADVENTURE
Make no mistake, this Tiger has evolved. The new 1200 XC line-up are the most advanced ever, purpose-built for the toughest off-road challenges and road adventures. Every single innovation, engine enhancement, premium specification and ergonomic refinement is about delivering an epic ride.

The Triple engine has been significantly updated for more immediate torque lower down with peak power of 141PS and lighter exhaust for an even more thrilling Triple soundtrack.

Significantly lighter by up to 10kg, both new XC’s boast over 100 improvements for better handling. With Triumph Shift-Assist, new ‘Off-Road Pro’ rider mode and enhanced ergonomics, the new XC is now even more capable off-road, and on. Featuring the highest level of state-of-the-art technology ever, with adaptive cornering lighting, full-colour TFT instruments, up to six riding modes, all LED-lighting, illuminated switchgear, keyless ignition and more Tiger style, the Tiger 1200 XC is literally born for adventure.

ROAD ADVENTURE RANGE
The new 1200 XR range is the most comprehensive road-focused Tiger ever. With enhanced ergonomics, the highest level of technology, a major engine update, and more all-day comfort and premium style, they are ready to take you everywhere; from your daily ride to transcontinental tour. With four models, each with their own dedicated set-up, the new XR range is quite simply epic.

TIGER XR – BUILT TO TAKE YOU EVERYWHERE. FIRST CLASS.
With an unparalleled 80-year bloodline, this is without doubt the most advanced Tiger XR range ever created. With an even more advanced road-focused adventure set-up, from four new models, each packed with its own dedicated level of technology, a major engine upgrade and a new level of capability for maximum all-road, all-day comfort.

Lighter, by up to 11kg, with over 100 improvements including, new Triumph Shift-Assist, enhanced ergonomics, a lighter freer-flowing exhaust and Triple engine significantly updated for more immediate torque lower down and peak power of 141PS, the XR delivers a wonderful new soundtrack to match its epic adventure capability.
Featuring the highest level of state-of-the-art technology, with adaptive cornering lighting, full-colour TFT instruments, up to five riding modes, all LED-lighting, illuminated switchgear, keyless ignition, more Tiger style and the most comprehensive line-up ever, the Tiger 1200 XR family is better in every way.

OFF ROAD ADVENTURE RANGE
For riders who want the best, the highest level of technology, more responsive Triple engine and enhanced ergonomics, the 1200 XC range delivers ultimate off-road capability and all-road comfort. With two models to choose from, the adventure-ready XCX and top specification XCA together represent a new range which is as epic off road, as it’s always been on.

TIGER 1200 XCX
Fully-equipped for maximum off-road and road-based adventure, the XCX is 5kg lighter than its predecessor, and comes with five riding modes (including the all-new ‘Off-Road Pro’), new full-colour 5″ adjustable TFT instruments, backlit switchcubes, keyless ignition, LED lighting, new blacked out wheels, and a host of core features including Triumph Semi-Active Suspension, optimised cornering ABS and optimised cornering traction control.

TIGER 1200 XCA
The pinnacle of the range with the highest level of technology ever, a full 10kg lighter, enhanced ergonomics, and a major engine update, it’s built for truly epic adventures. Featuring unique top model specification, including adaptive cornering lighting, Triumph Shift Assist, Arrow silencer, six riding modes and touring screen, plus a considerable and impressive list of additional technology. This is the ultimate Tiger.

ROAD ADVENTURE RANGE
The new 1200 XR range is the most comprehensive road-focused Tiger ever. With enhanced ergonomics, the highest level of technology, a major engine update, and more all-day comfort and premium style, they are ready to take you everywhere; from your daily ride to transcontinental tour. With four models, each with their own dedicated set-up, the new XR range is quite simply epic.

TIGER 1200 XR
With trademark agile handling, commanding riding position, and thrilling updated Triple engine this is a superb entry point into the Tiger 1200 XR range. Add to that three riding modes, electronically adjustable screen, cruise control, switchable ABS and traction control, new wheels, new silencer, improved ergonomics, enhanced style and 2kg weight saving, and you’ve got a Tiger with real bite.

TIGER 1200 XRX
The intuitive new XRX model delivers an even higher specification with adjustable full-colour 5″ TFT display, three riding modes, backlit switchcubes, LED lighting and keyless ignition. There’s also a 2kg weight saving and high spec core features including; Triumph Semi-Active Suspension, optimised cornering ABS, optimised cornering traction control and heated grips, and you’ve got a Tiger built to take you everywhere.

TIGER 1200 XRX (LOW RIDE HEIGHT)
With accessibility front of mind, the Tiger 1200 XRX also comes as a Low Ride Height option. This model features a tailor-made suspension and seat set-up, plus all the XRX’s advanced specification. With a low 835mm seat height (compared with 855mm on the standard XRX), it can be lowered again by a further 20mm to 815mm by using the adjustable seat mechanism.

TIGER 1200 XRT
Push your adventure to the absolute limit with the top-spec XRT. 11kg lighter and loaded with unique top spec features including adaptive cornering lighting, Triumph Shift Assist, Arrow silencer, five riding modes, all-LED lighting, hill hold and touring screen, plus an astonishing list of new and core technology, this fully-loaded XRT is built to take you everywhere. First class.

TIGER 1200 TECHNOLOGY
This is the highest level of state-of-the-art technology ever on a Tiger, and each element has been selected and integrated with the sole purpose of delivering the perfect ride. In fact the new 1200 XC and XR line-up are without doubt the most technologically advanced motorcycles Triumph have ever made.
These exciting improvements, all developed for maximum comfort and control, include; adaptive cornering lighting, full-colour adjustable TFT instruments, up to six riding modes, new ergonomic switchcubes with elegant backlit buttons and 5-way joystick, signature all-LED lighting, Triumph Shift Assist, keyless ignition and updated cruise control.
On top of this comes a host of core technologies that are at the heart of the Tiger 1200s’ epic riding experience, including; Triumph Semi-Active Suspension (TSAS), integrated braking system, optimised cornering ABS, optimised cornering traction control, hill hold, electrically adjustable screen, heated grips, heated rider and pillion seats, powered sockets (12v and USB) and an immobiliser.

NEXT GENERATION 141PS TRIPLE ENGINE
The most powerful shaft-driven engine in class undergoes a significant update for more immediate power lower down; plus, top spec models gain an Arrow silencer.

ADJUSTABLE FULL-COLOUR TFT INSTRUMENTS & ILLUMINATED SWITCHGEAR
Dynamic new full-colour 5’’ TFT instruments, new ergonomically designed switchcubes and premium backlit buttons give the rider full control.

ADAPTIVE CORNERING LIGHTING
New intuitive cornering lighting technology automatically and progressively reacts to the bikes’ cornering movement, to provide advanced night time visibility.

UP TO SIX RIDING MODES WITH NEW ‘OFF-ROAD PRO’
Select from six modes to suit every condition, including: ‘Road’, ‘Rain’, ‘Off-Road’, ‘Sport’, ‘Rider-programmable’ and new ‘Off-Road Pro’, for maximum fun.

TRIUMPH SHIFT ASSIST
All-new Triumph designed system that enables smooth up/down gear changes without the use of the clutch, reducing rider fatigue.

SIGNATURE ALL-LED LIGHTING
Including LED headlight, tail-light, auxiliary lights, indicators and signature Daytime Running Light (DRL), all designed for maximum visibility and style.

ENHANCED RIDING ERGONOMICS
Incorporating a new seat compound and revised handlebar geometry for a commanding riding position and enhanced comfort, benefiting a wider range of riders.

EVEN MORE TIGER STYLE
New premium bodywork, road and off-road wheels, and the highest level of finish with premium graphics and finishes enhance that Tiger style.

EXCEPTIONAL CONTROL
Key to our integrated technology system, Triumph Semi-Active Suspension (TSAS), optimised cornering ABS, and optimised cornering traction control all work together to deliver maximum rider confidence.

HILL HOLD
Hill hold prevents the motorcycle from rolling back/forward when setting off on a steep incline/decline; particularly beneficial when fully-loaded.

PREMIUM SPECIFICATION EQUIPMENT
There’s an incredible level of standard equipment, including; Brembo front brakes, WP suspension, electronically adjustable screen, integrated braking system, and torque-assist clutch.

UP TO 11KG LIGHTER
Significant weight savings across the entire 1200 range (of up to 11kg) deliver enhanced agility and low-speed manoeuvrability.

NEXT GENERATION 141PS TRIPLE ENGINE
The most powerful shaft-driven engine in class undergoes a significant update for more immediate power lower down; plus, top spec models gain an Arrow silencer.

ADJUSTABLE FULL-COLOUR TFT INSTRUMENTS & ILLUMINATED SWITCHGEAR
Dynamic new full-colour 5’’ TFT instruments, new ergonomically designed switchcubes and premium backlit buttons give the rider full control.

ACCESSORIES
With more than 50 Triumph genuine accessories you can add even more comfort, capability and style. Using our online configurator you can build your perfect adventure with even more premium features such as; an aluminium belly pan, heated grips, heated low rider and pillion seats, high touring screen, Arrow silencer and engine protection bars. A wide range of Triumph standard luggage is also available including; aluminium top box and panniers, waterproof inner bags, tank bag and a many soft luggage options. All of our accessories are tested to the same exacting standards of our motorcycles and come with a 2-year warranty.

EXPEDITION PACK
To instantly add a serious level of touring capability and style we’ve created an ‘Expedition Pack’ with all you need to start your adventure on your new Tiger 1200.
The Expedition Pack includes black aluminium ‘weight-optimised’ panniers with mounting rail kit, black top box, moulded backrest pad, protective rubber tank pad and frame protectors.

2018 Triumph Tiger Explorer XRt – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ USD

2018 Triumph Tiger Explorer XRt – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ CDN

2018 Triumph Tiger Explorer XRt – Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £15100 GBP (On The Road inc 20% Vat)

Type      Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder

Capacity               1215cc

Bore Stroke        85 mm / 71.4 mm

Max Power EC   139 PS/137 Bhp (102 kW) @ 9,300 rpm

Max Torque EC 123 Nm @ 6,200 rpm

System Ride by Wire, fuel injection

Exhaust                Stainless steel 3 into 1 header system, side mounted stainless steel silencer

Final drive           Shaft drive

Clutch   Wet, multi-plate hydraulically operated, torque assist

Gearbox               6-speed

Frame   Tubular steel trellis frame

Swingarm            Single-sided, cast aluminium alloy with shaft drive

Front Wheels     Cast aluminium alloy 10-spoke 19 x 3.0in

Rear Wheels       Cast aluminium alloy 10-spoke 17 x 4.5in

Front Tyres         120/70 R19

Rear Tyres           170/60 R17

Front Suspension             WP 48mm upside down forks, electronically adjustable damping, 190mm travel.

Rear Suspension               WP monoshock, electronically adjustable semi active damping, 193mm wheel travel. Automatic preload adjustment.

Brakes Front       Twin 305 mm floating discs, radially mounted monobloc Brembo calipers, 4-piston, switchable ABS

Brakes Rear        Single 282mm disc, Nissin 2-piston sliding caliper, switchable ABS

Instrument Display and Functions             Instrument pack with analogue tachometer, fixed segment LCD display and multifunction dot matrix LCD display. Fixed segment LCD display: speedometer, fuel gauge, gear position indicator, service indicator, clock, ambient air temperature, coolant temperature, cruise control status and set speed. Multifunction DOT matrix LCD display: five Riding Modes (Road, Rain, Off-Road, Sport, Rider), windscreen adjustment, TSAS setting, Trip computer (journey distance, journey time, average fuel consumption, average speed), motorcycle information (odometer, range-to-empty, instantaneous fuel consumption, TPMS), settings menu, heated grips status, heated seat status.

Width Handlebars            830 mm (930 mm with handguards)

Height Without Mirror   1470 mm (1540 mm with higher screen position)

Seat Height         837-857 mm

Wheelbase         1520 mm

Rake      23.1˚

Trail       99.2 mm

Dry Weight         254 Kg

Tank Capacity    20 Litres

Fuel Consumption **     53.3 MPG

CO2 figures **   EUR4 Standard: 122.0 g/km **CO2 and fuel consumption are measured according to regulation 168/2013/EC. Figures on fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real riding results.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
