TRADITION IS GOOD, BUT IT DOESN’T MEAN SITTING STILL.

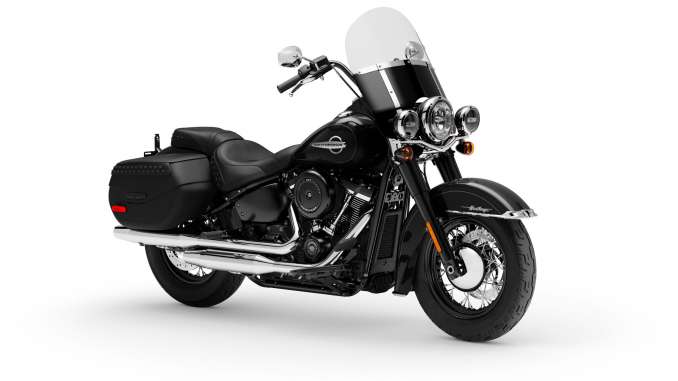

2019 Harley-Davidson Heritage Classic:
The refined gloss-black finishes, modern edge and reinvigorated ride of the Heritage Classic takes nostalgia ripping into a new place. It starts with the performance of the Milwaukee-Eight® 107 or 114 engine and the re-invented Softail® frame and suspension. On top of that, it holds a look that drips with gangster-era style.
2019 HERITAGE CLASSIC
The dark style, modern edge and reinvigorated ride of the Heritage model take nostalgia ripping into a new place.
FROM THE SHADY SIDE OF THE FAMILY TREE
2019 Harley-Davidson Heritage Classic Totalmotorcycle.com Key Features
SOFTAIL®
One look at the FXDR™ 114 is all it takes to see how far the Softail® family has come. It’s the latest in a new revolution of custom motorcycles we launched last year. With every Softail, you get a lighter frame, responsive new suspension, and the power of the Milwaukee-Eight® v-twin engine. In keeping with the custom tradition, each model has its own attitude and style. Ranging from the blacked-out nostalgia of the Heritage Classic to the futuristic edge of the Fat Bob® and FXDR 114 models. Find the one that fits your style. You’re in for one hell of a ride.
The FXDR™ 114 model combines the power of the Milwaukee-Eight® 114 engine with the latest Softail® frame and a cast aluminum swing arm rear suspension, breaking all-new ground for 2019.
Engine
Milwaukee-Eight®
107 OR 114
Engine Torque
109 ft-lb
Weight, As Shipped
697 lb.
Seat Height, Laden
26.3 in.
2019 Harley-Davidson Heritage Classic Totalmotorcycle.com Features and Benefits
Gauge on a 2019 Heritage Classic motorcycle
A Dark Classic with Modern Edge
Dripping with gangster-era style and vintage details. If Bonnie and Clyde rode a Harley® motorcycle, this would be the one.
2019 Harley-Davidson Heritage Classic motorcycle Frame
Softail®Frame
The reinvented frame retains the classic Softail® lines, but its lightweight design and stiffness translate to a responsive ride unlike anything you’ve felt before.
2019 Heritage Classic motorcycle big twin engine
Milwaukee-Eight® Big Twin Engine
A powerful, smooth-running engine with crisp throttle response and a pure, soul-satisfying rumble. Available in 107 and 114 engine displacements.
Headlight on a 2019 Heritage Classic motorcycle
Signature LED Forward Lighting
Darkness-defying lighting that gives you great visibility at night.
Saddlebags on a 2019 Heritage Classic motorcycle
Lockable and Sealed Saddlebags
A sleek look on the outside and roomy on the inside with enough space to stash your riding essentials. The lids open with one touch.
Windscreen on a 2019 Heritage Classic motorcycle
Detachable Windscreen
Go from touring to cruising in a heartbeat. Leave the screen on for a clean envelope of air over the long haul. Or remove it in seconds for a completely new look and ride.
Front suspension on a 2019 Heritage Classic motorcycle
High Performance Front Suspension
Sophisticated suspension technology provides the performance of a racing-style cartridge fork for reduced weight with linear damping characteristics.
High Performance Rear Mono Shock
Easily adjustable mono-shock rear suspension allows for dynamic cornering capability while preserving the hardtail look.
2019 Harley-Davidson Heritage Classic – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $19049 – $19799 USD
Canada MSRP Price: $22999 – $23849 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AUS
Pricing6
- Vivid Black $19,049
- Color $19,449
- Two-Tone $19,799
- ABS Option Standard
- Security System Option Standard
- Cruise Control Option Standard
- California Emissions $200
- Freight $390
Engine
- Engine 1 Milwaukee-Eight® 107
- Bore 3.937 in.
- Stroke 4.374 in.
- Displacement 1,746 cc (107 cu in)
- Compression Ratio 10.0:1
- Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust 2-into-2 shorty dual; catalyst in muffler
Dimensions
- Length 95.1 in.
- Seat Height, Laden 7 26.3 in.
- Seat Height, Unladen 26.8 in.
- Ground Clearance 4.7 in.
- Rake (steering head) (deg) 30
- Trail 5.5 in.
- Wheelbase 64.2 in.
- Tires, Front Specification 130/90B16,53H,BW
- Tires, Rear Specification 150/80B16,77H,BW
- Fuel Capacity 5 gal.
- Oil Capacity (w/filter) 5 qt.
- Weight, As Shipped 697 lb.
- Weight, In Running Order 723 lb.
- Luggage Capacity -Volume 1.5 cu ft
Performance
- Engine Torque Testing Method J1349
- Engine Torque 2 109 ft-lb
- Engine Torque (rpm) 3,000
- Lean Angle, Right (deg.) 27.3
- Lean Angle, Left (deg.) 28.5
- Fuel Economy Testing Method Estimated City/Hwy
- Fuel Economy 5 47 mpg
Drivetrain
- Primary Drive Chain, 34/46 ratio
- Gear Ratios (overall) 1st 9.311
- Gear Ratios (overall) 2nd 6.454
- Gear Ratios (overall) 3rd 4.793
- Gear Ratios (overall) 4th 3.882
- Gear Ratios (overall) 5th 3.307
- Gear Ratios (overall) 6th 2.79
Chassis
- Wheels, Front Type 9 Gloss Black, Steel Laced
- Wheels, Rear Type Gloss Black, Steel Laced
- Brakes, Caliper Type 4-piston fixed front and 2-piston floating rear
Electric
- Lights (as per country regulation), Indicator Lamps 8 High beam, turn signals, neutral, low oil pressure, engine diagnostics, auxilary lighting, cruise, ABS, security, low battery voltage, low fuel
- Gauges 5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
2019 Harley-Davidson Heritage Classic – Totalmotorcycle.com Canada Specifications/Technical Details
Pricing6
- Vivid Black $ 22,999
- Colour $ 23,449
- Two-Tone $ 23,849
- ABS Option Standard
- Security System Option Standard
- Cruise Control Option Standard
Engine
- Engine 1 Milwaukee-Eight™ 107
- Bore 100 mm
- Stroke 111.1 mm
- Displacement 1,746 cc
- Compression Ratio 10.0:1
- Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust 2-into-2 shorty dual; catalyst in muffler
Dimensions
- Length 2,415 mm
- Seat Height, Unladen 680 mm
- Ground Clearance 120 mm
- Rake (steering head) (deg) 30
- Trail 140 mm
- Wheelbase 1,630 mm
- Tires, Front Specification 130/90B16,53H,BW
- Tires, Rear Specification 150/80B16,77H,BW
- Fuel Capacity 18.9 l
- Oil Capacity (w/filter) 4.7 l
- Weight, As Shipped 316 kg
- Weight, In Running Order 328 kg
- Luggage Capacity -Volume 0.043 m3
Performance
- Engine Torque Testing Method J1349
- Engine Torque 2 148 Nm
- Engine Torque (rpm) 3,000
- Lean Angle, Right (deg.) 27.3
- Lean Angle, Left (deg.) 28.5
- Fuel Economy: Estimated City/Hwy 5 5 l/100 km
Drivetrain
- Primary Drive Chain, 34/46 ratio
- Gear Ratios (overall) 1st 9.311
- Gear Ratios (overall) 2nd 6.454
- Gear Ratios (overall) 3rd 4.793
- Gear Ratios (overall) 4th 3.882
- Gear Ratios (overall) 5th 3.307
- Gear Ratios (overall) 6th 2.79
Chassis
- Wheels, Front Type 9 Gloss Black, Steel Laced
- Wheels, Rear Type Gloss Black, Steel Laced
- Brakes, Caliper Type 4-piston fixed front and 2-piston floating rear
Electric
- Lights (as per country regulation), Indicator Lamps 8 High beam, turn signals, neutral, low oil pressure, engine diagnostics, auxilary lighting, cruise, ABS, security, low battery voltage, low fuel
- Gauges 5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
