2019 Suzuki DR-Z400SM Guide

2019 Suzuki DR-Z400SM

2019 Suzuki DR-Z400SM 2019 Suzuki DR-Z400SM 2019 Suzuki DR-Z400SM 2019 Suzuki DR-Z400SM

FREE SPIRITED STREET RIDING PLEASURE.

2019 Suzuki DR-Z400SM:

Suzuki’s SuperMoto DR-Z400SM is based on the proven DR-Z400S. So it combines Supermotard style and features in a narrow, lightweight, street-legal package. This bike brings off-road soul and fun to paved roads. It’s not uncommon to take the SuperMoto down a twisty forest road, around tight canyon corners, or through commuter traffic.

Its 398cc, liquid-cooled, four-stroke engine provides strong low-rpm torque and crisp throttle response for any of these occasions. Key differences between the DR-Z400SM and the DR-Z400S are the inverted front fork, wide, spoke-style wheels, and 300mm diameter floating front brake rotor. The inverted fork contributes to less unsprung weight and improved overall handling, while the large brake and wider rims with high-grip tires offer an exhilarating sportbike experience.

The DR-Z400SM welcomes you to the exhilarating world of supermoto riding with cutting-edge dual-purpose bike design and stylish, functional top-grade equipment that captures the essence of free-spirited street riding pleasure.

The Suzuki DR-Z400SM is a street legal bike for serious dirt bike enthusiasts. It’s not uncommon to take the SuperMoto down a twisty forest trails as well as tight canyon corners. Its 398cc liquid-cooled, four-stroke engine provides strong low-rpm torque and crisp throttle response for any of these occasions. They key difference between the DR-Z400SM and the DR-Z400S is the inverted forks. Inverted front forks contribute to less unsprung weight and improved overall handling.

Fun to ride whatever street, avenue or highway you’re headed for.









2019 Suzuki DR-Z400SM Totalmotorcycle.com Key Features

Suzuki’s Supermotard model, based on the proven DR-Z400S, combines Supermotard style and features in a narrow, lightweight, street-legal package.

Versatile and strong, 398cc, DOHC, liquid-cooled, dry-sump engine has push-button starting.

SuperMoto boasts fully adjustable suspension and strong spoke wheels featuring high-grip sportbike tires on wide aluminum rims.

New white bodywork with red or blue accent graphics complement the motorcycle’s styling.

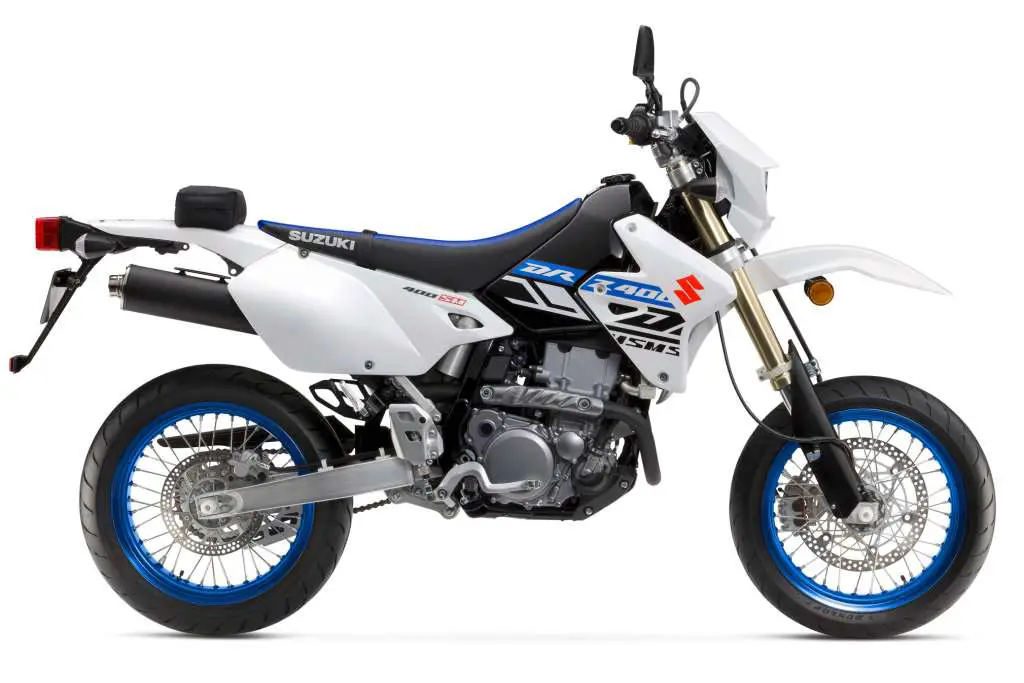

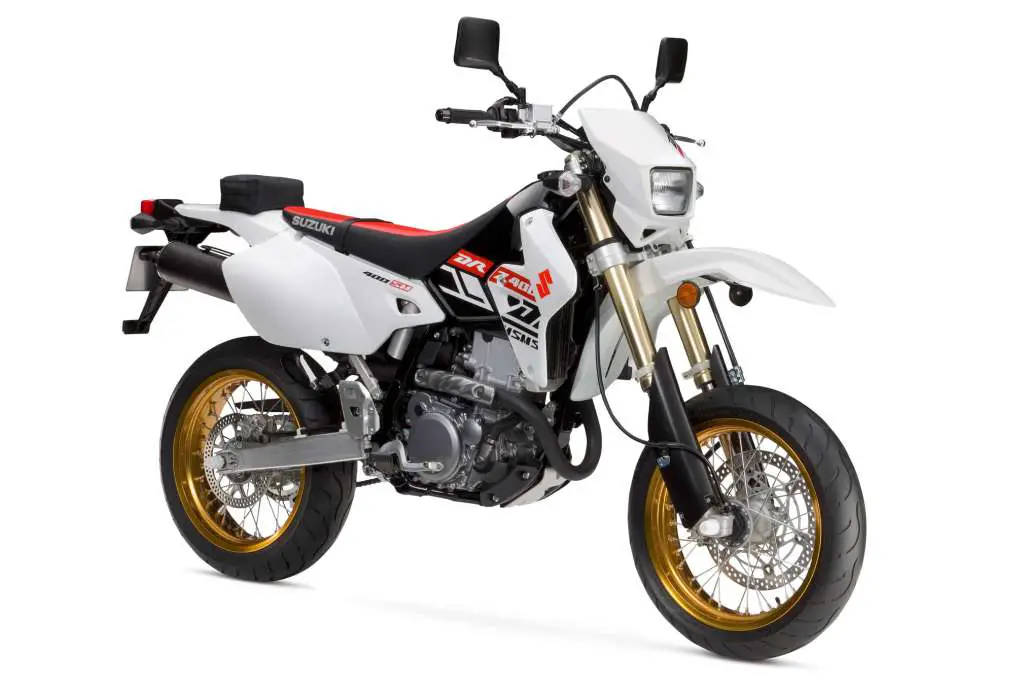

The white and red DR-Z400SM features bright, gold anodized Excel wheel rims, while the white and blue bike features blue anodized rims that stylishly exude performance.









2019 Suzuki DR-Z400SM Totalmotorcycle.com Features and Benefits

Engine

Lightweight, 398cc, DOHC, liquid-cooled, dry-sump engine produces strong, tractable power.

Compact, four-valve cylinder head has 36mm intake valves, 29mm exhaust valves, narrow 28-degree included valve angle, and shim-under-bucket valve adjustment system.

Simple electric starting is powered via a lightweight starter motor with an automatic mechanical decompression system.

SCEM-plated cylinder (nickel-silicon-phosphorus) is lighter and more durable than an iron liner and has excellent heat transfer properties.

Forged aluminum piston is 10 percent lighter than a cast piston and receives additional oil-cooling through a crankcase oil jet.

A refined Mikuni 36mm carburetor, with new deceleration enricher circuit, is fed by a six-liter airbox to provide smooth throttle response when accelerating or engine braking.

The left side body cover has quick-release fasteners for easy access to the air filter.

The addition of a PAIR (air supply) system to the exhaust helps the motorcycle achieve emissions compliance without affecting performance.

Thermostatically-controlled cooling fan mounted to the left radiator helps maintain consistent operating temperature in traffic.

Magnesium valve cover, clutch cover, and magneto cover provide additional weight savings.



Transmission Features

Compact, five-speed transmission utilizes a cable-operated clutch with a separate magnesium outer cover for simplified clutch maintenance.

Low-maintenance, long-life, sealed O-ring type drive chain produces minimal sounds when riding.



Chassis Features

Wide, blue or gold anodized RK Excel aluminum rims with stainless steel spokes are fitted with sporty radial tires: 120/70-R17 front and 140/70-R17 rear.

Strong braking performance is supplied by a front disc brake with a large 300mm floating-type rotor and dual-piston caliper, plus a 240mm rear disc brake with single-piston caliper.

Long travel, Showa inverted front fork is derived from a RM250 and features adjustable compression/rebound damping and alumite coating on inner tube surfaces for smooth action.

A fully adjustable rear shock absorber with high/low speed compression damping adjuster and a tapered RM-inspired aluminum swingarm combine for precise rear wheel control.

Renthal tapered aluminum handlebar has an aggressive look, reduces vibration, and has a great bend for spirited riding.

Chrome-moly steel frame tuned for Supermotard style riding is torsionally strong with minimal weight. The backbone tube, front down tube, and steering head gussets form the dry-sump engine oil tank.

A bolt-on aluminum sub-frame helps reduce weight, simplify maintenance, and contribute to the trim rear fender appearance.

Front and rear axle sliders help protect against damage in the case of a tip-over.



Electrical Features

Compact, digital instrument cluster includes speedometer, odometer, and twin-trip meters with addition/subtraction capability, clock, and stopwatch functions.

On-road legal lighting includes bright 60/55-watt halogen headlight, compact tail/stoplight, lightweight, rubber-mounted turn signals, and horn.

Electrical systems, including the easy-push button starter, are powered by a compact, 6.5-amp, maintenance-free battery.



Additional Features

12-month limited warranty. Longer coverage periods with other benefits are available through Suzuki Extended Protection (SEP).

A variety of Genuine Suzuki Accessories for DR-Z400SM owners are available, including a low-profile seat, cargo rack, handguard set, and a large selection of Suzuki logo apparel.







2019 Suzuki DR-Z400SM – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $7349 USD
Canada MSRP Price: $7699 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AU
Engine
Engine 398cc, 4-stroke, liquid-cooled, single cylinder, DOHC
Bore x Stroke 90.0 x 62.6 mm (3.54 x 2.44 in.)
Compression Ratio 11.3:1
Fuel System Mikuni BSR36, single carburetor
Starter Electric
Lubrication Semi-dry sump
Drive Train
Clutch Wet multi-plate
Transmission 5-speed constant mesh
Final Drive Chain, RK520KZ0, 110 links
Chassis
Suspension Front Inverted telescopic, coil spring, oil damped, adjustable damping force
Suspension Rear Link type, coil spring, oil damped, adjustable spring preload and damping force
Brakes Front Disc brake, single floating rotor
Brakes Rear Disc brake, single rotor
Tires Front 120/70 R17 M/C 58H, tube type
Tires Rear 140/70 R17 M/C 66H, tube type
Fuel Tank Capacity 10.0 L (2.6 US gal.), 9.5 L (2.5 US gal.) CA model
Color Solid White No. 2 with Red, or Solid White No. 2 with Blue
Electrical
Ignition Electronic ignition (CDI)
Spark Plug NGK CR8E or DENSO U24ESR-N
Headlight 12V 60/55W (H4)
Tail light 12V 21/5W
Dimensions
Overall Length 2225 mm (87.6 in.)
Overall Width 855 mm (33.7 in.)
Overall Height 1200 mm (47.2 in.)
Wheelbase 1460 mm (57.5 in.)
Ground Clearance 260 mm (10.2 in.)
Seat Height 890 mm (35.0 in.)
Curb Weight 146 kg (322 lb.)
Warranty
Warranty 12-month unlimited mileage limited warranty.*
Extensions *Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP).





2019 Suzuki DR-Z400SM – Totalmotorcycle.com Canada Specifications/Technical Details

Engine
Type 4-stroke, liquid-cooled, single cylinder, DOHC
Displacement 398cc
Bore x Stroke 90.0mm x 62.6mm (3.5in x2.5in)
Compression Ratio 11.3 : 1
Transmission 5-speed constant mesh
Chassis
Overall Length 2225 mm (87.6 in)
Overall Width 855 mm (33.7 in)
Overall Height 1200 mm (47.2 in)
Wheelbase 1460 mm (57.5 in)
Ground Clearance 260 mm (10.2 in)
Seat Height 890 mm (35.0 in)
Curb Mass 146 kg (321 lbs)
Suspension Front Telescopic, coil Spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Disc
Brakes Rear Disc
Tires Front 120/70R17M/C 58H, tube type
Tires Rear 140/70R17M/C 66H, tube type
Ignition Type Electronic ignition (CDI)
Fuel Tank 10.0L (2.6 US gal)
Warranty
Standard Warranty 12 Month unlimited mileage limited warranty







2019 Suzuki DR-Z400SM – Totalmotorcycle.com European Specifications/Technical Details









2019 Suzuki DR-Z400SM – Totalmotorcycle.com Australian Specifications/Technical Details







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
