2006 Suzuki SV650

You are here: HomeNew 2006 Models — 2006 Suzuki Motorcycle Models

2006 Suzuki SV650
Back to 2006 Suzuki Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

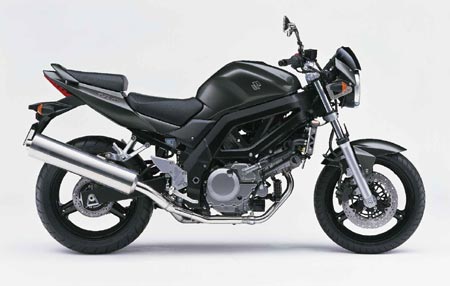

2006 Suzuki SV650
2006 Suzuki SV650

2006 Suzuki SV650
2006 Suzuki SV650

2006 Suzuki SV650
2006 Suzuki SV650



– 2006 Suzuki SV650

2006 Suzuki SV650

You know what you’re looking for in a standard V-twin machine: light and agile handling, along with willing-and-able engine performance. And that’s what the Suzuki SV650 delivers – in spades. Recently named as Cycle World magazine’s Best Standard Motorcycle and Motorcyclist magazine’s Best Bang for the Buck, the Suzuki SV650 offers its own unique styling and performance. Compared to the SV650S, it has a leaner profile, featuring a single round headlight, tubular handlebars and a more upright riding position. And for 2005, it features a black painted frame and swingarm, along with a stylish new color matched headlight cowl for a bold new look.

One ride on the SV650 and you’ll be hooked. It combines crisp, lightweight handling with all-day riding comfort. And the thrills really begin when you tap into its exceptional engine performance. Its fuel-injected V-twin powerplant offers crisp throttle response, strong torque and a stunningly wide powerband.

So get on a new 2006 Suzuki SV650 – and enjoy a ride you’ll never forget.



Engine Features

Compact 645 cc, 90 degree liquid-cooled V-twin, DOHC 8-valve engine tuned for strong low to mid rpm power

90 degree V-twin cylinder layout eliminates primary vibration without a counter- balancer, keeping the engine simple and compact

Lightweight chain-driven DOHC, shim-under-bucket valve system with 31 mm intake valves and 25.5 mm exhaust valves

Electronic fuel injection system featuring the Suzuki Dual Throttle Valve System (SDTV) – maintains optimum air velocity in the intake tract for smooth low-to-mid rpm throttle response and high torque output – includes Auto Fast Idle System (AFIS)

High capacity liquid-cooling system and oil cooler enhance engine performance and durability – coolant routing is integrated with the clutch cover and engine case for a cleaner look and reduced weight

Smooth-shifting 6-speed transmission with vertically staggered transmission shafts for a shorter, more compact crankcase

Plastic outer clutch cover and engine sprocket cover for reduced weight and noise

Lightweight 2-into-1 exhaust system tuned for strong low and mid-range torque

Narrow, lightweight aluminum truss-style frame constructed with high-vacuum die-cast process for more consistent strength and fewer individual welded sections

Steeply angled tail section houses unique vertically-styled, high visibility LED taillight and compact rear fender


Chassis Features
Black-painted frame, swingarm, and wheels, plus headlight-mounted mini-fairing with tinted shield for more sport appearance

Tube-style handlebar for a comfortable upright seating position, plus single, round-style 60/55W headlight

Box-section aluminum swingarm is lightweight with high torsional rigidity

41mm front fork with 130 mm of wheel travel provides a smooth, compliant ride

Link-type single-shock rear suspension with 7-way adjustable preload

Powerful dual hydraulic disc front brakes with 290 mm floating rotors and adjustable brake lever position

Single disc rear brake with 240 mm rotor

Compact instrument cluster includes analog tach, LCD speedometer, odometer/tripmeters, and temperature gauge, plus LCD clock and low fuel warning light

Large under-seat storage area, passenger grab-bar and tie-down hooks

Slim 4.5 gallon fuel tank with low-fuel warning light

Hinged fuel tank swings up for easy access to the airbox and throttle bodies

Wide radial tires mounted on lightweight, 3-spoke cast aluminum wheels


SPECIFICATIONS

Engine: 645 cc, four-stroke, liquid cooled, 90° V-twin, DOHC, 8-valves, TSCC
Bore Stroke: 81.0 x 62.6 mm
Compression Ratio: 11.5:1
Fuel System: Fuel Injection
Lubrication: Wet Sump
Ignition: Digital/Transistorized
Transmission: 6-speed
Final Drive: #525 chain
Overall Length: 2080 mm (81.9 in.)
Overall Width: 745 mm (29.3 in.)
Overall Height: 1085 mm (42.7 in.)
Seat Height: 800 mm (31.5 in.)
Ground Clearance: 150 mm (5.9 in.)
Wheelbase: 1440 mm (56.7 in.)
Dry Weight: 165 kg (363 lbs.)
Suspension Front: Telescopic, coil spring, oil damped, fully adjustable preload
Suspension Rear: Link-type, 7-way adjustable spring preload
Brakes Front: Dual hydraulic disc
Brakes Rear: Single hydraulic disc
Tires Front: 120/60-ZR17
Tires Rear: 160/60-ZR17
Fuel Tank Capacity: 17 liter (4.5 gal.) 16 liter (4.2 gal.) CA. model
Color: Blue, Red
