2008 Bimota DB5S

You are here: HomeNew 2008 Models — 2008 Bimota Motorcycle Models

2008 Bimota DB5S
Back to 2008 Bimota Motorcycle Index Page

Click photos to enlarge for detail.
They make great desktop images.

2008 Bimota DB5S
2008 Bimota DB5S

2008 Bimota DB5S
2008 Bimota DB5S

2008 Bimota DB5S
2008 Bimota DB5S

2008 Bimota DB5S
2008 Bimota DB5S

2008 Bimota DB5S
2008 Bimota DB5S


– 2008 Bimota DB5S

2008 Bimota DB5S

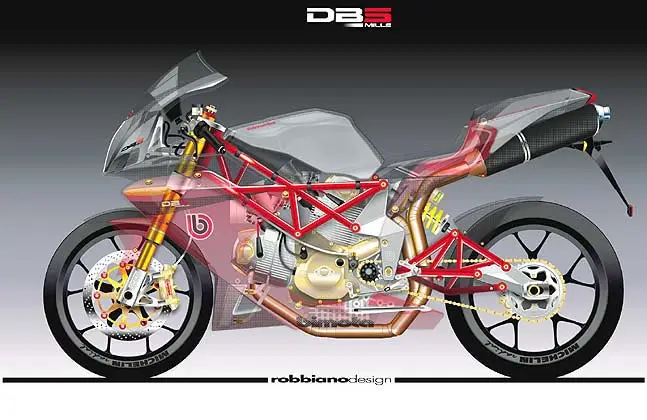

The DB5S personifies the tradition of Bimota. The tubular steel trellis frame with machined plates in aircraft alloy envelops the desmo 1000 in a compact and functional package.

The innovation behind the tubular composite swing arm, exclusive to Bimota, confirms the commitment of the company to continuous research and development.

The design is revolutionary; for the first time a fully faired sports bike with an engine completely exposed.

Compact dimensions and the precision matching of each component maximize the sensation of agility and lightness.





US SPECIFICATIONS: 2008 Bimota DB5S
Price $0,000 MSRP

Engine
Type: Ducati – L twin cylinder, 2 valves per cylinder, Desmodromic – air cooled
Displacement: 1078 cc
Bore x stroke: 98 x 71.5 mm
Maximum power: 95 hp @ 7000 rpm
Maximum torque: 10.5 kg.m @ 5500 rpm
Fuel injection: Electronic fuel injection – 45 mm throttle body
Lubrication: With wet sump
Gear box: 6 speed
Clutch: Oil bath multi-plate with hydraulic control

Chassis
Frame: 20/25 mm tubular chrome molybdenum steel trelis with lateral plates in aircraft alloy
Rear frame: 15/25/30 mm tubular chrome molybdenum steel trelis with lateral plates in aircraft alloy
Front suspension: Marzocchi upside-down fully adjustable forks 50 mm with TiN surface treatment
Front wheel travel: 120 mm
Rear suspension: Fully adjustable Extreme Tech monoshock
Rear wheel travel: 120 mm
Front brake: 2 x 320 mm semi-floating discs, 4-pistons, 4-pads, radial calipers – Brembo
Rear brake: 220 mm disc
Front wheel: 3.50×17 OZ racing alloy
Rear wheel: 5.50×17 OZ racing alloy
Front tire: 120/70/17
Rear tire: 180/55/17

Dimensions
Wheelbase: 1440 mm
Steering angle: 24º
Trail: 108 mm
Seat height: 800 mm
Weight: 185 kg





Media Press Release:

None to date.
