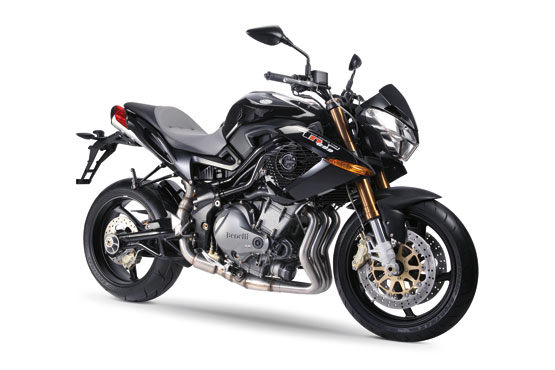

2010 Benelli Tornado Naked Tre 899

– 2010 Benelli Tornado Naked Tre 899

2010 Benelli Tornado Naked Tre 899

2010 Benelli Tornado Naked Tre 899 – Specifications

ENGINE
TYPE In line 3 cylinders, 4-stroke, liquid cooled , 4 valves per cylinder double overhead camshaft, with balancer shaft
DISPLACEMENT 899 cc
BORE x STROKE 88 x 49,2 mm
COMPRESSION RATIO 12,5:1
RATED OUTPUT 88 kW (120 cv) @ 9500 rpm
MAX. TORQUE 88 Nm (9 kgm) @ 8000 rpm
FUEL SUPPLY Electronic injection with three throttle bodies ø53 mm
EXHAUST SYSTEM With catalytic converter and oxigen sensor
CERTIFICATION Euro 3
CLUTCH Wet clutch
GEARBOX 6 speed
FINAL DRIVE Chain drive, ratio 16:41

CHASSIS
FRAME Decomposable, front steel trestle, rear alluminium alloy casting
FRONT SUSPENSION Ø50 mm upside-down fork
FRONT SUSPENSION STROKE 120 mm
REAR SUSPENSION Steel trestle swingarm, progressive rear dumper with idraulic extension/compression and spring preload adjustments
REAR SUSPENSION STROKE 120 mm
FRONT BRAKE Twin floating disk ø320 mm with 4 piston calipers
REAR BRAKE Singol disk ø240 mm with double piston caliper
FRONT RIM 17”x3.50” DOT-D
REAR RIM 17”x6.00” DOT-D
FRONT TYRE 120/70-ZR17 58W (-120/65-ZR17 56W-)
REAR TYRE 190/50-ZR17 73W (-180/55-ZR17 73W — 200/50-ZR17 75W -)

SIZES
LENGHT 2128 mm
WIDHT EXCLUDING MIRRORS 790 mm
HEIGHT EXCLUDING MIRRORS 1050 mm
SEAT HEIGHT 820 mm
WHEELBASE 1443 mm
UNLADEN WEIGHT* 208 kg
ROAD READY WEIGHT** 215 kg
PERMITTED TOTAL WEIGHT 400 kg
USABLE TANK VOLUME 16 lt
RESERVE N.D.

* without fluids
** According to guideline 93/93/CEE with all fluids, fuelled with at least 90% of usable tank volume

(Benelli Q.J. reserves the right to change technical specifications, equipment, set ups, and colours without prior notice.)
