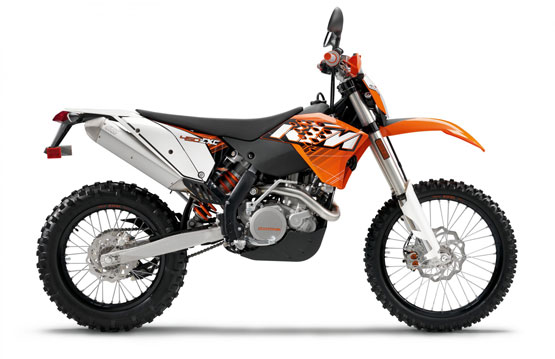

2011 KTM 450 EXC North America
2011 KTM 450 EXC North America

2011 KTM 450 EXC North America
2011 KTM 450 EXC North America


– 2011 KTM 450 EXC North America

2011 KTM 450 EXC North America

The 450 EXC is the benchmark for the ambitious racer who searches for the most competitive offroad weapon that is also street legal. Top performance out of 450cc which can be transferred quickly but efficiently into traction, combined with the well known suspension strengths plus street legal components, make this bike the unchallenged dominator of its class.

NEWS For 2011
– New material for valve spring retainers à better reliability
– New colors
– New decals
– Handlebar protector in serial production






2011 KTM 450 EXC North America – USA Specifications
MSRP: See KTM Dealer for prices

Engine type Single cylinder, 4-stroke
Displacement 449.3 cc
Bore x stroke 95 x 63.4 mm (3.74 x 2.5″)
Compression ratio 11.9:1
Starter/Battery Kickstarter/E-Starter/12V 4 Ah
Transmission 6 gears
Carburetor Keihin FCR MX 39
Control 4 V/OHC with rocker levers
Lubrication Pressure lubrication with 3 Eaton pumps
Engine lubrication Motorex, SAE 10W50
Transmission oil Motorex, SAE 10W50
Primary drive 33:76
Final drive 15:45 (14:52)
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Kokusan


Frame Central double-cradle-type 25CrMo4 steel
Subframe Aluminium
Handlebar Neken, Aluminium Ø 28/22 mm (1.10/0.87″)
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP PDS shock absorber
Suspension travel front/rear 300/335 mm (11.81/13.19″)
Brakes, front/rear Disc brakes 260/220 mm (10.24/8.66″)
Rims, front/rear 1.60 x 21″; 2.15 x 18″ Excel
Tires, front/rear 90/90-21″; 140/80-18″
Chain X-ring chain 5/8 x 1/4″
Main silencer Aluminium
Steering head angle 63.5°
Wheel base 1475 ± 10 mm (58.0 ± 0.39″)
Ground clearance (unloaded) 380 mm (15″)
Seat height 985 mm (38.78″)
Tank capacity approx. 9.5 liters (2.51 gal)
Weight (no fuel) approx. 113.9 kg (251 lbs)





2011 KTM 450 EXC North America – Canada Specifications
MSRP: See KTM Dealer for prices

Engine type Single cylinder, 4-stroke
Displacement 449.3 cc
Bore x stroke 95 x 63.4 mm (3.74 x 2.5″)
Compression ratio 11.9:1
Starter/Battery Kickstarter/E-Starter/12V 4 Ah
Transmission 6 gears
Carburetor Keihin FCR MX 39
Control 4 V/OHC with rocker levers
Lubrication Pressure lubrication with 3 Eaton pumps
Engine lubrication Motorex, SAE 10W50
Transmission oil Motorex, SAE 10W50
Primary drive 33:76
Final drive 15:45 (14:52)
Cooling Liquid cooled
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Kokusan


Frame Central double-cradle-type 25CrMo4 steel
Subframe Aluminium
Handlebar Neken, Aluminium Ø 28/22 mm (1.10/0.87″)
Front suspension WP USD Ø 48 mm (1.89″)
Rear suspension WP PDS shock absorber
Suspension travel front/rear 300/335 mm (11.81/13.19″)
Brakes, front rear Disc brakes 260/220 mm (10.24/8.66″)
Rims, front/rear 1.60 x 21″; 2.15 x 18″ Excel
Tires, front/rear 90/90-21″; 140/80-18″
Chain X-ring chain 5/8 x 1/4″
Main silencer Aluminium
Steering head angle 63.5°
Wheel base 1475 ± 10 mm (58.0 ± 0.39″)
Ground clearance (unloaded) 380 mm (15″)
Seat height 985 mm (38.78″)
Tank capacity approx. 9.5 liters (2.51 gal)
Weight (no fuel) approx. 113.9 kg (251 lbs)





2011 KTM 450 EXC North America – International Specifications
MSRP: See KTM Dealer for prices

NA
