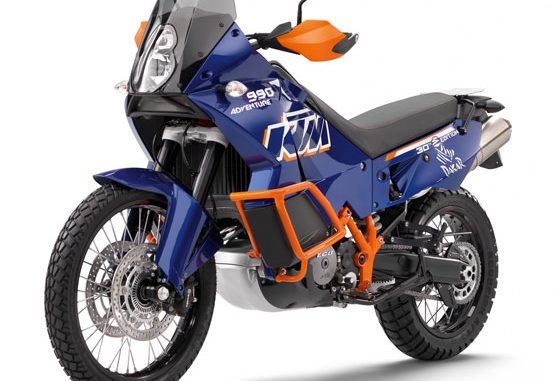

2011 KTM 990 Adventure Dakar
2011 KTM 990 Adventure Dakar

2011 KTM 990 Adventure Dakar
2011 KTM 990 Adventure Dakar


– 2011 KTM 990 Adventure Dakar

2011 KTM 990 Adventure Dakar

Adventure touring is one thing; rallying is another matter. To send the 990 Adventure on its travels with even more genes from the repeatedly victorious Dakar factory machines, KTM has produced the “Dakar” special edition. With even more V2 power, stable crash bars and a sporty seat. And naturally with the authentic “Dakar” paintwork and the total versatility that has earned the 990 Adventure its reputation as the most capable travel enduro in the world for offroad use.





2011 KTM 990 Adventure Dakar Features

Fit for the adventure trip

Wind screen and large fuel tank

The fairing on the Adventure Dakar provides effective protection from the wind and weather and accommodates the clearly structured multifunction cockpit that supplies the rider with all essential information. The fuel tanks with a capacity of 19.5 l (20.6 qt.) ensure a long useful working range.

Seating comfort

The height of the Adventure Dakar’s perfectly padded seat ensures firm contact with the ground for all riders and suitable long-distance comfort for both rider and passenger, while also providing crystal-clear feedback for a more aggressive pace. The large fuel tank surfaces ensure perfect leg contact for riding while standing up.

Storage compartment,12v electric socket, center stand and engine guard

There are no shortage of details on the Adventure Dakar that distinguish it as a genuine travel adventure — from the practical center stand, the lockable storage compartment between the tanks and the onboard 12v electrical socket, to the robust engine guard and stable handguards.

Crash bars

In addition to the standard engine guard, should the worst come to the worst, the Adventure Dakar is also equipped with orange powder-coated, extra-stable tubular crash bars, so that the bodywork with authentic “Dakar” paintwork is not so quickly damaged.



with ABS

ABS

The selectable dual-circuit ABS system developed in cooperation with Bosch offers total protection against overbraking in all sports and touring situations, while maintaining the full effect and perfect feedback of a genuine sports brake thanks to sensitive calibration.



Powerful, state-of-the-art V2

Engine

The Adventure Dakar’s water-cooled V-engine produces 84.5 kW (113.3 hp) and therefore around 7 kW (9 hp) more than its Adventure sister model – precisely the shot of power required to live up to the “Dakar” surname. The engine impresses with powerful acceleration, superb performance and spontaneous throttle response.

Cylinder Head

Aside from optimum combustion chamber design, the major factors behind the outstanding performance of the 990 Adventure Dakar’s V-twin with 75° cylinder angle are the state-of-the-art four-valve cylinder heads, each with flow-optimized ports and two overhead camshafts.

Crank drive / Pistons

Particularly lightweight pistons and connecting rods provide the 990 Adventure Dakar’s V2 engine with reduced reciprocating weight and a decidedly spontaneous responsiveness, underlining its extremely sporty engine characteristics.

Engine Management

The electronic Keihin engine management system regulates the modern fuel injection system on the 990 Adventure Dakar, focusing on smooth throttle response under partial load and spontaneous responsiveness when needed. In this way, KTM engineers were able to harmonize raw power with optimum ridability.



Adventurous chassis

Frame and swingarm

The 990 Adventure Dakar’s tubular space frame made from thin-walled chrome-molybdenum steel tubing with a bolted-on, light alloy subframe that only weighs 10.5 kg (23.1 lb.), yet it has exeptional torsional stiffness. The long swingarm with conical profiles contributes the perfect amount of mechanical grip.

Suspension Elements

Thanks to multiple setting options, the upside-down telescopic fork and the directly connected shock absorber from WP Suspension allow optimum individual adjustment of the chassis to suit the respective operational use of the versatile Adventure Dakar.

Brakes and wheels

More than adequate braking is ensured in the Adventure Dakar by Brembo® brakes with the very finest components, such as two floating 300 mm (11.81 in) brake rotors. Stable wire-spoked wheels with dual-purpose tires guarantee perfect suitability for touring with full offroad potential.








2011 KTM 990 Adventure Dakar – USA Specifications
MSRP: $15.499,00 USD

990 ADVENTURE DAKAR EDITION: THE DESERT EXPRESS

ENGINE
Design 2-cylinder 4-stroke Otto motor, 75° V arrangement, water-cooled
Displacement 999 cm³ (60.96 cu in)
Bore 101 mm (3.98 in)
Stroke 62.4 mm (2.457 in)
Performance 84.5 kW (113.3 hp)
Cold start device Electric starter
Transmission 6-gears, claw-shifted
Engine lubrication Dry sump lubrication system with two rotor pumps
Primary transmission 35:67
Secondary drive ratio 16:42
Cooling Water cooling, permanent circulation of coolant by water pump
Clutch Multidisc clutch in oil bath/hydraulically activated
Ignition system Contactless controlled fully electronic ignition with digital ignition adjustment
CHASSIS
Frame Lattice frame made of chrome molybdenum steel tubing, powder-coated
Fork WP Suspension Up Side Down 4860 MXMA PA
Shock absorber WP Suspension PDS 5018 DCC PA
Suspension travel Front 210 mm (8.27 in)
Suspension travel Rear 210 mm (8.27 in)
Brake system Front Double disk brake with floating brake calipers and brake discs
Brake system Rear Single disc brake with floating brake caliper and brake disc
Brake system Two separate brake circuits with ABS (antilock brake system) – Brembo/Bosch
Brake discs – diameter Front 300 mm (11.81 in)
Brake discs – diameter Rear 240 mm (9.45 in)
Chain 5/8 x 5/16″ X ring
Steering head angle 63.4°
Wheelbase 1,570 mm (61.81 in)
Ground clearance, unloaded 261 mm (10.28 in)
Seat height, unloaded 880 mm (34.65 in)
Total fuel tank capacity, approx. 20 l (5.3 US gal)
Super unleaded (ROZ 95/RON 95/PON 91)
Weight without fuel, approx. 209 kg (461 lb.)







2011 KTM 990 Adventure Dakar – Canada Specifications
MSRP: See KTM Dealer for prices

990 ADVENTURE DAKAR EDITION: THE DESERT EXPRESS

ENGINE
Design 2-cylinder, 4-stroke, spark-ignition engine, 75° V arrangement, liquid-cooled
Displacement 999 cm³ (60.96 cu in)
Bore 101 mm (3.98 in)
Stroke 62.4 mm (2.457 in)
Performance 84.5 kW (113.3 hp)
Starting aid Electric starter
Transmission 6-speed, claw shifted
Engine lubrication Dry-sump lubrication with 2 rotor pumps
Primary gear ratio 35:67
Secondary gear ratio 16:42
Cooling system Liquid cooling system, continuous circulation of cooling liquid with water pump
Clutch Wet multi-disc clutch / hydraulically operated
Ignition system Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
CHASSIS
Frame Tubular space frame made from chrome molybdenum steel, powder-coated
Forks WP Suspension Up Side Down 4860 MXMA PA
Shock absorber WP Suspension PDS 5018 DCC PA
Suspension travel front 210 mm (8.27 in)
Suspension travel rear 210 mm (8.27 in)
Brake system front Twin-disc brake with floating brake calipers and brake discs
Brake system rear Single-disc brake with floating brake caliper and brake disc
Brake system Two independent brake circuits with ABS (antilock brake system) – Brembo/Bosch
Brake discs – diameter front 300 mm (11.81 in)
Brake discs – diameter rear 240 mm (9.45 in)
Chain 5/8 x 5/16″ X Ring
Steering head angle 63.4°
Wheel base 1,570 mm (61.81 in)
Ground clearance (unloaded) 261 mm (10.28 in)
Seat height (unloaded) 880 mm (34.65 in)
Total fuel tank capacity approx. 20 l (5.3 US gal)
Unleaded premium fuel (95 RON)
Weight without fuel approx. 209 kg (461 lb.)





2011 KTM 990 Adventure Dakar – International Specifications
MSRP: See KTM Dealer for prices

990 ADVENTURE DAKAR EDITION: THE DESERT EXPRESS

ENGINE
Design 2-cylinder, 4-stroke, spark-ignition engine, 75° V arrangement, liquid-cooled
Displacement 999 cm³ (60.96 cu in)
Bore 101 mm (3.98 in)
Stroke 62.4 mm (2.457 in)
Performance 84.5 kW (113.3 hp)
Starting aid Electric starter
Transmission 6-speed, claw shifted
Engine lubrication Dry-sump lubrication with 2 rotor pumps
Primary gear ratio 35:67
Secondary gear ratio 16:42
Cooling system Liquid cooling system, continuous circulation of cooling liquid with water pump
Clutch Wet multi-disc clutch / hydraulically operated
Ignition system Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
CHASSIS
Frame Tubular space frame made from chrome molybdenum steel, powder-coated
Forks WP Suspension Up Side Down 4860 MXMA PA
Shock absorber WP Suspension PDS 5018 DCC PA
Suspension travel front 210 mm (8.27 in)
Suspension travel rear 210 mm (8.27 in)
Brake system front Twin-disc brake with floating brake calipers and brake discs
Brake system rear Single-disc brake with floating brake caliper and brake disc
Brake system Two independent brake circuits with ABS (antilock brake system) – Brembo/Bosch
Brake discs – diameter front 300 mm (11.81 in)
Brake discs – diameter rear 240 mm (9.45 in)
Chain 5/8 x 5/16″ X Ring
Steering head angle 63.4°
Wheel base 1,570 mm (61.81 in)
Ground clearance (unloaded) 261 mm (10.28 in)
Seat height (unloaded) 880 mm (34.65 in)
Total fuel tank capacity approx. 20 l (5.3 US gal)
Unleaded premium fuel (95 RON)
Weight without fuel approx. 209 kg (461 lb.)
