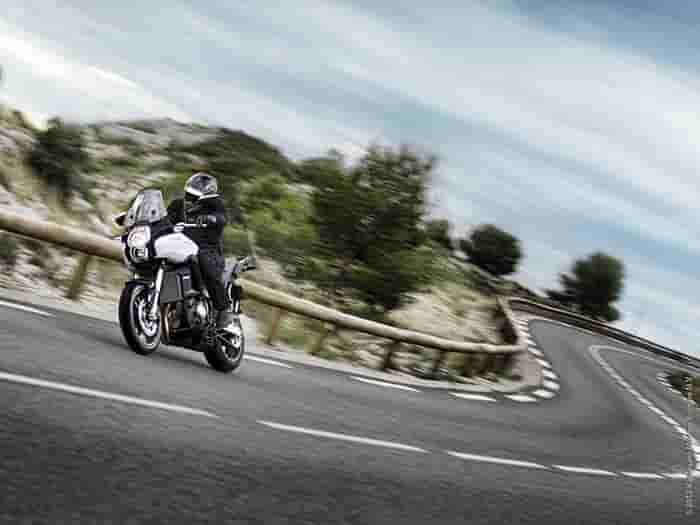

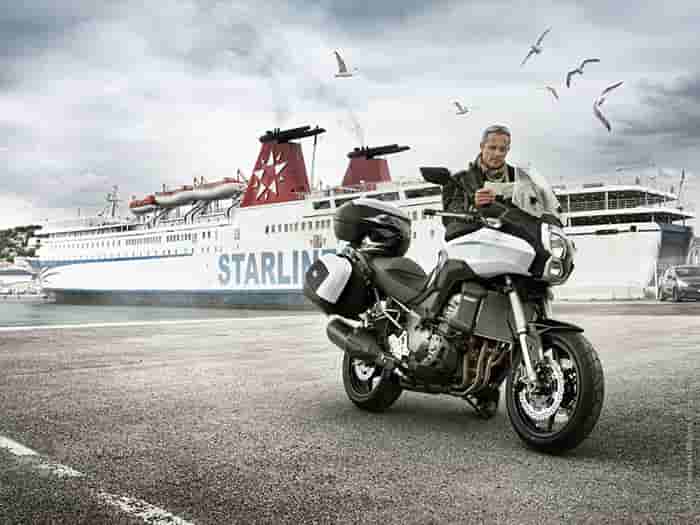

2013 Kawasaki Versys 1000
This year continues Kawasaki's heritage of high performing, versatile, rider-friendly sports motorcycles. There are some welcome returns along with a few young upstarts that'll get your heart racing.
The new Versys 1000 combines contemporary cutting-edge style with Kawasaki’s
unique engineering approach. Enjoy the roads less travelled and realise your
distance dreams on the multi-purpose Versys 1000.
Created as the long-awaited big brother of Kawasaki's mid-size any-road street
bike, the new Versys 1000 is designed to enable the greatest riding enjoyment
in the widest variety of street riding situations. Whether riding solo or
two-up, around the corner or around the globe, the Versys 1000's unique combination
of a highly responsive In-Line Four engine tuned for flexibility, and a nimble
chassis fitted with dynamic suspension will have riders grinning in their
helmets.
With the Versys 1000, Kawasaki extends its any-street promise to the litre-bike
class.
2013 Kawasaki Versys 1000 Features
ANY-STREET ANY-TIME” CHASSIS
When designing the Versys 1000, chassis balance and suspension settings were
all selected to maximise rider enjoyment on the street. With its superb control
and feedback, the Versys 1000 offers a high level of rider confidence in numerous
street riding situations and accommodates a variety of riding styles.
And because real world riding occurs on streets that are often less than circuit
smooth – road imperfections (bumps, potholes) are far from rare, and
some streets are not even paved (cobblestone, etc) – Kawasaki engineers
chose long-travel suspension to enable riders to carve corners with confidence.
While not designed for off-road use, the long-travel suspension’s ability
to cope with less-than-perfect street conditions allows the Versys 1000 to
remain composed where bikes with stiffer, sportier set-ups would need to back
off the throttle. The almost zen-like serenity is complemented by a relaxed,
upright riding position that offers a high level of machine control as well
as a good vantage ahead. A nimble aluminium chassis and sporty 17” wheels
enable aggressive sport riding when the mood suits.
Relaxed, Upright Riding Position
Wide, rigid-mount handlebar offers easy control, especially for low-speed
manoeuvring. Positioned to offer a natural grip, it allows the rider’s
elbows to be slightly bent when sitting in a relaxed, upright stance.
The upright riding position accommodates a variety of riding styles broadening
the spectrum of riding enjoyment and also offers a high level of comfort,
a great benefit for touring. This combination of comfort and control is one
of the things that make the Versys 1000 so much fun to ride.
Triple Petal Disc Brakes with Latest-spec ABS
300 mm front petal discs gripped by opposed 4-piston calipers offer strong
stopping power with good brake touch and feel.
The ABS unit is the same ultra-compact lightweight BOSCH unit used on the
Ninja ZX-10R – the world’s smallest and lightest ABS unit. The high-spec
unit enables high-precision ABS control.
Aluminium Twin-tube Frame
Aluminium twin-tube frame design features frame beams that go over engine,
allowing a narrow construction that is easy to grip with the knees.
Lightweight and highly rigid, the frame uses the engine as a stressed member.
The frame contributes to handling, offering a firm, planted feeling, good
stability and light, nimble turning.
IN-LINE FOUR EXHILARATION
To maximise the Versys 1000’s fun factor, engineers wanted to provide
the most exciting engine possible. The engine needed to deliver more than
just performance figures. The engine they chose was a 1,043 cm³ In-line
Four, tuned for flexibility.
Superb throttle response, strong torque at all rpm (especially in the low-mid
range), and a seductive intake howl ensure that every twist of the throttle
delivers a physical and aural sensation that riders may easily find addictive.
Exciting Z1000 based 1,043cm3 Engine
Liquid-cooled, DOHC, 16-valve 1,043 cm³ In-line Four with a bore and
stroke of 77.0 x 56.0 mm offers strong low-mid range torque with smooth power
delivery.
Compared to the Z1000, the engine delivers a stronger low-mid range with a
slightly reduced peak power. Both peak power and torque occur at lower rpm
than on the Z1000.
Exhaust System
Large, oval-shaped connector pipes join exhaust headers 1-4 and 2-3, contributing
to better performance at all rpm. (The reduced exhaust resistance results
in an ideal exhaust flow.)
Under-engine pre-chamber contributes to a more centralised mass by enabling
a smaller-volume silencer. Single side muffler offers lower weight than twin
mufflers.
Optimized Gearing for sport riding as well as relaxed highway cruising.
Gear ratios were chosen to accommodate a wide range of riding situations,
including sport riding, highway cruising, and riding fully loaded with passenger
and luggage.
Compared to the Z1000, 1st and 2nd gears feel shorter (the shorter gearing
facilitates moving off from a stop when fully loaded), while 3rd-6th gears
are longer (ratios selected to enable sport riding as well as relaxed highway
cruising).
RIDE LONG. RIDE FAR.
In addition to the riding excitement offered by the nimble chassis and exhilarating
engine, the Versys 1000 offers the comfort and carrying capacity to allow
riders to ride long and far.
A highly comfortable seat and good wind protection complement the relaxed
riding position, making it easy to spend a long time in the saddle. Passenger
comfort is also superb, so riders can easily share the fun.
A high payload and accessory luggage let riders get away for more than a day
at a time. And a large-volume fuel tank and great fuel economy allow a greater
range between fill-ups.
Rider & Passenger Comfort
Thickly padded seat (about double the cushioning of the Z1000 seat) provides
the comfort to enable 1000+ kms in the saddle.
A spacious riding position is complemented by footpegs with (hollow) rubber
coatings. Footpeg brackets are also rubber mounted to further dampen vibrations.
Ergonomic grab bars provide comfortable passenger grips.
Wind Protection
Adjustable windscreen has a stepless range of approximately 30 mm. Height
can be adjusted without tools (using two knobs on the front of the screen)
to suit rider preference.
Functional bodywork was designed to offer increased wind protection. Complementing
the windscreen, voluminous front cowling sides and flared side fairings help
protect the rider’s legs, further contributing to rider comfort.
High Payload & Carrying Capacity
Robust steel pipe rear frame enables the substantial payload of 220 kg –
plenty for carrying two passengers and luggage.
Large under-seat storage space has room for compact rain gear or other small
items. Tool kit is affixed to the bottom of the seat.
Large-volume Fuel Tank
A 21 L fuel tank contributes to the Versys 1000’s touring potential.
A new-design fuel gauge inside the fuel tank enables a very precise estimation
of remaining range. By displaying an average reading, slopes do not affect
the reading.
ADVANCED ELECTRONIC RIDING AIDS
The Versys 1000 is equipped with a number of systems designed to offer additional
rider reassurance.
KTRC (the same traction control system featured on our supersport flagship,
the 2012 Ninja ZX-14R) and power mode can both be set to suit rider preference
and conditions.
3-Mode KTRC (Kawasaki TRaction Control)
You can choose from three modes. Modes 1 and 2 prioritise maximum forward
acceleration (like the S-KTRC system on the 2013 Ninja ZX-10R).
Mode 3 is similar to the KTRC system offered on the 2013 1400GTR ABS, providing
rider reassurance by facilitating smooth riding on slippery surfaces. You
may also elect to turn the system off.
Power Mode Selection
A choice of Full Power or Low Power modes allows you to set power delivery
to suit preference and conditions. Low Power mode limits output to approximately
75% of Full Power and uses a milder throttle response. (Reduction of both
power and throttle response varies according to engine speed (rpm), throttle
position and gear position.)
Instrumentation
Tough-design multi-function instrumentation includes an analogue-style tachometer
and LCD with speedometer, fuel gauge, odometer, clock, dual trip meters, current
and average fuel consumption, remaining range, eco riding indicator and external
air temperature.
KTRC (3 modes + OFF), Power Mode (2 modes) and the various LCD modes are all
controlled using the multi-function button located at the left handle.
2013 Kawasaki Versys 1000 - USA Specifications/Technical Details
US MSRP Price: $NA USD
Model Not Available
2013 Kawasaki Versys 1000 - Canadian Specifications/Technical Details
Canada MSRP Price: $13,999 CDN
Engine
Type 4-stroke In-Line Four
Displacement 1043cc
Bore and Stroke 77.0 x 56.0 mm
Cooling Liquid
Compression Ratio 10.3:1
Valve System DOHC, 16 valves
Fuel system Digital fuel injection with four 38 mm Keihin throttle bodies
Ignition Digital
Lubrication Forced lubrication, wet sump
DRIVETRAIN
Transmission 6-speed, return
Final Drive Sealed chain
Primary Reduction Ratio 1.627 (83/51)
Gear Ratio: 1st 2.692 (35/13)
Gear Ratio: 2nd 1.950 (39/20)
Gear Ratio: 3rd 1.529 (26/17)
Gear Ratio: 4th 1.304 (30/23)
Gear Ratio: 5th 1.136 (25/22)
Gear Ratio: 6th 0.958 (23/24)
Final Reduction Ratio 2.867 (43/15)
Clutch Wet multi-disc, manual
FRAME
Type Aluminium twin-tube
Wheel Travel: Front 150 mm
Tire: Front 120/70ZR17M/C (58W)
Wheel Travel: Rear 150 mm
Tire: Rear 180/55ZR17M/C (73W)
Caster (Rake) 27°
Trail 107 mm
Steering Angle (Left/Right) 34° / 34°
SUSPENSION
Suspension, Front 43 mm inverted fork with stepless rebound damping and spring
preload adjustability
Suspension, Rear Horizontal Back-link, gas-charged, with stepless rebound
damping and remote spring preload adjustability
BRAKES
Front: Type Dual semi-floating 300 mm petal discs
Front: Calipers Dual opposed 4-piston
Rear: Type Single 250 mm petal disc
Rear: Caliper Single-piston
DIMENSIONS
Overall Length 2,235 mm
Overall Width 900 mm
Overall Height 1,405 mm / 1,430 mm
Wheelbase 1,520 mm
Ground Clearance 155 mm
Seat Height 845 mm
Curb Mass** 239 kg
Fuel Capacity 21 litres
** Includes all necessary materials and fluids to operate correctly, full
tank of fuel (more than 90% of capacity) and tool kit (if supplied)
PERFORMANCE
Maximum Power‡ 86.8 kW {118 PS} @ 9,000 rpm
Maximum Torque‡ 102 N.m {10.4 kgf.m} @ 7,700 rpm
‡ Power / Torque figures measured at the crankshaft.
DETAILS
Warranty 12 months warranty
ADDITIONAL COST OPTIONS
Good Times Protection Plan 24 or 36 months (Kawasaki GTPP coverage begins
after the standard limited warranty expires)
MSRP*
Candy Burnt Orange / EbonyKLZ1000ADF TBA
2013 Kawasaki Versys 1000 - United Kingdom Specifications/Technical Details
UK MSRP Price: £9599 (Prices are recommended and inclusive of VAT @
20% and delivery)
Engine
"
Engine type
Liquid-cooled, 4-stroke In-Line Four
"
Displacement
1,043 cm³
"
Bore x stroke
77.0 x 56.0 mm
"
Compression ratio
10.3:1
"
Valve/Induction system
DOHC, 16 valves
"
Fuel system
Fuel injection: ø38 mm x 4 (Keihin) with oval sub-throttles
"
Ignition
Digital
"
Starting
Electric
"
Lubrication
Forced lubrication, wet sump
Transmission
"
Transmission
6-speed, return
"
Final Drive
Sealed chain
" Primary reduction ratio
1.627 (83/51)
" Gear ratios: 1st
2.692 (35/13)
" Gear ratios: 2nd
1.950 (39/20)
" Gear ratios: 3rd
1.529 (26/17)
" Gear ratios: 4th
1.304 (30/23)
" Gear ratios: 5th
1.136 (25/22)
" Gear ratios: 6th
0.958 (23/24)
" Final reduction ratio
2.867 (43/15)
"
Clutch
Wet multi-disc, manual
Frame
"
Frame type
Aluminium twin-tube
"
Rake/Trail
27? / 107 mm
"
Wheel travel, front
150 mm
"
Wheel travel, rear
150 mm
"
Tyre, front
120/70ZR17M/C (58W)
"
Tyre, rear
180/55ZR17M/C (73W)
"
Steering angle, left / right
34? / 34?
Suspension
"
Suspension, front
43 mm inverted fork with stepless rebound damping and spring preload adjustability
"
Suspension, rear
Horizontal Back-link, gas-charged, with stepless rebound damping and remote
spring preload adjustability
Brakes
"
Brakes, front
Dual semi-floating 300 mm petal discs Caliper: Dual opposed 4-piston
"
Brakes, rear
Single 250 mm petal disc Caliper: Single-piston
Dimensions
"
Dimensions (L x W x H)
2,235 mm x 900 mm x 1,405 mm / 1,430 mm
"
Wheelbase
1,520 mm
"
Ground Clearance
155 mm
"
Seat height
845 mm
" Fuel capacity
21 litres
"
Curb Mass
239 kg
Performance
"
Maximum power
86.8 kW {118 PS} / 9,000 rpm
"
Maximum torque
102 N.m {10.4 kgf.m} / 7,700 rpm
2013 Kawasaki Versys 1000 - Australia Specifications/Technical Details
Australia MSRP Price: See dealer
Engine
Type Liquid-cooled, 4-stroke In-Line Four
Displacement 1,043 cm³
Bore and Stroke 77 x 56 mm
Compression ratio 10.3:1
Valve system DOHC, 16 valves
Fuel system Fuel injection: Ø 38 mm x 4 (Keihin) with oval sub-throttles
Ignition Digital
Starting Electric
Lubrication Forced lubrication, wet sump
Drivetrain
Transmission 6-speed, return
Final drive Sealed Chain
Primary reduction ratio 1.627 (83/51)
Gear ratios: 1st 2.692 (35/13)
2nd 1.950 (39/20)
3rd 1.529 (26/17)
4th 1.304 (30/23)
5th 1.136 (25/22)
6th 0.958 (23/24)
Final reduction ratio 2.867 (43/15)
Clutch Wet multi-disc, manual
Frame
Type Aluminium twin-tube
Wheel travel: front 150 mm
rear 150 mm
Tyre: front 120/70ZR17M/C (58W)
rear 180/55ZR17M/C (73W)
Caster (rake) 27°
Trail 107 mm
Steering angle (left/right) 34° / 34°
Suspension
Front: Type 43 mm inverted telescopic fork with stepless (right-side) adjustable
rebound damping and adjustable preload
Rear: Type Horizontal Back-link, gas-charged with stepless rebound damping
and remote spring preload adjuatability
Brakes
Front: Type Dual semi-floating 300 mm petal discs
Caliper Dual opposed 4 piston with ABS
Rear: Type Single 250 mm petal disc
Caliper Single-piston with ABS
Dimensions
Overall length 2,235 mm
Overall width 900 mm
Overall height 1,405 mm/ 1,430 mm (with windscreen raised)
Wheelbase 1,520 mm
Ground clearance 155 mm
Seat height 845 mm
Curb mass 239 kg (Includes full fuel tank)
Fuel capacity 21 litres
Performance
Maximum power 86.8 kW {118 PS} / 9,000 rpm
Maximum torque 102 N·m {10.4 kgf·m} / 7,700 rpm
|
|
|
|
|
|
|
|
|
Total
Motorcycle Shopping Guide Motorcycle
Parts and Accessories Motorcycle
Insurance TMW Travel
Guide Local Businesses
|
|
Thank
for supporting
Total Motorcycle! |
|
