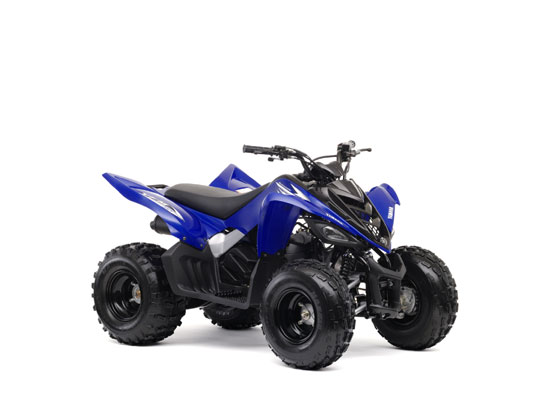

2009 Yamaha Raptor 90 YFM90

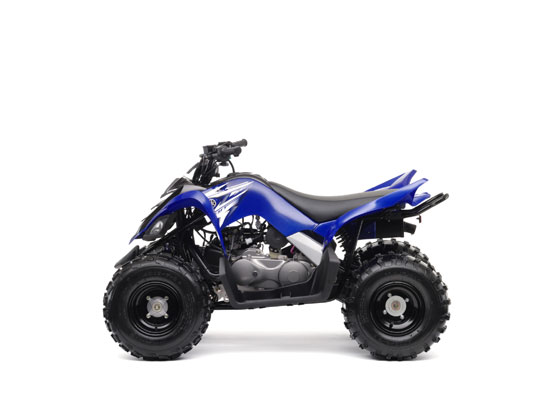

2009 Yamaha Raptor 90 YFM90

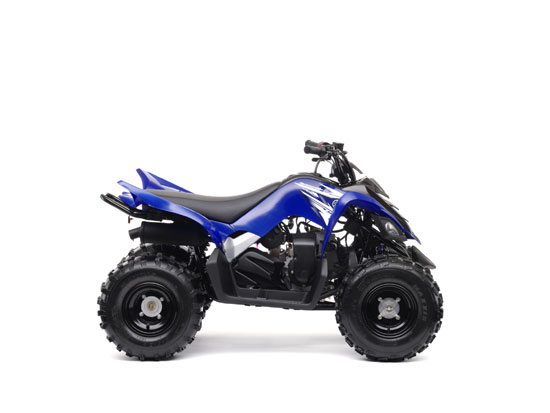

2009 Yamaha Raptor 90 YFM90

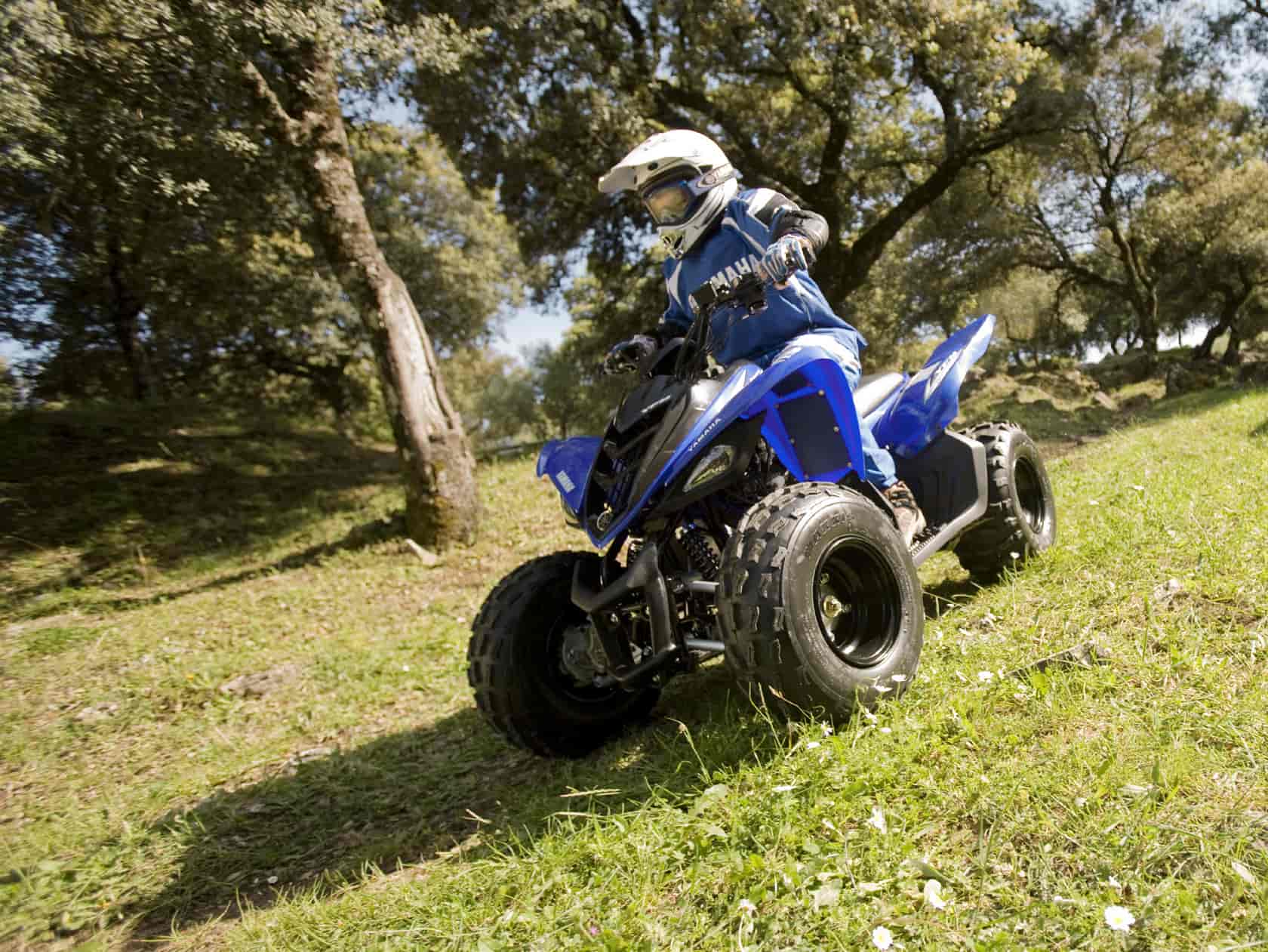

2009 Yamaha Raptor 90 YFM90

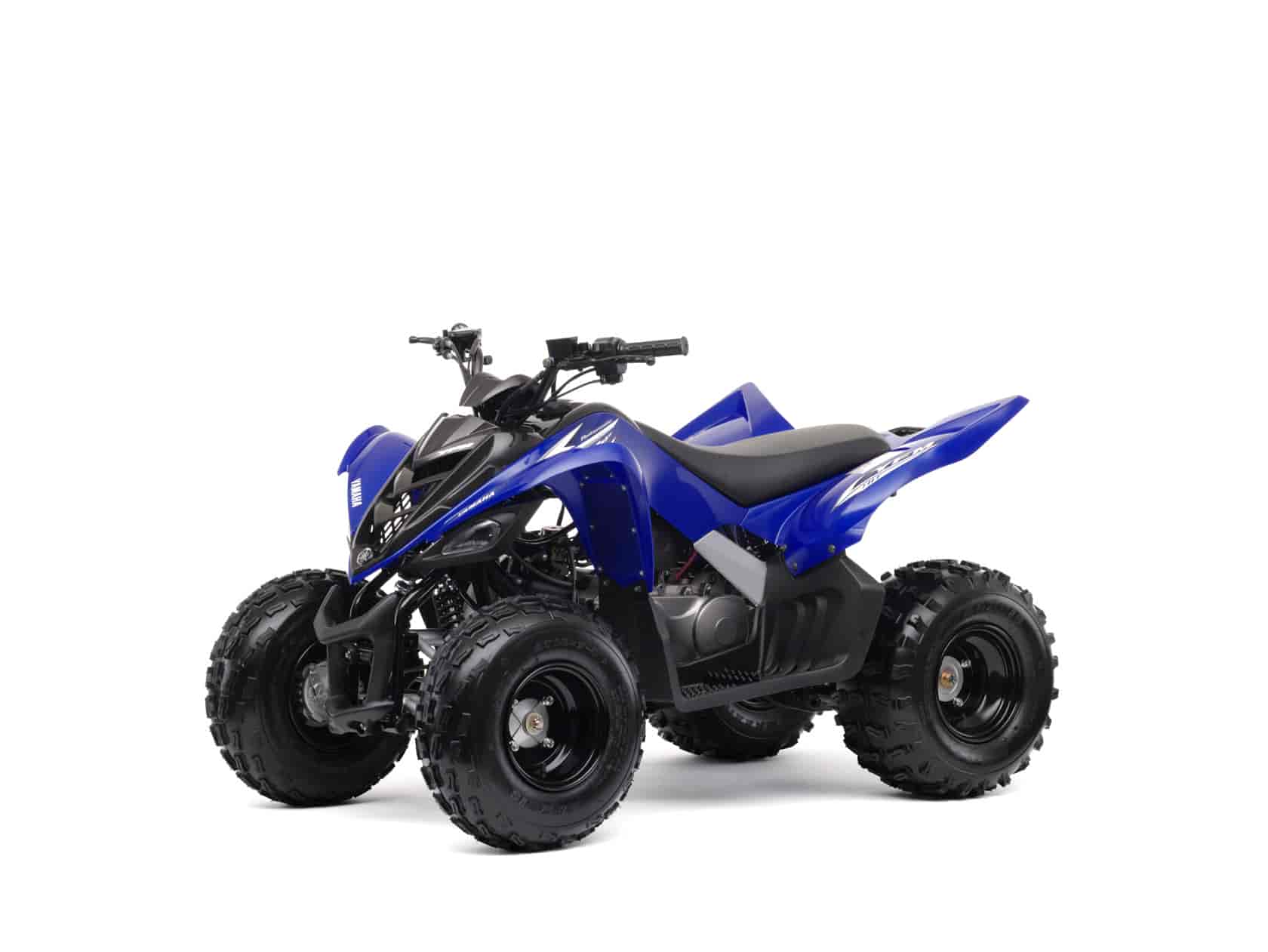

2009 Yamaha Raptor 90 YFM90
2009 Yamaha Raptor 90 YFM90

2009 Yamaha Raptor 90 YFM90
2009 Yamaha Raptor 90 YFM90

2009 Yamaha Raptor 90 YFM90
2009 Yamaha Raptor 90 YFM90

– 2009 Yamaha Raptor 90 YFM90

2009 Yamaha Raptor 90 YFM90

New from the ground up, the Raptor 90 features an 88cc air-cooled 4-stroke engine with an adjustable RPM limiter and a fully automatic CVT transmission.

For kids 12 years and older, the Raptor 90 is an excellent machine to start learning on.

Powered by a reliable 88cc air-cooled 4-stroke engine coupled to a fully automatic CVT transmission, the Raptor 90 is not only easy to use, but can accommodate various levels of riding ability. And there’s an adjustable rev limiter to help you manage their learning curve.

Other features to help ensure they won’t get bored or outgrow this Raptor right away include:

– double wishbone front suspension with 4.4″ of travel
– swing-arm rear suspension with 3.3″ of travel
– pre-load adjustable shocks
– rear hydraulic disc brake
– dual sealed drum front brakes
– integrated full floorboards
– molded front grab bar just like the Raptor 700 R
– low profile Maxxis tires
– true Raptor 700 R styling

Hit the trails. Bring the family. Make memories.




Fully automatic CVT transmission

Electric start

Adjustable RPM limiter


Features and Benefits:

Powered by an 88cc forced air cooled 4-stroke engine for years of clean, quiet and reliable operation.

Easy, push-button electric start in any gear for greater convenience.

Adjustable RPM limiter allows a parent or adult supervisor to match the engine’s power output to the rider’s skill level.

Fully automatic makes it easier to learn, while the CVT helps ensure engine power is optimized for a wide variety of riding conditions. This allows the entry-level rider focus on the trail by eliminating a hand-operated clutch.

With 4.4″” is suspension travel in the front and pre-load adjustable shocks, the little Raptor 90 is capable and comfortable.

The lightweight rear swingarm suspension also has a pre-loead adjustable shock, and is designed to help the Raptor 90 stay flat in a corner, while maintaining predictable handling.

Light in weight, a hydraulic disc brake helps provide consistent stopping power, in a variety of riding conditions.

Lightweight and super-reliable chain drive provides an excellent balance between performance and reliability.

Rugged muffler equipped with a USFS-approved spark arrestor for quiet operation.

Wide cushy seat and full-size handlebars ensure supurb, all-day comfort and minimize fatigue for even the biggest riders.

Fully sealed front drum brakes keep out water and debris, providing strong, reliable stopping power.

Handlebar-mounted parking brake.

Styled after the best selling Raptor 700R

Emergency kick starter with lever under the seat, for reliable starting if the battery loses its charge

Two separate types of engine performance limiters:
1. A throttle opening limit screw on the throttle lever housing.
2. A bypass plate on CDI unit for limiting maximum engine rpm.

Raptor style front and rear grab bars

Drive sprocket and chain guard

Rear disc brake guard

Easy to use handlebar mounted parking brake

Note: 12+ rating – Recommended for use only by those aged 12 years and older and always with adult supervision. Please refer to owner’s manual for rider weight limit.


2009 Yamaha Raptor 90 YFM90 – USA Specifications
American MSRP: $0

Model not available in the USA


2009 Yamaha Raptor 90 YFM90 – Canada Specifications
Canadian MSRP $3,299

Engine 4-stroke, air-cooled, single
Displacement 88 cc
Bore and Stroke 47mm x 51mm
Compression Ratio 10.2 : 1
Carburetion 22mm SVR
Ignition CDI
Starting electric with auxillary kick
Oil Capacity 0.8 litres
Transmission fully automatic CVT
Final Drive 2WD; chain

Suspension (Front) double wishbone with 4.4″ of travel and pre-load adjustable shocks
Suspension (Rear) swing-arm with 3/3″ of travel and a pre-load adjustable shock
Brakes (Front) dual sealed drums
Brakes (Rear) single hydraulic disc
Tires (Front) low profile Maxxis; AT18x7-8
Tires (Rear) low profile Maxxis; AT18x9-8

Length 1,490mm (58.7″)
Width 885mm (34.8″)
Height 910mm (35.8″)
Wheelbase 1,010mm (39.8″)
Ground Clearance 100mm (3.9″)
Seat Height 654mm (25.7″)
Dry Weight 116 kg (254 lb)
Fuel Capacity 4.8 litres
Colour(s) Racing Blue
Stealth Black / White
