2018 Kawasaki Ninja H2R Review

2018 Kawasaki Ninja H2R

2018 Kawasaki Ninja H2R 2018 Kawasaki Ninja H2R 2018 Kawasaki Ninja H2R 2018 Kawasaki Ninja H2R

THE LEGENDARY NINJA.

2018 Kawasaki Ninja H2R Review on Total Motorcycle:

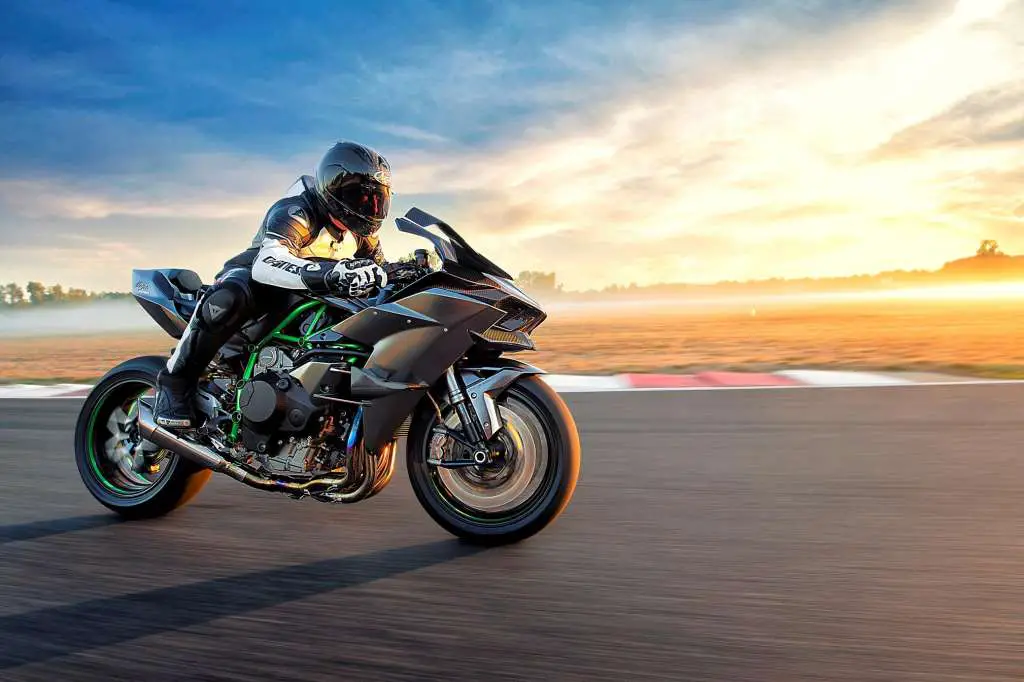

The Kawasaki Ninja H2™R hypersport motorcycle is an engineering marvel, made possible only through the sourcing of technological expertise from multiple divisions of Kawasaki Heavy Industries, Ltd. (KHI). The result of this unprecedented collaboration is a system of carefully crafted premium components and World Superbike racing inspired next-level electronics that work in concert to create an unbelievably powerful machine—one that’s more than worthy of the legendary H2 name.

The Kawasaki Ninja H2™ is designed to be the ultimate performance street-legal motorcycle, built using state of the art technologies with cooperative development across Kawasaki’s high-performance motorcycle, aerospace and gas turbine divisions. The Ninja H2 is designed to be highway legal and comes with full lighting and mirrors, DOT-approved tires, street-legal muffler, and Ninja H2-specific front and side cowlings. The Ninja H2 will provide its owner with the ride of a lifetime.

​The Ninja H2™ streetbike’s supercharged engine creates unprecedented power for remarkable acceleration. The heavy growl of the boosted liter-class engine is a sound the streets won’t soon forget.

Designed to offer riding excitement at a level never before experienced, the unprecedented Ninja H2 combines the joy derived from sport riding and the kind of intense acceleration that made the 1971 H2 (750SS Mach IV) a worldwide sensation. Tapping into the technological know-how possessed by the KHI Group, it has elevated motorcycle technology to a new level.



2018 ninja H2R vehicle acknowledgement

Vehicle

The Ninja H2™R motorcycle is a closed-course riding use only model and is not manufactured for use on public roads, streets or highways. All usage of this vehicle should be limited to riding on a closed-course.

Parts

Parts designed specifically for the Ninja H2R are for closed-course riding use only and cannot be purchased without proof of H2R ownership (product registration, VIN confirmation, etc.).

Exhaust Sound

The exhaust sound level of the Ninja H2R at the time of factory shipment is 120 dB/A using Auto Cycle Union (ACU) guidelines. It is the owner’s responsibility to confirm that noise regulations of closed courses permit vehicles reaching this level of exhaust sound. Changes to the exhaust system may alter performance and sound level.

Usage, Maintenance and Warranty

As a closed-course riding use only model, specific procedures must be followed when riding and maintaining the Ninja H2R:

Vehicle Tires:

The standard tires are designed exclusively for use on a closed-course. These specialty tires are not designed for oval or partial oval course use and may not be suitable for other courses or conditions. Kawasaki recommends that you follow the tire manufacturer’s instructions and warnings, and that you consult the tire manufacturer to select the appropriate tires for the course or riding conditions.

Computer controlled systems including KIBS, KTRC, KCMF, KLCM, Kawasaki Engine Brake Control, and KQS are tuned with the standard tires. Use of tires other than the standard tires could affect performance of these systems.

Standard Tires:

Front: Bridgestone, Racing Battlax V01F Soft

Rear: Bridgestone, Racing Battlax V01R Medium

Tire Warmers:

To prevent loss of tire grip, always use tire warmers to heat tires prior to riding the Ninja H2R. Cold tires do not provide sufficient grip and may cause loss of vehicle control and/or a crash which could result in injury or death.

Vehicle Storage:

When storing the Ninja H2R, always use front and rear motorcycle stands that keep both tires off the ground. This will prevent tire deformation and adverse impacts on performance.

Vehicle Maintenance:

In addition to regular periodic maintenance, service inspections are required every 15 hours of engine operation above 8,000r/min (rpm). These service intervals are monitored through the vehicle’s ECU with service messages displayed on the multifunction meter. (See Owner’s Manual for additional information)

Vehicle Warranty:

The Ninja H2R is sold “as-is” with no warranties, express or implied. The purchaser accepts all responsibilities concerning cost of service, maintenance and repairs.





2018 Kawasaki Ninja H2R Totalmotorcycle.com Key Features



​The unprecedented power output of the supercharged Ninja H2™R motorcycle is made possible only through a system of finely-tuned and carefully crafted high-quality components.

• Chosen for its high-rpm performance, the centrifugal-type supercharger is incredibly efficient at compressing air (at up to 2.4x atmospheric pressure) while minimizing heat

​• As a result of the supercharger’s efficiency, no large, heavy intercooler was required to cool the compressed air

​• The supercharger was designed to match the engine, allowing high-efficiency operation over a wider range of conditions that could not be provided by a typical supercharger

•The complex shape of the impeller is 3D machined from forged aluminum for high precision and durability

​•The impeller spins at 9.2x speed of the crankshaft, reaching speeds of nearly 130,000 rpm, pumping a capacity of over 200 liters of air per second into the engine

• Designed using technology from KHI’s Aerospace Company, the planetary gear is incredibly compact and efficient at transferring power

• The planetary gear runs off power from the crankshaft, driving the impeller (via a “step-up” gear) to incredibly high rpm

• The engine was painstakingly crafted to endure the extreme stress  from the power created by a supercharger

• The precision-honed combustion chamber is complemented by a flat piston  crown inspired by technology from KHI’s Gas Turbine & Machinery Company that helps prevent detonation

• Assist and slipper clutch offers light clutch pull and minimizes rear wheel chatter caused by aggressive downshifting



Surrounding the Ninja H2™R motorcycle’s high-output engine are a multitude of premium, high-performance components, selected specifically for unmatchable performance at track speeds.

• Commonly found in high-performance racing machines, the dog-ring transmission allows for effortless, short shifts ​

• Rather than shifting gears into place, the gears in this configuration stay in place, with the lightweight dog rings moving to engage the gears ​

• A high-precision hydraulic clutch features Brembo® components for smooth actuation and top performance

• Öhlins® TTX36 rear shock offers precise damping for enhanced traction, comfort and feedback to the rider

• Remote shock preload adjuster makes it easy to adjust settings without tools to suit rider preference

• The KYB® AOS-II (Air-Oil-Separate) low friction cartridge fork offers superb action; initial stroke is smooth and compliant followed by progressive damping through the end of the stroke

• The front fork is fully adjustable for compression and rebound damping, as well as preload

• Brembo® clutch lever and front brake lever are designed to prevent wind force from engaging the levers while at higher speed

• Top-shelf Brembo brake components tuned specifically for powerful and progressive braking response

• In the front, 2 massive 330mm Brembo semi-floating discs are gripped by dual radial-mount Brembo monobloc calipers for superb braking force

• In the rear, a 250mm disc provides strong braking performance

• The lightweight cast aluminum wheels were designed specifically for the Ninja H2™R and were created using analysis from Kawasaki’s World Superbike team

• The star-pattern 5-spoke wheels offer optimum rigidity for high-power performance

• The Ninja H2R comes equipped with a massive 200mm rear tire that transmits power to the ground



Key enhancements bring Kawasaki Racing Team (KRT)
WorldSBK championship-proven electronics management technology to the Ninja H2™R. This results in precise chassis orientation awareness that assists riders’ ability to adapt to a wide range of closed-course riding conditions.

• Compact IMU enables inertia along 6 Degrees of Freedom to be monitored. Acceleration along longitudinal, transverse and vertical axes, plus roll rate and pitch are measured. The yaw rate is calculated by the ECU using Kawasaki’s proprietary dynamic modeling software

• This next-level system enables predictive and adaptive electronics for precise chassis orientation awareness

• Whereas many competitive traction control systems react to wheel-slip, this IMU-enhanced feedback version of KTRC predicts conditions and acts before slippage exceeds the range for optimal traction

• When turned on, riders can choose from 9 modes, allowing riders to choose the degree in which each mode intervenes during riding. Riders may also elect to turn the system off ​

• Modes 1-6 are optimized for track conditions and Modes 7-9 for “street-like” conditions

• 3-mode KLCM provides unmatchable acceleration from a stop by electronically controlling engine output to minimize rear wheel-slip and front end lift

• Kawasaki Launch Control Mode allows the rider to launch from a stop with the throttle held wide open

• The Öhlins® electronic steering damper adjusts damping based on a number of inputs

• At lower speeds, damping is lessened. As speed increases, steering damping increases for optimal performance

• The KQS enables clutchless downshifts for quick and smooth deceleration

​• Complementing the engine’s strong power and the dog-ring transmission, a contactless-type quick shifter enables quick upshifts for seamless acceleration IMU enabled Kawasaki Intelligent anti-lock Brake System (KIBS) is a ​ supersport-grade high-precision multi-sensing ABS brake assistance system

• Uses high-precision control to modulate brake pressure during sport riding

• This system allows riders to set engine braking according to preference

• When the system is activated, the engine braking effect is reduced, providing less interference when riding on the circuit

The Ninja H2™R motorcycle design projects intense force becoming a product of functional beauty. Each and every angle, from the carbon-fiber wings to the front fender, is designed to contribute unprecedented performance and style

• The trellis frame provides the strength to harness the incredible power of the supercharged engine and the balanced flex to achieve optimal rigidity

and pliability for aggressive sport riding

• Developed by KHI, the Mirror Coated Matte Spark Black paint of the fuel tank, fairing and seat cowl is one of a kind

• The multi-layer composite paint includes a layer of pure silver formed by a chemical reaction, creating the mirrored effect

• In the shade, the dark base coat shows through the silver for a deep, 3D appearance. In the sun, the silver creates a brilliant metallic effect

• Reserved only for models of historical significance, the iconic Kawasaki River Mark is featured prominently on the front cowl

• The River Mark dates back to the earliest days of Kawasaki Heavy Industries, Ltd. and has been used on select motorcycle models since the 1960s

• Bank angle display and max bank angle-recording function

​• Multi-function Meter – Digital LCD screen with black/white reverse display and an analogue-style tachometer

• Display functions include: digital speedometer, gear position indicator, odometer, dual trip meters, current mileage, average mileage,

fuel consumption, coolant temperature, boost indicator, boost (intake air chamber) temperature, stopwatch (lap timer), clock and the Economical Riding Indicator

• Tachometer design uses an actual needle enhanced by backlit rpm numbers that illuminate to chase the tachometer needle as it moves around the dial

• Bright, compact LED headlamps are positioned low to evoke the image of a predator’s fangs

• Elegant LED taillight/brake light is flanked by surface-emitting LED position lamps

• LED rear turn signals featuring an inner lens, surface texturing and surface-emitting LEDs contribute to the bike’s high-tech image



• KAWASAKI PROPRIETARY SUPERCHARGED TECHNOLOGY DELIVERS EXCEPTIONAL POWER AND TORQUE FOR THE ULTIMATE RIDING EXPERIENCE
• TRELLIS FRAME OPTIMIZES HANDLING AND EFFECTIVELY VENTS ENGINE HEAT
• OHLINS TTX36 SHOCK
• AEROSPACE-DESIGNED BODYWORK HELPS CREATE DOWNFORCE

• Developed by KHI, the Mirror Coated Matte Spark Black/Mirror Coated Spark Black paint of the fuel tank, fairing and seat cowl is the first-ever on a mass-production automobile or motorcycle

• The multi-layer composite paint includes a layer of pure silver formed by a chemical reaction, creating the mirrored effect

• In the shade, the dark base coat shows through the silver for a deep, 3D appearance. In the sun, the silver creates a brilliant metallic effect

Kawasaki set out to create a factory-built motorcycle, where Kawasaki engineers were able to pursue unadulterated performance without the limitations of street or racing homologation. The first four-stroke, supercharged motorcycle from a major manufacturer, the Kawasaki Ninja H2R produces once unheard of power for a factory-built motorcycle. It’s truly Built Beyond Belief.

In order to create a version that was not only street legal, but also street capable, the Kawasaki Ninja H2 sportbike was born, using engineering shared from the Ninja H2R. The Ninja H2 was developed using the technology from the Ninja H2R model, but worked within the street-legal and street-capable parameters.

Kawasaki introduced the limited production Ninja H2 Carbon motorcycle in 2017. The Ninja H2 Carbon motorcycle was based on the 2017 Ninja H2, enhanced with special features it returns in limited quantities in 2018.

This incredible trio shares many of the technologically advanced components, including the 998cc inline four-cylinder engine, proprietary supercharger, trellis frame, compact superbike dimensions, aerodynamic bodywork, single-sided swingarm, powerful Brembo® brakes and much more.

The Kawasaki Ninja H2™R is a limited-release closed course production motorcycle, available in select markets for a short period of time. To reserve the world’s most powerful supercharged production closed course motorcycle, complete an order form and make a deposit at your local authorized Kawasaki dealer starting on September 1, 2017 and no later than November 30, 2017. Reservations are taken on a first-come, first-served basis and secured only with a deposit.

The Kawasaki Ninja H2™ is a limited-release street legal production motorcycle, available in select markets for a short period of time. To purchase the most powerful supercharged production streetbike, visit your local authorized Kawasaki dealer starting on September 1, 2017 and no later than November 30, 2017.

The Kawasaki Ninja H2™ Carbon is a limited-release* street legal production motorcycle, available in select markets for a short period of time. To purchase the most powerful supercharged production streetbike, visit your local authorized Kawasaki dealer starting on September 1, 2017 and no later than November 30, 2017.

*The Ninja H2 Carbon has extremely limited production availability.



2018 Kawasaki Ninja H2R Totalmotorcycle.com Features and Benefits

ENGINE

The Kawasaki Ninja H2 engine had to be compact and produce high horsepower for intense acceleration. A supercharger was deemed necessary, but not just any existing supercharger would do. The collaborative effort across Kawasaki’s engineering divisions resulted in a highly-efficient supercharger that didn’t require an intercooler to reduce the temperature of the air being fed to the engine.

  • Engine designed to handle stresses 1.5-2 times greater than a naturally aspirated engine of the same size.
  • Crankshaft inertial moment was made as low as possible and combined with a lightweight flywheel for quick engine response. The relatively light rotational mass also contributes to quick handling characteristics.
  • Dual secondary balancers assure extremely low engine vibration.
  • Connecting rods balance strength and weight, and have a large big-end and bolt diameter for strength and durability in the high-output environment.
  • Cast pistons offer better strength over forged pistons for the very high temperatures generated by the engine. The unique casting process creates hollow areas to achieve idealized thickness with reduced weight.
  • A V-groove on the second piston ring land prevents top ring fluttering for reduced blow-by and oil consumption.
  • Two oil jets per cylinder help cool the pistons. One nozzle sprays the entire underside of the piston dome, while the other concentrates spray on the exhaust side of the dome bottom.
  • Large, deep-sump oil pan helps cool oil. Oil pan design ensures the oil pump is always surrounded by oil to prevent cavitation. Additionally, the unique angled shape and position of the oil strainer also helps prevent cavitation during strong acceleration and deceleration.
  • High-flow oil pump contributes to oil cooling and has a high flow rate to provide optimum lubrication to the engine and transmission.
  • Flat piston crown and combustion chamber design applied from Kawasaki’s Gas Turbine & Machinery Company to prevent knocking.
  • One-piece cylinder/upper crankcase utilizes dummy cylinder head during honing process for more precise cylinder dimensions, which allows use of low-tension piston rings to reduce mechanical loss and boost engine response.
  • Machine-formed combustion chamber helps achieve high power and helps prevent engine knock due to precisely controlled chamber volume.
  • The cylinder head has a water jacket between the exhaust ports of each cylinder, large cooling passages around the spark plug holes and valve seats, and a large coolant outlet for optimum cooling performance.
  • High-lift camshafts with wide valve overlap timing help increase performance.
  • Exhaust valves have heads made of Inconel, an extremely heat-resistant alloy, and heat-resistant tapered stems. Stainless steel is used for the intake valves.
  • Polished intake ports with idealized shape combined with straight exhaust ports that do not converge in head help boost power.



Supercharger

  • Kawasaki designed and built centrifugal type supercharger has a pumping capacity of more than 200 liters of air per second with intake air reaching speeds of up to 328 feet per second, at a maximum 2.4 times atmospheric pressure.
  • Planetary gear gets driving force from the crankshaft and spins a 69mm impeller, specially designed using Kawasaki Gas Turbine and Aerospace technology, up to nearly 130,000 rpm.
  • Since the supercharger design is highly efficient, compressed intake air is minimally heated so no intercooler is necessary.
  • Ram air intake duct feeds the supercharger fresh air in as straight a line as possible to help provide high output.
  • Aluminum intake chamber between supercharger and throttle bodies helps radiate heat to keep intake air cool. Stainless steel nets positioned over the intake funnels promote fuel misting from the secondary fuel injectors to further cool the intake charge and increase filling efficiency.
  • ECU-controlled blow-off valve regulates pressure gain in intake chamber when throttle is closed to prevent impeller surging and abnormal vibration.
  • 45mm stainless steel header pipes taper from eliptical-shape which match dual straight exhaust ports to round, and combine with the double walled, under-engine pre-chamber to reduce exhaust noise with a small volume.



Digital Fuel Injection

  • 50mm throttle valves operate with high precision to help provide smooth engine response. The system also enhances input to S-KTRC and accommodates the Kawasaki Launch Control and Kawasaki Engine Brake Control features.
  • A high-pressure fuel pump is utilized to enhance high output from supercharger.



Kawasaki Quick Shifter (KQS)

  • Downshift function within the Kawasaki Quick Shift (KQS) system which allows clutchless downshifts when the throttle is fully closed.
  • Contact-less potentiometer-type quick shifter for quick upshifts that enable seamless acceleration.



Transmission

  • Hydraulic clutch actuation achieved through Brembo radial pump master cylinder for smooth actuation and superb linearity.
  • Cassette-style transmission facilitates quick gearing changes.
  • Dog-ring transmission uses MotoGP technology in which the gears are fixed to the input transmission shafts and rings move to engage the gears on the output shaft. The result is lighter shifting, improved feel and quicker shifts.
  • Transmission oil jets at every gear mesh and shift fork position provide direct cooling and exceptional lubrication for high durability.



Assist & Slipper Clutch

  • Using the rotational forces of the clutch hub and pressure plate, the clutch is forced together during acceleration (Assist function) so that fewer and lighter clutch springs can be used for a lighter feel at the lever. During high back-torque, such as when too low of a gear is selected during downshifting, the Slipper function allows some clutch slippage to help prevent engine lock-up, stalling and rear wheel hop.
  • Judder spring component helps prevent judder when the clutch is disengaged.



ELECTRONIC CONTROLS

KAWASAKI NEXT LEVEL ELECTRONICS FOR THE TRACK

  • Kawasaki’s cutting-edge electronics have always excelled on the track due to the highly sophisticated programming that gives the ECU an accurate, real-time picture of what the chassis is doing using minimal software. With a Bosch IMU and the latest evolution of Kawasaki’s proprietary dynamic modeling software, the Ninja H2’s electronic management technology is next level, changing from setting-type and reaction-type systems to feedback-type systems. This greater capacity helps assist riders experience the Ninja H2’s full potential, on the track.



Inertial Measurement Unit (IMU)(KP)

  • The IMU measures inertia along 5 axes: acceleration along longitudinal, transverse and vertical axes, roll rate, and pitch rate. The yaw rate is calculated by the ECU using Kawasaki’s patented software to provide six-axis chassis attitude input of lean angle and acceleration/deceleration force for more precise management of the electronic riding aids.
  • The IMU allows KTRC to incorporate more feedback to help maximize acceleration when exiting corners on the track.
  • Unlike competitors’ systems that have pre-set limits, Kawasaki’s proprietary race-developed software enables the Ninja H2 to have a dynamic system that has a higher level of chassis awareness and adapts to changing track conditions such as rider inputs, vehicle attitude, and pavement conditions.



Kawasaki Cornering Management Function

  • Corner Management Function uses both KIBS and KTRC to assist racers trace their intended line through a corner on the track by suppressing the tendency for the bike to stand up while braking in a turn. The IMU helps the system maintain optimum hydraulic pressure based on the bike’s lean and pitch angles.



Kawasaki Launch Control Mode (KLCM)

  • Designed to assist the rider by optimizing acceleration from a stop, KLCM electronically controls engine output to help prevent wheelspin and thereby minimize front end lift when launching from a standstill.
  • Riders can choose from three modes, each offering a progressively greater level of intrusion. Each mode allows the rider to launch from a stop with maximum throttle operation.



Kawasaki Traction Control (KTRC)

  • Multi-level modes offer riders a greater number of settings to choose from, with each mode providing a different level of intrusion to suit riding conditions and rider preference, and all modes are designed to manage output when a sudden slip occurs. The system offers both enhanced sport riding performance and the peace of mind to negotiate slippery surfaces with confidence.
  • Riders can choose from nine modes, each offering a progressively greater level of intrusion, best suited for circuit, street or wet pavement riding conditions. Riders may also elect to turn the system off.
  • Modes 1 and 2 are tailored for circuit riding, while Mode 3 settings were optimized for more slippery conditions. Each mode has three sub-settings that allows fine tuning for specific riding conditions.
  • Using complex analysis, the system monitors traction conditions. By acting before slippage exceeds the range for optimum traction, drops in power can be minimized, resulting in ultra-smooth operation.



Kawasaki Engine Brake Control

  • The Kawasaki Engine Brake Control system allows riders to select the amount of engine braking they prefer.
  • When Kawasaki Engine Brake Control is activated (by selecting “LIGHT” in the settings), the effect of engine braking is reduced.



CHASSIS

The chassis design had to have the strength to harness the great engine power while being able to handle external disturbances at track speeds. Additionally, a relatively short wheelbase was required to maintain sharp handling and performance. Finally, the chassis had to help dissipate the heat produced by such a high-output powerplant.

  • Trellis frame is made of high-tensile steel with pipe diameter, thickness and bend of each piece carefully selected to obtain the necessary stiffness for that part.
  • Ideal rigidity balance enables high-speed track riding while providing the ability to absorb external disturbances to facilitate stability.
  • Slim frame design and horizontal mounting of the die-cast aluminum rear sub-frame helps keep seat narrow and contributes to an easy reach to the ground for the rider’s legs.
  • Open design of trellis frame allows air to pass through it to help dissipate engine heat.
  • Swingarm mounting plate is bolted to the back of the engine to make it part of the frame. This eliminates frame cross members to help keep the frame light and enables the chain tension generated by the high-output engine to be efficiently transferred to the rigid engine block.



Suspension

  • Uni-Trak® linkage rear suspension system provides progressive action to the rear shock so that small bumps are damped lightly and large bumps get heavy damping for a smoother ride and better steering and handling.
  • The H2 utilizes a single-sided swingarm. Composed of forged and pressed aluminum parts, it is highly rigid and light weight. It allows more room on the right side of the motorcylce for optimized exhaust shape.



Öhlins Shock

  • Equipped with an Ohlins TTX36 shock featuring a machined cylinder body, TTX GP-style damping adjusters and remote preload adjuster. The shock enhances cornering performance, is supple for riding comfort and sporty handling, contributes to a planted front end feel, and provides superb feedback from the road.
  • The patented shock features a unique concentric twin tube design and a solid main piston that only moves the oil in the shock cylinder. Damping generating components are all located at the top of the shock cylinder between the cylinder head and reservoir. The simple construction allows shock components to be lighter and more compact, ensures very consistent damping performance and prevents cavitation.



  • Since the shock construction makes it difficult for cavitation to occur, gas pressure is about half that of a standard shock so that lower tension seals can be used for reduced friction and smoother shock action.
  • Separate channels connect the compression and rebound valves to their corresponding side of the main piston, allowing completely separated adjusters for compression and rebound damping. This helps with suspension set-up since changing one damping setting will not affect the other.
  • Compression and rebound damping are each 22-way adjustable using the high-quality, machined finish TTX GP-style adjuster knobs that can be turned by hand or with an Allen key.
  • Remote hand-turn preload adjuster makes it easy to adjust settings without using tools.



Kayaba AOS-II Forks

  • Fully adjustable with compression and rebound damping and preload adjusters, all located on the fork caps for easy setting changes.
  • Kayaba AOS-II (Air-Oil Separate) 43mm fork features twin chambers to separate the damping oil from air for more stable damping performance. The fork provides smooth initial action and strong bottoming resistance at the end of the stroke.
  • DLC (Diamond-Like Carbon) coating on the inner tubes reduces stiction for improved fork response and helps prevent wear.



Electronic Steering Damper (ESD)

  • Steering damping characteristics are changed electronically. At low speeds, the settings were chosen so that damping does not interfere with the bike’s intrinsic lightweight handling. At higher speeds, damping increases to provide enhanced stability. Using input from the rear wheel speed sensor (provided via the engine ECU) the electronic steering damper’s ECU determines the vehicle’s speed as well as the degree the bike is accelerating or decelerating to provide just the right amount of damping.
  • When entering low-speed corners, steering is light and neutral. When making steering inputs to execute U-turns or changing lanes, handling is light and easy. Entering high-speed corners on the track, ideal damping levels that help riders to set the bike on the line of their choosing.
  • The enhanced feeling offered by the electronic steering damper helps reduce rider fatigue on long rides.
  • During strong acceleration or deceleration, damping is increased to provide enhanced performance.
  • Features Öhlins’ special twin-tube design that ensures stable damping performance even under racing conditions, and provides superb kickback absorption.
  • The damper’s high precision construction and use of an integrated clamp help minimize friction as the damper piston moves so that initial motion is very smooth.



Brembo® Brakes with Kawasaki Intelligent anti-lock Brake System (KIBS)

  • Radial mounted 4-piston front brake calipers.
  • Front brakes feature Brembo cast monoblock calipers with four opposed 30mm pistons that clamp huge 330mm Brembo discs for superb braking force. The outer edges of the discs have grooves down the center of the outer edges to help dissipate heat.
  • Brembo radial pump master cylinder and reservoir are calibrated so that very little lever movement achieves strong front brake force.
  • Rear brake features Brembo caliper with two 32mm pistons that clamp a 250mm disc.
  • KIBS high-precision anti-lock brake system provides smooth feedback and minimal lever movement for added braking confidence.
  • The engine ECU communicates with the compact ABS ECU (which monitors wheel speed and front caliper hydraulic pressure) to provide highly precise brake pressure control. The high precision control means brake performance is not reduced due to excessive pressure drops and there is a more consistent lever feel instead of sharp lever pulses felt with conventional ABS systems.
  • Cast aluminum wheels are specifically designed to enhance handling and are shod with high-performance street tires.



Aerodynamic Bodywork

  • Functional design enhances stability and maximizes engine cooling performance.
  • Upper cowl incorporates a chin spoiler to help create downforce for added high-speed stability. Air scooped by the chin spoiler is deflected to the sides through special air passages to reduce drag.
  • Downforce is also created by the airflow over the mirror stays with Guerney Flaps on the trailing edges, designed by Kawasaki’s aerospace division.
  • Compact side cowls leave the engine almost entirely exposed and when combined with the trellis frame makes it easy for hot air to escape for better heat dissipation.
  • Stepped front fender design helps direct airflow to the radiator to help cooling.
  • River Mark emblem on the front of the cowling represents Kawasaki performance heritage and the combined efforts of the Kawasaki Akashi Group on this ultimate motorcycle.





Accessory ERGO-FIT Handlebars

  • ERGO-FIT raised handlebar kit is available as an accessory and has a reduced downward angle, positioning the handle grips 20 mm higher than the standard clip-ons. For shorter riders or those who prefer a more upright riding position, the kit offers increased comfort.



Cockpit

  • Riding position optimized for high-speed circuit riding. Compared to the Ninja® ZX™-10R, there is less forward lean, slightly wider handlebars and 10mm more forward-positioned footpegs.
  • Solo seat is tapered at the front to facilitate touching the ground and wider at the rear for rider support and comfort. Compact rear cowl has adjustable side hip supports to help brace the rider during intense acceleration.
  • Advanced, fully digital meter design and analog tachometer with rpm numbers that light up to chase the tachometer needle as it moves. All meter functions are controlled from the compact handlebar switches.









2018 Kawasaki Ninja H2R – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $55,000 USD

Power

Engine

4-stroke, 4-cylinder, DOHC, 4-valve, liquid-cooled, supercharged

Displacement

998cc

Bore x Stroke

76.0 x 55.0mm

Compression ratio

8.3:1

Fuel System

DFI® w/50mm throttle bodies (4) with dual injection

Ignition

Digital

Transmission

6-speed, return, dog-ring

Final Drive

Sealed chain

Electronic Rider Aids

Kawasaki Corner Management Function (KCMF), Kawasaki Traction Control (KTRC), Kawasaki Launch Control Mode (KLCM), Kawasaki Intelligent anti-lock Brake System (KIBS), Kawasaki Engine Brake Control, Kawasaki Quick Shifter (KQS) (upshift & downshift), Öhlins Electronic Steering Damper

Performance

Front Suspension / Wheel Travel

43mm inverted fork with rebound and compression damping, spring preload adjustability and top-out springs/4.7 in

Rear Suspension / Wheel Travel

New Uni-Trak, Öhlins TTX36 gas charged shock with piggyback reservoir, compression and rebound damping and spring preload adjustability, and top-out spring/5.3 in

Front Tire

120/70 ZR17 (58W)

Rear Tire

190/65 ZR17 (78W)

Front Brakes

Dual radial-mount, opposed 4-piston calipers, dual semi-floating 330mm discs, KIBS ABS

Rear Brakes

Opposed 2-piston calipers, single 250mm disc, KIBS ABS

Details

Frame Type

Trellis, high-tensile steel, with swingarm mounting plate

Rake/Trail

25.1°/4.3 in

Overall Length

81.5 in

Overall Width

33.5 in

Overall Height

45.7 in

Ground Clearance

5.1 in

Seat Height

32.7 in

Curb Weight

476.3 lb**

Fuel Capacity

4.5 gal

Wheelbase

57.1 in

Color Choices

Mirror Coated Matte Spark Black

Warranty

N/A

Kawasaki Protection Plus™ (optional)

N/A











2018 Kawasaki Ninja H2R – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $61,200 CDN

Engine

Displacement  998cc  Type  4-stroke, In-Line Four  Bore and stroke  76.0 x 55.0 mm  Cooling  Liquid  Compression ratio  8.3:1  Valve system  DOHC, 16 valves (4 valves per cylinder)  Fuel system  50mm x4 with dual injection  Ignition  Digital  Lubrication  Forced lubrication (wet sump with oil cooler)  Intake System  Kawasaki Supercharger

Brakes

Front: type  Dual semi-floating 330 mm petal discs  Front: calipers  Dual radial-mount, opposed 4-piston  Rear: type  Single 250 mm disc  Rear: calipers  Opposed 2-piston

Dimensions

Overall length  2,070 mm  Overall width  850 mm  Overall height  1,160 mm  Wheelbase  1,450 mm  Ground clearance  130 mm  Seat height  830 mm  Curb mass**  216 kg  Fuel capacity  17 litres (3.7 gal.)

Drivetrain

Transmission  6-speed, return, dog-ring  Final drive  Chain  Primary reduction ratio  1.551 (76/49)  Gear ratio: 1st  3.188 (51/16)  Gear ratio: 2nd  2.526 (48/19)  Gear ratio: 3rd  2.045 (45/22)  Gear ratio: 4th  1.727 (38/22)  Gear ratio: 5th  1.524 (32/21)  Gear ratio: 6th  1.348 (31/23)  Final reduction ratio  2.333 (42/18)  Clutch  Wet multi-disc, manual

Frame

Type  Trellis, high-tensile steel, with Swingarm Mounting Plate  Wheel travel: front  120 mm (4.7 in.)  Tire: front  120/600 R17  Wheel travel: rear  135 mm  Tire: rear  190/650 R17  Caster (rake)  25.1º  Trail  108 mm  Steering angle (left/right)  27º/27º

Performance

Maximum Torque‡ 165 N.m {16.8 kgf.m} / 12,500 rpm

Suspension

Suspension, front  43 mm inverted fork with rebound and compression damping, spring preload adjustability and top-out springs  Suspension, rear  New Uni-Trak, Öhlins TTX36 gas charged shock with piggyback reservoir, compression and rebound damping and spring preload adjustability, and top-out spring





2018 Kawasaki Ninja H2R – Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)

TBA



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

About Michael Le Pard 1307 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle. Supporting Motorcyclists and Motorcycling for 18 great years.

Be the first to comment

Leave a Reply
