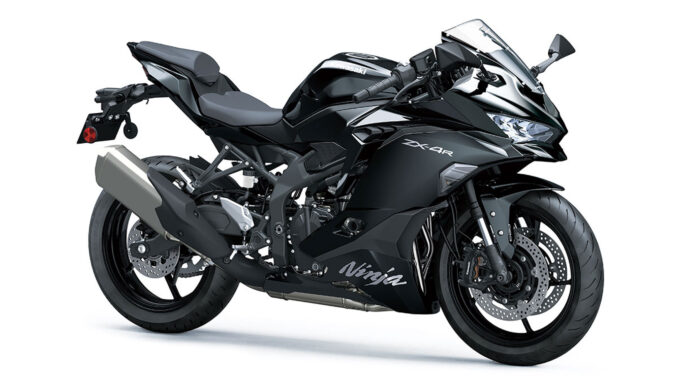

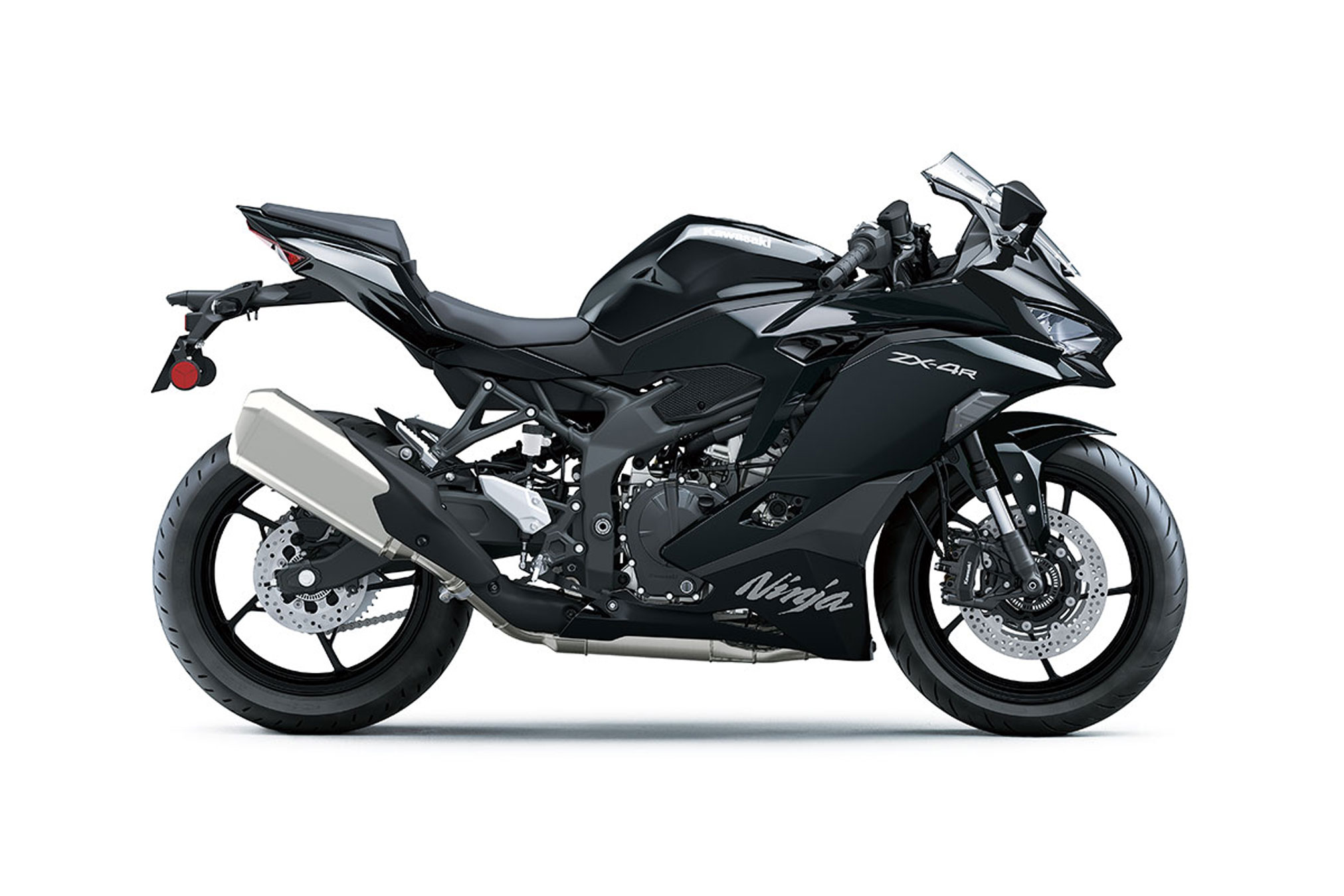

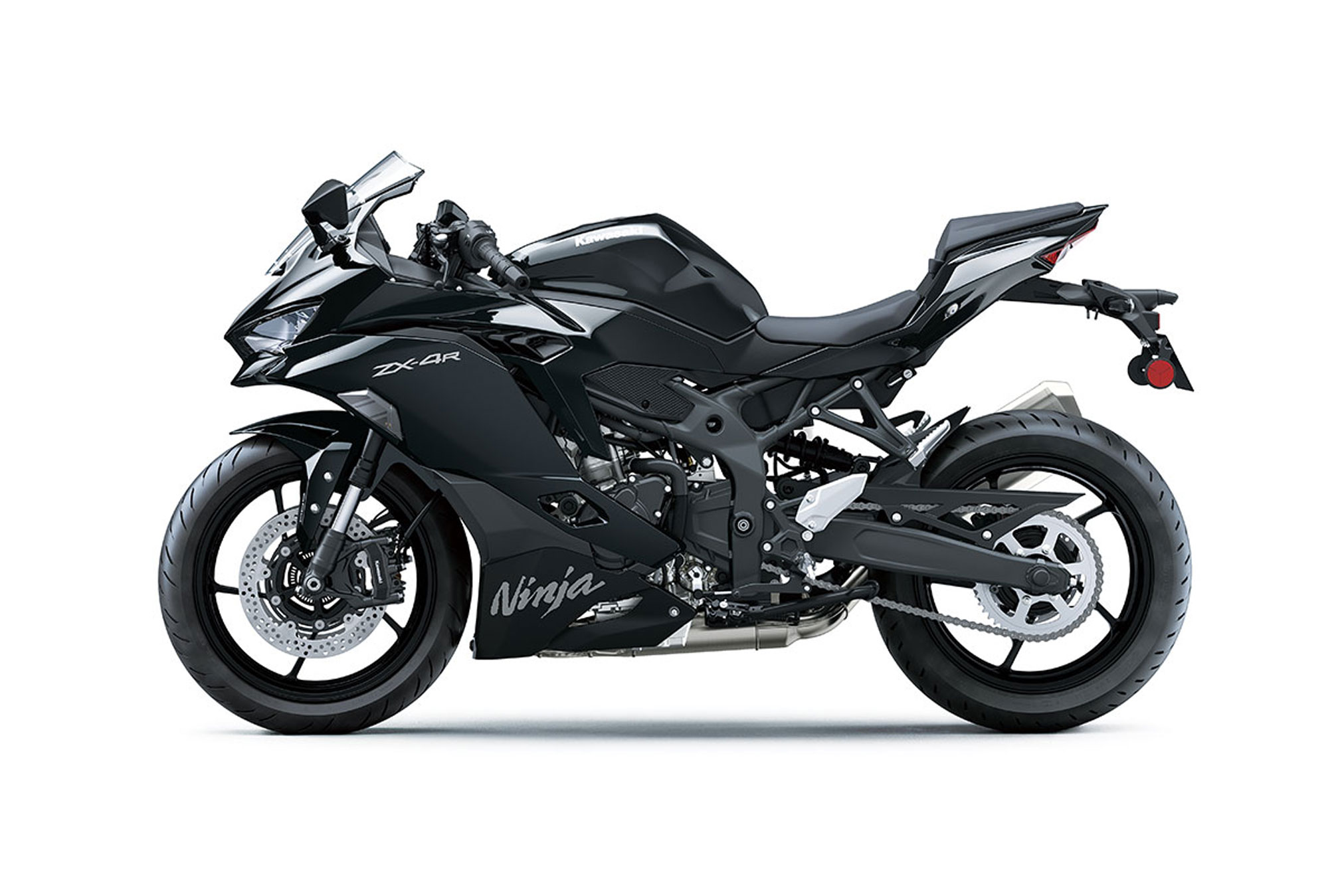

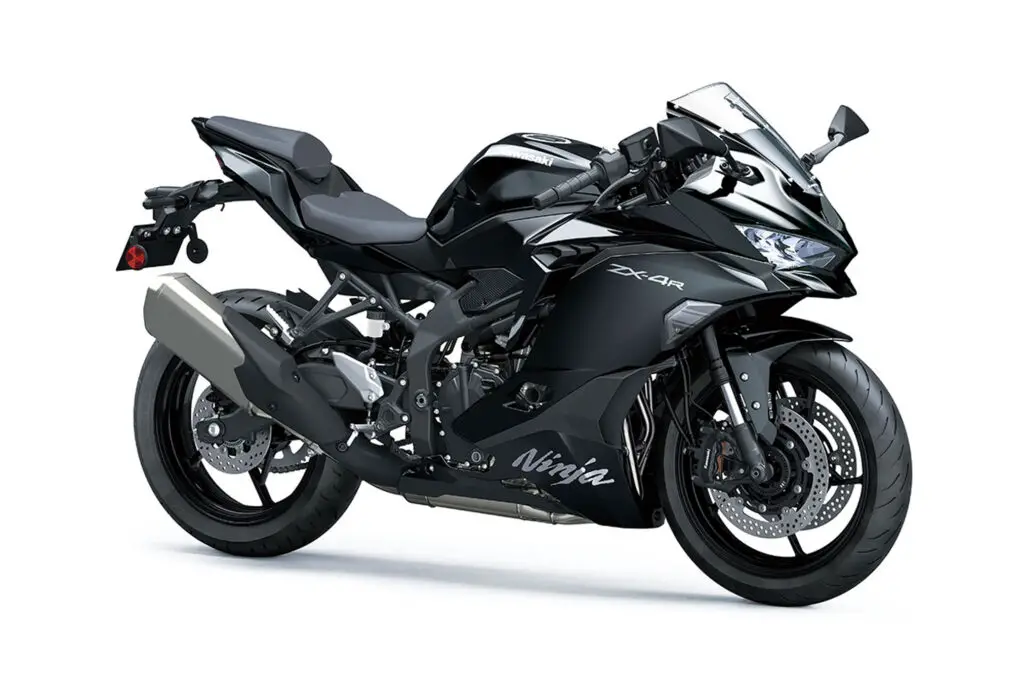

2023 Kawasaki Ninja ZX-4R: LIGHT AND PREDICTABLE SIMPLICITY.

Introducing the 2023 Kawasaki Ninja ZX-4R…

Into a category filled with 400cc sport models, Kawasaki introduces a revolutionary supersport model. The Ninja ZX-4R mounts a 399cc in-line four engine with class-leading performance in a compact chassis with proportions essentially the same as the Ninja ZX-250R. On the track or on the street, experiencing the exhilaration of the Ninja ZX-4R’s heady power, intoxicating high-rpm wail, and its sharp, nimble handing will surely awaken the dormant supersport within you.





2023 Kawasaki Ninja ZX-4R Totalmotorcycle.com Key Features

  • HIGH-REVVING 399cc IN-LINE FOUR ENGINE
  • WORLDSBK-INSPIRED CHASSIS DESIGN
  • HIGH-PERFORMANCE SUSPENSION AND BRAKE COMPONENTS
  • HIGH-GRADE ELECTRONICS AND FEATURES
  • FIERCE NINJA ZX STYLING
  • Centre Ram Air
  • ø37 mm SFF-BP front suspension
  • Horizontal Back-link rear suspension
  • Dual ø290 mm semi-floating discs with radial-mount calipers
  • Integrated Riding Modes (with KTRC and Power Modes)
  • TFT instrumentation with Circuit Mode
  • Smartphone connectivity





2023 Kawasaki Ninja ZX-4R Totalmotorcycle.com Features and Benefits

ASSIST & SLIPPER CLUTCH

Based on feedback from racing activities, the Assist & Slipper Clutch uses two types of cams (an assist cam and a slipper cam) to either drive the clutch hub and operating plate together or apart.

Under normal operation, the assist cam functions as a self-servo mechanism, pulling the clutch hub and operating plate together to compress the clutch plates. This allows the total clutch spring load to be reduced, resulting in a lighter clutch lever feel when operating the clutch.

When excessive engine braking occurs – as a result of quick downshifts (or an accidental downshift) – the slipper cam comes into play, forcing the clutch hub and operating plate apart. This relieves pressure on the clutch plates to reduce back-torque and helps prevent the rear tire from hopping and skidding. This race-style function is particularly useful when sport or track riding.

ECONOMICAL RIDING INDICATOR

Using high-precision electronic control for engine management, Kawasaki models can achieve a high level of fuel efficiency. However, fuel consumption is greatly affected by throttle use, gear selection, and other elements under the rider’s control. The Economical Riding Indicator is a function that indicates when current riding conditions are consuming a low amount of fuel. The system continuously monitors fuel consumption, regardless of vehicle speed, engine speed, throttle position and other riding conditions. When fuel consumption is low for a given speed (i.e. fuel efficiency is high), an “ECO” mark appears on the instrument panel’s LCD screen. By riding so that the “ECO” mark remains on, fuel consumption can be reduced.

While effective vehicle speed and engine speed may vary by model, paying attention to conditions that cause the “ECO” mark to appear can help riders improve their fuel efficiency – a handy way to increase cruising range. Further, keeping fuel consumption low also helps minimize negative impact on the environment.

ELECTRONIC THROTTLE VALVES

Kawasaki’s fully electronic throttle actuation system enables the ECU to control the volume of both the fuel (via fuel injectors) and the air (via throttle valves) delivered to the engine. Ideal fuel injection and throttle valve position results in smooth, natural engine response and the ideal engine output. The system also makes a significant contribution to reduced emissions.

Electronic throttle valves also enable more precise control of electronic engine management systems like S-KTRC and KTRC, and allow the implementation of electronic systems like KLCM, Kawasaki Engine Brake Control, and Electronic Cruise Control.

KTRC (KAWASAKI TRACTION CONTROL)

KTRC, Kawasaki’s advanced traction control system provides both enhanced sport riding performance and the peace of mind to negotiate slippery surfaces with confidence. Multiple rider-selectable modes (the number of modes varies by model) offer progressively greater levels of intrusion to suit the riding situation and rider preference.

Less intrusive modes maintain optimum traction during cornering. Designed with sport riding in mind, they facilitate acceleration out of corners by maximizing forward drive from the rear wheel. And because Kawasaki’s sophisticated software bases its dynamic analysis on the chassis’ orientation relative to the track surface (rather than relative to a horizontal plane), it is able to take into account corner camber, gradient, etc., and adapt accordingly.

In the more intrusive modes (and for some models, in any mode), when excessive wheel spin is detected, engine output is reduced to allow grip to be regained, effectively enabling riders to negotiate both short, slippery patches (train tracks or manhole covers) and extended stretches of bad roads (wet pavement, cobblestone, gravel) with confidence.

POWER MODES

Models equipped with multiple Power Modes offer riders an easily selectable choice of engine power delivery to suit riding conditions or preference. In addition to Full Power mode, one (Low) or two (Middle, Low) alternate mode(s) in which maximum power is limited and throttle response is milder are provided.

SMARTPHONE CONNECTIVITY

Clever technology enables riders to connect to their motorcycle wirelessly. Using the smartphone application “RIDEOLOGY THE APP,” a number of instrument functions can be accessed, contributing to an enhanced motorcycling experience. Vehicle information (such as the odometer, fuel gauge, maintenance schedule, etc) can be viewed on the smartphone. Riding logs (varies by model, but may include GPS route, gear position, rpm, and other information) can be viewed on the smartphone. When connected, telephone (call, mail) notices are displayed on the instrument panel. Riders can also make changes to their motorcycle’s instrument display settings (preferred units, clock and date setting, etc) via the smartphone. And on certain models, it is even possible to check and adjust vehicle settings (such as Rider Mode, electronic rider support features, and payload settings) using the smartphone.

ABS (ANTI-LOCK BRAKE SYSTEM)

Kawasaki ABS systems use front and rear wheel sensors to constantly monitor wheel speed. Should information from either of the sensors indicate that wheel lock has occurred, the ABS ECU directs the pump in the ABS unit to modulate brake fluid pressure (releasing and reapplying pressure so that traction can be regained) until normal operation resumes. ABS offers rider reassurance that contributes to greater riding enjoyment.

HORIZONTAL BACK-LINK REAR SUSPENSION

Compared to the Kawasaki traditional Uni-Trak rear suspension, which mounts the shock unit vertically, with Horizontal Back-link Rear Suspension, the shock unit is almost horizontal. The original Kawasaki suspension arrangement locates the shock unit very close to the bike’s center of gravity, greatly contributing to mass centralization. And because there is no linkage or shock unit protruding beneath the swingarm, this frees up space for a larger exhaust pre-chamber (an exhaust expansion chamber situated just upstream of the silencer). With a larger pre-chamber, silencer volume can be reduced, and heavy exhaust components can be concentrated closer to the center of the bike, further contributing to mass centralization. The result is greatly improved handling.

A secondary benefit is that the shock unit is placed far away from exhaust heat. Because it is more difficult for heat from the exhaust system to adversely affect suspension oil and gas pressure, suspension performance is more consistent.







2023 Kawasaki Ninja ZX-4R – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ NA USD
Canada MSRP Price: $9,999 CDN
Europe/UK MSRP Price: £ See Dealer GBP (On The Road inc 20% Vat)

NA





2023 Kawasaki Ninja ZX-4R – Totalmotorcycle.com  Canadian Specifications/Technical Details

POWER
Engine 399cc, liquid-cooled, 4-stroke, DOHC 16-valve in-line four
Bore x Stroke 57.0 x 39.1 mm
Compression Ratio 12.3:1
Fuel System Fuel injection: ø34 mm x 4
Ignition Digital
Starting Electric
Lubrication Forced lubrication, wet sump
Transmission 6-speed, return
Clutch Wet multi-disc, manual
Final Drive Chain

PERFORMANCE
Frame Trellis, high-tensile steel
Front Suspension / Wheel Travel ø37 mm inverted fork (SFF-BP) with top-out springs / 120 mm (4.7 in)
Rear Suspension / Wheel Travel Horizontal Back-link, gas-charged shock with spring preload adjustability / 112 mm (4.4 in)
Rake / Trail 23.5° / 97 mm
Steering Angle (L/R) 35° / 35°
Front Tire 120/70ZR17M/C (58W)
Rear Tire 160/60ZR17M/C (69W)
Front Brakes Dual semi-floating ø290 mm discs with radial-mount, monobloc, opposed 4-piston calipers
Rear Brake ø220 mm disc with single-piston caliper

DETAILS
Dimensions (L x W x H) 1,990 x 765 x 1,110 mm (78.3 x 30.1 x 43.7 in)
Wheelbase 1,380 mm (54.3 in)
Road Clearance 135 mm (5.3 in)
Seat Height 800 mm (31.5 in)
Curb Mass** 188 kg (414 lb)
Fuel Capacity 15 litres
Instrumentation Full-colour TFT screen with digital speedometer, digital bar-style tachometer, gear position indicator, shift indicator (tachometer flashes), fuel gauge, odometer, dual trip meters, current and average fuel consumption, remaining range, average speed, riding time, coolant temperature, clock, battery voltage, lap timer (Circuit Mode only), Kawasaki service reminder, oil change reminder, integrated Riding Mode, KTRC, and Power Mode indicators, smartphone call and mail notices, Bluetooth indicator, and Economical Riding Indicator
Warranty 12 months
Kawasaki Protection Plus 12 / 24 / 36 / 48 months





2023 Kawasaki Ninja ZX-4R – Totalmotorcycle.com European Specifications/Technical Details

NA





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
