Total Motorcycle Website – 2005 Suzuki Boulevard C90T

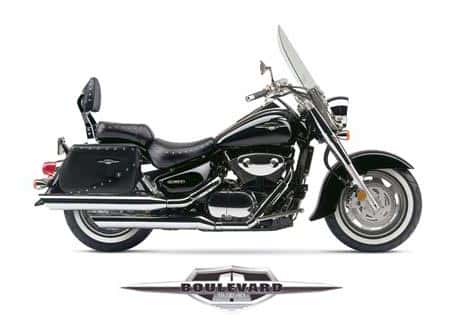

– 2005 Suzuki Boulevard C90T

The Suzuki Classic Cruiser bikes capture all the kinetic energy of a crowded boulevard on a hot August night. And right at the head of the lineup is the Boulevard C90, the baddest cruiser on the block. With its long-stroke, 45-degree V-twin powerplant, the Boulevard C90 cranks out monstrous amounts of torque, which you can tap into for a raw rush of acceleration in any gear. For 2005, that performance is more exciting than ever, thanks to a new fuel injection system that helps produce incredibly crisp throttle response. The Boulevard C90 is equally at home on the wide-open highway. That’s where you can kick back and enjoy its wonderfully spacious riding position, which lets you and your passenger stretch out and ride in comfort all day long. With its bold styling, lustrous paint and sparkling chrome, this is one classic cruiser that’s bound to capture attention, whether you’re cruising down the boulevard or kicking back at a rest stop. The Boulevard C90- where classic cruiser styling meets awesome performance.

Key Features

Touring model C90 – equipped with the most popular accessories as standard equipment

Custom-designed windshield provides classic styling and full wind protection – includes unique chrome garnish with Boulevard emblem

Attractive studded seats, plus matching touring-style backrest with unique pivoting backrest pad for increased passenger comfort

Large capacity, textured leather saddle bags with Boulevard emblems and convenient twist-lock fasteners

Large white-faced speedometer

Stylish white-wall tires – 150/80-16 front and 180/70-15 rear tire mounted on custom-styled machined aluminum wheels

Fuel injection system receives input from gear position sensor, water temp. sensor, air temp. sensor and intake port sensors for efficient power delivery and better fuel economy

Engine Features

Fuel-injected, 90 cubic inch, 6-valve, air/oil-cooled engine designed for maximum low/mid-range torque and acceleration

45 degree phase, dual-pin crankshaft minimizes vibration, plus added flywheel mass enhances low/mid-range power

GSX-R-derived electronic fuel injection system features the Suzuki Dual Throttle Valve System (SDTV) – maintains optimum air velocity in the intake tract for smooth low-to-mid rpm throttle response and high torque output – includes Auto Fast Idle System (AFIS)

32-bit ECM provides precise control of ignition timing and multi-hole-type injectors ensuring quick startup and excellent drivability under all conditions

SCEM (Suzuki Composite Electro-chemical Material) cylinder plating is durable, minimizes cylinder size & weight and improves heat dissipation

Efficient SACS air/oil cooling system with additional piston-jet cooling and engine oil cooler

Hydraulic valve lash adjusters eliminate valve adjustment maintenance and ensure quiet engine operation

Silent operation cam chains with automatic tensioners reduce engine noise and maintenance

Hydraulic clutch with back-torque limiter ensures smooth downshifts

Smooth-shifting 5-speed transmission with-low maintenance, low-torque-reactive shaft final drive – gear ratios set for low engine rpm at cruising speed

Right-side-mounted exhaust system with slash-cut-style mufflers tuned for low-rpm power and a throaty exhaust sound

Pulsed-secondary air-injection system introduces air into the exhaust ports to ignite unburned hydrocarbons and reduce emissions – CA. spec. model is equipped with a catalyst for further emission reduction

Chassis Features

Long 1700mm wheelbase chassis with 32° rake angle set-up for low seat height with comfortable seating and control positions

Wide handlebar and seat design, plus wide/low fuel tank shape add to C90’s low-slung look

Double-cradle steel frame is made of large diameter steel tubing for strength and rigidity – bolt-on sections use painted mounting bolts and caps for a detailed look

Dual-disc front brake system and single disc rear with 4-piston caliper for strong braking performance

Link-type rear suspension with preload adjustment combined with 41mm front forks provide a comfortable, compliant ride

Fuel filler located below a locking cover to maintain sleek appearance with fuel tank mounted below the seat for a low center-of-gravity

Electronic speedometer with LCD fuel gauge, odometer & twin tripmeters

Powerful multi-reflector headlight housed in an attractive case with stylish headlight rim – headlight switches off during startup to reduce load on battery

Standard 4-way emergency flasher and high beam passing switch

Bright, multi-reflector turn signals designed for high visibility and attractive appearance

Large floorboard-type footrests

Optional accessories

All other Suzuki Boulevard Authentic Accessories will fit the C90T

Specifications

Engine: 50 cubic inch, four-stroke, liquid cooled, 45 degree V-twin, SOHC, 8-valves, TSCC
Bore Stroke: 83.0 x 74.4mm
Compression Ratio: 9.4:1
Fuel System: Electronic Fuel Injection
Lubrication: Wet Sump
Ignition: Digital
Transmission: 5-speed
Final Drive: Shaft Drive
Overall Length: 2510mm (98.8 in.)
Overall Width: 985mm (38.8 in.)
Overall Height: 1397mm (55.0 in.)
Seat Height: 700mm (27.6 in.)
Ground Clearance: 140mm (5.5 in.)
Wheelbase: 1655mm (65.2 in.)
Dry Weight: 257kg (567 lbs.)
Suspension Front: Telescopic, coil spring, oil damped
Suspension Rear: Link-type, oil damped, 7-way adjustable spring preload
Brakes Front: Single hydraulic disc
Brakes Rear: Single drum
Tires Front: 130/90-16
Tires Rear: 170/80-15
Fuel Tank Capacity: 15.5 liter (4.1 gal.)
Color: Black
