2006 Honda VTX1300R
Back to 2006 Honda Motorcycle Index Page



Click photos to enlarge.
They make great desktop images.

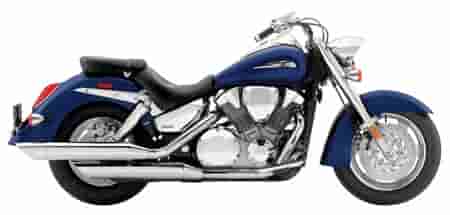

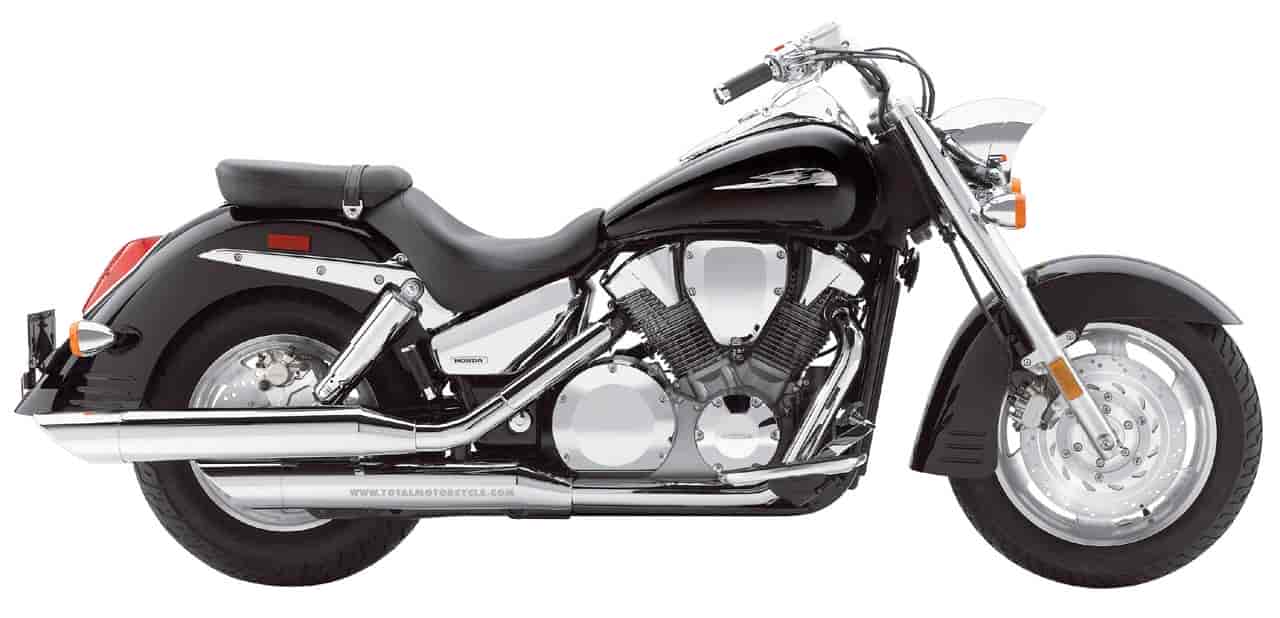

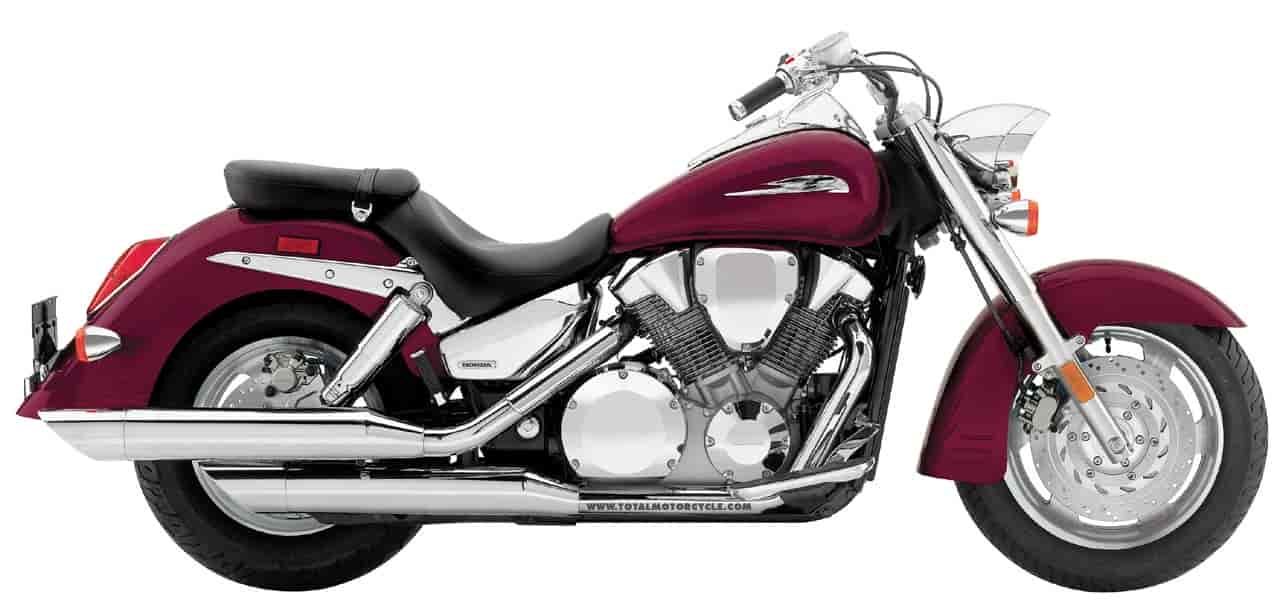

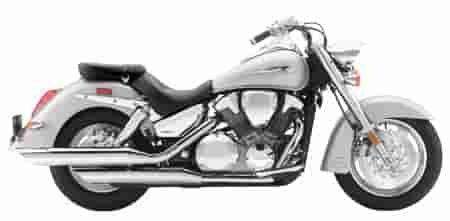

2006 Honda VTX1300R
2006 Honda VTX1300R


2006 Honda VTX1300R
2006 Honda VTX1300R

2006 Honda VTX1300R
2006 Honda VTX1300R

2006 Honda VTX1300R
2006 Honda VTX1300R



– 2006 Honda VTX1300R

VTX1300

With three different variations to choose from-the C, S and R models-and more than 30 available accessories, the VTX1300 allows buyers to create their own unique custom style.



Features and Benefits

New for 2006

– VTX®1300R and S colors include Bright Blue Metallic, Metallic Silver and Candy Black Cherry joining classic Black.

– VTX1300C colors include Candy Black Cherry, Dark Grey Metallic and Candy Orange joining classic Black.



Unique VTX1300R/S Features

– Deeply valanced front and rear fenders, chrome-hooded headlight, broad fuel tank with tank-mounted instruments, semi-swept handlebar and floorboards with heel-and-toe shifter create a classic retro style that sets the VTX apart from the competition.

– Rider comfort is enhanced with comfortable ergonomics and a firmly padded saddle featuring a low, 27.0-inch seat height.

– Staggered dual exhaust pipes produce a pleasing, throaty exhaust note.

– VTX1300S features traditional spoke wheels.

– VTX1300R features retro-style cast wheels.

– Large 140/80-17 front tire gives the S and R models a commanding profile.

– Large under-seat tool tray.

– The black resin seat pan/rear fender located under the seat cowl has been designed to position the battery and electrical components forward for optimum mass centralization.



Unique VTX1300C Features

– Custom cast wheels give the VTX1300C a performance-custom profile.

– A beefy 170/80-15 rear tire puts the VTX’s power to the ground and provides exceptional traction.

– Minimalist-design front and rear fenders complement the VTX’s street-rod styling.

– Artfully designed tank-mounted instruments.

– Dual exhaust with shorter pipes for street-rod look.

Engine/Drivetrain

– VTX engine is a 1312cc liquid-cooled 52° V-twin that delivers strong low-end and mid-range torque, with ample power for passing and relaxed cruising.

– Powerplant design features a single-pin crankshaft to accentuate the VTX engine’s character.

– Dual two-axis primary counterbalancers minimize harsh engine vibration without eliminating the powerful pulse feeling transmitted by the VTX’s traditional V-twin design.

– The engine mounting system uses carefully matched hangers to eliminate unwanted vibration, while preserving the powerful character of the V-twin engine.

– Each three-valve cylinder head features two 31mm intake valves and a large 40mm exhaust valve to produce optimum flow for the incoming air/fuel charge.

– Simple-to-service screw-and-locknut valve clearance adjusters.

– Single 38mm constant-velocity carburetor offers crisp throttle response at all engine speeds.

– Electronic control unit (ECU) provides 3-D ignition maps for each cylinder, creating ideal spark advance settings for superb rideability.

– Coolant-heated carburetor improves rideability and ensures smooth operation in cold conditions.

– Two spark plugs per cylinder for efficient combustion at all engine speeds.

– A unique dry-sump oil system utilizes a closed-crankcase design and places the oil tank inside the gearbox case. The result is a freer-revving engine for improved power, and a lower engine height, allowing optimum rider ergonomics and a low 27.0-inch seat height.

– Custom chromed two-into-two exhaust system produces a deep exhaust note.

– Radiator with cooling fan maintains consistent engine temperature for optimum performance and long engine life.

– Maintenance-free automatic cam-chain tensioners.

– Reliable electric-starter system.

– Sturdy clutch utilizes a rubber clutch-center damper to ensure smooth and quiet shifting.

– Five-speed transmission with carefully selected gear ratios for exciting roll-on performance.

– Shaft final-drive system provides smooth, low-maintenance operation.

– Driven-flange design at the final-drive gear eliminates final-drive noise and wear, and simplifies rear wheel installation.



Chassis/Suspension

– Massive tubular steel frame contains the engine’s power and gives the VTX a long, low, classic stance.

– Large 41mm extended front fork provides 5.1 inches of plush yet responsive travel.

– Dual chromed rear shocks with five-position preload adjustment feature an advanced internal valve system for a comfortable ride.

– Front disc brake features a twin-piston caliper with a large-diameter 336mm stainless steel rotor. Combined with the rear single-piston caliper and 296mm stainless steel rotor, the brakes provide excellent stopping power.



Additional Features

– Specially designed tank-mounted chrome housing features a speedometer, odometer/A&B tripmeter, and indicator lights for the turn signals, high beam, neutral indicator, oil pressure and coolant temperature.

– Electric speedometer with easy-to-read classic numerals uses an electronic speed sensor in the transmission, which eliminates the front-wheel-mounted speedometer cable. This contributes to a clean, uncluttered look.

– Extensive chrome finishing of engine parts includes cylinder-head covers, valve inspection covers, airbox cover, left crankcase cover, clutch cover and left-rear engine cover.

– Distinctive chrome-hooded headlight housing features a powerful, 55W/60W halogen bulb with a computer-designed multi-reflector for superb lighting in all conditions.

– VTX1300C, S and R models feature a stylish chrome tank emblem.

– Handlebar design provides a comfortable, upright riding position.

– Comfortably padded, large-diameter handgrips with polished aluminum handlebar switch housings and triple-clamp assembly.

– 4.8-gallon fuel tank for extended cruising and touring range.

– Reliable 364W alternator.

– Durable, maintenance-free 12-amp-hour battery.

– Large under-seat tool tray.

– Handlebar switches and controls use internationally approved ISO graphic symbols.

– Convenient push-to-cancel turn-signal switch.

– Transferable one-year unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

– Assembled in Marysville, Ohio.

– Ownership includes one-year complimentary membership for an individual in the Honda Rider’s Club of America™ (HRCA®). Benefits include: discounts, travel benefits, roadside assistance, one year of Honda Red Rider™ magazine, access to HRCA Clubhouse Web site (www.hrca.honda.com) and access online to Honda Common Service Manual. For HRCA details, call 1-800-847-HRCA. For dealers only, please call (310) 783-3958.



Available Accessories VTX1300C

Touring Accessories: Custom Windshield, Boulevard Shields (two styles: Clear and Tinted), Leather Saddlebags (three styles: Studded, Fringed and Plain), Leather Touring Bag (three styles), Leather Front Pouch (three styles) and Leather Tank Belt with Pocket (two styles: Studded and Plain).

Chrome Accessories: Lightbar, Spotlight Visors, Backrest with Pad (available in Tall and Low styles), Deluxe Backrest with Pad, Deluxe Backrest Trim with Emblem, Rear Carrier, Deluxe Rear Carrier, Backrest with Pad (Tall, Sport-Custom), Backrest with Pad (Low, Sport-Custom), Backrest Trim (Tall, Sport-Custom), Backrest Trim (Low, Sport-Custom), Rear Carrier (Sport-Custom), Passenger Grab Rails, Allen Bolt Inserts (three sizes) and Driveshaft Cover.

Billet Accessories: Master Cylinder Cap (four styles), License Plate Frame (three styles), Clutch Cover, Timing Cover, Swingarm Pivot Cover Set, Countershaft Cover Trim, Driveshaft Bolt Cover, Dipstick and Banjo Bolt Covers.

Additional Accessories: Cycle Cover and Sport Shield.



Available Accessories VTX1300R/S

Touring Accessories: Custom Windshield, Lower Wind Deflectors, Boulevard Shields (two styles: Clear and Tinted), Leather Saddlebags (three styles: Studded, Fringed and Plain), Leather Touring Bag (three styles), Leather Front Pouch (three styles) and Leather Tank Belt with Pocket (two styles: Studded and Plain).

Chrome Accessories: Lightbar, Spotlight Visors, Backrest with Pad (available in Tall and Low styles), Deluxe Backrest with Pad, Deluxe Backrest Trim with Emblem, Rear Carrier, Deluxe Rear Carrier, Adjustable Backrest with Pad, Front Fender Trim, Front Fender Tip, Front Fender Ornament, Rear Fender Trim, Solo Seat Rear Carrier, Seat Rail Trim, Backrest w/ Pad (Tall, Neo-Retro), Backrest w/ Pad (Low, Neo-Retro, Rear Carrier (Neo-Retro), Backrest Trim (Tall, Neo-Retro), Backrest Trim (Low, Neo-Retro), Passenger Grab Rails, Allen Bolt Inserts (three sizes) and Driveshaft Cover.

Billet Accessories: Master Cylinder Cap (four styles), License Plate Frame (three styles), Clutch Cover, Timing Cover, Swingarm Pivot Cover Set, Countershaft Cover Trim, Driveshaft Bolt Cover, Dipstick and Banjo Bolt Covers.

Additional Accessories: Cycle Cover and Sport Shield.



Specifications

Model: VTX1300C / VTX1300S (spoke wheels) / VTX1300R (custom wheels)

Engine Type: 1312cc liquid-cooled 52° V-twin

Bore and Stroke: 89.5mm x 104.3mm

Compression Ratio: 9.2:1

Valve Train: SOHC; three valves per cylinder

Carburetion: Single 38mm constant-velocity

Ignition: Digital with three-dimensional mapping, two spark plugs per cylinder

Transmission: Five-speed

Final Drive: Shaft

Suspension
Front: 41mm fork; 5.1 inches travel
Rear: Dual shocks with five-position spring preload adjustability;
VTX1300C: 3.6 inches travel
VTX1300R/S: 3.7 inches travel

Brakes
Front: Single 336mm disc with twin-piston caliper
Rear: Single 296mm disc with single-piston caliper

Tires
Front:
VTX1300C: 110/90-19 M/C
VTX1300R/S: 140/80-17
Rear:
VTX1300C: 170/80-15 M/C
VTX1300R/S: 170/80-15

Wheelbase:
VTX1300C: 65.45 inches
VTX1300R/S: 65.7 inches

Rake (Caster Angle): 32.0°

Trail:
VTX1300C: 149mm (5.9 inches)
VTX1300R/S: 144mm (5.7 inches)

Seat Height:
VTX1300C: 27.46 inches
VTX1300R/S: 27.35 inches

Dry Weight
VTX1300C: 641 pounds
VTX1300S: 662 pounds
VTX1300R: 669 pounds

Fuel Capacity: 4.8 gallons, including 1.0-gallon reserve

Colors:
VTX1300C: Black, Candy Black Cherry, Dark Grey Metallic, Candy Orange
VTX1300R/S: Black, Candy Black Cherry, Bright Blue Metallic, Metallic Silver

Meets current CARB and EPA standards.

California version differs slightly due to emissions equipment.
