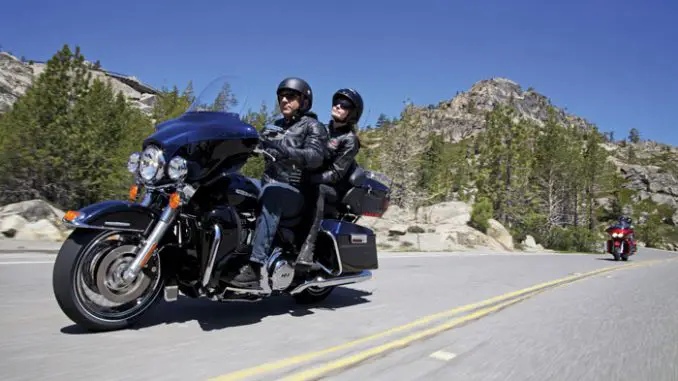

2013 Harley-Davidson FLHTCU Ultra Classic Electra Glide
2013 Harley-Davidson FLHTCU Ultra Classic Electra Glide

2013 Harley-Davidson FLHTCU Ultra Classic Electra Glide
2013 Harley-Davidson FLHTCU Ultra Classic Electra Glide

2013 Harley-Davidson FLHTCU Ultra Classic Electra Glide
2013 Harley-Davidson FLHTCU Ultra Classic Electra Glide

2013 Harley-Davidson FLHTCU Ultra Classic Electra Glide
2013 Harley-Davidson FLHTCU Ultra Classic Electra Glide



2013 Harley-Davidson FLHTCU Ultra Classic Electra Glide Review

2013 Harley-Davidson FLHTCU Ultra Classic Electra Glide

Long-haul comfort, convenience and storage capacity wrapped in unmistakable style…

The Ultra Classic® Electra Glide® sets the standard for long-haul touring comfort and convenience. Though many imitators sought to duplicate it, the Ultra Classic Electra Glide stands tall as a benchmark for touring enthusiasts. A fourspeaker, 80-watt Harmon/Kardon® Advanced Audio System, one-piece, two-up Electra Glide® Classic comfort stitch seat with passenger backrest, adjustable fairing-mounted air deflectors, vented removable fairing lowers with integral glove boxes, spacious Tour-Pak® carrier and injection-molded hard saddlebags, and standard electronic cruise control, all combine comfort and function as styling touches that make it a Harley-Davidson.





2013 Harley-Davidson FLHTCU Ultra Classic Electra Glide Key Features

NEW Paint color options

• Rubber-mounted Twin Cam 103™ V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI) with heated O2 sensors and Electronic Throttle Control (ETC)
• Sculpted seat for added comfort and easier straddling
• Black powder-coated powertrain with chrome covers
• Chrome 2-1-2 dual exhaust with tapered mufflers
• Black, 28-spoke Cast Aluminum wheels with narrow whitewall tires
• Tubeless Chrome Aluminum Profile Laced wheel option
• Bat-wing, fork-mounted fairing with clear windshield
• Smoked adjustable fairing-mounted air deflectors
• Vented removable lower fairings with integral storage compartments
• Mid-frame air deflectors
• Chrome, low-profile fuel tank console
• Deep FL front fender with trim
• Stainless steel, classic touring handlebar
• One-piece, two-up Electra Glide® classic comfort stitch seat, sculpted for added comfort and easier straddling
• Passenger backrest with wrap-around armrests
• Injection-molded hard saddlebags; 2.26 cu. ft. volume
• Injection Molded hard Tour-Pak® with soft luggage liners, storage pockets and wrap-around rear tail/brake lights; 2.26 cu. ft. volume
• Fairing-mounted electronic speedometer and tachometer plus fuel, voltage, oil pressure and ambient air temperature gauges
• 80-watt, four-speaker Harman/Kardon® Advanced Audio System with CD/MP3 player, and CB/Intercom
• LED rear fender tip light
• Auxiliary passing lights





2013 Harley-Davidson FLHTCU Ultra Classic Electra Glide Features and Benefits

They call it the “Ultra” for a reason. This is the Harley-Davidson® model that set the standard for long-haul touring comfort and convenience. Though many imitators sought to duplicate it, the Ultra Classic® Electra Glide® still stands tall as a benchmark for touring enthusiasts.

A four-speaker, 80-watt Harmon/Kardon® Advanced Audio System; one-piece, two-up Electra Glide® classic comfort stitch seat with passenger backrest; adjustable fairing-mounted air deflectors; vented removable fairing lowers with integral glove boxes; spacious Tour-Pak® carrier and injection-molded hard saddlebags; standard electronic cruise control; and all the styling touches that unmistakably make it a Harley-Davidson.

• 6-speed Cruise Drive® transmission with integrated Isolated Drive System (IDS)
• Dunlop® “Multi-Tread” rear tire construction extends tire life by 25 percent
• Brembo® 4-piston front and rear caliper with dual front rotor brake system
• Air-adjustable rear shocks
• Full-length rider footboards
• Height-adjustable passenger footboards
• Six-gallon fuel tank
• Optional electronic cruise control

Classic Fuel Tank

Part of the unmistakable style of the Harley-Davidson® Ultra Classic® Electra Glide® motorcycle is plenty of room for showing off your paint. This classically styled, bold six-gallon fuel tank doesn’t just give you a bigger canvas for premium or custom paint; it holds six gallons of go so you can eat up a lot more road between pit stops. We know fuel economy is important—but so is style. A dual-color paint scheme, crisp pinstripes and unique Harley-Davidson® tank medallions give this ride a one-of-a-kind look.

Bat-Wing Fairing

Designed by Chief Styling Officer Willie G. Davidson, the nimble, fork-mounted Bat-Wing fairing first appeared on the touring scene back in 1969. And it continues to evolve and symbolize the essence of Grand American Touring motorcycles more than forty years later. The full 8-inch windscreen gives it that classic touring profile and additional comfort. Simply put, the wind is not a factor for the mile-hungry rider who wants to soak up the freedom of the open road for days on end.

GTX® Saddlebags

These injection-molded hard bags have room for 2.26 cu. ft. volume of long-haul luxuries and a perfect surface for showing off some premium paint. Even better, these saddlebags open from the top, so your gear won’t end up spilled all over the highway. They keep your fancy unmentionables dry, and the chrome latches won’t corrode in bad weather. Stunning chrome guards on the saddlebags are only available on the Electra Glide® Classic and Ultra Classic® Electra Glide®. And when you’re off the road, one common key starts the bike and gives you access to your saddlebags, keeping your pockets as uncluttered as your bike’s classic design.

Large 17-Inch Front Wheel

If you crave long-haul agility on rides of all distances, then you’re going to love this big, mighty wheel. Its low aspect ratio helps the Ultra Classic® Electra Glide® model maintain its legendary tight turning radius, balanced feel and superior low-speed maneuverability.

Premium Paint

Up to two times thicker than the competition, custom quality paint comes standard on all Harley-Davidson® motorcycles. Clearcoat layering up to five mils deep. Bigger metal flakes. Unique effects in the sunglo and pearl colors. Skimping simply is not in our vocabulary.

Hand Finished Fuel Tank

All Harley-Davidson® fuel tanks are finished by hand—that’s what makes them stand out from the competition. Their seamless design and unmatched style are unique among all motorcycles on the road. The tanks are one of the first and last things people notice when they lay their eyes on a Harley-Davidson® motorcycle—so we make it worth their time.

Twin Cam 103™ Engine Heritage

The knowledge of what makes an engine truly move a rider runs deep at The Motor Company, and it was put to good use when we created the Twin Cam 103™ engine. We painstakingly perfected every cubic inch, pushing design and technology forward—all without compromising one bit of Harley-Davidson’s unique styling. Evolved, yet carrying on the legacy of the Flathead, Knucklehead, Panhead, Shovelhead, Evolution®, Twin Cam 88® and Twin Cam 96™ engines that came before. The performance and durability are a direct result of the untold miles logged on the V-Twin since 1909, and the proud heritage that comes from a century’s worth of commitment to life on two wheels.

Twin Cam 103™ Engine Innovation

Fire up the Twin Cam 103™ engine and feel the low-end torque unleashed. Thanks to the lightweight piston design, delivery of the added power is more refined than ever. Then put your foot on the shifter and feel how the engine and Six-Speed Cruise Drive® transmission were designed to work together. Six speeds. A strong driveline and strong internal parts. Low routine maintenance. And a low cruising rpm couldn’t feel better.

Pure Harley-Davidson Styling

Feast your eyes on the Twin Cam 103™ engine and there’s no mistaking its roots. This is authentic Harley-Davidson style through and through with an attention to detail you won’t find from any other motorcycle company. Black powder-coated heads and cylinders are highlighted by machined cooling fin tips and chrome rocker covers. It’s a jewel machined out of metal. Pure. Dripping with power. From the classic edge of the cooling fins to the clean lines of cases and covers—the Twin Cam 103™ engine makes an ironclad statement about holding on to what’s right and staying true to what satisfies.

Six-Speed Cruise Drive®

You want a ride that rumbles—not begs for mercy—when you lean on it a little. The Six-Speed Cruise Drive® transmission provides smooth, quiet shifting and reduces engine speed on the highway, so you get a better match between engine turnover and road speed. And the Isolated Drive System makes acceleration flow in a smooth, steady stream from your wrist right down to the pavement. It’s a rare ride when a bike responds like this, and a low growl goes a long way when you’re opening up the road ahead.

Four-Point Engine Isolation System

Just get that Big Twin idling and feel the difference—there’s almost nothing to feel. Our four-point rubber engine isolation system perfects the delicate balance of shake, rattle and ride, keeping the powerful engine’s vibrations from getting to you, for a smooth, comfortable ride mile after mile.

Twin Cam 103™ Engine Power

Live your ride to the power of 103. The air cooled Twin Cam 103™ Harley Davidson® engine delivers more stump pulling torque, while its Electronic Sequential Port Fuel Injection jetting gives crisp, lively throttle reaction. It’s a performance punch that you’ll appreciate when passing, climbing hills, or rolling with luggage packed or a passenger in back—all under that signature Motor Company rumble. And it comes at lower cruising rpm, so you ride more smoothly, with less engine vibration and better highway fuel economy.

Harman/Kardon® Advanced Audio System

Naturally, the king of the road gets some royal extras. The premium four-speaker, 20-watt per channel Harman/Kardon®audio system boasts great sound for booming down the boulevard and highway, and, yeah, it might as well go to 11. It’s loud, proud and comes with AM/FM receiver and accommodates a CD or MP3 player. Riding free just wouldn’t be the same without the right soundtrack.

High Output Accessory Connector

Harley-Davidson® touring means maximum comfort in all conditions and the capacity to add whatever enhances and personalizes your ride. The high output charging system provides an electrical capacity robust enough for your add-ons: heated vests, heated seats, heated handgrips, lights to showcase the engine, you name it. So if you’re hell-bent on two-wheeling it, we make sure you’ve got the juice to do it your way.

Cruise Control

If you’re ready to take touring to the next level, the standard cruise feature will help you settle in for the long haul. Get the comfort of the cruise without the cables cluttering up your handlebar. Our electronic throttle control technology makes it possible to have the best of both worlds.

Anti-Lock Brakes (Optional)

When it comes to the Ultra Classic® Electra Glide® with optional ABS, “stopping power” has a double meaning. The components of our ABS are tastefully hidden within the wheel hub, so you’ll still turn heads with a clean, streamlined design. More importantly, though, you get certainty in the saddle knowing your bike’s going to behave when you need it. Offered as a part of the “Security Package” (which includes the H-D® Smart Security System).

H-D® Smart Security System (Optional)

The factory installed next-generation security system features a hands-free fob that automatically arms and disarms the vehicle electronic security functions as you approach and walk away from the bike. Stick the fob on your ignition key ring and let it do all the work. It’s this attention to details and security that make Harley-Davidson® motorcycles unique. Offered as a part of the “Security Package” (which includes Anti-Lock Braking).

Artfully Hidden Technology

Harley-Davidson leverages the latest in technology without compromising style and function. That means we hide electronics. The whole wiring harness is skillfully routed behind the jewels of the bike—the tank, engine and all the other eye-popping features you want to see. It’s just another way The Motor Company goes the extra mile to give its bikes that premium, top-of-the-line fit and finish.

Intuitive Controls

Hand controls on a Harley-Davidson® motorcycle are incredibly intuitive. The turn signals are self-canceling and, based on the speed and angle of the motorcycle, they know how long to stay on. Engaging the controls quickly becomes second nature so you can focus less on turning off your signal and more on basking in the freedom of the ride.

Dunlop® Multi-Tread™ Tires

The 180mm back tire is engineered to do more than fill out the rear fender and put a bigger patch of rubber on the road. Dunlop® Multi-Tread™ technology uses harder compounds at the center and softer on the sides for a tire that still knows how to knuckle-down on corners. Perfect for making this bike agile on every curvy stretch of road. And the way it feels going through an abrupt off-camber turn will put a grin on your face that’ll last to the next state line.

Brembo® Brakes

Confidence. Control. High-performance dual disc Brembo® brakes offer consistent stopping power at all speeds. The 4-piston front and rear caliper with dual front rotor brake system is state of the art and top of the line. It’s just another way The Motor Company puts a high level of detail into their bikes to give you peace of mind throughout your journey.

Air-Adjustable Suspension

With air-adjustable suspension that comes standard, you can dial in your ride to accommodate heavier or lighter payloads, battle unexpected road conditions or simply set it to how you like to roll. The lighter the load, the softer you can go by decreasing the air pressure a bit, or increase the air pressure for a more firm ride. A convenient air valve is located between the saddlebag and rear fender for quick adjusting. It’s all about rider and passenger comfort and setting your bike to fit your taste—the easy way.

Frame and Swingarm

Change everything. Lose nothing. Our complete redesign of the frame and swingarm has only been around since 2009, and it’s already changing the game entirely. Stamped and welded parts and bent tubing were ditched for strong castings and forgings—just like the legendary Harley-Davidson frames of years past. The result is a frame that rides rigid and owns the corners. The acceleration is strong. The ride is tight and responsive. And the feel on the road is confidence inspiring.

Legendary Low Speed Maneuverability

At The Motor Company, we believe you don’t make innovative, next-generation Touring motorcycles without shedding a little blood, sweat and tears. And when you get it right—like with the low speed maneuverability on our Touring models—all the other upgrades in the ride just combine to create a big-boned bike that is light and nimble while carving up tight turns or if you find yourself riding in a parade or group ride.

Tuned to Be Ridden

Harley-Davidson® motorcycles are different than any other bike out on the road. There’s a balance to them. The steering, the maneuverability—it’s all in concert. And each Harley-Davidson® model is tuned differently to create a unique riding experience for each individual no matter which bike they swing their leg over. Let’s face it, we didn’t get to where we are by being like everyone else.

Vented Fairing Lowers

Don’t be a prisoner to the elements outside—take control of your ride with the color-matched fairing lowers on the Ultra Classic® Electra Glide® model. Pop them off for a cooler ride or leave them fixed to fight the wind tooth and nail. When it comes to Touring, Harley-Davidson® is all about optimal comfort every time you hunt down a horizon.

Full-Length Footboards & Toe/Heel Gear Shifts

Your boots were made for riding—any way you see fit. Our full-length footboards boast a time-tested, tried-and-true design and rubber isolation for a comfortable ride, while the height-adjustable passenger boards add another level of customizable comfort for your riding partner. And for shifting gears, you can use either the traditional toe-shift or the even easier, more convenient heel-shift. It might take a few rides, but once you’ve gotten used to the smooth shifting rhythm, you’ll never give it up.

Wide Set Handlebar

Classic style and maximum comfort. That’s the perfect balance of the wide set handlebars that come standard on the Ultra Classic® Electra Glide® model. They’re designed to keep you comfortably propped in a commanding position while making sure your neck muscles stay calm and relaxed mile after mile, state after state. Durable stainless steel insures the structural rigidity you expect from a Harley-Davidson® motorcycle with the deep, lustrous finish you desire.

2-1-2 Exhaust

Welcome to the crossroads of pure Harley-Davidson style and smart engineering. The 2-1-2 exhaust helps direct heat away from the rider and passenger, while providing ample performance, and signature Harley-Davidson rumble, and big style.

Engine Idle Temperature Management Strategy

Our motorcycles are built to be ridden. A lot. So that means that rider comfort is top of mind. Always. With the Engine Idle Temperature Management Strategy (EITMS) feature, the motorcycle automatically cuts fuel and fire from the rear cylinder when idling, which helps reduce engine heat felt by rider and passenger. Best part, you can easily turn this feature on or off yourself whenever the bike is stopped.

Seat Engineering and Design

The seat is home for Harley-Davidson® motorcycle riders. They want a seat that has unique style without sacrificing comfort. Because of that, Harley-Davidson invests a lot of time in researching, designing and testing seats so that every bike has just the right saddle.





2013 Harley-Davidson FLHTCU Ultra Classic Electra Glide – USA Specifications/Technical Details
US MSRP Price: Custom Color Option $19,899 USD

DIMENSIONS
Length 98.6 in. (2504 mm)
Overall Width 38 in. (965 mm)
Overall Height 61 in. (1549 mm)

Seat Height:
o Laden2 27.3 in. (693 mm)
o Unladen 29.1 in. (739 mm)
Ground Clearance 5.1 in. (130 mm)
Rake (steering head) 26°
Fork Angle 29.2°
Trail 6.69 in. (170 mm)
Wheelbase 63.5 in. (1613 mm)

Tires (Dunlop® Harley-Davidson® Series, bias narrow whitewall):
o Front – D408F NW 130/80B17 65H
o Rear – D407 NW 180/65B16 81H
Fuel Capacity 6 gal. (22.7 L) (warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 4 qts. (3.8 L)
Transmission Capacity 1 qt. (.95 L)
Primary Chain Case Capacity 1.4 qts. (1.3 L)

Weight:
o As Shipped 882 lbs. (400 kg)
o In Running Order 911 lbs. (413 kg)
o Gross Vehicle Weight Rating 1360 lbs. (617 kg)
o Gross Axle Weight Rating
o Front 500 lbs. (227 kg)
o Rear 927 lbs. (420 kg)
Luggage Capacity
o Volume 4.52 cu. ft. (0.1266 m3)

ENGINE
Engine Air-cooled Twin Cam 103™ with Integrated Oil-Cooler
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.875 in. x 4.38 in. (98.4 mm x 111.3 mm)
Displacement 103 cu. in. (1690 cc)
Compression Ratio 9.6:1
Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass, washable
Lubrication System Pressurized, dry-sump with oil cooler

DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/68 ratio
Clutch Multi-plate, wet
Transmission 6-speed Cruise Drive®
Gear Ratios (overall): U.S.
o 1st 9.593
o 2nd 6.65
o 3rd 4.938
o 4th 4
o 5th 3.407
o 6th 2.875

CHASSIS
Frame Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded
Front Forks 41.3 mm telescopic, triple circuit damping
Rear Shocks Air-adjustable

Wheels4 (Tubeless Chrome Aluminum Profile Laced option): Black, 28-spoke Cast Aluminum
o Front 17 in. x 3 in. (432 mm x 76 mm)
o Rear 16 in. x 5 in. (406 mm x 127 mm)

Brakes:
o Caliper Type 32 mm, 4-piston fixed front and rear
o Rotor Type (diameter x width): Patented, fixed rotors
o Front (dual) 11.81 in. x .2 in. (300 mm x 5.1 mm)
o Rear 11.81 in. x .28 in. (300 mm x 7.1 mm)
o Anti-lock Braking System Optional

Suspension Travel:
o Front Wheel 4.6 in. (117 mm)
o Rear Wheel 3 in. (76 mm)
Engineered for Sidecar Use Available

PERFORMANCE
Engine Torque5 (per J1349):
o North America 100 ft. lbs. @ 3250 RPM (135 Nm @ 3250 RPM)
Lean Angle (per J1168):
o Right 33°
o Left 31°
Fuel Economy6
(EPA urban/highway test) 42 mpg (5.6 L/100 km)

ELECTRIC
Battery (per Battery Council International Rating) Sealed, maintenance-free, 12V, 28-amp/hour, 370 cca
Charging Three-phase, 50-amp system (585W @ 13V, 2000 RPM, 650W max power @13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
o Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
o Tail/Stop Lights 8W/28W (5W/21W)
o Turn Signal Lights 28W (21W) self-canceling
o Indicator Lamps: High beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system7 (optional), 6-speed, low fuel warning, ABS (optional)
o Auxiliary Lamps (except where prohibited by law) Two @ 35W

WARRANTY
Warranty8 24 months (unlimited mileage)
Service Interval9 First 1000 miles (1600 km), every 5000 miles (8000 km) thereafter

1 Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (V-Rod® models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Recommended 91 octane or higher fuel (R+M)/2.
4 Standard and optional wheels may vary by country and region.
5 Values shown are nominal. Performance may vary by country and region.
6 The combined fuel economy numbers were derived using a combination of estimated city and highway values. Fuel economy estimates are derived from US EPA exhaust emission certification data on a sample motorcycle from the corresponding family under ideal laboratory conditions. Your actual fuel economy will vary depending on your personal riding habits, road and driving conditions, vehicle condition and maintenance, tire pressure, vehicle configuration (parts and accessories), and vehicle loading (cargo, rider and passenger weight). Break-in mileage may vary.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 See motorcycle owner’s manual for complete details.
9 Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals. See Owner’s Manual for full details.








2013 Harley-Davidson FLHTCU Ultra Classic Electra Glide – Canadian Specifications/Technical Details
Canada MSRP Price: Vivid Black $24,759; Color Option $25,429; Two-Tone Option $25,939 CDN

DIMENSIONS
Length2,515 mm
Seat Height, Unladen 6740 mm
Ground Clearance150 mm
Rake (steering head) (deg)26
Trail170 mm
Wheelbase1,625 mm
Tires, Front SpecificationNW 130/80B17 65H
Tires, Rear SpecificationNW 180/65B16 81H
Fuel Capacity22.7 l
Oil Capacity (w/filter)3.8 l
Weight, As Shipped400 kg
Weight, In Running Order413 kg
Luggage Capacity -Volume0.127 m3
Luggage Capacity -WeightN/A

ENGINE
Engine 1Air-cooled Twin Cam 103™ with Integrated Oil-Cooler
Bore98.4 mm
Stroke111.1 mm
Displacement1,690 cc
Compression Ratio9.6:1
Fuel System 3Electronic Sequential Port Fuel Injection (ESPFI)

DRIVETRAIN
Primary DriveChain, 34/46 ratio
Gear Ratios (overall) 1st9.593
Gear Ratios (overall) 2nd6.65
Gear Ratios (overall) 3rd4.938
Gear Ratios (overall) 4th4.0
Gear Ratios (overall) 5th3.407
Gear Ratios (overall) 6th2.875

CHASSIS
ExhaustChrome, 2-1-2 dual exhaust with tapered mufflers
Wheels, Optional Style Type 8Chrome Aluminum Profile Laced
Wheels, Front Type 8Black, 28-spoke Cast Aluminum
Wheels, Rear Type 8Black, 28-spoke Cast Aluminum
Brakes, Caliper Type32 mm, 4-piston fixed front and rear
Parking BrakeN/A

PERFORMANCE
Engine Torque Testing MethodJ1349
Engine Torque 2135 Nm
Engine Torque (rpm)3,250
Lean Angle, Right (deg.)33
Lean Angle, Left (deg.)31
Fuel Economy: Combined City/Hwy 55.6 l/100 km

PRICING
Vivid Black $24,759
Color Option $25,429
Two-Tone Option $25,939
Wheel Option $530
Security Package (Security and ABS) $1,360

ELECTRIC
Lights (as per country regulation), Indicator Lamps 7High beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system (optional), 6-speed, low fuel warning, ABS (optional)
GaugesFairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light; cruise control indicator light Tachometer with fuel, voltage, oil pressure and ambient air temperature gauges

1Recommended 91 octane or higher fuel (R+M)/2.
2Values shown are nominal. Performance may vary by country and region.
3Standard and optional fuel systems may vary by country.
4See motorcycle owner’s manual for complete details.
5Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6Measurement reflects 180 lb. (81.7 kg) operator weight.
7North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8Standard and optional wheels may vary by country and region.





2013 Harley-Davidson FLHTCU Ultra Classic Electra Glide – UK/Europe Specifications/Technical Details
UK/European MSRP Price: Vivid Black £19,995; Color Option £20,295; Two-Tone Option £20,645; Custom Color Option £20,795 GBP

DIMENSIONS
Length2,515 mm
Seat Height, Unladen 5740 mm
Ground Clearance150 mm
Rake (steering head) (deg)26
Trail170 mm
Wheelbase1,625 mm
Tires, Front SpecificationNW 130/80B17 65H
Tires, Rear SpecificationNW 180/65B16 81H
Fuel Capacity22.7 l
Oil Capacity (w/filter)3.8 l
Weight, As Shipped400 kg
Weight, In Running Order413 kg

ENGINE
Engine 2Air-cooled Twin Cam 103™ with Integrated Oil-Cooler
Bore98.4 mm
Stroke111.1 mm
Displacement1,690 cc
Compression Ratio9.6:1
Fuel SystemElectronic Sequential Port Fuel Injection (ESPFI)

DRIVETRAIN
Primary DriveChain, 34/46 ratio
Gear Ratios (overall) 1st9.593
Gear Ratios (overall) 2nd6.65
Gear Ratios (overall) 3rd4.938
Gear Ratios (overall) 4th4.0
Gear Ratios (overall) 5th3.407
Gear Ratios (overall) 6th2.875

CHASSIS
ExhaustChrome, 2-1-2 dual exhaust with tapered mufflers
Wheels, Optional Style Type 7Chrome Aluminum Profile Laced
Wheels, Front Type 7Black, 28-spoke Cast Aluminum
Wheels, Rear Type 7Black, 28-spoke Cast Aluminum
Brakes, Caliper Type32 mm, 4-piston fixed front and rear

PERFORMANCE
Engine Torque Testing MethodEEC/95/1
Engine Torque 3134 Nm
Engine Torque (rpm)3,500
Lean Angle, Right (deg.)33
Lean Angle, Left (deg.)31
Fuel Economy: Combined City/Hwy5.6 l/100 km

PRICING
Vivid Black £19,995
Color Option £20,295
Two-Tone Option £20,645
Custom Color Option £20,795

ELECTRIC
Lights (as per country regulation), Indicator Lamps 6High beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system (optional), 6-speed, low fuel warning, ABS (optional)
GaugesFairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light; cruise control indicator light Tachometer with fuel, voltage, oil pressure and ambient air temperature gauges

1Availability of colours may vary from dealer to dealer and is subject to change without further notice.
2Recommended 95 octane or higher fuel (R+M)/2.
3Values shown are nominal. Performance may vary by country and region.
4See motorcycle owner’s manual for complete details.
5Measurement reflects 81.7 kg operator weight.
6Security system includes immobiliser and siren.
7Standard and optional wheels may vary by country and region.






2013 Harley-Davidson FLHTCU Ultra Classic Electra Glide – Australia Specifications/Technical Details
Australian MSRP Price: $TBA AUD

More information to follow shortly





Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.








2013 Harley-Davidson FLHTCU Ultra Classic Electra Glide – Press Release

NEW MODELS AND NEW OPTIONS FROM HARLEY-DAVIDSON FOR 2013
110th Anniversary Editions, Hard Candy Custom Styling, and a Restyled Street Bob

MILWAUKEE (August 20, 2011) – Harley-Davidson rolls into its 110th model year with a line of authentic American motorcycles that includes 110th Anniversary Editions of select Harley-Davidson® motorcycle models and a restyled Dyna® Street Bob® model. Harley-Davidson Custom Vehicle Operations (CVO) offers two new models, the CVO Breakout , a high-performance Softail® model with exciting new finish options, and the CVO Road King®, fitted with an innovative vented windshield and high-output audio system.

Also new for 2013, Harley-Davidson launches Hard Candy Custom , a styling movement rooted in themes first seen in the chopper era of the late 1960s that embraces dazzling metal flake paint, brilliant chrome, and styling details in accessories, gear and apparel. Hard Candy Custom elements include “big flake” paint finishes, three of which will be selectively offered as a solid-color option on five Harley-Davidson production motorcycles for 2013.

H-D1 Factory Customization expands with the Street Bob joining the 1200 Custom as Harley-Davidson models in the web-based program that allows customers to select factory-installed options in more than 2,000 combinations, build a bike on the screen, and then order it through an authorized Harley-Davidson dealer.

More than a century of experience, knowledge and riding passion lies behind each 2013 Harley-Davidson.

Highlights of the 2012 Harley-Davidson line include:

Ten Harley-Davidson models are offered as 110th Anniversary Editions, each serialized and featuring exclusive paint and commemorative solid bronze fuel tank badges. Production will vary by model and will be strictly limited to ensure exclusivity. These models come with all available factory-installed options as standard equipment. (See separate release for more details on the 110th Anniversary Editions.)

The Harley-Davidson® Street Bob® gets a tougher profile for 2013 with new blacked-out triple clamps and powertrain, and a chopped rear fender with side-mounted license plate and stop/turn/tail lights. This rowdy Dyna bobber features a solo seat and mini-ape handlebar mounted on new risers that make it easier to customize the Street Bob. New paint options include Hard Candy Custom metalflake and a scalloped two-tone option. (See separate release for more details on the 2013 Street Bob.)

The Street Bob serves as a great starting point for customization, and now along with the 1200 Custom it can be personalized through H-D1 Factory Customization with options selected by the customer using the online Bike Builder on Harley-Davidson.com, and installed as the motorcycle is assembled by the Harley-Davidson Motor Company. By choosing from different wheels, paint and engine finishes, the customer can dramatically alter the look of the motorcycle. Different combinations of foot-control location, seat choices and handlebar can be selected to adjust the fit of the motorcycle to rider stature.

Hard Candy Custom embraces a trend that’s reemerged from garages around the globe. Now the sparkle of Hard Candy Big Red Flake, Hard Candy Lucky Green Flake and Hard Candy Coloma Gold Flake can be ordered as Original Equipment paint and serve as the foundation for personal customization. At least one Hard Candy Custom color will be offered on these Harley-Davidson motorcycle models: Seventy-Two , Street Bob®, Blackline®, Softail® Deluxe, and Forty-Eight . New and recently introduced Genuine Motor Accessory and Harley-Davidson® MotorClothes® items extend the Hard Candy Custom theme. (See separate release for more details on Hard Candy Custom.)

The 2013 CVO series of limited-production premium custom motorcycles features the new CVO Breakout®, a bold Softail® model that takes production motorcycle finishes to a new level with two paint schemes that feature hand-polished steel sections on the fuel tank and fenders. The CVO Road King® offers the first factory-installed Road King® audio system, and the new detachable Vented Wind Splitter windshield. The super-premium touring CVO Ultra Classic® Electra Glide® and shark-nose CVO Road Glide® Custom bagger return with new features for 2013. (See separate release for more details on the 2013 CVO line.)

The versatile Harley-Davidson® Sportster® line includes five models, plus the Sportster® 1200 Custom Anniversary Edition. New colors and graphics are offered on all Sportster® models.

The traditional “hard tail” lines of the Harley-Davidson Softail® platform are offered on six models, including the Softail® Slim , a back-to-basics 1950’s-style bobber introduce mid-year 2012. The 2013 Fat Boy® now features Mirror Chrome Aluminum Bullet Hole Disc wheels as standard equipment. The Softail® line also includes Heritage Softail® Classic Anniversary Edition and the Fat Boy® Lo Anniversary Edition.

Eight Harley-Davidson® Touring models, from the slammed-and-trimmed Street Glide® to the fully equipped Electra Glide® Ultra Limited, are ready to tackle the long road with fresh color and graphics options. The Road King® Anniversary Edition and Electra Glide® Ultra Limited Anniversary Edition are available in limited quantities for 2013.
The smooth-handling 2013 Dyna® line includes the re-styled Street Bob and four more models, plus the Super Glide® Custom Anniversary Edition.

The aggressive Harley-Davidson® V-Rod® power-cruiser line features the Night Rod® Special and V-Rod Muscle®, each available in new colors for 2013.

Riders looking for a Trike option with Harley-Davidson quality can turn to the Tri Glide® Ultra Classic®, also available Tri Glide® Ultra Classic® Anniversary Edition to celebrate a milestone.

About Michael Le Pard 11009 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle, the World’s Largest Motorcycle Site with over 425 million readers since 1999. Total Motorcycle is my pride and joy and being able to reach 425 million people has been incredible and I could not have done it without the support of my visitors, readers and members...thank you so much! We are all making a difference to millions of riders worldwide.

Be the first to comment

Leave a Reply
