2016 Victory Vision

Back to 2016 Victory Motorcycle Model Review Page

Click photos to enlarge. Our big, clean bike pics make great desktop wallpaper.

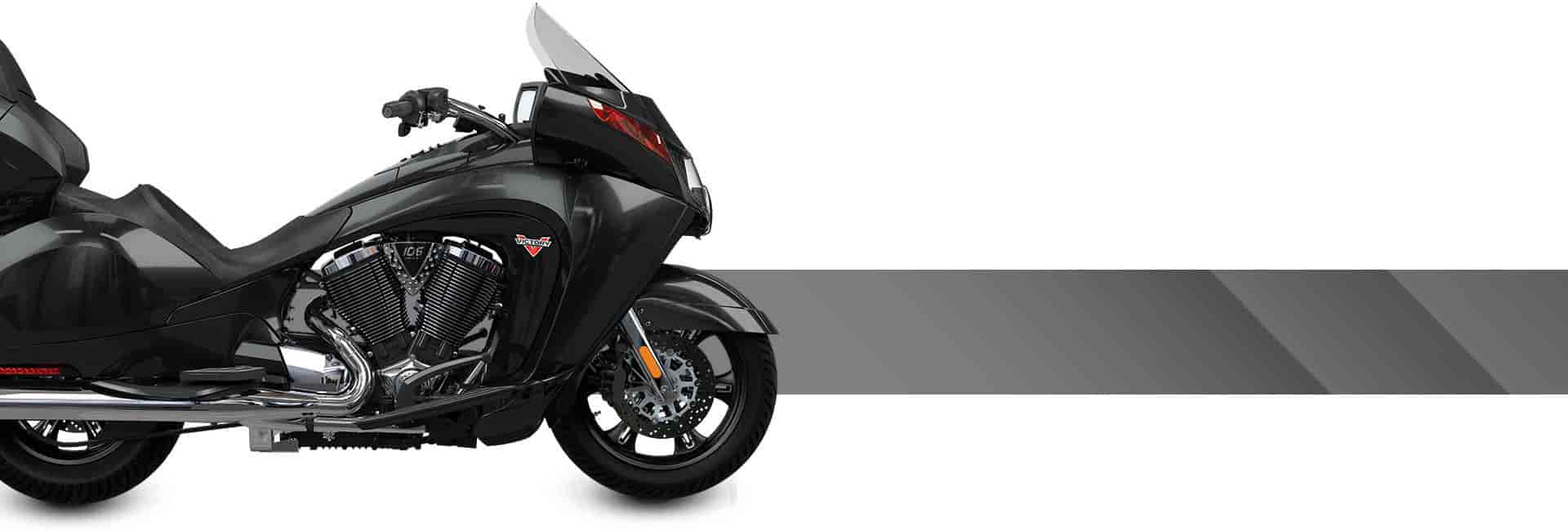

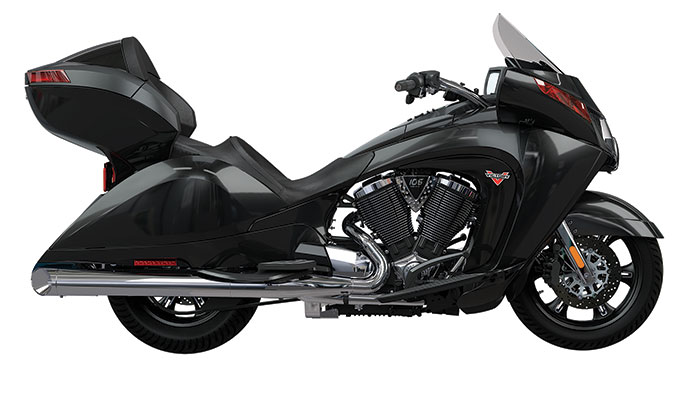

2016 Victory Vision
2016 Victory Vision

2016 Victory Vision
2016 Victory Vision



2016 Victory Vision Review

2016 Victory Vision on www.Totalmotorcycle.com

Let the odometer do the talking….

No touring bike on the road makes a journey more effortless. Built exclusively to meet the demands of both rider and road, this machine delivers luxury touring down to the smallest detail. Whether you’re gripping the handlebars or cruising down the highway as a passenger, all it takes is one ride to feel what no other touring bike can deliver.

The Vision’s modern design broke the mould for American touring models immediately on its release. The bold and flowing design wraps the rider in unparalleled comfort. The aerodynamic bodywork and frame-mounted fairing featuring a power windshield gives the rider a smooth pocket no matter what speed they ride. And the cast aluminium chassis carves through corners and smoothens out highways no matter how long the trip. This year the Vision is available in Gloss Black.

” 106 Cubic Inch Freedom® V-Twin (1731cc)
” 137Nm at 2,500rpm
” 6-speed overdrive transmission
” 22.7 litre tank
” Two-Up seating with dual-range heated seats
” Passenger backrest
” 673mm seat height
” 18 x 3.5″ front wheel with a Dunlop D418F Elite 3 tyre
” 16 x 5.0″ rear wheel with a Dunlop D418 Elite 3 tyre
” 393kg dry weight
” Linked ABS standard





2016 Victory Vision www.Totalmotorcycle.com Key Features

Heated Handgrips & Individual Heated Seats

Ride in any condition. Heated handgrips and seats with passenger specific settings will keep you rolling year round.


29 Gallons of Trunk & Saddlebag Space

It’s a big country. Pack for any climate with 29 gallons of trunk space, enough room for two no matter where adventure takes you.



Confidence-Inspiring Linked ABS Braking

Put slippery situations in the rearview with linked front and rear wheel ABS. Stopping power and traction are automatically controlled to maximize your reaction time.


Cruise Control

The open road is most enjoyable when your throttle hand isn’t cramping. Set the cruise control, and give your right hand a much deserved rest.





2016 Victory Vision www.Totalmotorcycle.com Features and Benefits


106 CUBIC-INCH FREEDOM® V-TWIN The Victory® Freedom® 106/6 V-Twin is a 106-ci powerplant that provides Victory Vision Tour riders with 101 ft-lb of torque. Smooth, powerful, and efficient, it’s a counter-balanced and fuel-injected engine that delivers confidence-inspiring performance for touring riders who like to lead, not follow.


6-SPEED OVERDRIVE TRANSMISSION Every gear shift is smooth and defined with the Victory 6-speed transmission with true overdrive. It syncs up with the outstanding power of the Victory Freedom® 106/6 V-Twin and its helical-cut gears ensure that each shift is sure and smooth. During interstate cruising, 6th gear overdrive drops the RPMs and delivers the smooth ride you’ve been looking for, and to enhance fuel mileage and extend the range of a tank of fuel.


HEATED HANDGRIPS & INDIVIDUAL HEATED SEATS Extend the riding season with the heated handgrips and heated seats. There’s a choice of Hi & Lo settings for the heated handgrips, and the heated seats have individual driver and passenger controls with Hi & Lo settings. You can add a month or more on both ends of the riding season with the flip of a switch.


29 GALLONS OF TRUNK & SADDLEBAG SPACE Integrated in the smooth-flowing lines of the Victory Vision Tour are convenient side storage compartments and a spacious trunk. These storage spaces combine to offer one or two riders ample space for their touring gear. The side compartments and trunk are weather-sealed and lockable. The trunk has an integrated, padded passenger backrest and dual audio speakers that combine with the fairing speakers for surround sound.


CONFIDENCE-INSPIRING LINKED ABS BRAKING Victory Vision Tour riders ride with confidence, knowing their stopping power includes the Victory Linked Anti-Lock Brake System. It monitors the wheels and when it senses compromised traction, it instantly and automatically provides braking for quick stopping under control.


CRUISE CONTROL Once you’re out on the open road, activate the cruise control to enjoy easy, relaxed cruising. This automotive-quality cruise control is easy to activate and set, and it reliably maintains the desired speed. To de-activate it, simply press “Off” or engage the clutch or brake.


POWER WINDSHIELD AND FULL-COVERAGE FRAME MOUNTED FAIRING With the power windshield, you manage airflow reaching the riders by raising and lowering the windshield with the push of a button. The frame-mounted fairing provides the ultimate in wind and weather protection and lets riders enjoy the ride in all conditions.


ULTRA-SMOOTH REAR SUSPENSION TRAVEL If you encounter a rough patch of road, the plush Victory Vision Tour rear suspension keeps the ride smooth and steady with 3.65” of travel. Keep the ride consistently smooth with the easy-adjust air shock. Consult the air pressure chart, adjust the air shock with a hand pump and enjoy the incredibly smooth ride – whether you’re riding solo or 2-up, with or without cargo on board.













2016 Victory Vision – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $20,999 USD


Specifications

ABS Not Equipped
Dry Weight 867 lbs / 393 kg
Displacement 106 ci / 1731 cc
Oil Capacity 5.0 qts / 4.73 ltr

ENGINE & DRIVETRAIN

Battery YTX20HL-BS/12 Volt 18 Amp Hour 310 CCA
Charging System 48 Amps Max Output
Compression Ratio 9:4:1
Cooling Air & Oil
Drive/Driven Clutch Wet Multi-Plate/Diaphragm Spring
Exhaust Dual-Large Bore Slash-Cut with Common Volume
Fuel System Electronic Fuel Injection with dual 45mm throttle body
Transmission/Final Drive Carbon Fiber Reinforced Belt
Transmission/Primary Drive Gear Drive with Torque Compensator
Transmission Type 6 Speed Overdrive/Constant Mesh
Valve Train SOHC – 4 Valves per Cylinder/Hydraulic Lifters & Cam Chain Adjusters
Bore x Stroke (mm) 101 x 108 mm
Engine Type Freedom 106/ 6 V-Twin

Suspension

Front Suspension Telescopic Fork/ 5.1″ (130mm)
Rear Suspension Single Monotube Air Adjustable Shock: 4.7″ (120mm) travel

Brakes

Brake System Type Linked w/ ABS
Front Brakes Dual 300 x 5mm/ Floating Rotor/ 3 Piston Caliper
Rear Brakes Single 300 x 5mm/ Floating Rotor/ 2 Piston Caliper

Tires / Wheels

Front Tires Dunlop D418F Elite 3
Front Wheel 18 x 3.5 in
Rear Tires Dunlop D418 Elite 3
Rear Wheel 16 x 5.0 in

DIMENSIONS

Fuel Capacity (Litres) 6.0 gal / 22.7 ltr
GVWR 1414 lbs / 642 kg
Ground Clearance 5.8 in / 148 mm
Rake/Trail 29.0° / 5.4 in / 137 mm
Seat Height 26.5 in / 673 mm
Wheelbase 65.7 in / 1670 mm
Overall Length (in./mm.) 106.4 in / 2702 mm

Features

Colors (Base) Gloss Black, Blue Fire Gloss









2016 Victory Vision – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $24,999 CDN


Specifications

ABS Not Equipped
Dry Weight 867 lbs / 393 kg
Displacement 106 ci / 1731 cc
Oil Capacity 5.0 qts / 4.73 ltr

ENGINE & DRIVETRAIN

Battery YTX20HL-BS/12 Volt 18 Amp Hour 310 CCA
Charging System 48 Amps Max Output
Compression Ratio 9:4:1
Cooling Air & Oil
Drive/Driven Clutch Wet Multi-Plate/Diaphragm Spring
Exhaust Dual-Large Bore Slash-Cut with Common Volume
Fuel System Electronic Fuel Injection with dual 45mm throttle body
Transmission/Final Drive Carbon Fiber Reinforced Belt
Transmission/Primary Drive Gear Drive with Torque Compensator
Transmission Type 6 Speed Overdrive/Constant Mesh
Valve Train SOHC – 4 Valves per Cylinder/Hydraulic Lifters & Cam Chain Adjusters
Bore x Stroke (mm) 101 x 108 mm
Engine Type Freedom 106/ 6 V-Twin

Suspension

Front Suspension Telescopic Fork/ 5.1″ (130mm)
Rear Suspension Single Monotube Air Adjustable Shock: 4.7″ (120mm) travel

Brakes

Brake System Type Linked w/ ABS
Front Brakes Dual 300 x 5mm/ Floating Rotor/ 3 Piston Caliper
Rear Brakes Single 300 x 5mm/ Floating Rotor/ 2 Piston Caliper

Tires / Wheels

Front Tires Dunlop D418F Elite 3
Front Wheel 18 x 3.5 in
Rear Tires Dunlop D418 Elite 3
Rear Wheel 16 x 5.0 in

DIMENSIONS

Fuel Capacity (Litres) 6.0 gal / 22.7 ltr
GCWR 1414 lbs / 642 kg
Ground Clearance 5.8 in / 148 mm
Rake/Trail 29.0° / 5.4 in / 137 mm
Seat Height 26.5 in / 673 mm
Wheelbase 65.7 in / 1670 mm
Overall Length (in./mm.) 106.4 in / 2702 mm

Features

Color / Graphics Gloss Black
Colors (Base) Gloss Black, Blue Fire Gloss








2016 Victory Vision – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £See Dealer GBP (On The Road inc 20% Vat)

Specifications

Dry Weight 867 Lbs / 393 Kg
Displacement 106 ci / 1731 cc

Engine

Battery 12 volts / 18 amp hours
Charging System 48 amps max output
Clutch Wet, multi-plate
Compression ratio 9.4 : 1
Cooling System Air / oil
Exhaust Split dual exhaust with crossover
Final Drive Carbon Fiber Reinforced Belt
Fuel Capacity 22.7 ltr
Fuel System Electronic Fuel Injection with dual 45mm throttle body
Primary Drive Gear drive with torque compensator
Transmission 6-speed overdrive constant mesh
Valve train Single overhead camshafts with 4 valves per cylinder, self-adjusting cam chains, hydraulic lifters
Bore x Stroke 101 x 108 mm
Engine Type 4-stroke 50° V-Twin

Suspension

Front Suspension Conventional telescopic fork, 46 mm diameter, 5.1 in / 130 mm travel
Rear Suspension Single, mono-tube gas, cast aluminum with rising rate linkage, 4.7 in / 120 mm travel, air adjustable

Brakes

Brake system type Linked with ABS Standard
Front braking system Dual 300mm floating rotors with 4-piston calipers
Rear braking system 300mm floating rotor with 2-piston caliper

Tires / Wheels

Front tire 130/70R18 Dunlop Elite 3
Front Wheel 18 x 3.5 in
Rear tire 180/60R16 Dunlop Elite 3
Rear Wheel 16 x 5.0 in

Chassis

Ground Clearance 5.8 in / 148 mm
GVWR 1414 lbs / 642 kg
Rake/trail 29.0° / 5.4 in / 137 mm
Seat Heigh 26.5 in / 673 mm
Wheelbase 65.7 in / 1670 mm
Length 106.4 in / 2702 mm
Lean Angle 31°
Oil capacity 4.73 ltr

Features

Colors Gloss Black




Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
