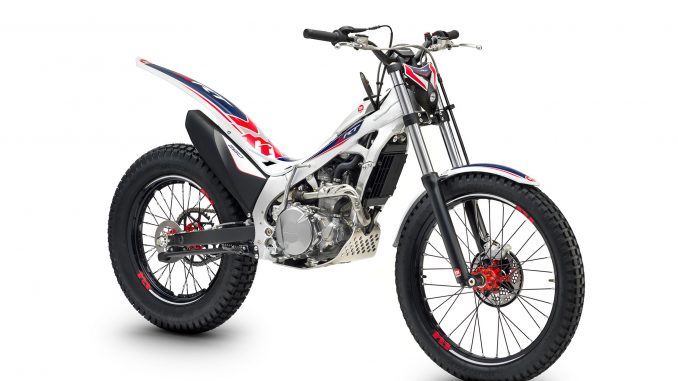

2018 Honda Montesa Cota 4RT260 Review on Total Motorcycle:

The 4RT260 is a cutting-edge trials bike, the ideal combination of Honda’s engine technology and Montesa’s world-championship trials experience. Responsive handling is provided by the lightweight aluminum frame and swingarm, along with high-quality suspension components and Dunlop tires. The 4RT260 boasts a unique removable seat to adapt to different riding applications, and it also has a convenient under-seat storage area.

In an age of electronic rider aids and MotoGP bikes that easily break 200 miles per hour, the Honda Montesa Cota 4RT260 and Cota 300RR Race Replica are a completely different way of experiencing the best of what motorcycling can offer. It’s a genius concept: Take Montesa’s legendary know-how when it comes to building world-championship trials bikes, combine that with a Honda engine, top it off with state-of-the-art suspension, and you get two of the best specialist motorcycles available in the world. Just ask trials rider Toni Bou, who used his Cota to win an incredible 20th World Championship (10 outdoor, 10 indoor), or Marc Freixa who won the AMA/NATC Moto Trials National Championship.

Check out these two great options: The Cota 4RT260 is a cutting-edge trials bike, the perfect combination of Honda’s engine technology and Montesa’s world-championship trials experience. Want to ride what the champions ride? Then check out the Cota 300RR Race Replica, with its 288cc engine. It’s even lighter than the feathery Cota 4RT260.

2018 Honda Montesa Cota 4RT260 Totalmotorcycle.com Key Features

2018 Honda Montesa Cota 4RT260 Totalmotorcycle.com Features and Benefits

Engine/Drivetrain
•Competition-ready, 259cc liquid-cooled, fuel-injected, single-cylinder four-stroke engine features a special crankcase decompression system that reduces engine braking, allowing even more control in challenging trials conditions.
•Close-ratio five-speed transmission.
•Optional HRC FI tuning kit allows customers to fine-tune the Programmed Fuel Injection (PGM-FI) and ignition maps to match riding conditions.

Chassis/ Suspension
•39mm TECH cartridge-type telescopic fork with preload and rebound adjustments and 6.9 inches of travel.
•Pro-Link R16V rear suspension damper with preload and rebound adjustments and 6.7 inches of travel.
•Wide, adjustable foot pegs provide maximum comfort and control.
•Hydraulic disc brakes with four-piston front and two-piston rear calipers.
•Slim tank and seat area for unrestricted movement.
•Consult owner’s manual for optional racing parts
•Meets current CARB and EPA emissions standards
•Specifications subject to change

2018 Honda Montesa Cota 4RT260 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ USD

ENGINE

Type      259cc liquid-cooled single-cylinder four-stroke

Valve Train          Unicam®, 4 valves

Bore x Stroke     78.0mm x 54.2mm

Compression Ratio          10.5:1

Induction             Programmed Fuel Injection (PGM-FI); 28mm throttle body

Ignition Electronically controlled digital transistorized

Starter  Kick

Transmission      Close ratio 5-speed

Clutch   Multiplate wet

Final Drive           #520 chain; 10T/41T

SUSPENSION

Front     39mm Tech cartridge-type telescopic fork w/ preload extension adjustments; 6.9 in. stroke

Rear       Pro-Link® system, R16V single shock absorber w/ preload extension adjustments; 6.7 in. stroke

BRAKES

Front     Single 185mm hydraulic disc w/ 4-piston caliper and sintered metal pads

Rear       Single 150mm hydraulic disc w/ 2-piston caliper and sintered metal pads

TIRES

Front     Dunlop 2.75-21

Rear       Dunlop 4.00-18

MEASUREMENTS

Rake (Caster Angle)         23°

Trail        63mm (2.48 in.)

Seat Height         25.6 in.

Ground Clearance            13.2 in.

Wheelbase         52.0 in.

Fuel Capacity     0.5 gal.

Color     White/Blue/Red

Curb Weight*    170.2 lbs.

*Includes all standard equipment, required fluids and full tank of fuel—ready to ride

Meets current CARB and EPA off-road emissions standards.

2018 Honda Montesa Cota 4RT260 – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ CDN

ENGINE

Type      259cc liquid-cooled single-cylinder four-stroke

Valve Train          Unicam®, 4 valves

Bore x Stroke     78.0mm x 54.2mm

Compression Ratio          10.5:1

Induction             Programmed Fuel Injection (PGM-FI); 28mm throttle body

Ignition Electronically controlled digital transistorized

Starter  Kick

Transmission      Close ratio 5-speed

Clutch   Multiplate wet

Final Drive           #520 chain; 10T/41T

SUSPENSION

Front     39mm Tech cartridge-type telescopic fork w/ preload extension adjustments; 6.9 in. stroke

Rear       Pro-Link® system, R16V single shock absorber w/ preload extension adjustments; 6.7 in. stroke

BRAKES

Front     Single 185mm hydraulic disc w/ 4-piston caliper and sintered metal pads

Rear       Single 150mm hydraulic disc w/ 2-piston caliper and sintered metal pads

TIRES

Front     Dunlop 2.75-21

Rear       Dunlop 4.00-18

MEASUREMENTS

Rake (Caster Angle)         23°

Trail        63mm (2.48 in.)

Seat Height         25.6 in.

Ground Clearance            13.2 in.

Wheelbase         52.0 in.

Fuel Capacity     0.5 gal.

Color     White/Blue/Red

Curb Weight*    170.2 lbs.

*Includes all standard equipment, required fluids and full tank of fuel—ready to ride

Meets current CARB and EPA off-road emissions standards.

2018 Honda Montesa Cota 4RT260 – Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
