2021 Honda CB1000R: MAXIMUM ATTITUDE!

Introducing the 2021 Honda CB1000R…

Neo Sports Café has evolved. Starting with the CB1000R; completely restyled, from the sleek headlight, to the newly redesigned aluminum subframe, with an individual and aggressive character. And for an even more hand-crafted look, the CB1000R Black Edition is the epitome of style through its individual design.

LEAN AND MEAN
The essence of motorcycling.

Now even more stylish and aggressively muscular, just a quick glance and you catch the burnished metal finishes that reflect the tradition of a hard-charging Café Racer.

Stripped back to bare essentials, this roadster is built for the pure pleasure of riding. The feeling, sensation and sound draw you in to a world of exhilarating, dynamic forward motion. And, after a ride, endless engineering details surrounding that four-cylinder engine build into a unique motorcycle form, holding your attention for hours.

Motorcycling has seen many shifts in riders’ expectations of their bikes – what they do, how they look and how they make them feel – over the last decade. And Honda has never been afraid to apply its technology, engineering and ‘what if…?’ imagination to create motorcycles that inhabit new spaces in the marketplace.

The CB1000R is one such bike. Introduced through a major model change in 2018, Honda’s development engineers re-assessed the hard-core streetfighter underpinnings of the previous model and, steered by retro-industrial minimalism, stripped everything back. The resulting machine, born under the banner of ‘Neo Sports Café’, was a new fusion of sport naked and bare-boned Café Racer inspirations.

It stood out from the crowd by moving away from the standard super sports-derived big naked formula, melding exhilarating function to a form that offered a radically fresh, visually stunning two-wheeled aesthetic. Combining more with less, the reborn CB1000R gave its rider a huge amount of usable engine performance, with the control of a super sports machine.

Exciting to ride, and fully capable of chasing much more focused machinery down on a twisting back road, from whichever way it’s approached – aesthetics, emotions, performance or technology – the CB1000R has proved itself a hard motorcycle to ignore.

Minor cosmetic updates for 2020 further enhanced its premium status. Now, for 2021, the CB1000R moves forward significantly, both in terms of style and rider engagement.





2021 Honda CB1000R Totalmotorcycle.com Key Features

Visually, the 2021 CB1000R’s lines are more aggressive, forward-set with shrink-wrapped new details like the exposed aluminium subframe, radiator shrouds and airbox covers, flowing in holistic, dynamic harmony. The headlight, too, evolves in shape and now slants back, while intricately crafted new wheels add to the engineering prowess on display.

While the chassis is unchanged the engine earns revised PGM-FI settings, smoothing power delivery, and EURO5 compliance. A new, full colour TFT instrument display offers Honda Smartphone Voice Control System, linking the rider to their smartphone function, and there’s also a USB charging socket under the seat.



The 2021 CB1000R will be available in the following colour options:

Candy Chromosphere Red

Mat Ballistic Black Metallic

Matt Beta Silver Metallic

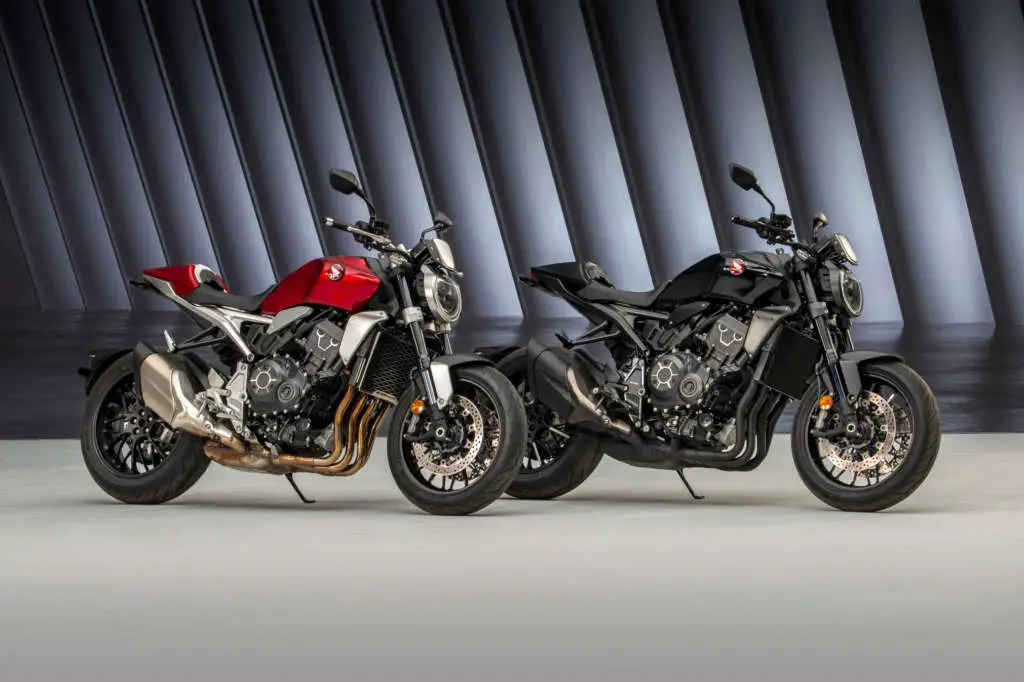

CB1000R and CB1000R Black Edition

The flagship of the Neo Sports Café range, the CB1000R, is updated with new, even more minimalist and purposeful ‘hunched forward’ styling. The signature round headlight, now housed in a teardrop-shaped surround, is now angled backwards, sending the eye back past the smaller side shrouds to the redesigned upward-slanting rear subframe. Intricately-crafted new seven spoke wheels add further aesthetic depth.

The new CB1000R Black Edition amplifies the more aggressive outlook even further, complementing the new lines with a hand-crafted ‘custom’ look, thanks to the Deep Graphite Black paint scheme and black headlight bezel, fly-screen, fork stanchions, radiator shrouds, airbox covers, exhaust and muffler details.

The CBR1000RR Fireblade-derived inline four-cylinder engine offers smoother delivery and response from revised fuel injection settings, and both CB1000R and CB1000R ‘Black Edition’ feature the Honda Smartphone Voice Control system, connecting to a new state-of-the-art full colour 5-inch TFT display.





2021 Honda CB1000R Totalmotorcycle.com Features and Benefits
  • Aggressive, ‘mass-forward’ stance heightened, with sleeker styling front to back, and new cast aluminium wheels
  • Honda Smartphone Voice Control System links the rider to their smartphone via Bluetooth and 5-inch colour TFT screen; USB charging socket under the seat

Honda’s ‘Neo Sports Café’ design aesthetic was created not only with a fondness for the past, but with an eye on the future as well, with ample scope for variations to the theme. As such, it is not standing still for 2021; the CB1000R takes the impressive styling statement made in 2018 as a springboard, and turns up the dial. The distinctive Neo Sports Café look is unmistakeable, but the drama is heightened and stance even more aggressively hunched forward, and diagonally down, around the striking, black-finished engine. New 7-spoke cast aluminium wheels add an intricate, head-turning finish.

From tip to tail the flow is harmonious: the instantly-recognisable round headlight now sits in a teardrop style surround, and lays backwards between the forks; the burnished aluminium radiator shrouds are much more compact and angled into the direction of travel, a design cue mirrored by the airbox covers.

The sinuous aluminium subframe, completely redesigned, is now finished in aluminium (rather than black) highlighting the stark minimalism of the rear. And not to miss an aesthetic detail, the number plate mount is also smaller.

While it may turn heads and stop traffic with its revised looks, the day-to-day practicalities have also not been overlooked, and real-world ease-of-use is improved with the new CB1000R. The instruments now comprise a 5-inch, full colour high-visibility TFT screen, which offers four types of speed/rpm display – according to rider preference – as well as fuel gauge/consumption, riding mode selection/engine parameters and Shift Up indicator. Management is via the buttons on the left handlebar.

Also incorporated into the interface is the new Honda Smartphone Voice Control (HSVC) system, which links the rider to their smartphone while on the move and allows voice management of phone calls, email, music and navigation. A helmet-mounted headset is needed and the smartphone connects to the dash via Bluetooth; management of HSVC is also possible using buttons the left switchgear. There’s also now a USB socket under the seat, for smartphone charging.

The CB1000R’s rear indicators have an Emergency Stop Signal (ESS) function. Under hard braking, the hazard lights flash to warn other road users a hard stop is in process. The indicators also auto-cancel; rather than using a simple timer, the system compares front and rear wheel speed difference and calculates when to cancel the indication relative to the situation.



Engine

  • CBR1000RR derived, four-cylinder engine with Throttle By Wire
  • Revised PGM-FI settings smooth delivery and response
  • The engine is now EURO5 compliant

The CB1000R’s 998cc DOHC four-cylinder engine provides a healthy dose of both power and torque: 107 kW @ 10,500rpm and 104Nm @ 8,250 pm. Bore and stroke are set at 75mm x 56.5 mm with compression ratio 11.6:1. The redline begins at 11,500rpm and the rev-limiter cuts in at 12,000rpm; the only changes for 2021 are optimised PGM-FI settings – smoothing power delivery and improving response – and EURO5 compliance.

This engine is tuned to deliver its torque with a characteristic ‘ramp’ in the 6-8,000rpm range, where it bulges significantly, generating an exciting and engaging riding experience. It’s also a useful aid for rapid roll-on acceleration in real-world overtaking conditions.

The airbox, ducting and air filter present a smooth route for airflow into the engine, reducing pressure loss all the way from the outer ducts; a 44mm diameter throttle body feeds air/fuel mixture into large diameter inlet ports and carefully-shaped combustion chambers. Inlet valve lift is set at 8.3mm, exhaust 8.1mm. The pistons are constructed from forged aluminium.

Short gear ratios ensure exhilarating acceleration through the gears between 30-130km/h. The assist/slipper clutch is super-light and helps manage hard, rapid downshifts.

The exhaust adds to the CB1000R’s mid-range muscle and light weight. It’s a 4-2-1 design, feeding via 4 short catalysers into a main chamber, which then feeds a dual chamber muffler. The exhaust note has been tuned internally, meaning that as the revs rise past 5,500rpm it takes on a significantly deeper, more raw tone.

For EURO5 compliance, the 02 lambda exhaust sensors have been replaced with Linear Air Flow (LAF) sensors in the downpipes to allow for much more accurate measurement of the spent gases. The engine returns fuel efficiency of 17.1km/L.



Engine electronics

  • Three default rider modes plus USER customisation option
  • Three levels of Power, Engine Brake and Honda Selectable Torque Control

Throttle By Wire (TBW) allows the rider maximum control over the CB1000R’s powerful engine via 3 default riding modes plus 1 USER mode, managed between the left handlebar and the TFT screen.

There are 3 levels of Engine Power (P), Engine Brake (EB) and Honda Selectable Torque Control (HSTC) available; HSTC can also be switched off. The riding modes offer different combinations of each parameter.

RAIN mode employs the lowest Power setting for the least aggressive power delivery, medium amount of EB and high HSTC. The lower levels of power and torque delivery are focused on the first 3 gears.

STANDARD mode uses the middle setting for Power, HSTC and EB. It softens the power delivery a little out of first and second gear, and uses a power delivery just below that of SPORT mode, with reduced torque at partial throttle openings.

SPORT uses the highest Power delivery and lowest levels of EB and HSTC to deliver 100% performance through all six gears, maximum torque and power at all throttle positions and minor intervention from HSTC.

USER mode allows the rider to choose between the 3 settings for each parameter and save the setting for future use.



Chassis

  • Strong, lightweight mono-backbone steel frame, adjustable Showa SFF-BP forks and rear monoshock
  • Dual, radial-mount four-piston calipers and 310mm floating front discs

The CB1000R’s chassis is unchanged for 2021 and employs a mono-backbone steel frame and uses split-tightening aluminium pivot plates to grip the signature 574.2mm single-sided swingarm. Rake is set at 25° with trail of 100mm. Wheelbase is 1455mm with wet weight of 212kg. Weight bias is 48.5%/ 51.5% front/rear.

A ‘natural crouch’ is afforded by the relaxed rider triangle of wide, tapered aluminium handlebars matched to an 830mm seat height. The flangeless fuel tank too, is broad-shouldered, but heavily cut-away to allow plenty of knee room.

The adjustable front fork is a Showa Separate Function Fork Big Piston unit (SFF-BP). It contains all the damping function in one leg, reducing weight, while delivering compliance, comfort and control across a broad range of riding conditions. The Showa rear shock, adjusts for spring preload, and rebound damping.

Up front, dual radial-mount four-piston front calipers bite 310mm floating discs, matched to a twin-piston caliper and 256mm rear, and 2-channel ABS. The new, intricately designed cast aluminium seven-spoke wheels exude bold elegance; the rear tyre (sitting on a 6-inch rim) is sized 190/55 ZR17, the front a 120/70 ZR17.





Accessories

A full range of Honda Genuine Accessories are available for the CB1000R, and include:



Tank pad

Fly screen

Pillion seat cover

Front fender cover

Alcantara pillion/rider seat

Bar ends

Engine cover

Radiator grill

Wheel stripes

Heated grips

Quickshifter

Luggage base

Rear seat bag

Tank bag









2021 Honda CB1000R – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ USD
Canada MSRP Price: $  CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)

TBA





2021 Honda CB1000R – Totalmotorcycle.com Canada Specifications/Technical Details

TBA







2021 Honda CB1000R – Totalmotorcycle.com European Specifications/Technical Details
ENGINE
Type Liquid-cooled DOHC In-line 4 cylinder
Valves per cylinder 4
Engine Displacement (cm³) 998cc
Bore and Stroke (mm) 75mm x 56.5mm
Compression Ratio 11.6:1
Max. Power Output 107kW @ 10,500rpm
Max. Torque 104Nm @ 8,250rpm
FUEL SYSTEM
Carburation PGM-FI
Fuel Tank Capacity 16.2 litres
Fuel Consumption 17.1km/litre
ELECTRICAL SYSTEM
Starter Electric
Battery Capacity 12V/8.6AH
DRIVETRAIN
Clutch Type Wet, multiplate clutch
Transmission Type 6-speed
Final Drive Chain
FRAME
Type Steel mono backbone
CHASSIS
Dimensions (LxWxH) 2120mm x 789mm x 1090mm
Wheelbase 1455mm
Caster Angle 25°
Trail 100mm
Seat Height 830mm
Ground Clearance 135mm
Kerb Weight 212kg
SUSPENSION
Type Front Showa SFF-BP USD fork
Type Rear Showa monoshock (axle travel 131mm)
WHEELS
Rim Size Front Cast aluminium
Rim Size Rear Cast aluminium
Tyres Front 120/70 ZR17
Tyres Rear 190/55 ZR17
BRAKES
ABS System Type 2 channel
Front 310mm double disc
Rear 256mm single disc
INSTRUMENTS & ELECTRICS
Instruments 5” TFT screen
Headlight LED
Taillight LED



All specifications are provisional and subject to change without notice.

# Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
