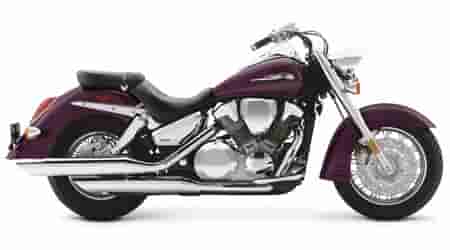

Total Motorcycle Website – 2005 Honda VTX1300S

– 2005 Honda Shadow VTX1300S

With style from a decade when cool meant cool, the VTX1300S boasts spoked wheels, deeply valanced front and rear fenders, a chrome-hooded headlight and a semi-sweptback handlebar. And with a big, wide seat, this cruiser is as comfortable as it is cool.

Features & Benefits

ENGINE

Engine Type 1312cc liquid-cooled 52-degree V-twin

Bore and Stroke 89.5mm x 104.3mm

Compression Ratio 9.2:1

Valve Train SOHC; three valves per cylinder

Carburetion Single 38mm CV

Ignition Digital with three-dimensional mapping, two spark plugs per cylinder

DRIVE TRAIN

Transmission Five-speed

Final Drive Shaft

CHASSIS / SUSPENSION / BRAKES

Front Suspension 41mm fork; 5.1-inch travel

Rear Suspension Dual shocks with five-position spring-preload adjustability; 3.7-inch travel

Front Brake Single 336mm disc with twin-piston caliper

Rear Brake Single 296mm disc with single-piston caliper

Front Tire 140/80-17

Rear Tire 170/80-15

DIMENSIONS

Rake 32.0 degrees

Trail 144mm (5.7 inches)

Wheelbase 65.7 inches

Seat Height 27.35 inches

Dry Weight 669.0 pounds

Fuel Capacity 4.8 gallons, including 1.0-gallon reserve

OTHER

Emissions California version meets CARB 2004 emissions standards.

Available Colors Black, Metallic Silver, Candy Red, Magenta Metallic

Model ID VT1300S

FACTORY WARRANTY INFORMATION

1 year Coverage of defects in materials and workmanship
