2006 Harley-Davidson TLE Ultra Sidecar

You are here: Home2006 Models — 2006 Harley-Davidson TLE Ultra Sidecar

2006 Harley-Davidson TLE Ultra Sidecar
Back to 2006 Harley-Davidson Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

2006 Harley Davidson TLE Ultra Sidecar

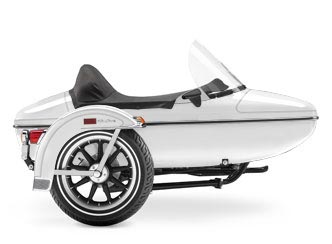

2006 Harley-Davidson TLE Ultra Sidecar
White Pearl

2006 Harley Davidson TLE Ultra Sidecar
2006 Harley-Davidson TLE Ultra Sidecar
Black Cherry

2006 Harley Davidson TLE Ultra Sidecar
2006 Harley-Davidson TLE Ultra Sidecar
Black Pearl

2006 Harley Davidson TLE Ultra Sidecar
2006 Harley-Davidson TLE Ultra Sidecar
Vivid Black

2006 Harley Davidson TLE Ultra Sidecar
2006 Harley-Davidson TLE Ultra Sidecar
Brandy Wine Sunglo

2006 Harley Davidson TLE Ultra Sidecar
2006 Harley-Davidson TLE Ultra Sidecar
Deep Cobalt

2006 Harley Davidson TLE Ultra Sidecar
2006 Harley-Davidson TLE Ultra Sidecar
Rich Sun Glo Blue

2006 Harley Davidson TLE Ultra Sidecar
2006 Harley-Davidson TLE Ultra Sidecar
Two-tone Black Cherry and Black Pearl

2006 Harley Davidson TLE Ultra Sidecar
2006 Harley-Davidson TLE Ultra Sidecar
Two-tone Chopper Blue and Brilliant Silver

2006 Harley Davidson TLE Ultra Sidecar
2006 Harley-Davidson TLE Ultra Sidecar
Two-tone Deep Cobalt and Brilliant Silver

2006 Harley Davidson TLE Ultra Sidecar
2006 Harley-Davidson TLE Ultra Sidecar
Two-tone Fire Red and Vivid Black

2006 Harley Davidson TLE Ultra Sidecar
2006 Harley-Davidson TLE Ultra Sidecar
Two-tone Rich Sunglo Blue and Chopper Blue



– 2006 Harley-Davidson TLE Ultra Sidecar

The mother of all accessories. The Harley-Davidson TLE Ultra Sidecar.

*Color schemes shown are for the FLHTCUI Ultra Classic® Electra Glide®. Color schemes may vary to match each specific motorcycle model. Contact your dealer for more information.



DIMENSIONS U.S.


LENGTH 78.4 in.

HEIGHT 42.1 in.

SIDECAR WIDTH 23.5 in.

WIDTH FROM BRACKET TO SIDECAR WHEEL 53.3 in.

WEIGHT 260.0 lbs.




TIRES Dunlop® Harley-Davidson® Series (matches vehicle tires)

FRONT – D402F MT90B16 (black/white/wide whitewall)

REAR – D402 MT90B16 (black/white/wide whitewall)

GROSS AXLE WEIGHT RATING 300.0 lbs



CHASSIS

WHEEL 9 spoke (hollow) cast aluminum alloy; wire laced (wide whitewalls require laced wheels)

BRAKES Single disc

SUSPENSION Single leaf-spring

FRAME Easy toe in/out adjustment



ELECTRIC

LIGHTS Directional signal, tail lights and fender tip lamp

STYLING/CONVENIENCE

BODY CONSTRUCTION Hand-laid, fiberglass-reinforced resin

PASSENGER AREA Fully-carpeted w/ padded siderails and forward footrest

SEAT Plush, pillow-look w/ fold-down backrest

STORAGE Lockable, carpeted compartment behind fold-down seat; side map pockets

COVER Snap-down tonneau type, vinyl/cotton

WINDSHIELD Contoured Lexan®

FRAME AND COMPONENT FINISH Powder-coated paint

LOWER FENDER TRIM SKIRT Decorative aluminum

Padded side map pockets; matching replacement lower motorcycle fairing (FLHTCUI only); Harman/Kardon® Advanced Audio System; padded knee rest; polished stainless steel hand grips



COLORS

Painted to match motorcycle (colors available for current and previous to 2004 model year)



WARRANTY

WARRANTY 24 months (unlimited mileage)

SERVICE INTERVAL First 1,000 miles (1,600 km); every 5,000 miles (8,000 km) thereafter. Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals.

Harley-Davidson reserves the right to discontinue models or change specifications at any time without incurring any obligations. Vehicle specifications may vary from country to country depending on local laws. Some models are not available in certain countries.

Consult your Harley-Davidson dealer regarding ABS equipped motorcycles.

Availability may vary dealer to dealer, and is subject to change without notice.

See motorcycle owner’s manual for complete details.






DIMENSIONS METRIC

LENGTH 1989.2 mm

HEIGHT 1069.1 mm

SIDECAR WIDTH 596.4 mm

WIDTH FROM BRACKET TO SIDECAR WHEEL 1351.5 mm

WEIGHT 117.94 kg




TIRES Dunlop® Harley-Davidson® Series (matches vehicle tires)

FRONT – D402F MT90B16 (black/white/wide whitewall)

REAR – D402 MT90B16 (black/white/wide whitewall)

GROSS AXLE WEIGHT RATING 136.2 kg



CHASSIS

WHEEL 9 spoke (hollow) cast aluminum alloy; wire laced (wide whitewalls require laced wheels)

BRAKES Single disc

SUSPENSION Single leaf-spring

FRAME Easy toe in/out adjustment



ELECTRIC

LIGHTS Directional signal, tail lights and fender tip lamp

STYLING/CONVENIENCE

BODY CONSTRUCTION Hand-laid, fiberglass-reinforced resin

PASSENGER AREA Fully-carpeted w/ padded siderails and forward footrest

SEAT Plush, pillow-look w/ fold-down backrest

STORAGE Lockable, carpeted compartment behind fold-down seat; side map pockets

COVER Snap-down tonneau type, vinyl/cotton

WINDSHIELD Contoured Lexan®

FRAME AND COMPONENT FINISH Powder-coated paint

LOWER FENDER TRIM SKIRT Decorative aluminum

Padded side map pockets; matching replacement lower motorcycle fairing (FLHTCUI only); Harman/Kardon® Advanced Audio System; padded knee rest; polished stainless steel hand grips




COLORS

Painted to match motorcycle (colors available for current and previous to 2004 model year)



WARRANTY

WARRANTY 24 months (unlimited mileage)

SERVICE INTERVAL First 1,000 miles (1,600 km); every 5,000 miles (8,000 km) thereafter. Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals.

Harley-Davidson reserves the right to discontinue models or change specifications at any time without incurring any obligations. Vehicle specifications may vary from country to country depending on local laws. Some models are not available in certain countries.

Consult your Harley-Davidson dealer regarding ABS equipped motorcycles.

Availability may vary dealer to dealer, and is subject to change without notice.

See motorcycle owner’s manual for complete details.
