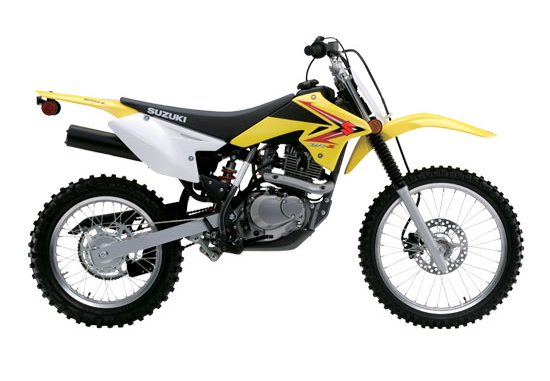

2010 Suzuki DR-Z125L
2010 Suzuki DR-Z125L

2010 Suzuki DR-Z125L
2010 Suzuki DR-Z125L

2010 Suzuki DR-Z125L
2010 Suzuki DR-Z125L

– 2010 Suzuki DR-Z125L

2010 Suzuki DR-Z125L

Good looks and great handling — that’s what the DR-Z125 and DR-Z125L are all about.
Both bikes feature aggressive new bodywork that makes them stylistic replicas of the championship-winning RM-Z machines. Their performance virtues, though, go a lot deeper than that. Both bikes set the class standard for precise, agile handling.

Beginning and more experienced riders will appreciate their controllable powerband and strong low-end and mid-range power. And larger riders can choose the DR-Z125L, featuring larger wheels and a front disc brake.

The DR-Z125 and DR-Z125L — race inspired styling with performance to match.







Features and Benefits

Key Features

Aggressively styled bodywork, number plates and graphics built to look exactly like the race winning RM-Z competition models


Engine Features

Compact 124cc 4-stroke, SOHC, single-cylinder, air-cooled engine designed for ease-of operation and low maintenance

Digital-type CDI ignition system with timing set to enhance the engine’s low-rpm power characteristics

Five-speed transmission with link-type gearshift system for precise operation and positive feel

Mikuni™ VM20SS carburetor for smooth throttle response

Tuned intake tract and exhaust system for more low-to-mid rpm power


Chassis Features

Large wheel/tire combination to fit young riders and adults: F: 70/100-19, R: 90/100-16

Lightweight aluminum rims for reduced weight provide agile handling and improved suspension performance

Lightweight and durable steel frame and swingarm

Long-travel, oil damped front fork and link-type rear suspension provide a smooth, compliant ride

RM-Z inherited style front fender and number plate

Sharp off-road styling with fuel tank, radiator shrouds and frame covers patterned after the RM-Z series

Strong braking performance provided by single front disc brake with RM85 caliper and a rear drum brake








2010 Suzuki DR-Z125L – USA Specifications
MSRP: $TBA USD

TBA







2010 Suzuki DR-Z125L – Canada Specifications
MSRP: $3,499 CDN

Chassis:
Brakes Front Disc brake
Brakes Rear Drum brake
Colour Yellow
Curb Weight 89 kg (196 lbs)
Final Drive D.I.D 428HG, 130 links
Fuel Tank Capacity 4.8 L (1.3/1.1 US/Imp gal) – Including Reserve
Ground Clearance 290mm (11.4 in)
Overall Length 1885 mm (74.2 in)
Overall Width 770 mm (30.3 in)
Seat Height 805 mm (31.7 in)
Suspension Front Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Tires Front 70/100-19 42M, tube type
Tires Rear 90/100-16 52M, tube type
Transmission 5-speed constant mesh
Wheelbase 1270 mm (50.0 in)

Engine:
Bore Stroke 57.0 mm (2.244 in) x 48.8 mm (1.921 in)
Compression Ratio 9.5 : 1
Engine 4-stroke, air-cooled, OHC
Fuel System MIKUNI VM20SS
Ignition Electronic ignition (CDI)
Lubrication Wet sump
Starter Primary kick

Warranty:
Warranty 6 Month unlimited mileage limited warranty





2010 Suzuki DR-Z125L – Australia Specifications
MSRP: $TBA AU

TBA
