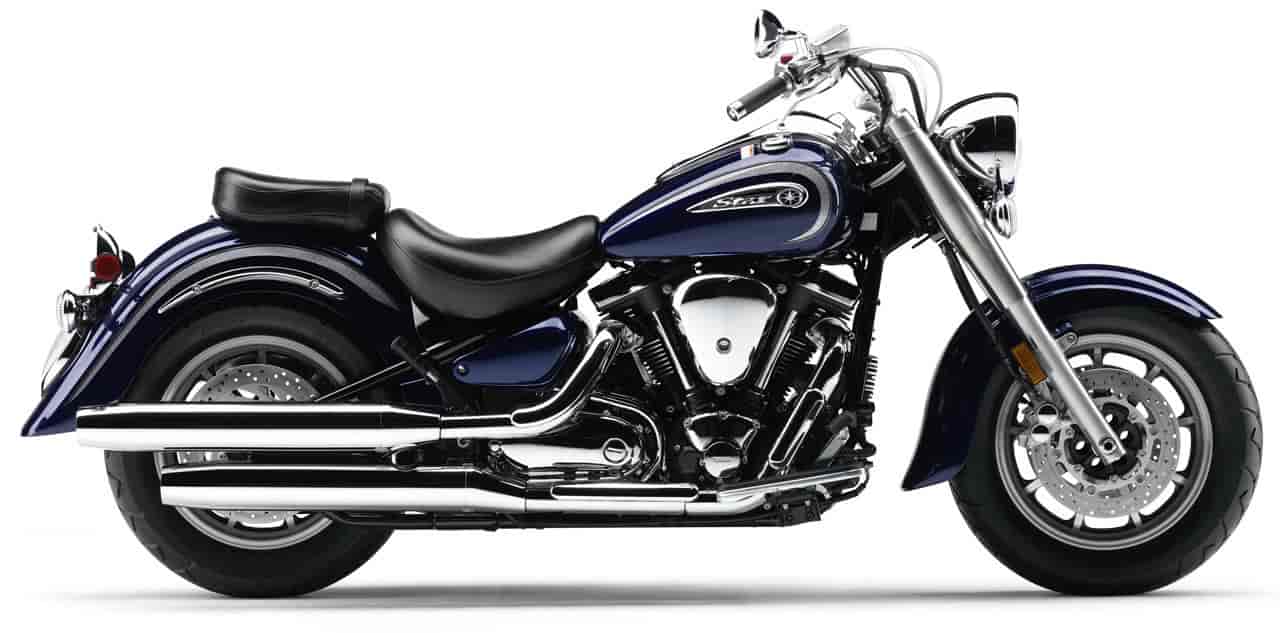

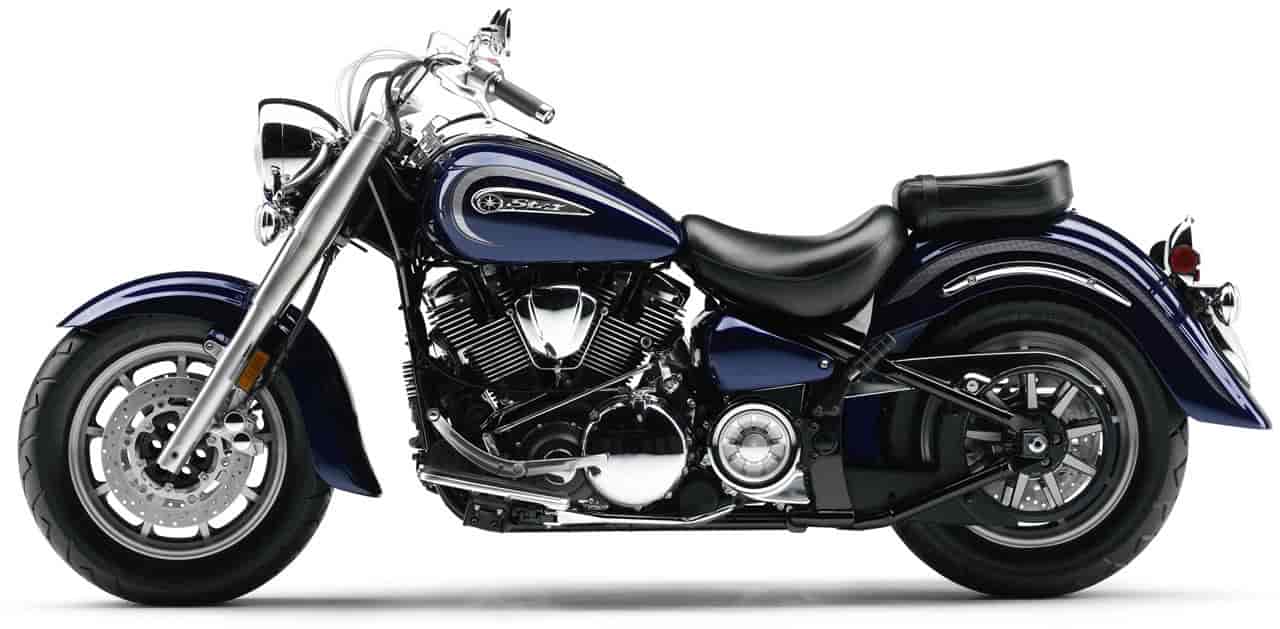

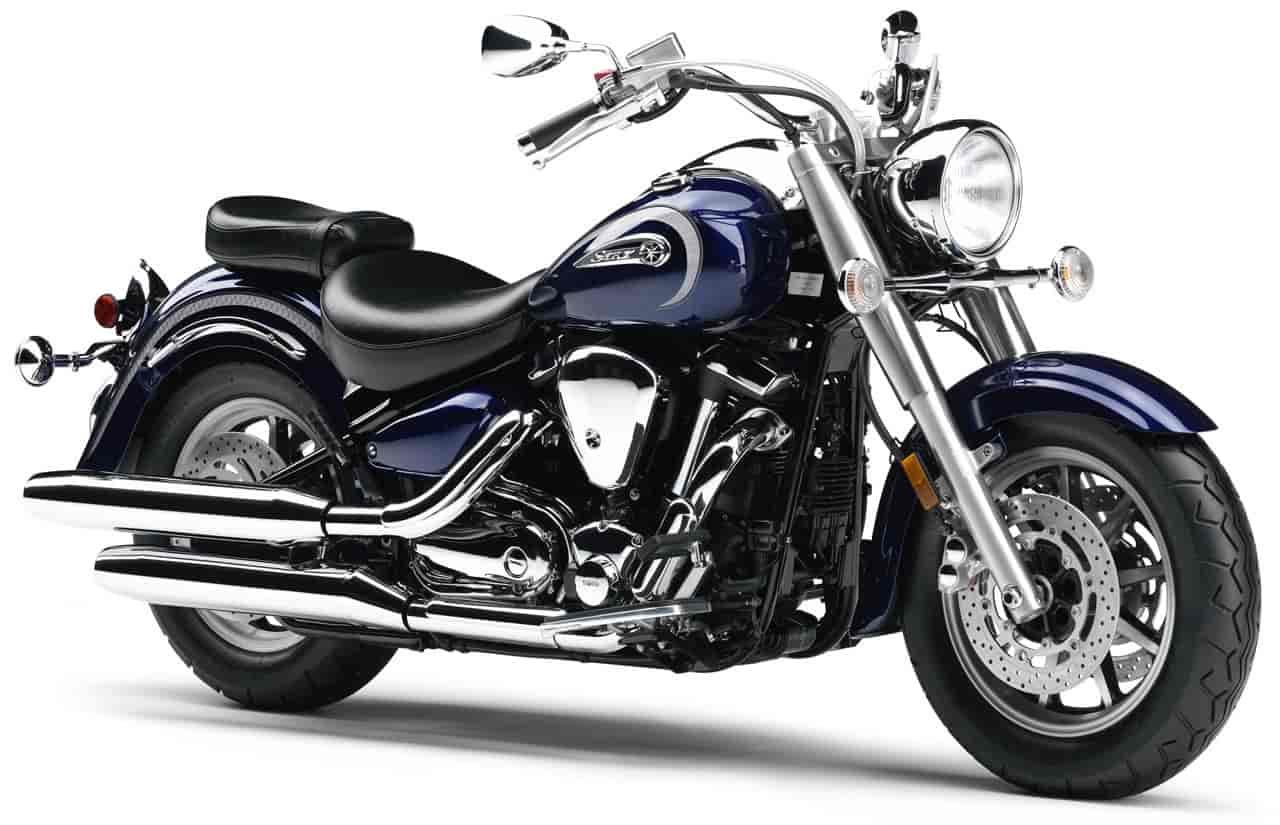

2010 Yamaha Road Star
2010 Yamaha Road Star

2010 Yamaha Road Star
2010 Yamaha Road Star

2010 Yamaha Road Star
2010 Yamaha Road Star

2010 Yamaha Road Star
2010 Yamaha Road Star

– 2010 Yamaha Road Star

2010 Yamaha Road Star

Fuel injected classic.

The 2010 Yamaha Road Star is a true classic. With its massive 1670cc air-cooled, pushrod, fuel injected V-Twin and its long, low chassis, it is sure to turn heads as you rumble past. Comfort, performance and style plus Yamaha’s famous quality and reliability.

The Road Star sets the standard in big twin performance and style.

At the heart of this machine is a massive, air-cooled 1670cc, fuel injected V-Twin that pumps out an awesome amount of piston pounding torque. But “The Roadie” is more than just muscle. Legendary Star styling and attention to detail make it a rolling piece of art that you’ll be proud to ride.




Highlights:

Fuel Consumption * 15kpl/43mpg(Imp)

Fuel injected 1,670cc V-twin

Big torque




Features and Benefits (Canada)

Engine:

” 1,670cc, air-cooled, long-stroke, OHV, 8-valve, 48° V-twin powerplant pumps out lots of low-rpm torque for unparalleled acceleration and cruising performance.

” 4 valves per cylinder provide optimum breathing efficiency while 2 spark plugs per cylinder ensure complete combustion for maximum power output.

” Hydraulic valve lifters driven by twin crankcase-mounted camshafts deliver exceptional performance and reduce maintenance needs.

” Traditional pushrod valve actuation keeps overall engine height down for a lower centre of gravity.

” Forged pistons offer great durability and lightweight for fast response.

” Ceramic composite-plated cylinders provide uniform heat dissipation, reduce weight, reduce friction and increase cylinder service life.

” Cooling fin thickness is optimized for maximum heat dissipation, thereby eliminating the need for liquid cooling, maintaining that traditional clean, air-cooled engine appearance.

” Electronic fuel injection with TPS. This system features a single 40mm throttle body with dual injectors (one for each cylinder). The throttle position sensor is linked to the ECU and supplies info about throttle opening so the ECU can adjust ignition timing for optimum engine performance at all rpms.

” High-capacity air intake system with paper type air filter provides maximum breathing for optimum performance.

” Smooth-shifting, 5-speed transmission with 5th gear overdrive delivers outstanding cruising performance and reduced rpms at highway speeds.

” Clean, quiet belt drive system is extremely low- maintenance and simplifies customization. Special narrow design drive belt and sprockets (front and rear) provide lightweight performance and exceptional durability.

” Dry sump lubrication system with handy, spin-on oil filter, creates a lower centre of gravity by helping reduce overall engine height. The oil tank is located under the seat.

” Large-flywheel crankshaft delivers superior, low-rpm torque and that incredible V-twin “pulse” feel.

” 2-piece heel-and-toe shifter adds versatility and enhances the overall cruising experience. The 2-piece design allows the rider to individually adjust front and rear portions to suit foot size or remove the rear section if not desired.

” Electric starting system features solenoid-activated auto-decompressor for easy, no-hassle starting.

” 2-into-2 exhaust system features beefy, staggered, dual shotgun pipes that produce a soulful V-twin exhaust tune. Muffler replacement is fast and simple, if desired.

” Air Induction System (A.I.S.) reduces exhaust emissions (CO + HC).


Chassis/Suspension

” Solid-mounted engine housed in a specially designed gusset-less, double-cradle frame features a stylish 32° rake.

” Long 1,685mm (66.3″) wheelbase creates a long and low retro profile, great rider comfort and solid, stable handling.

” Spacious ergonomics provide ample legroom, which maximizes rider comfort.

” 43mm front forks with large-diameter covers and 140mm (5.5″) of wheel travel smoothes out the ride.

” Spring preload-adjustable, single-shock, rear link suspension lowers centre of gravity for excellent handling and a relaxed, comfortable ride.

” Rear shock is horizontally mounted under the engine and tucked out of sight for that classic, “hardtail look”. Rear wheel travel is 110mm (4.3″).

” Dual 298mm front disc brakes feature R1-inspired, monoblock, 4-piston calipers with chrome “buttons” accenting the outer piston covers. The dual disc brake set-up eliminates the unsettling twisting effect of a single disc set-up found on some cruisers.

” 320mm rear disc brake with 4-piston caliper provides excellent stopping power and feel.

” Separate rider and passenger seats provide lots of support and comfort. Passenger seat can be easily removed.

” Full-size, floating-type rider floorboards are roomy and comfortably positioned while also helping reduce vibration.

” Separate sub frame positioned under deeply valanced rear fender allows easy customization with numerous accessible mounting points.

” Deeply valanced steel fenders combine timeless styling with rugged durability and easy customization.

” Nine-spoke, cast aluminium mag style wheels not only reduce weight and maintenance (no spokes to tighten), but they also add a sportier styling image to the Road Star. Since these are mag wheels, they are fitted with tubeless-type, bias ply tires.

” 18 litre fuel tank provides an exceptional cruising range. The FI electric fuel pump is located inside the tank. Fuel tank seam is hidden for that clean, custom look.

” Wide, swept-back, 1″-diameter, rubber-mounted handlebars are easy to reach and help to reduce vibration on the rider’s hands.

” Beautiful braided steel-look throttle and clutch cables enhance that the Road Star’s stylish custom look and image.

” Ultra-thin, tank-mounted speedometer features a stylish design with raised 3D marks to highlight the speed graduations. Instrumentation includes odometer, dual tripmeters, clock and a fuel gauge plus a range of indicator lights.

” Diamond-shaped, LED rear taillight with white lens looks like it is straight off a fully customized machine. The LED design not only provides a bright light, but also uses less power.

” Stylish turn signals with custom looking clear lenses are self canceling

” Rear turn signal mounting bracket is beautifully chromed and features a built-in license plate light. It is small details like this that separate the Star series of cruisers from the rest of the crowd.


Details

” Industry-leading Star family fit and finish features rich, lustrous paint and extensive chrome accents creating a machine as stunning as it is powerful.

” Extra wide front brake and clutch levers provide a quality feel.

” 3-dimensional, fuel tank-mounted Road Star logo

” Seat and steering locks are integrated into the main ignition switch for extra convenience.

” Handy, dual under seat helmet holders

” Powerful, 12V 60/55-watt, halogen headlight maximizes nighttime visibility.

” Low-maintenance, sealed battery ensures fuss-free, dependable starting.

” In-tank electric fuel pump

” Factory-installed passing lamp relay speeds the installation of the accessory passing lamp kit available through Yamaha Genuine Parts and Accessories.

Canadian model will feature spoked wheels.






2010 Yamaha Road Star – USA Specifications

Model not available in the USA.






2010 Yamaha Road Star – Canada Specifications
MSRP: $16,549 CDN

Engine Air-cooled, OHV, 8-valve, 48°,V-twin
Displacement 1,670 cc
Bore and Stroke 97 x 113 mm
Compression Ratio 8.4:1
Maximum Torque 13.9kg-m (100.5 ft-lb) @ 2,500 rpm
Fuel Delivery 40mm throttle body FI
Estimated Fuel Consumption* 15kpl / 43mpg (Imp.)
Ignition / Starting Digital TCI / Electric
Transmission 5-speed
Final Drive Belt


Suspension (Front) 43 mm fork
Suspension (Rear) Adjustable link Monocross
Brakes (Front) Dual 298 mm discs
Brakes (Rear) 320 mm disc
Tires (Front) 130/90-16
Tires (Rear) 150/80-16


Length 2,500 mm (98.4″)
Width 980 mm (38.6″)
Height 1,140 mm (44.9″)
Wheelbase 1,688 mm (66.5″)
Rake / Trail 32° / 142 mm (5.6″)
Ground Clearance 145 mm (5.7″)
Seat Height 710 mm (28″)
Fuel Capacity 18 litres (3.4 imp. gal.)
Wet Weight 337kg (741.4 lb)

Colour(s) Purplish Metallic Blue


* Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha and converted into Canadian measurements. Your actual mileage will vary depending on road condition, how you ride, maintain your vehicle, accessories, cargo and operator/passenger weight.

Specifications, appearance, and price of product are subject to change without notice.

* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less.
