2009 Honda CMX250C Rebel 250

You are here: Home2009 Models — 2009 Honda Motorcycle Models

2009 Honda CMX250C Rebel 250
Back to 2009 Honda Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

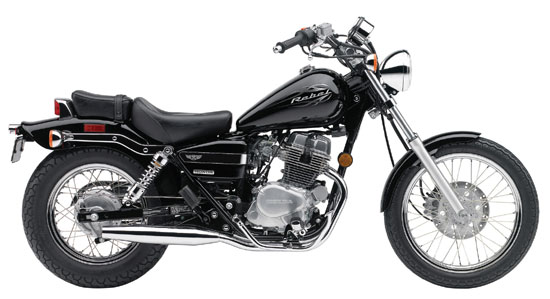

2009 Honda CMX250C Rebel 250

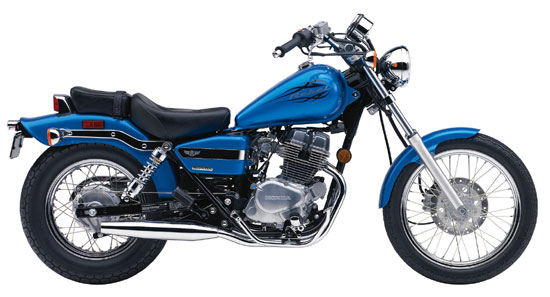

2009 Honda CMX250C Rebel 250

2009 Honda CMX250C Rebel 250
2009 Honda CMX250C Rebel 250

– 2009 Honda CMX250C Rebel 250

2009 Honda CMX250C Rebel 250

Who says you need a big-bore machine to appreciate the joys of motorcycling? Not a Honda CMX250C Rebel rider, that’s for sure. A user-friendly combination of light weight and comfortable size has made the CMX250C Rebel an enduring favourite among riders looking for an easy-to-handle cruiser. The good stuff begins with a high-output twin-cylinder engine that runs more smoothly than a single, yet is thrifty on gas and easy to maintain. A front disc brake brings you to a halt quickly, and that’s when you’ll notice how easy it is to put your feet flat on the ground, thanks to a low seat height.

This is a bike that instills confidence on every ride.

Rebel riders agree, this bike makes you look good no matter how long you’ve been riding. It’s an entry-level bike, sure, but it boasts big-bike styling with its timeless cruiser looks and nifty chrome highlights. Its reliable 234cc four-stroke twin delivers smooth power, and its five-speed transmission is a no-brainer to shift. Why pay more for a lesser bike? The Rebel’s sticker price is as unbelievable as its outstanding fuel economy—proof positive it’s a Honda.



Features & Benefits

Engine/Drivetrain

– Proven twin-cylinder 234 cc SOHC four-stroke engine is smooth, quiet, economical and easy to maintain.

– Convenient and reliable electric starter.

– Screw-type valve adjusters simplify maintenance.

– Constant-velocity carburetor gives excellent throttle response.

– Easy-shifting five-speed transmission.

– Automatic cam-chain tensioner.

– Radically styled twin-muffler exhaust system.



Chassis/Suspension

– Semi-double-cradle frame allows a long wheelbase and extremely low seat height.

– Hydraulic front fork with dual Syntallic bushings.

– Dual rear shocks feature five-position spring preload adjustment.

– Rectangular-section swingarm.

– Front disc brake with twin-piston caliper.

– Wide 130/90-15 rear tire.

– Spoke wheels with chrome rims.

– O-ring-sealed chain for increased durability.

– Pullback handlebar.

– 9.8-litre teardrop fuel tank.

– Two-piece custom-styled seat.



Additional Features

– Custom-styled chrome-plated headlight case.

– Stylish chrome-plated taillight housing.

– Simple, straightforward instrumentation.

– Chrome-plated turn-signal housings.

– Maintenance-free battery.

– Push-to-cancel turn-signal switch.

– Key-operated steering lock for added security.

– Easy-to-use helmet lock.

– 1 year, unlimited mileage, freely transferable warranty.






2009 Honda CMX250C Rebel 250 – USA Specifications
MSRP: $3,399 USD

ENGINE

Engine Type 234cc air-cooled parallel twin-cylinder

Bore and Stroke 53.0mm x 53.0mm

Induction Single 26mm diaphragm-type constant-velocity (CV) carburetor

Ignition CD

Compression Ratio 9.2:1

Valve Train SOHC; two valves per cylinder


DRIVE TRAIN

Transmission Five-speed

Final Drive O-ring sealed chain


CHASSIS / SUSPENSION / BRAKES


Front Suspension 33mm fork; 4.6-inch travel

Rear Suspension Dual shocks with five-position spring-preload adjustability; 2.9-inch travel

Front Brake Single-disc with twin-piston caliper

Rear Brake Drum

Front Tire 3.00-18

Rear Tire 130/90-15


DIMENSIONS


Rake 30-degree 40′

Trail 113mm (4.4 inches)

Wheelbase 57.1 inches

Seat Height 26.6 inches

Curb Weight 331 lbs (Includes all standard equipment, required fluids and a full tank of fuel-ready to ride)

Fuel Capacity 2.6 gallons, including 0.7-gallon reserve


OTHER


Available Colors Black, Ultra Blue Metallic

Model ID CMX250C

Emissions Meets Current EPA standards. California version differs slightly due to emissions equipment.

Note The perfect entry-level street bike


FACTORY WARRANTY INFORMATION


One Year Transferable one-year unlimited-mileage warranty; extended coverage available with a Honda Protection Plan








2009 Honda CMX250C Rebel 250 – Canada Specifications
MSRP: $5,299 CDN

Engine Type Air-cooled four-stroke twin

Displacement 234 cc

Bore & Stroke 53 mm x 53 mm

Compression Ratio 9.2:1

Valve Train Chain-driven SOHC, 2 valves per cylinder

Fuel Delivery Single 26 mm CV carb

Transmission Five-speed

Final Drive O-ring-sealed chain

Front Suspension 33 mm fork, 117 mm (4.6 inches) travel

Rear Suspension Dual shocks with adjustable spring preload, 74 mm (2.9 inches) travel

Tires 3.00 – 18 front; 130/90 – 15 rear

Brakes Front single disc with dual-piston caliper; rear drum

Seat Height 675 mm (26.6 inches)

Wheelbase 1,450 mm (57.1 inches)

Curb Weight 150 kg (331 lb) including required fluids and full tank of gas – ready to ride

Fuel Capacity 9.8 litres

Colour Glint Wave Blue Metall
