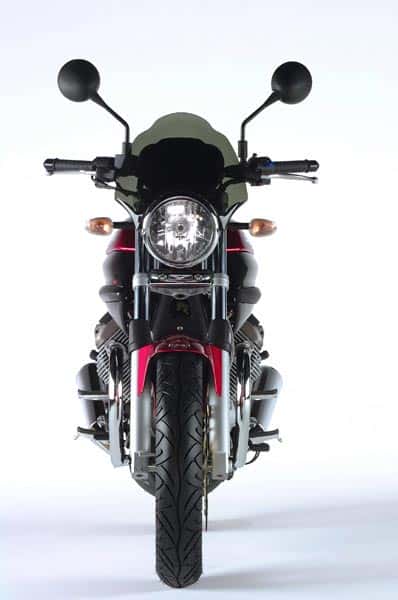

– 2005 Moto Guzzi Breva 750
Italian styling and the legendary 90º V-Twin in a lighter, more affordable package. It’s the Moto Guzzi you’ve been waiting for. Available in Red, Black, Silver.
A new wind
A name which should bring good luck as the Breva is a wind which blows over Lake Como – where Moto Guzzi is based – coming from the south and bringing fine weather.
A way of emphasising, also with the name, the “breath of fresh air” in Guzzi, picking up all the inheritance of the past and giving it new form and new technology.
The Breva is the first sign of a new way of living, closer to the habits and needs of a vast public.
The simple essential lines trace out a form which seems ready to leap out onto the roads, communicating the concept inspiring the design even from the outside.
The BREVA is a new entry level from Moto Guzzi, a bike which breathes new life into the 750 cc segment – the important first approach to a motorcycle suitable for everyone – always pleasant and safe to ride.
With its attractive look, the Moto Guzzi BREVA is even more gratifying and pleasant to ride as it has been designed to give even those who have never before climbed onto a saddle the possibility of having fun straight away.
The riding position is natural and the anatomic shape of the tank enables even the tallest of riders to keep their knees tight in, forming a single block with the bike.
Travelling in comfort, even in company
Particular attention has been dedicated to the mechanics, designed for touring use, in line with the Moto Guzzi tradition.
Particularly easy to handle thanks to the light weight and small size, it is also comfortable when riding two up, thanks to the configuration and generous padding of the saddle.
The manoeuvrability is backed by the engine, a 90° V twin, reworked and corrected in line with the latest developments in technology and fitted with electronic injection.
The high engine torque, present right from low revs, guarantees a relaxing ride even for less expert motorcyclists.
Output is “full” and linear and acceleration surprising, for immediate take off from stationary and problem free overtaking to offer even more safety.
More sporty riders won’t fail to appreciate the position of the exhaust – short and sloping upwards – for unequalled handling, even on routes calling for the bike to be got down repeatedly.
Engine: 90º V-Twin, 4 stroke
Cylinders: Aluminum alloy with Gilnisil treatment
Pistons: Forged, 2 compression & 1 oil control ring
Cooling system: Air cooled
Displacement: 744 cc
Bore and stroke: 80 mm x 74 mm
Compression ratio: 9.6:1
Valves & operation: 2 overhead valves with light alloy push-rods
Maximum power: 48 hp @ 6600 rpm
Maximum torque: 43.5 ft/lbs @ 3000 rpm
Fuel system: Weber- Marelli electronic injection
Starting system: Electric
Ignition: Magneti Marelli IAW electronic digital ignition
with inductive spark
Exhaust system: Triple catalyzed with Lambda probe
Gear box: 5 speed
Lubrication: Wet sump, forced oil, cartridge filter
Transmission: Primary: helical gears
Secondary: shaft drive
Clutch: Single disc, dry with cush drive
Electrical system: 12 V; 12 V alternator; 14 Ah battery
Instruments: Speedometer with tripmeter, tachometer
and warning lights
Frame: Detachable tubular duplex cradle
Trail: 4.29″ (109 mm)
Rake: 28º Front suspension: Marzocchi 40 mm hydraulic
Front wheel travel: 5.11″ (130 mm)
Rear suspension: Swing arm in light cast alloy with two dampers, spring adjustable for pre-load and rebound
Rear wheel travel: 4.65″ (118 mm)
Front brakes: Single stainless steel 320 mm floating disc with 4 piston caliper
Rear brakes: Single stainless steel 260 mm disc
Wheels: Spoke light alloy, Front: 3″ x 17″ Rear: 3.5″ x 17″
Tires: Front: 110/70 17″ Rear: 130/80 17″
Overall length: 85.43″ (2170 mm)
Width: 28.34″(720 mm)
Height: 46.85″ (1190 mm)
Seat Height: 30″ (770 mm)
Ground clearance: 6.92″ (176 mm)
Wheelbase: 57.04″ (1449 mm)
Dry weight: 401.24 lbs (182 Kg)
Fuel capacity: 4.49 gallons (17 liters)
Reserve: 1.05 gallons (4 liters)
Available Colors: Red, Black, Silver
Technical specifications and colors are subject to change without notice.
