2010 Victory Arlen Ness Victory Vision

Back to 2010 Victory Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

2010 Victory Arlen Ness Victory Vision
2010 Victory Arlen Ness Victory Vision

2010 Victory Arlen Ness Victory Vision
2010 Victory Arlen Ness Victory Vision

2010 Victory Arlen Ness Victory Vision
2010 Victory Arlen Ness Victory Vision

– 2010 Victory Arlen Ness Victory Vision

2010 Victory Arlen Ness Victory Vision

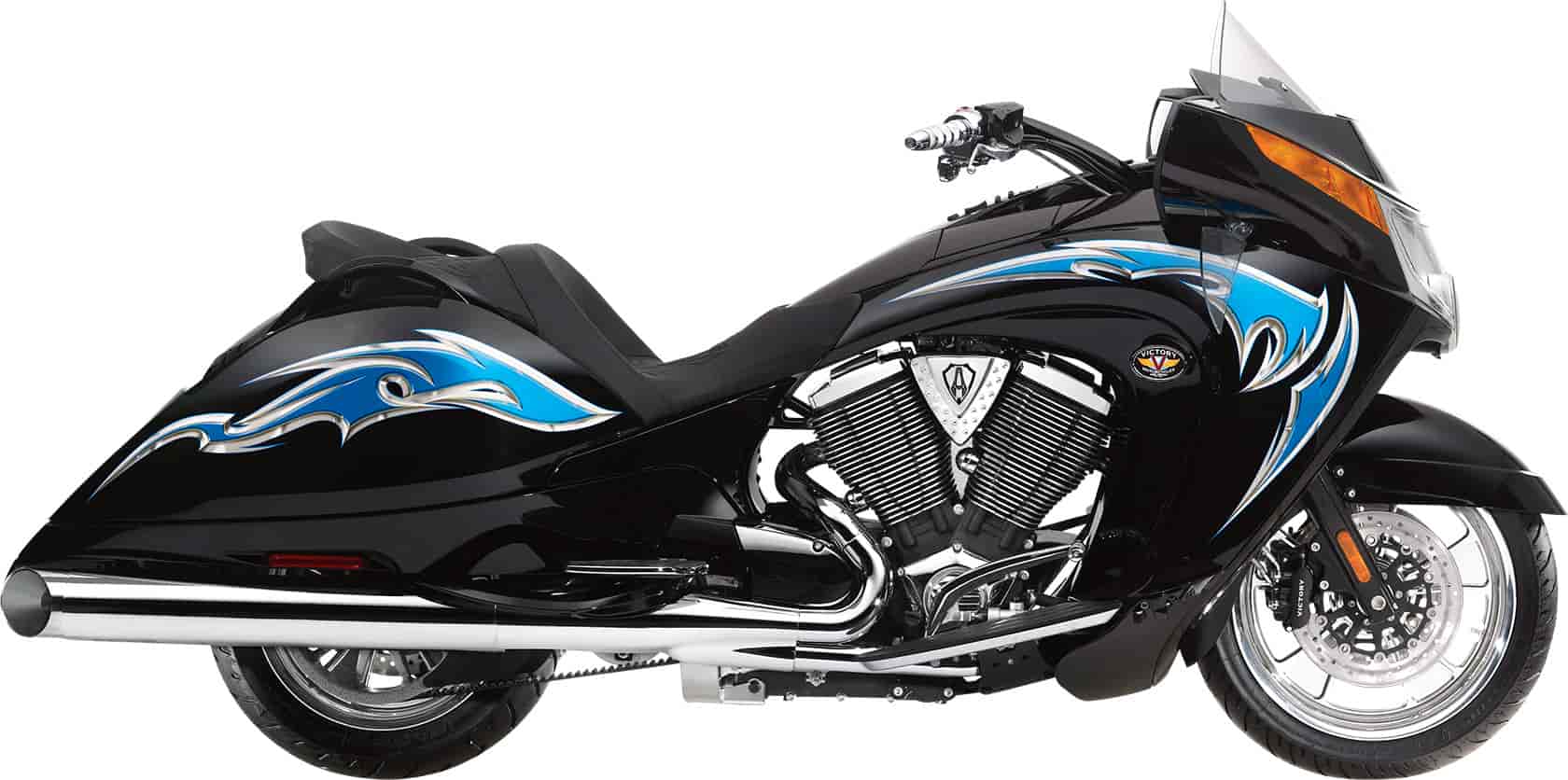

Master custom motorcycle builder Arlen Ness has done it again in designing the breathtaking 2010 Arlen Ness Signature Victory Vision® Motorcycle. This limited-edition masterpiece comes complete with Ness custom-designed paint, a powerful 106-cubic-inch Freedom® V-Twin Engine with diamond-cut heads, Ness Signature chrome, hand-stitched leather seats, and so much more.

For smooth, powerful, eye-catching cruising on Main Street or touring across state lines, the Arlen Ness Signature Victory Vision® provides the ultimate experience. Find out more about its features, specifications, pricing, comparisons, reviews, videos, images, brochures, downloads, and locate your nearest dealer that has the Arlen Ness Signature Victory Vision® Motorcycle.





Features/Benefits

Billet Engine Covers

The premium-quality billet engine covers complement hte bike’s overall custom treatment and feature distinctive Ness styling.


Diamond-Cut Cylinder Heads

The epitome of customizing, these precision dismond-cut cylinders help this Ness model stand out from the crowd. It’s a premium styling touch from a custom master, Cory Ness.


Numbered Badges

Each limited-edition bike has a metal plate with the bike’s number, the Arlen Ness logo and a facsimile of Arlen Ness’s autograph.


Custom-Stitched Seats

Arlen likes his bikes long and low, so he has developed a seat that is lower than the stock Victory Vision seat. It’s a custom, stitched seat that enhances the bike’s flowing lines.


Chrome Ness Grips

The custom treatment extends to the tips of the handlebars with Ness custom grips. They complement the bike’s overall custom treatment and feature Nexx styling.


Ness Windshield

Arlen Likes his windshields low and stealthy, which is the look he has developed here. For additional protection while touring, higher accessory windshields are available.

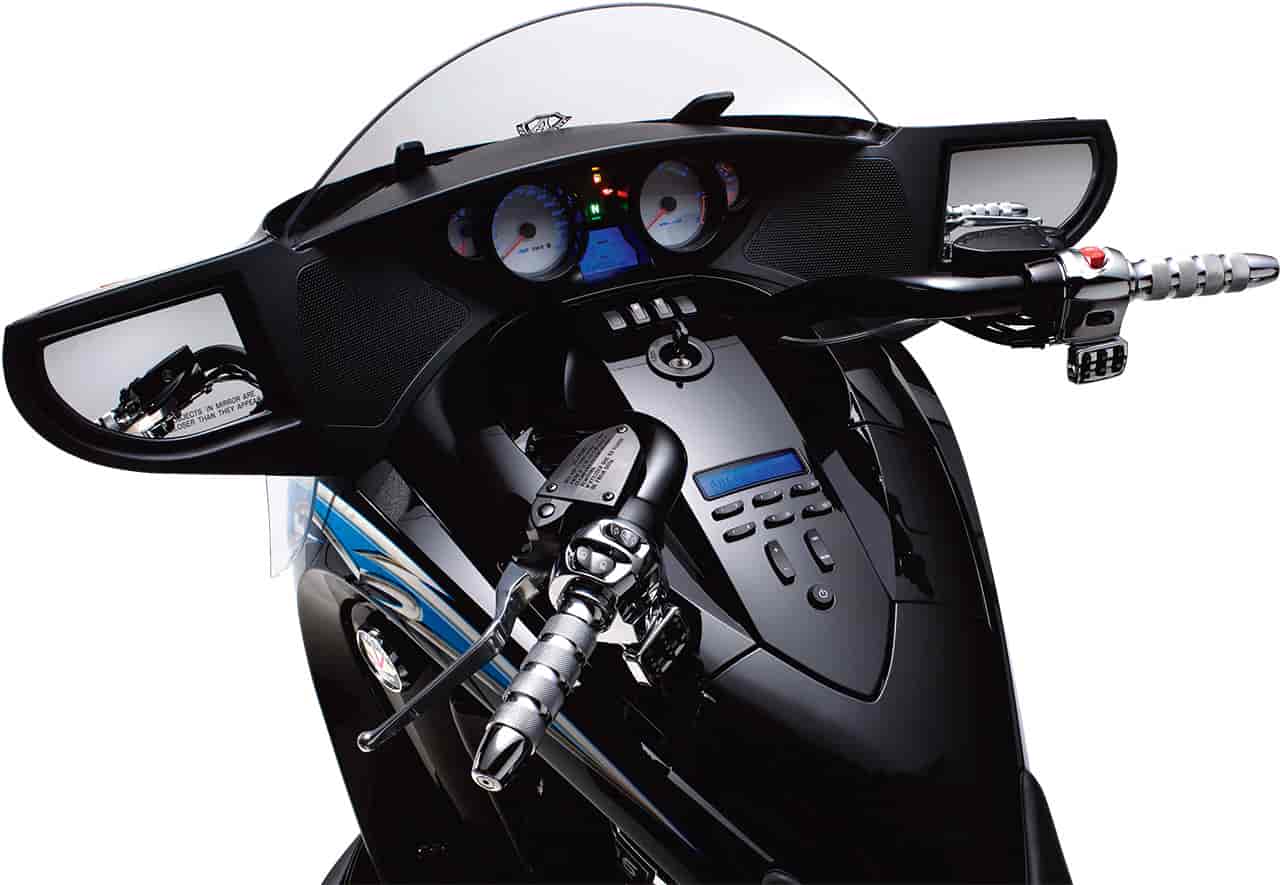

Custom Radio Display

The bike features an integrated audio system with an AM/FM radio, and audio can be fed from an accessory MP3 device. The upgraded audio display panel provides details about the music being played.


Custom Ness Paint and Graphics

Arlen Ness designed the stunning custom paint for his Signature Series Victory Vision, and the paint is framed and highlighted by the many blacked-out components on the bike.


Ness Billet Wheels

Arlen’s overall custom treatment of the bike extends to the billet Ness custom wheels.







2010 Victory Arlen Ness Victory Vision – Specifications
MSRP: US See Dealer for Pricing and Availability
MSRP: US-CA See Dealer for Pricing and Availability
MSRP: CAN See Dealer for Pricing and Availability


Engine Type 4-stroke 50° V-Twin
Cooling Type Air / Oil
Displacement 106 ci / 1,731 cc
Bore x Stroke 101 x 108 mm
Compression Ratio 9.4:1
Valve Train Single overhead camshafts with 4 valves per cylinder, self-adjusting cam chains, hydraulic lifters
Fuel System Electronic Fuel Injection with dual 45mm throttle body
Fuel Capacity 6.0 gal / 22.7 ltr
Exhaust Split dual exhaust with crossover
Oil Capacity 5.0 qts / 4.75 ltr
Charging System 50 amps max output
Battery 12 volts / 18 amp hours
Primary Drive Gear drive with torque compensator
Clutch Wet, multi-plate
Transmission 6-speed constant mesh
Final Drive Carbon Fiber Reinforced Belt

Length 103.5 in / 2,629 mm
Wheelbase 65.7 in / 1,670 mm
Seat Height 24.5 in / 622 mm
Ground Clearance 4.8 in / 122 mm
Rake/Trail 29.0° / 5.4 in / 137 mm
Dry Weight 804 lbs (365 kg)
GVWR 1,414 lbs / 643 kg

Front Suspension Conventional telescopic fork, 46 mm diameter, 5.1 in/130 mm travel
Rear Suspension Single, mono-tube, cast aluminum with constant rate linkage, 3.65 in/92.7 mm travel, air adjustable spring

Front Brake Dual 300mm floating rotor with 3-piston caliper
Rear Brake 300mm floating rotor with 2-piston caliper

Front Wheel 18 x 3.0 in
Rear Wheel 16 x 5.0 in
Front Tire 130/70R18 Dunlop Elite 3
Rear Tire 180/60R16 Dunlop Elite 3

Solid Colors Ness Custom
Multiple Colors

MSRP: US See Dealer for Pricing and Availability
MSRP: US-CA See Dealer for Pricing and Availability
MSRP: CAN See Dealer for Pricing and Availability

* Price shown is the manufacturer’s suggested retail price (MSRP) and is subject to change. MSRP excludes applicable taxes, title, registration, license, and documentary, installation, setup and destination fees. See a Polaris dealer for specific pricing information.
