2012 Husqvarna SM50

Back to 2012 Husqvarna Motorcycle Model Review Page

Click photos to enlarge.
They make great desktop images.

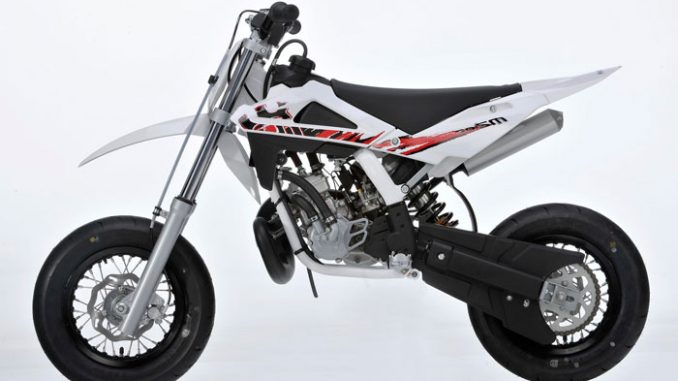

2012 Husqvarna SM50
2012 Husqvarna SM50

2012 Husqvarna SM50
2012 Husqvarna SM50

– 2012 Husqvarna SM50 Review

2012 Husqvarna SM50

Liquid cooled two stroke engine, disc brakes, adjustable suspensions, steel chassis with the same shape as the Husqvarna racing bike, single cylinder engine with dual clutch transmission depending on the driver’s expertise and competitiveness.

The line is the same as the Husqvarna Supermotard. The framework is in CrMo steel tubes with rectangular, circular and oval section; the most visible section as it connects the upper beam to the hub. The rear frame is detachable.

The fork is also in CrMo steel and supports a dual piston brake caliper in forged and anodized aluminium. The rear brake disc has a diameter of 140 mm while the front one has a diameter of 160 mm with race replica “wave” design.

Front safety is guaranteed by a system with Formula radial pump in forged and anodized aluminium with adjustable aluminium lever.

The handlebar, with practical Husqvarna personalized pads, has a diameter of 22 mm.

As regards suspension, the Marzocchi fork has 32 mm diameter piston rods and 185 mm stroke. The Sachs shock absorber has a wheel stroke of 200 mm , adjustable spring preload and Hydraulic rebound.

The carburettor is a 19 mm Dell’Orto PHBG. The fuel tank has a capacity of 2.7 litres.

Thanks to the stability offered by the steel framework, the over-dimensioned suspensions and the disc brake system, the SM 50 sets new standards in terms of safety and at the same time represents the starting point for tomorrow’s supermotard champions.

The essence of a real dirt bike in miniature. This is the nature of the new Husqvarna SM50, the “mini” that has everything you need to make your debut as a real rider. Liquid cooled two stroke engine, disc brakes, adjustable suspensions, steel chassis with the same shape as the Husqvarna racing bike, single cylinder engine with a clutch that can be adjusted according to the rider’s ability.



HUSQVARNA CR AND SM 50
THE NEW MINI CROSS AND MOTARD FROM HUSQVARNA

The essence of a real dirt bike and supermotard in miniature. This is the nature of the new Husqvarna CR and SM 50, the “mini” that have everything you need to make your debut as a real rider.

Liquid cooled two stroke engines, disc brakes, adjustable suspensions, steel chassis with the same shape as the Husqvarna racing bike, single cylinder engine with dual clutch transmission depending on the driver’s expertise and competitiveness.

The line is the same as the Husqvarna dirt bike and Supermotard; with the classic white/red colours for the CR version and white for the SM one, just like the bike that Antoine Meo rides in the Enduro world championship and Adrien Chareyre rides in Supermoto.

The framework is in CrMo steel tubes with rectangular, circular and oval section; the most visible section as it connects the upper beam to the hub. The rear frame is detachable.

The fork is also in CrMo steel and supports a dual piston brake caliper in forged and anodized aluminium. The rear brake disc has a diameter of 140 mm while the front one has a diameter of 160 mm with race replica “daisy” design.

Front safety is guaranteed by a system with Formula radial pump in forged and anodized aluminium with adjustable aluminium lever.

The handlebar, with practical Husqvarna personalized pads, has a diameter of 22 mm.

As regards suspension, the Marzocchi fork has 32 mm diameter piston rods and 185 mm stroke.

The Sachs shock absorber has a wheel stroke of 200 mm , adjustable spring preload and Hydraulic rebound.

The front wheel is 12” the back one is 10” with aluminium rims, while SM version has a different colour, different sized front wheel (10”) and racing slick tyres.

As regards the engine, both versions are fitted with a liquid cooled two stroke 50 cc engine which supplies 11.2 HP at 10,500 rpm.

The speed ratio is single gear with adjustable centrifugal dual clutch transmission: one configuration for learner riders and one for experts.

The carburettor is a 19 mm Dell’Orto PHBG. The fuel tank has a capacity of 2.7 litres.

Thanks to the stability offered by the steel framework, the over-dimensioned suspensions and the disc brake system, the CR/SM 50 sets new standards in terms of safety and at the same time represents the starting point for tomorrow’s motocross , enduro and supermoto champions.







2012 Husqvarna SM50 Features and Benefits

Engine
The engine is a liquid cooled two stroke 50 cc which supplies 11.2 HP at 10,500 rpm. The speed ratio is single gear with adjustable centrifugal clutch: one configuration for learner riders and one for experts. The carburettor is a 19 mm Dell?Orto PHBG.

Frame
The frame is in CrMo steel tubes with rectangular, circular and oval section; the most visible section as it connects the upper beam to the hub. The rear frame is detachable. The swingarm is also in CrMo steel and supports a dual piston brake caliper in forged and anodized aluminium.

Suspension
At the front a 32 mm Marzocchi fork with 185 mm travel. The Sachs rear shock absorber has 200mm of travel, adjustable spring preload and Hydraulic rebound. Both front and rear wheels are 10″ with aluminium rims and “slick” tires.

Bodywork
The looks are the same as the Husqvarna supermotos; with the classic white colour, just like the bikes that compete in the Supermoto world championship.





2012 Husqvarna SM50 – North American Specifications/Technical Details
MSRP Price: NA

Model not available in North America







2012 Husqvarna SM50 – Australian Specifications/Technical Details
AU MSRP Price: See dealer for pricing.

Engine
Type Single cylinder, 2-stroke
Bore 39.5 mm
Stroke 40.0 mm
Displacement 49.0 cc
Compression ratio 7.12 : 1
Starting Kick
Cooling Liquid-cooled
Radiator 2
Lubrication Premix 50 : 1
Ignition Electronic C.D.I.
Spark plug type NGK BR 9ECM
Spark plug gap 0.7 mm
Carburetor Dell’Orto PHBG 19
Clutch Dry, centrifugal type
Chassis
Type Steel single tube, steel rear frame
Front suspension MARZOCCHI conventional telescopic hydraulic fork with advanced axle
Fork leg diameter 32 mm
Fork travel 185 mm
Rear suspension SACHS Progressive Soft Damp type with single hydraulic shock absorber, spring pre-load adjustment
Rear wheel travel 200 mm
Front brake 160 mm fixed disc and caliper with hydraulic control
Rear brake 140 mm fixed disc and caliper with hydraulic control
Rim front 1.50 x 10″, light alloy
Rim rear 1.50 x 10″, light alloy
Tyre front 90/90-10″
Tyre rear 90/90-10″






2012 Husqvarna SM50 – International Specifications/Technical Details
MSRP Price: See dealer for pricing.

Dimensions, weight, capacities
Wheelbase39.17in
Overall length55.12in
Overall width25.79in
Overall height34.65in
Seat height26.77in
Min. ground clearance9.84in
Trail2.17in
Kerb weight, without fuel95.68lb / 43,4kg
Fuel tank capacityU.S. Gallons 0.71 / Imp. Gallons 0.59
Transmission oilU.S. Gallons 0.253 / Imp. Gallons 0.303
Engine
TypeSingle cylinder, two stroke
Bore1.56in
Stroke1.57in
Displacement2.99cu.in / 49cc
Compression ratio7.12:1
StartingKick starter
CoolingLiquid cooled
Water radiator (without electric fan)No. 2
Lubrication
EngineFuel-oil premixture of 50:1
Transmission-primary driveBy oil contained in the crankcase
Ignition
TypeC.D.I. electronic
Spark plug typeNGK BR8ECM
Spark plug gap0.031in
Fuel system
TypeCarburettor
ManufacturerDell’Orto PHBG 19
Main jet85
Pilot jet65
Clutch
TypeDry centrifugal type
Friction parts no.3
Transmission
TypeSingle gear type
Secondary drive
Transmission sprocketTeeth 10
Rear wheel sprocketTeeth 43
Transmission ratio4,3
Driving chain
Type1/2 x 3/16″
Frame
TypeSteel single tube cradle; steel rear frame
Front suspension
TypeUpside-Down telescopic hydraulic fork with advanced axle
Fork legs dia.1.26in
Travel on legs axis7.28in
Front fork manufacturerMarzocchi
Rear suspension
TypeProgressive Soft Damp type with single hydraulic shock absorber; spring preload adjustment
Wheel travel7.87in
Shock absorber manufacturerSachs
Brakes
FrontFixed disc and caliper with hydraulic control
Disc dia.6.3in
RearFixed disc and caliper with hydraulic control
Disc dia.5.51in
Wheels
FrontLight alloy
Size1.5 x 10″
RearLight alloy
Size1.5 x 10″
Tires Front90/90 – 10″
Rear90/90 – 10″
