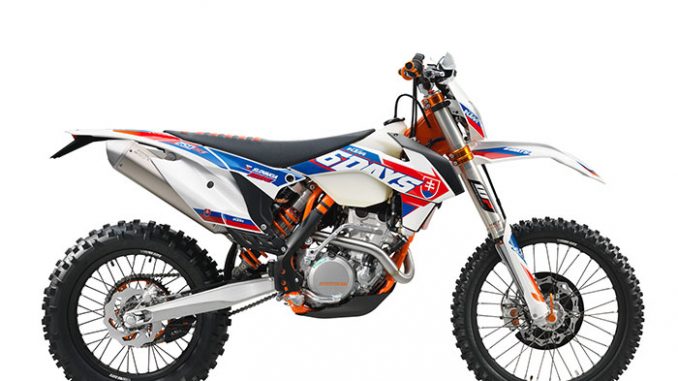

2016 KTM 500 EXC Six Days

2016 KTM 500 EXC Six Days Review

2016 KTM 500 EXC Six Days on www.Totalmotorcycle.com

In a class of its own & unrivalled…

No other brand is represented in offroad sports with a history of success that can even compare to that of KTM. The special edition Six Days models celebrate this success with special performance upgrades and top-of-the-line components. In 2015 the ISDE (International Six Days of Enduro) will be held in Slovakia, and the KTM model line-up has been suitably equipped to handle anything the muddy and rocky terrain can throw at it.

2016 KTM 500 EXC Six Days www.Totalmotorcycle.com Key Features

See Below

2016 KTM 500 EXC Six Days www.Totalmotorcycle.com Features and Benefits

Slim ergonomics for perfect control

Bodywork
The KTM 500 EXC Six Days has bodywork with extremely slim ergonomics and excellent contact points between rider and machine. It provides unlimited freedom of movement.

Handlebar
All EXC models are fitted with the super strong, tapered Neken handlebars made of high tensile strength aluminum alloy. The proven standard KTM mount allows the handlebar to be fixed in four different positions. A new light switch made by Leonelli is designed to fulfil the requirements of Enduro use. The open hand guards are serial equipment providing optimum protection of the rider’s hands.

Superior chassis

Individual suspension setting
Each EXC model has its own individual suspension settings, optimally tuned to weight and engine. At the rear, a PDS shock absorber from WP Suspension works with a direct linkage to the upper side of the swingarm. The wide range of setting options for rebound damping and high- and low-speed compression damping are standard on KTM bikes.

Telescopic fork
The KTM Six Days models are equipped with a 48 mm 4CS closed-cartridge fork from WP Suspension. The 4-chamber technology (4CS) patented by WP not only provides a key benefit in terms of responsiveness and consistent damping characteristics, it is also lighter and oil services prove to be far simpler than on the conventional closed-cartridge versions. Naturally, the setting can easily be adapted to track and rider in a matter of a few clicks at the top of the fork: compression damping on the left-hand shaft, rebound damping on the right – another advantage of the 4CS technology.

Frame
The modern frame design of the 500 EXC Six Days, comprising lightweight, high strength, chrome-molybdenum steel section tubes, combines maximum longitudinal stiffness with optimum torsional stiffness. It guarantees easy handling and precise steering behavior, as well as excellent ride stability. So the new frame not only shines with the new color, it also clearly represents the benchmark in terms of weight and stability. The frame color shines in the same orange as the KTM factory racing team, making the styling even more attractive. Thanks to the frame design and in conjunction with the rear PDS damping system, impacts at the rear wheel are absorbed and dissipated optimally. For MY 2016 the frame is protected by a robust frame guard.

Swingarm
The cast aluminum swingarm has been developed with state-of-the-art calculation and simulation software and constructed, in terms of design and wall thickness, for minimum weight with optimum stiffness and precisely defined flexibility.

Triple clamp
The high-end CNC machined triple clamps have been specifically designed for enduro use and ensure precise handling thanks to their supporting of the fork flex. The rider receives precise feedback from the front wheel, even in the toughest terrain, thereby increasing riding safety and speed.

High quality wheels
The high quality, alloy wheels from GIANT made of extremely stable 7050 aluminum, featuring exclusive Six Days lettering and CNC-machined hubs, are standard on all KTM Six Days models. Developed in cooperation with KTM, the Metzeler tyres provide excellent traction, very precise directional control and a long service life. An additional Six Days standard feature: the Supersprox 2-piece rear sprocket with steel outer ring and aluminum star.

Brakes
High-tech Brembo brakes have always been standard equipment on KTM offroad bikes, and combined with the lightweight Wave discs, they are the ultimate solution in braking technology. Being the class-leading brakes in Enduro, they are unchanged for MY 2016.

The powerhouse

Transmission
The proven 6-speed gearbox is distinguished by easy and precise shifting.

Starter
The 500 EXC is equipped with kick-starters as well as electric starter as standard. The electric starter is well protected behind the cylinder.

Piston
The lightweight, forged bridged box-type piston shares its high performance piston rings with the 450 SX-F.

Engine management system
The Engine Management System by Keihin with electronic fuel injection and a 42mm throttle body ensures a spontaneous response and maximum engine performance. An oil-cooled 196 W AC alternator provides sufficient energy for the fuel injection, lighting and other electrical loads. With an optional map-select switch from the Power Parts program, the EMS can allow the rider to select different engine characteristics. In addition, the optional User-Setting-Tool provides the facility to readout engine data with a laptop and change the ignition and injection mappings with a few mouse clicks.

Engine
Developed for tough Enduro duty, the SOHC engine wtih 510.4cc is distinguished by an extremely compact design, easy maintenance and excellent durability at a minimal weight. Together with the Keihin EFI system, this provides unrivalled Enduro specific performance and rideability.

DDS clutch
The single-piece basket of the DDS clutch (damped diaphragm steel) is machined from solid high-tensile steel in one piece together with the primary drive gear. This process guarantees unbeatable reliability and, together with the thin steel linings, contributes to the narrow engine width due to its compact rivet-less design. The diaphragm spring makes it possible to implement an additional rubber damping system inside the clutch hub, ensuring reliability for the transmission and good traction. Finally, the hydraulic clutch mechanism by Brembo in conjunction with the diaphragm spring provides a very light operation and good controllable modulation of the clutch.

Cylinder head
The cylinder head is equipped with a single overhead camshaft. It activates two titanium intake valves and two steel exhaust valves. The weight optimized valve train leads to low friction for improved performance as well as low engine braking action.

Crankshaft
The crankshafts with strokes of 72.0mm and ultra-lightweight conrods are made by Pankl from special high-tensile strength steel. The crankshaft employs a plain big end bearing. Two force-fitted bearing shells run directly on the crank pin. The necessary oil feed for this bearing is ensured by the engine’s pressure lubrication. This design increases the engine’s long-term durability, and lengthens crankshaft service intervals, which is a customer benefit in terms of time, effort and cost.

Counter balancer
In order to balance the mass-forces, the engine uses a counter balance shaft, which doubles as a water pump drive.

With exclusive optional equipment

Six Days equipment
• 4CS closed-cartridge fork from WP Suspension for optimum damping and high reserves against bottoming out
• Camel seat for improved long-distance comfort
• Skid plate for effective frame and engine protection
• Machined orange anodized triple clamps for extremely precise fork clamping and optimum fork function
• Orange frame
• Supersprox Stealth 2-component rear sprocket with an aluminum inner ring and steel outer ring for maximum durability
• Solid rear brake disc (no slots/holes) for improved heat resistance and reduced brake pad wear
• Floating front brake disc for consistent braking performance in extreme conditions
• Front brake disc guard for optimum protection from stone impact
• Light and sturdy racing mirror
• Metzeler tyres developed in cooperation with KTM for outstanding grip and traction
• Radiator guard for effective radiator protection
• Radiator fan for all 4-stroke models to optimise temperature management in extreme conditions
• Carbon pipe guard on all 2-stroke models for effective expansion chamber protection
• Six Days silencer, anthracite anodized and with Six Days logo (except 125 EXC)
• Front axle puller for simple front wheel removal
• Orange radiator grille
• Orange chain guide
• Exclusive Six Days graphics, with a striking design

2016 KTM 500 EXC Six Days – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ See Local Dealer for Pricing in USD

Engine
” Design
1-cylinder, 4-stroke engine
” Displacement
510.4 cm³
” Bore
95 mm
” Stroke
72 mm
” Starter
Kick and electric starter
” Transmission
6-speed
” Primary drive
32:76
” Secondary gear ratio
14:50
” Clutch
Wet, DDS multi-disc clutch, Brembo hydraulics
” EMS
Keihin EMS
Chassis
” Frame design
Chrome-molybdenum steel central-tube frame
” Front suspension
WP USD Ã˜ 48 mm 4CS closed cartridge
” Rear suspension
WP PDS shock absorber
” Suspension travel (front)
300 mm
” Suspension travel (rear)
335 mm
” Front brake
Disc brake
” Rear brake
Disc brake
” Front brake disc diameter
260 mm
” Rear brake disc diameter
220 mm
” Steering head angle
63.5 °
” Wheelbase
1482 ± 10 mm
” Ground clearance
345 mm
” Seat height
970 mm
” Tank capacity (approx.)
9 l
” Weight READY TO RACE (without fuel)
111.5 kg

2016 KTM 500 EXC Six Days – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ CDN

2016 KTM 500 EXC Six Days – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £8199 GBP (On The Road inc 20% Vat)

*Starting at MSRP is the manufactured suggested price and excludes delivery, setup, tax, title, license, and additional fees and expenses. Bikes may be shown with optional accessories. Final sale price determined by an authorized dealer. Specifications and MSRP are subject to change.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
