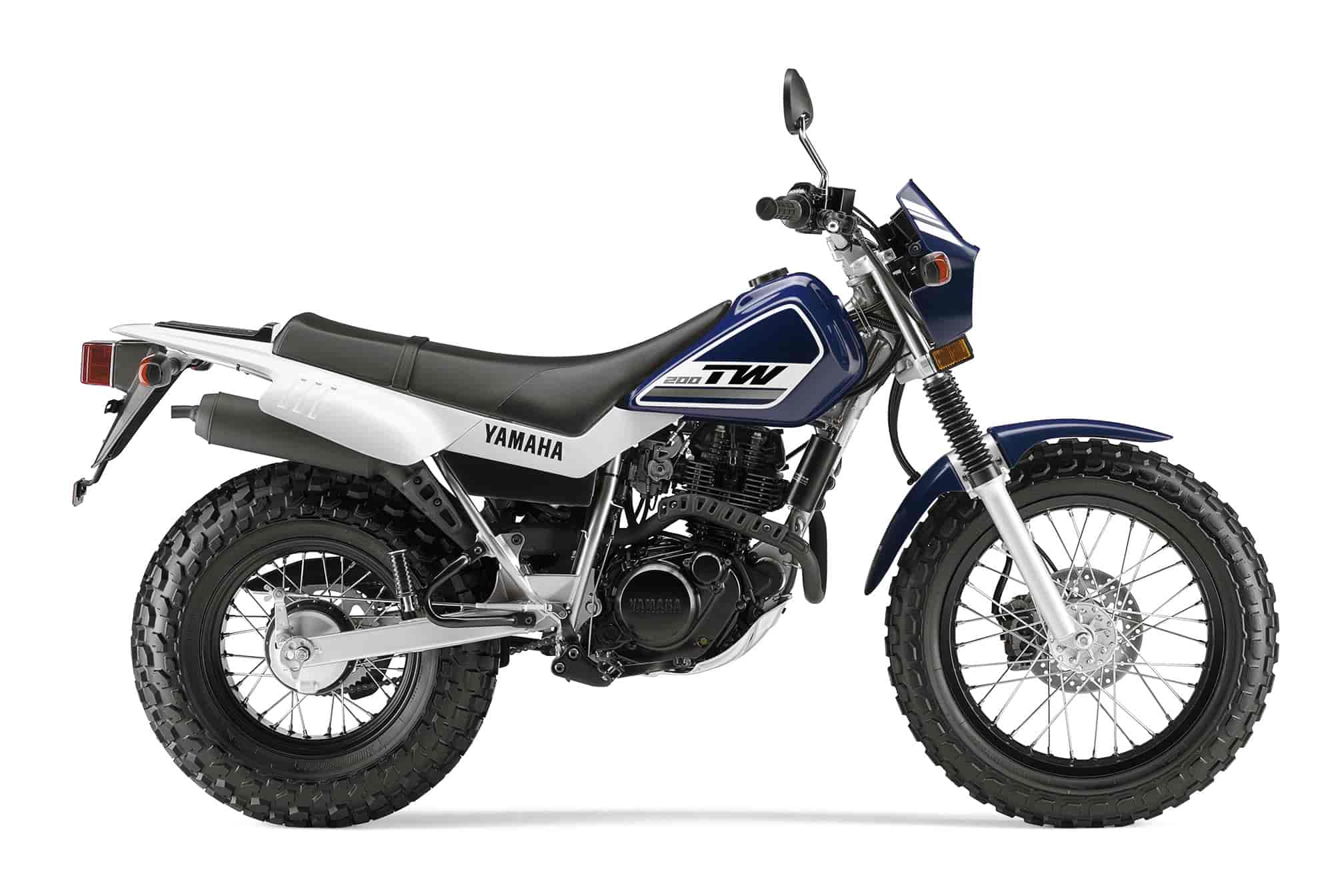

2016 Yamaha TW200

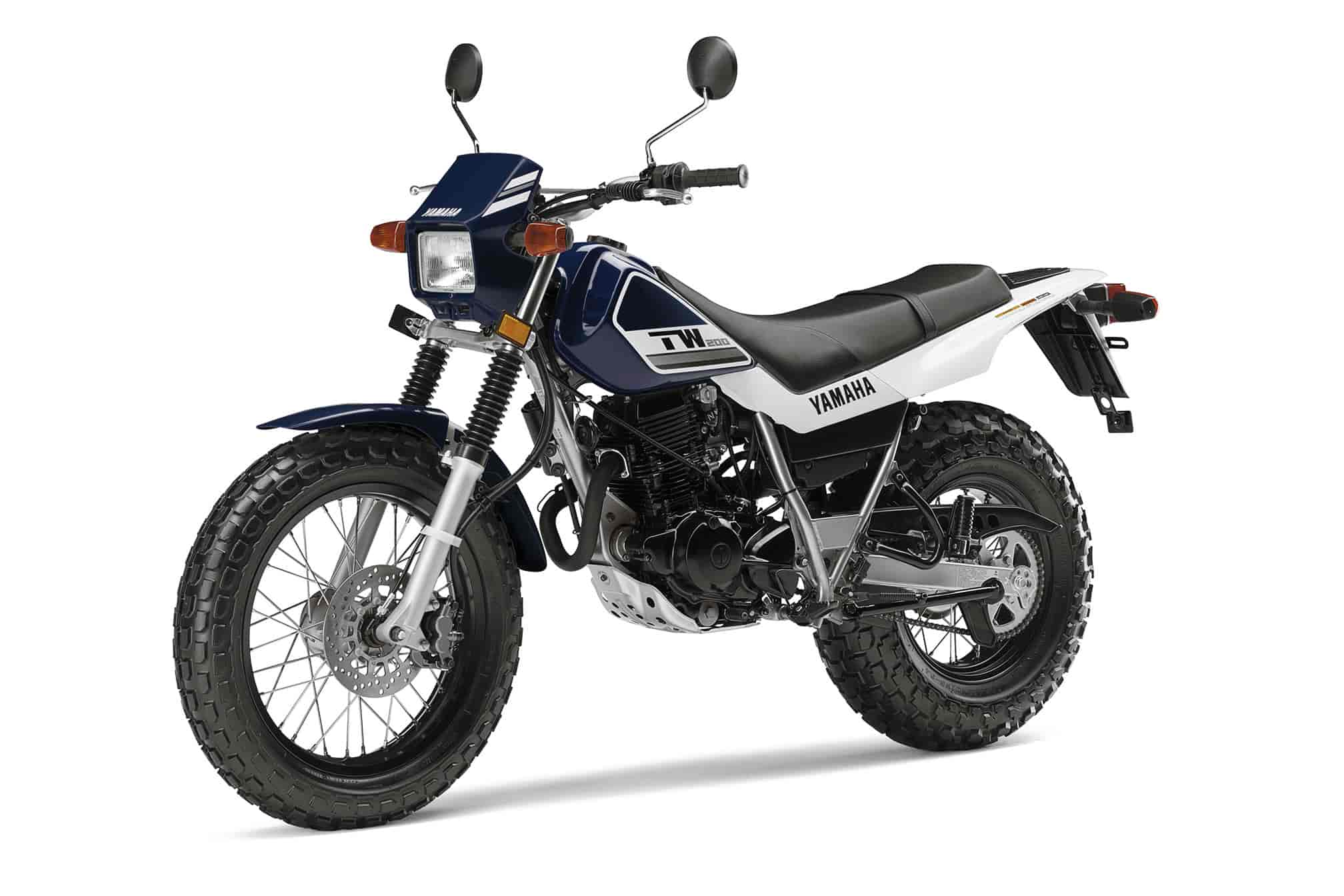

2016 Yamaha TW200

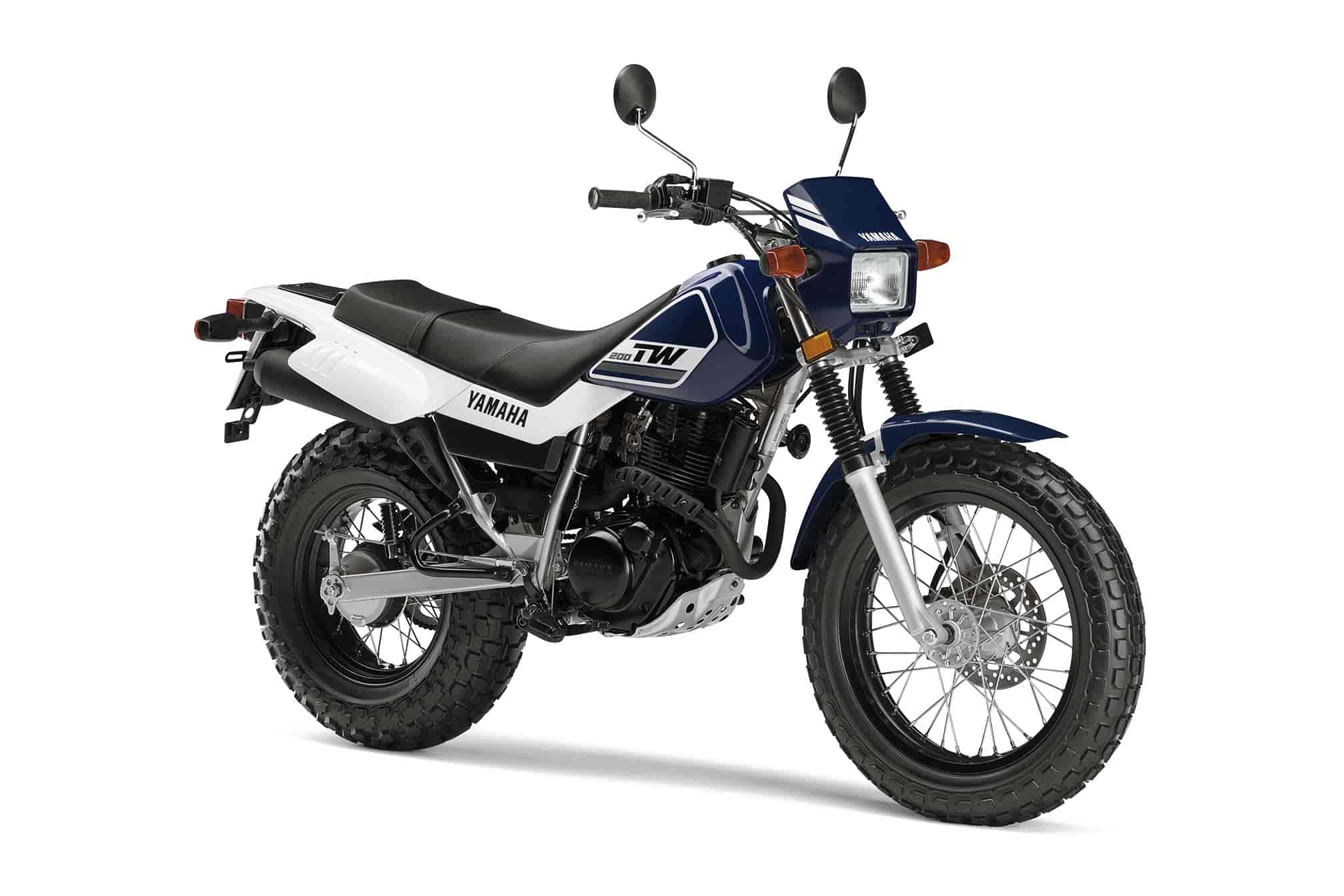

2016 Yamaha TW200

2016 Yamaha TW200



2016 Yamaha TW200 Review

2016 Yamaha TW200 on www.Totalmotorcycle.com

Versatility, comfort and extra-low seat height for a smooth ride from streets to trails…

ULTRA-DUAL SPORT

TW200 features a reliable engine, electric start and full street equipment for comfortable on and off-road capability.

Conquer Dirt

A low seat, great handling, extra wide tires, and, most importantly, a burly 4-stoke engine, have cemented the TW200’s reputation as a unique, fun loving dual purpose ride. Whether you’re a beginner or a veteran; a camper or a city dweller, this bike guarantees good times.

/// Power
Proven, 196cc, air-cooled, SOHC, 2-valve, 4-stroke single delivers torquey low- and mid-range power perfectly suited to off-road exploring or riding around town.

/// Comfort
Internal engine counter balancer provides smooth performance while the wide tires provide plenty of grip and a unique style. The long, wide seat design means lots of comfort whether exploring or commuting.







2016 Yamaha TW200 www.Totalmotorcycle.com Key Features

Terrain-Conquering Tires
Those big fat tires deliver great traction and rider comfort over a wide range of terrain, and they make the TW200 the most distinctive-looking, dual-purpose machine around.
•Low Seat Height
A low seat and compact chassis help inspire confidence in anybody who rides the TW200, making it one of the most user friendly on/off-road bikes on the market.
•Electric Start
Electric start and full street equipment mean it’s super convenient to ride the TW200 just about wherever you need to go.



2016 Yamaha TW200 www.Totalmotorcycle.com Features and Benefits

ENGINE

Torquey Powerplant
Strong-pulling 196cc air-cooled, four-stroke single delivers torquey low-and mid-range power perfectly suited to off-road exploring.
•5-Speed Transmission
Smooth-shifting five-speed transmission with manual clutch puts potent powerband to the ground for maximum on- and off-road performance.
•Smooth, Counterbalanced Engine
Internal engine counterbalancer keeps vibrations down for greater all-day comfort.
•Digital Ignition
Maintenance-free CDI ignition system ensures precise, reliable spark for peak engine performance at all rpm.
•Electric Start
Easy, reliable pushbutton electric starting.
•Low Maintenance Engine
Automatic cam chain tensioner means minimal maintenance and longer engine life.



CHASSIS / SUSPENSION

Plush, Long-Travel Suspension
33mm telescopic front fork with 6.3 inches of travel soaks up the bumps for a plush ride.
•Terrain-Conquering Tires
Fat 130/80-18 front and 180/80-14 rear tires provide excellent traction, control and the TW200’s unique dual-purpose style.
•Lightweight Swingarm
Lightweight box section swingarm and single rear shock with 5.9 inches of travel help enhance handling and overall comfort both on- and off-road.
•Disc Brake
Hydraulic front disc brake ensures greater stopping power with less effort.



ADDITIONAL FEATURES

Comfortable Saddle
Long, two-tone, motocross-style seat creates a balanced riding position for optimal rider movement and comfort.
•Protective Fenders
Durable and wide front fender is designed to keep mud and dirt off the rider off-road.
•Passenger-Ready
Frame-mounted passenger foot pegs provide two-up riding capability.
•Bright Illumination
Enduro-style, 60/55-watt halogen headlight features high/low beams.
•Dual Sport Lighting
Flex-mounted turn indicators offer greater durability against breakage.
•Fork Protection
Durable fork shrouds help prevent rocks and debris from damaging fork sliders.
•Complete Instruments
Standard instrumentation includes a speedometer with odometer and resettable tripmeter as well as indicator lights for neutral, high beam and turn signals.
•Modern Battery
Dependable, low-maintenance battery.



---



2016 Yamaha TW200 – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $4,590 – Mineral Blue – Available from October 2015

Engine
Engine Type
196cc air-cooled SOHC 4-stroke; 2 valves
Bore x Stroke
67.0mm x 55.7mm
Compression Ratio
9.5:1
Fuel Delivery
Mikuni® 28mm
Ignition
CDI
Transmission
Constant-mesh 5-speed; multiplate wet clutch
Final Drive
Chain

Chassis
Suspension / Front
Telescopic fork; 6.3-in travel
Suspension / Rear
Single shock; 5.9-in travel
Brakes / Front
Single disc, 220mm
Brakes / Rear
Drum, 110mm
Tires / Front
130/80-18
Tirres / Rear
180/80-14

L x W x H
82.3 in x 32.3 in x 44.1 in
Seat Height
31.1 in
Wheelbase
52.2 in
Rake (Caster Angle)
25.8°
Trail
3.4 in
Ground Clearance
10.4 in
Fuel Capacity
1.8 gal
Fuel Economy
78 mpg
Wet Weight
278 lb

** Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha.
Your actual mileage will vary depending on road conditions, how you ride and maintain your vehicle,
accessories, cargo and operator/passenger weight.
*** Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as
applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is
useful in making real-world comparisons with other models.



---



2016 Yamaha TW200 – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: Starting from $4999 CDN

/// ENGINE
ENGINE
4-stroke, Air-cooled, SOHC, 2-valve, single
DISPLACEMENT
196cc
BORE AND STROKE
67 x 55.7mm
COMPRESSION RATIO
9.5:1
MAXIMUM TORQUE
1.4kg-m (10.1ft-lb)@ 7,000 rpm
FUEL DELIVERY
Teikei MV28
ESTIMATED FUEL CONSUMPTION±
33kpl / 93.2mpg (Imp.)
IGNITION / STARTING
CDI / Electric Start
TRANSMISSION
5-speed
FINAL DRIVE
Chain

/// CHASSIS
SUSPENSION (FRONT)
33mm fork / 160mm (6.3″) travel
SUSPENSION (REAR)
Monocross / 150mm (5.9″) travel
BRAKES (FRONT)
220mm disc / twin piston
BRAKES (REAR)
Drum
TIRES (FRONT)
130/80-18
TIRES (REAR)
180/80-14

/// CRITICAL DATA
LENGTH
2,090mm (82.3″)
WIDTH
820mm (32.3″)
HEIGHT
1,120mm (44.1″)
WHEELBASE
1,325mm (52.2″)
GROUND CLEARANCE
265mm (10.4″)
SEAT HEIGHT
790mm (31.1″)
FUEL CAPACITY
7 litres (1.5 imp. gallons)
WET WEIGHT
126kg (278 lb)
COLOUR(S)
Mineral Blue

Specifications, appearance, and price of product are subject to change without notice.
* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less. See your local dealer for out the door pricing.
± Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha and converted into Canadian measurements. Your actual mileage will vary depending on road condition, how you ride, maintain your vehicle, accessories, cargo and operator/passenger weight.

---



2016 Yamaha TW200 – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: See Dealer for pricing in GBP (On The Road inc 20% Vat)

Not Available

*Starting at MSRP is the manufactured suggested price and excludes delivery, setup, tax, title, license, and additional fees and expenses. Bikes may be shown with optional accessories. Final sale price determined by an authorized dealer. Specifications and MSRP are subject to change.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
