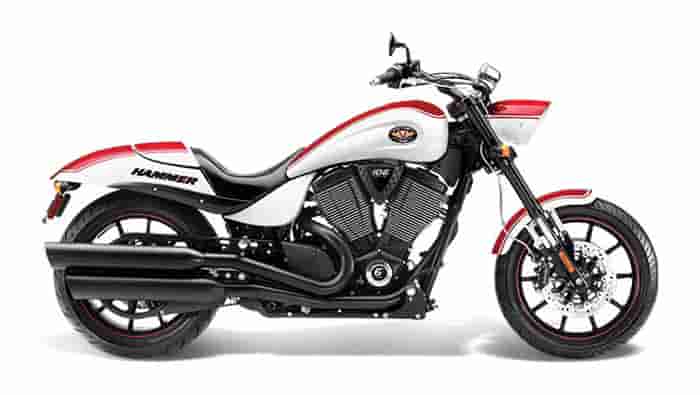

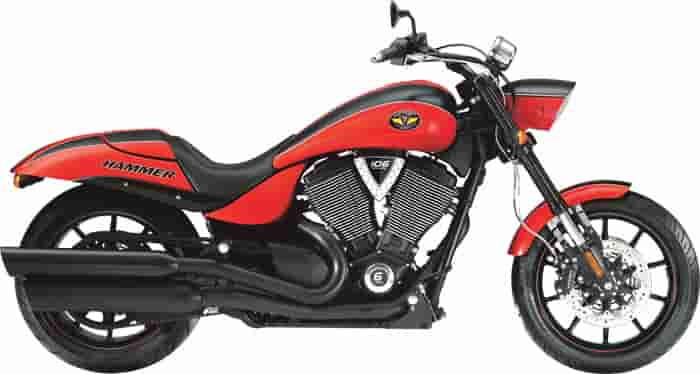

2012 Victory Hammer S
2012 Victory Hammer S
2012 Victory Hammer S
2012 Victory Hammer S
2012 Victory Hammer S
2012 Victory Hammer S
2012 Victory Hammer S Review
A Muscle Cruiser with a Sport Bike Soul.
At the intersection of sporty styling and cruiser muscle are the Hammer and Hammer S. Minimal, sporty bodywork highlights the meaty 250mm rear tire and the dual disk brakes up front. The Hammer S is a limited-edition model with special muscle car-inspired styling.
Go one-step further than the Hammer with the Hammer S V-Twin cruiser motorcycle wide tire cruiser motorcycle. We take the raw aggression that riders love about the Hammer and push it to another level with the styling on this machine. Blacked out custom detail and exhaust provides a striking contrast to the custom painted wheels and hard-to-miss paint job.
Add that to the power of the 106 cubic-inch Freedom V-Twin engine that drives 97 horsepower and 113 ft.-lb. of torque to provide you with an unforgettably powerful ride on an unforgettable bike. This V-twin cruiser is the height of style and performance. Nobody is going to miss this machine rolling down the highway or the city streets.
The style takes the aggression of the Hammer model and steps it up. The suede red and black color scheme with the white stripe immediately brings to mind the muscle cars and cruisers of the past.
PROVEN OUTSTANDING RELIABILITY
Victory has a track record of consistently outstanding reliability and dependability, which has led to the industry’s highest customer satisfaction ratings. This proven reliability, along with the new transmission design, allows Victory to recommend extended oil service intervals for 2011 drivetrains.
o The recommended oil change interval for 2011 models is every 5,000 miles (8,000 km).
o Less-frequent oil changes results in a lower cost of ownership.
NEW TRANSMISSION
The Victory drivetrain team scrutinized every component of the engine and transmission and fine-tuned the designs and performance of numerous parts. Approximately 40% of the drivetrain is new for 2011, with the transmission receiving so many improvements it is virtually a new transmission.
The changes: improved manufacturing efficiency and quality assurance; enhanced drivetrain’s already-impressive reliability; improved engine performance; and, for riders, improved ridability and delivered a more appealing-sounding transmission.
o In terms of operating sound, selected modulation frequencies have been eliminated. This produces a more-appealing sound – consistently in each gear. In 4th and 6th gears in particular, gear whine has been reduced.
o Driveline lash has been reduced by 66%.
o “Neutral Assist” has been added to make it easier for a rider to shift into neutral when stopped. This will reduce the rider’s effort, will reduce clutch wear and will lessen the performance demands on the oil.
ENHANCED INSTRUMENTATION
All cruisers now have instrumentation similar to that of the Victory Cross Roads, which provides a rider with a wealth of information in one, easy-to-read location. The new instrumentation includes:
o An analog speedometer, which may be set to show MPH or KPH.
o Blue backlighting.
o A large LCD that displays: Clock (time of day is viewable at all times), gear position, tachometer and diagnostic readouts for Victory dealership service technicians.
o The gauge face includes lights such as high-beam and neutral indicators and the oil warning light. Cruisers no longer have these indicator lights atop the triple clamps.
o The Cross Roads instrumentation also has an always-viewable fuel gauge.
CHASSIS CHANGES ACROSS THE LINEUP
All brake calipers, rotors, lower belt guards, and floorboards are black.
o All left- and right-hand switch cubes are black, as are the audio control switch block and cruise control switch block.
o The triple clamp is black on all models except the Hammer S Jackpot (which retains its chrome triple), and the Victory Cross Roads (which retains its brushed finish).
o A new side stand on each model features an integrated hooked-end design for easy locating and easy control of the side stand.
o All cruiser exhausts have a larger outlet for improved sound quality and a lower exhaust note.
2012 Victory Hammer S Model Highlights
– 106 cubic-inch Freedom V-Twin Engine
– 113 ft lbs torque
– Muscle car styling
o Sport-styled bodywork, with high rear fender exposing the 250mm rear tire.
o Dual front disk brakes and inverted forks.
o Colour-matched cowl detaches to reveal passenger seat.
o Chrome bracket holds tachometer and new speedometer (which can show MPH or KPH) featuring blue backlighting, indicator lights on the gauge face and large LCD that provides: Clock (viewable at all times), gear position, odometer, trip meter and diagnostic readouts.
o Hammer S has numerous blacked-out components, custom painted wheels, and custom paint
What’s New for 2011?
o Freedom® 106/6 Stage 2 V-Twin
o New 6-speed transmission with overdrive.
o Hammer S has new custom styling, as it does each year.
2011 Hammer Colour
o Solid Black
o Poison Green
2011 Hammer S Colour
o Suede Black and Red with White Stripes
o White and Black matte
Pure Victory Accessories Available for the Hammer Models Include:
oNew X-Bow and Tri-Pro Stage 1 Performance Exhausts.
o Large selection grips, lower controls, covers and trim in varied finishes and designs.
o New speedometer features blue backlighting, indicator lights on the gauge face and large LCD that provides: Clock (viewable at all times), gear position, tachometer, odometer, trip meter and diagnostic readouts.
2012 Victory Hammer S Features and Benefits
106 CUBIC-INCH FREEDOM V-TWIN
Whether you’re finding your way across town or cruising the city’s glass canyons, the Freedom V-Twin power plant delivers 97 horsepower and 113 ft lbs of green-light torque with ultimate authority. The heart of every Victory Cruiser machine, it informs the world of your arrival with every crack of the throttle.
6-SPEED OVERDRIVE TRANSMISSION
The best performing transmission on the street collects the power generated by the massive V-twin and allows the Hammer S to roll fluidly between the curbs. Helical-cut gears ensure that each shift will be as smooth and clean as the bike itself.
113 FT LBS TORQUE
Press the starter and you can feel deep in your chest an eruption of low-end torque. With each precision-tuned piston stroke, the Freedom V-Twin’s 4-valve overhead cams and perfectly matched 6-speed overdrive transmission promise to provide unmatched throttle response, acceleration and passing power.
DUAL-DISC BRAKES AND INVERTED FRONT FORK
When it comes to muscle cruisers, Hammer S definitely knows its own strength. Three hundred millimeter floating rotors equipped with 4-piston calipers provide the kind of sure-footed stopping that inspires confident riding. The inverted cartridge telescopic fork has 5.1″ of road-smoothing travel, and awards a Hammer S rider with smooth easy steering, in town and on the open road.
250-MM REAR TIRE
Put a 250 mm tire on the back of a muscle cruiser like Hammer S, and rider and machine will both look like they are ready for anything the road has to dish out. In this case, looks aren’t deceiving. This tire will stick to the road no matter the condition, and make any rim proud to be associated with it.
REMOVABLE PASSENGER COWL
Even the most independent of riders feels the need for human interaction once and a while. When that time comes, yank the stylish, color-matched cowl and there’s your passenger’s ticket to ride. When ready to get back to that drag bike demeanor, simply reattach the cowl and return to one-up heaven.
RED WHEEL STRIPE
A sharp looking red wheel stripe reminiscent of racing/muscle car styling makes these custom wheels ideal for the Hammer S. Even while standing still they suggest this is a high performance bike to be reckoned with. Kick the Hammer S into first and there is immediately no doubt .
2012 Victory Hammer S – USA Specifications/Technical Details
USA MSRP Price: $18,499 USD
Engine
Battery 12 volts / 18 amp hours
Bore x Stroke 101 x 108 mm
Charging System 38 amps max output
Clutch Wet, multi-plate
Compression ratio 9.4 : 1
Cooling System Air / oil
Displacement 106 ci / 1731 cc
Engine Type 4-stroke 50° V-Twin
Exhaust Staggered slash-cut dual exhaust with crossover
Final Drive Carbon Fiber Reinforced Belt
Fuel Capacity 4.5 gal / 17.0 ltr
Fuel System Electronic Fuel Injection with dual 45mm throttle body
Oil capacity 5.0 qts / 4.75 ltr
Primary Drive Gear drive with torque compensator
Transmission 6-speed overdrive constant mesh
Valve train Single overhead camshafts with 4 valves per cylinder, self-adjusting cam chains, hydraulic lifters
Chassis
Dry Weight 672 lbs / 305 kg
Ground Clearance 5.8 in / 148 mm
GVWR 1173 lbs / 532 kg
Length 93.1 in / 2366 mm
Rake/trail 32.7o / 5.5 in / 140 mm
Seat Height 26.5 in / 673 mm
Wheelbase 65.7 in / 1669 mm
Suspension
Front Suspension Inverted cartridge telescopic fork, 43 mm diameter, 5.1 in / 130 mm travel
Rear Suspension Single, mono-tube gas, cast aluminum with rising rate linkage, 3.9 in / 100 mm travel, preload adjustable spring
Brakes
Brake System Type Conventional
Front braking system Dual 300mm floating rotor with 4-piston calipers
Rear braking system 300mm floating rotor with 2-piston caliper
Wheels & Tires
Front Tire 130/70R18 Dunlop Elite 3
Front Wheel 18 x 3.5 in
Rear Tire 250/40R18 Dunlop Elite 3
Rear Wheel 18 x 8.5 in
Color
Colors Suede Black & Indy Red; Fireball Red & White Lightening w/ Graphics
2012 Victory Hammer S – Canadian Specifications/Technical Details
Canada MSRP Price: $20,199 CDN
Engine
Battery 12 volts / 18 amp hours
Bore x Stroke 101 x 108 mm
Charging System 38 amps max output
Clutch Wet, multi-plate
Compression ratio 9.4 : 1
Cooling System Air / oil
Displacement 106 ci / 1731 cc
Engine Type 4-stroke 50° V-Twin
Exhaust Staggered slash-cut dual exhaust with crossover
Final Drive Carbon Fiber Reinforced Belt
Fuel Capacity 4.5 gal / 17.0 ltr
Fuel System Electronic Fuel Injection with dual 45mm throttle body
Oil capacity 5.0 qts / 4.75 ltr
Primary Drive Gear drive with torque compensator
Transmission 6-speed overdrive constant mesh
Valve train Single overhead camshafts with 4 valves per cylinder, self-adjusting cam chains, hydraulic lifters
Chassis
Dry Weight 672 lbs / 305 kg
Ground Clearance 5.8 in / 148 mm
GVWR 1173 lbs / 532 kg
Length 93.1 in / 2366 mm
Rake/trail 32.7o / 5.5 in / 140 mm
Seat Height 26.5 in / 673 mm
Wheelbase 65.7 in / 1669 mm
Suspension
Front Suspension Inverted cartridge telescopic fork, 43 mm diameter, 5.1 in / 130 mm travel
Rear Suspension Single, mono-tube gas, cast aluminum with rising rate linkage, 3.9 in / 100 mm travel, preload adjustable spring
Brakes
Brake System Type Conventional
Front braking system Dual 300mm floating rotor with 4-piston calipers
Rear braking system 300mm floating rotor with 2-piston caliper
Wheels & Tires
Front Tire 130/70R18 Dunlop Elite 3
Front Wheel 18 x 3.5 in
Rear Tire 250/40R18 Dunlop Elite 3
Rear Wheel 18 x 8.5 in
Colour
Colours Suede Black & Indy Red; Fireball Red & White Lightening w/ Graphics
